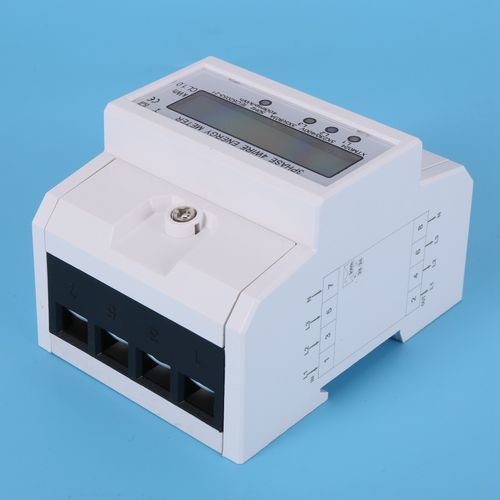

Detailed Information About The Product:LCD backlight display;
8 digit display, 6 + 2 digit display (999999.11 kWh).
Four LED indicators indicate the status of the power supply (A, B, C), the pulse signal (Red) and reverse. Detects and automatically indicates the direction of the charging current.
It is low energy consumption, high precision, high stability and long life.
Configure the standard short terminal cover to protect the use of security and save space. It is a Din-Rail meter with four simple phase modules with transparent measuring box, widely used in the sub-metering system.
Size: Approx. 100 x 76 x 65mm / 3.94 x 2.99 x 2.56 inch
Material: ABS
Color: White
Voltage: 3 * 220 / 380V
Current: 3 * 5 (80A)
Precision class: 1.0
Standard: IEC62053-21
Frequency: 50-60Hz
Maximum current: 100A
Constant pulse: 400imp / kWh
Display: LCD6 + 2
Power Consumption: less than or equal to 2W, 10VA
Starting current: 0.004Ib
Working temperature: -10 ~ 50 Celsius
Storage temperature: -30 ~ 70 Celsius
Working Voltage: 0.9-1.1 Rated Voltage
Maximum voltage: 0.8-1.15 Rated voltage
Average moisture value of the year: less than or equal to 75%
Creep: less than one pulse when the nominal voltage is 115% or the current loop without power.
The package includes:
1 * four-wire triphase electric energy meter
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
