Model |
Protection Board |
Production Country |
China |
Size (L x W x H cm) |
6x4x2 |
Weight (kg) |
0.0095 |
Color |
multicolor |
Main Material |
PCB |
Enhanced version:Suitable for electric drills with a starting current of 120A or less and a power of 260W or less. of application:Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V(including 18650,26650,polymer lithium batteries,no size limit).
Charging voltage:12.6V-13.6V
Continuous discharge current(upper limit):60A(If the heat dissipation environment is not good, reduce the load current)
Color:green
Material:PCB

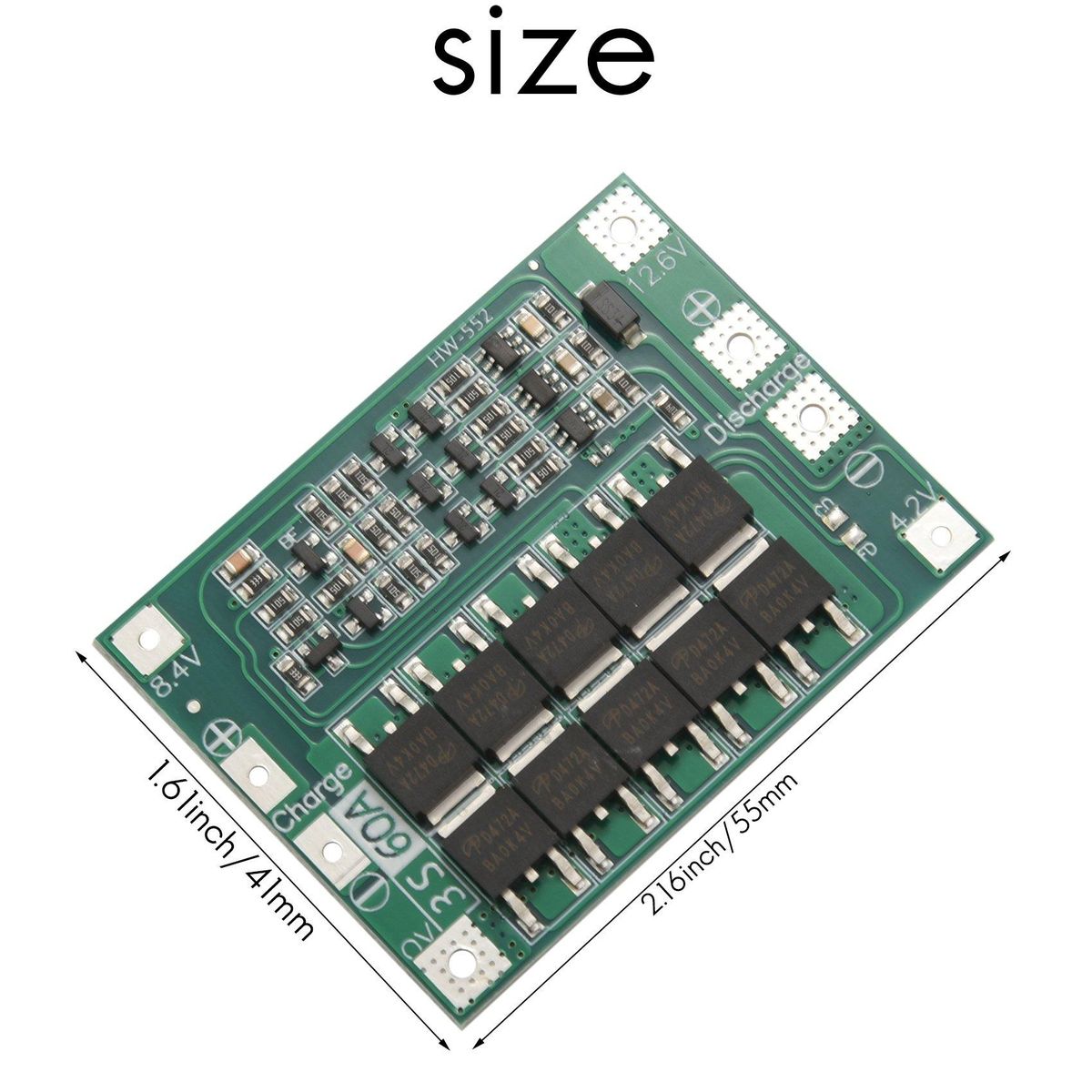

Size:41*55*3.4mm
Package Contents:
1 * Battery Protection Board
Only the above package content, other are not included.
Note: Light and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
3S 60A Protection Board
BMS Protection Board
11.1V 12.6V Protection Board
- Protection Board
Lithium Protection Board
The details are as described above
What's In the Box
1 * Battery Protection Board
