Features:

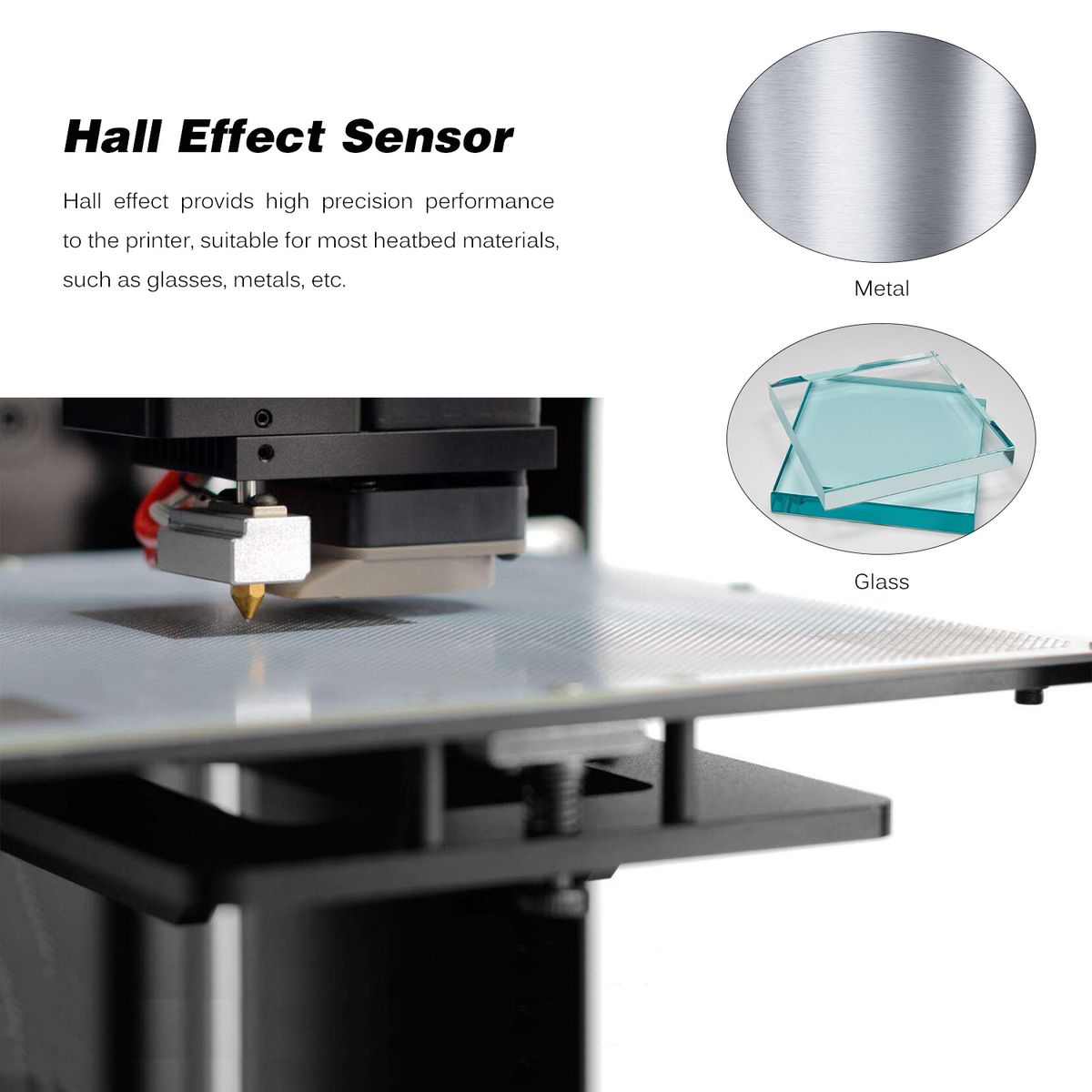

Hall effect provids high precision performance to the printer, suitable for most heatbed materials, such as glasses, metals, etc.
Helps improve the quality of printing and bed adhesion. Adjusts all movement to follow the tilt or contours of the bed, giving enjoyable printing experince for you.

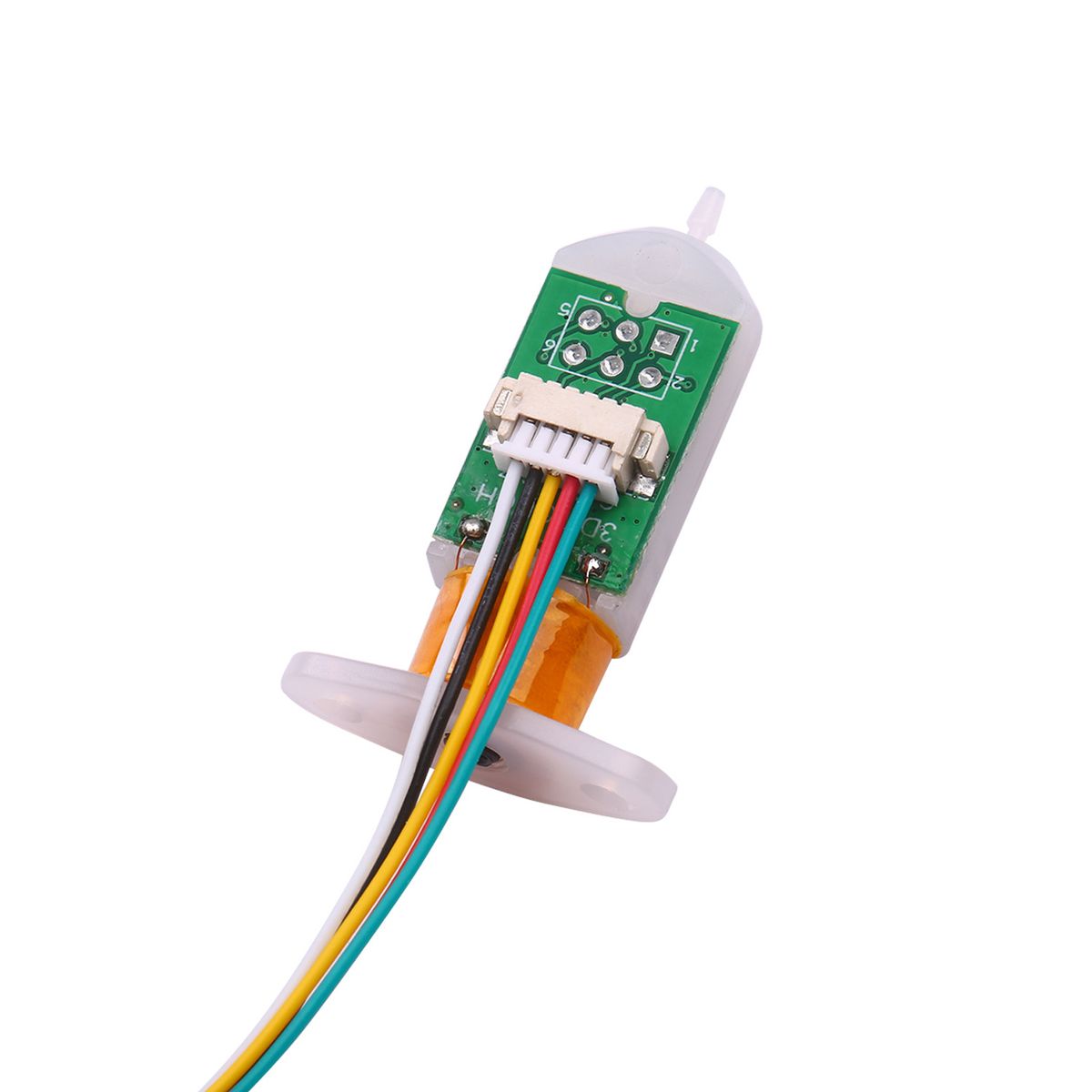

The 3DTouch auto leveling sensor is a device that uses the Hall effect to achieve leveling.

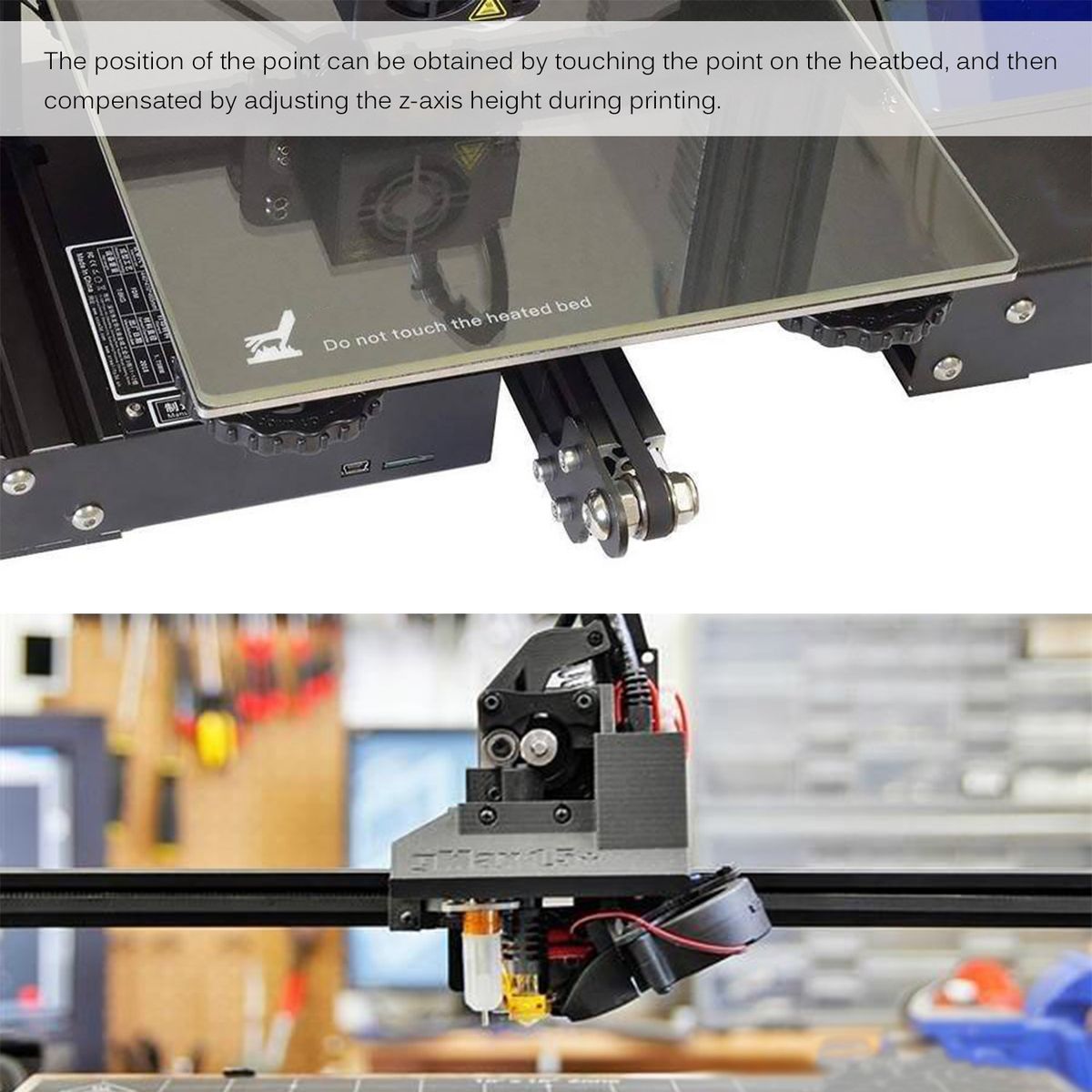

The position of the point can be obtained by touching the point on the heatbed, and then compensated by adjusting the z-axis height during printing.
Printing can also be achieved even though the platform is not flat.
Note:
The auto leveling sensor is not plug and play. Modification is required to your firmware and control board, and soldering work to the connector may needed as well.

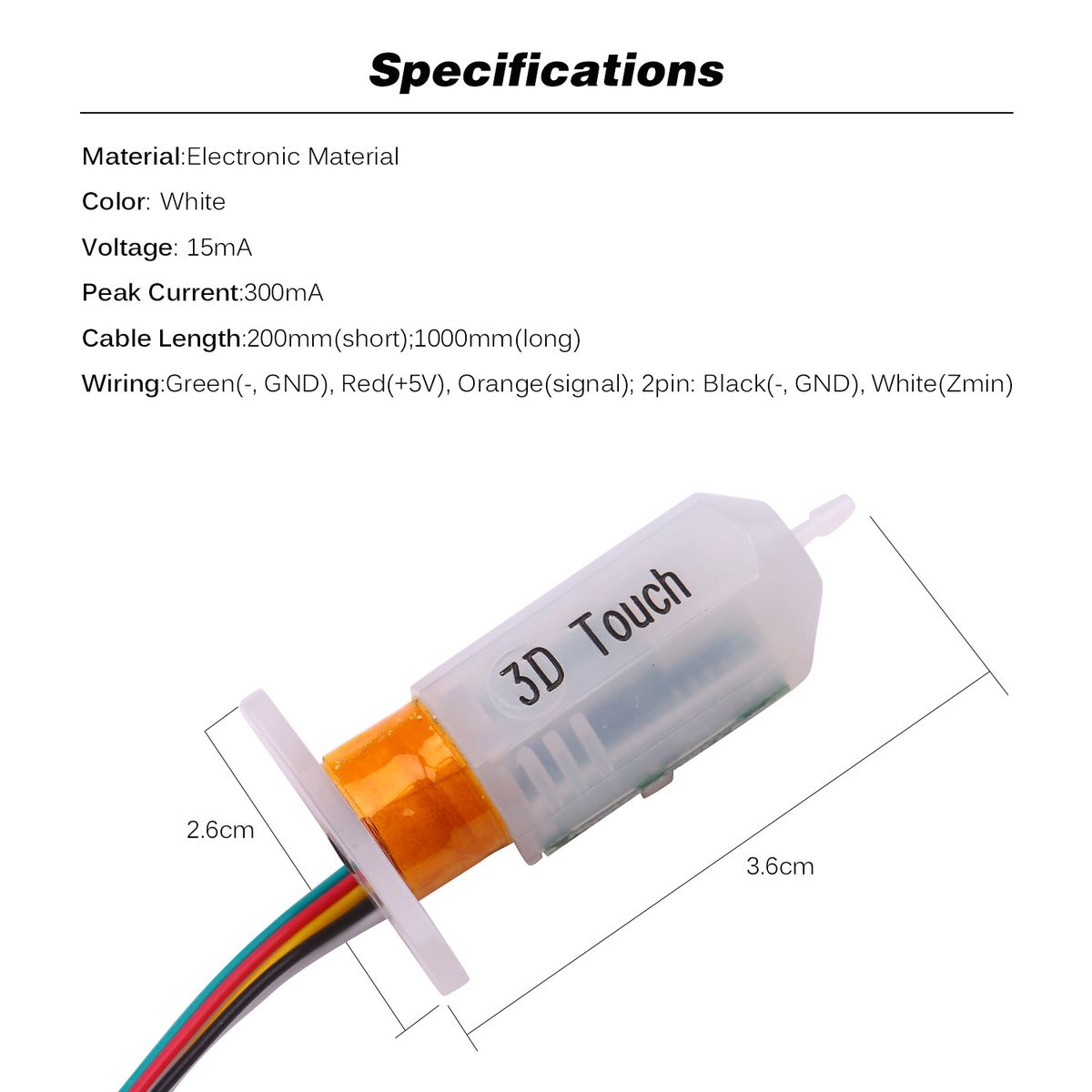

Specifications:
Material: Electronic Material
Color: White
Voltage: 5V
Current: 15mA
Peak Current: 300mA

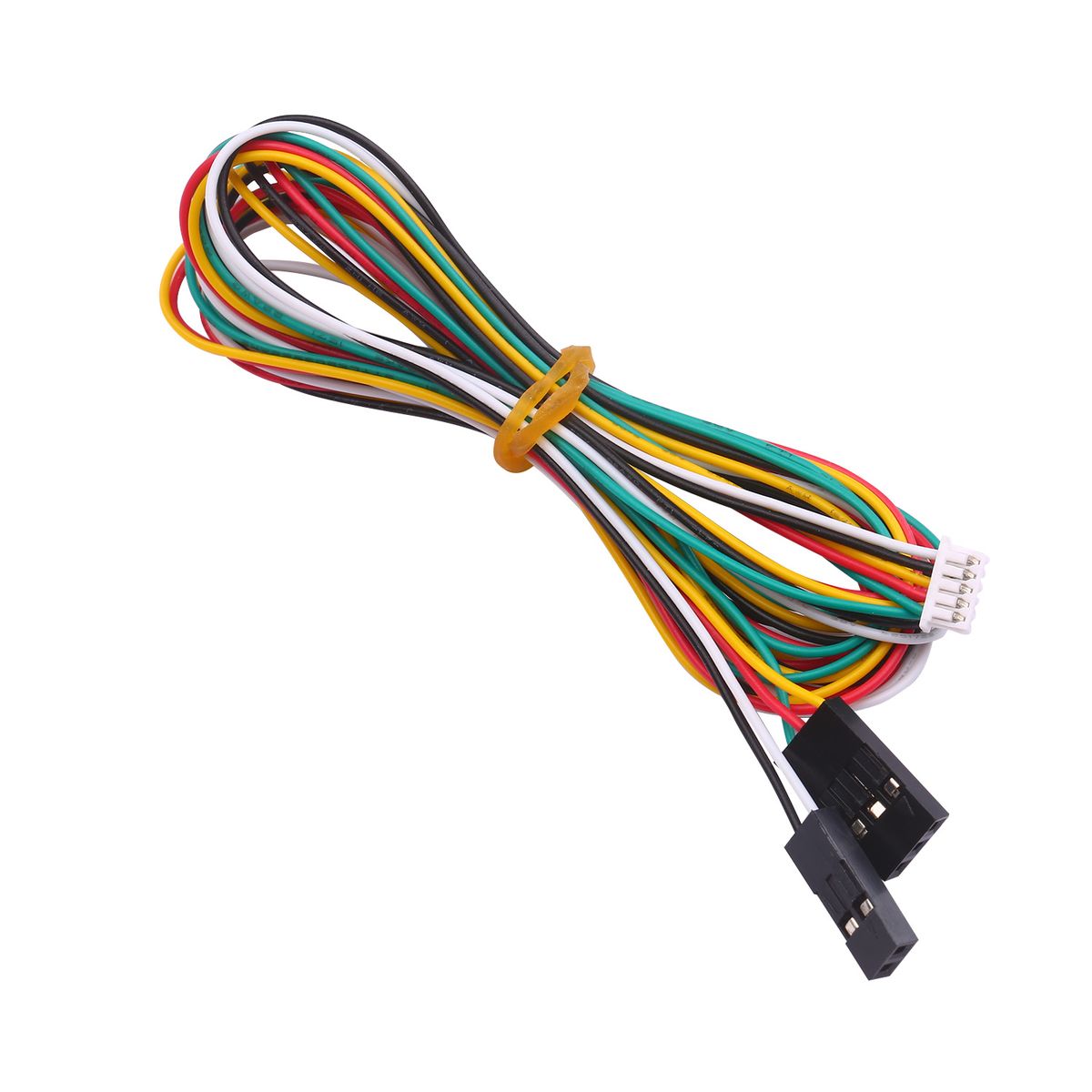

Cable Length: 200mm(short), 1000mm(long)
Wiring: 3pin: Green(-, GND), Red(+5V), Orange(signal); 2pin: Black(-, GND), White(Zmin)

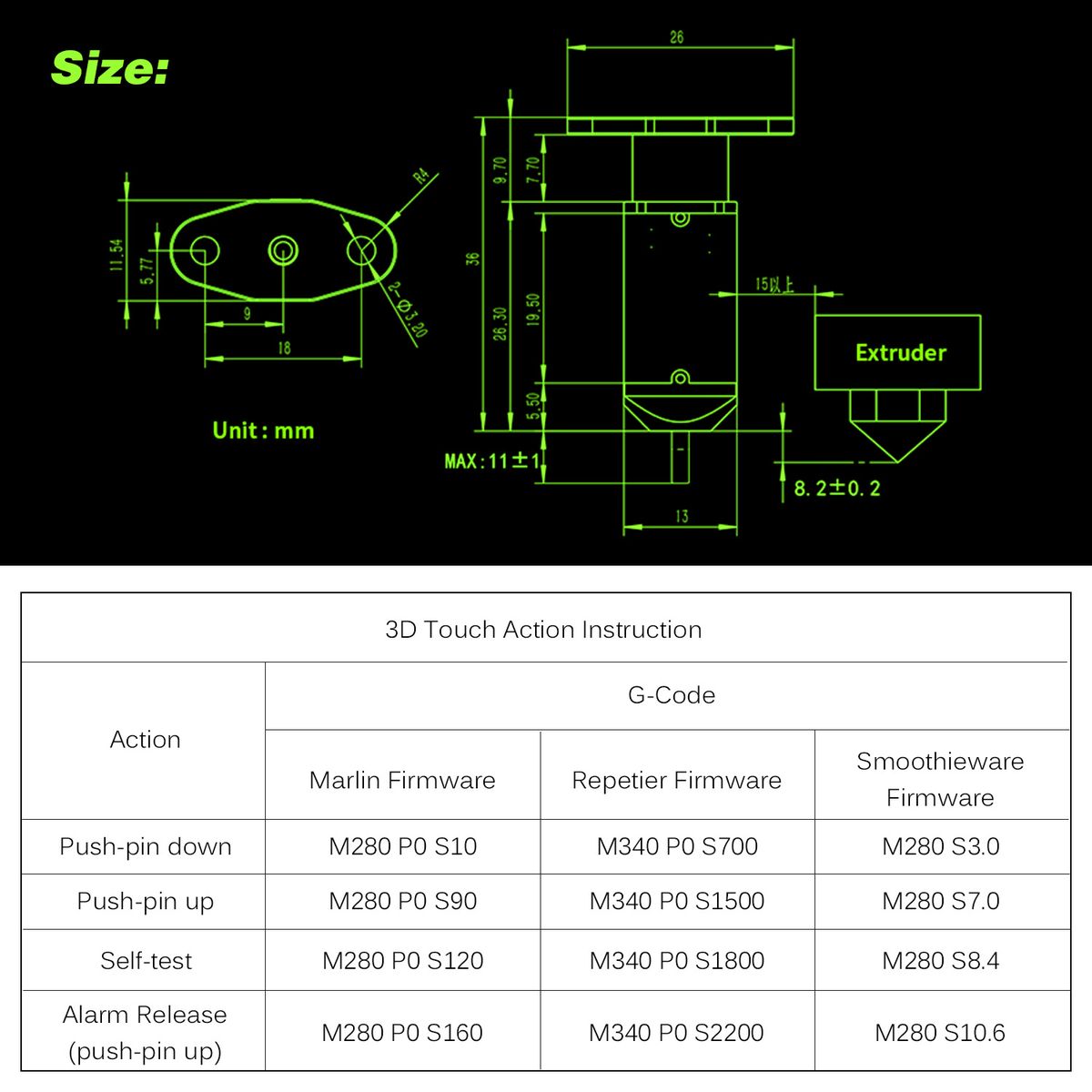

Size: 3.6*2.6*13cm / 1.41*1.02*5.11in
Package Size: 14.5*9.5*1.5cm / 5.7*3.74*0.59in
Package Weight: 24g / 0.84oz

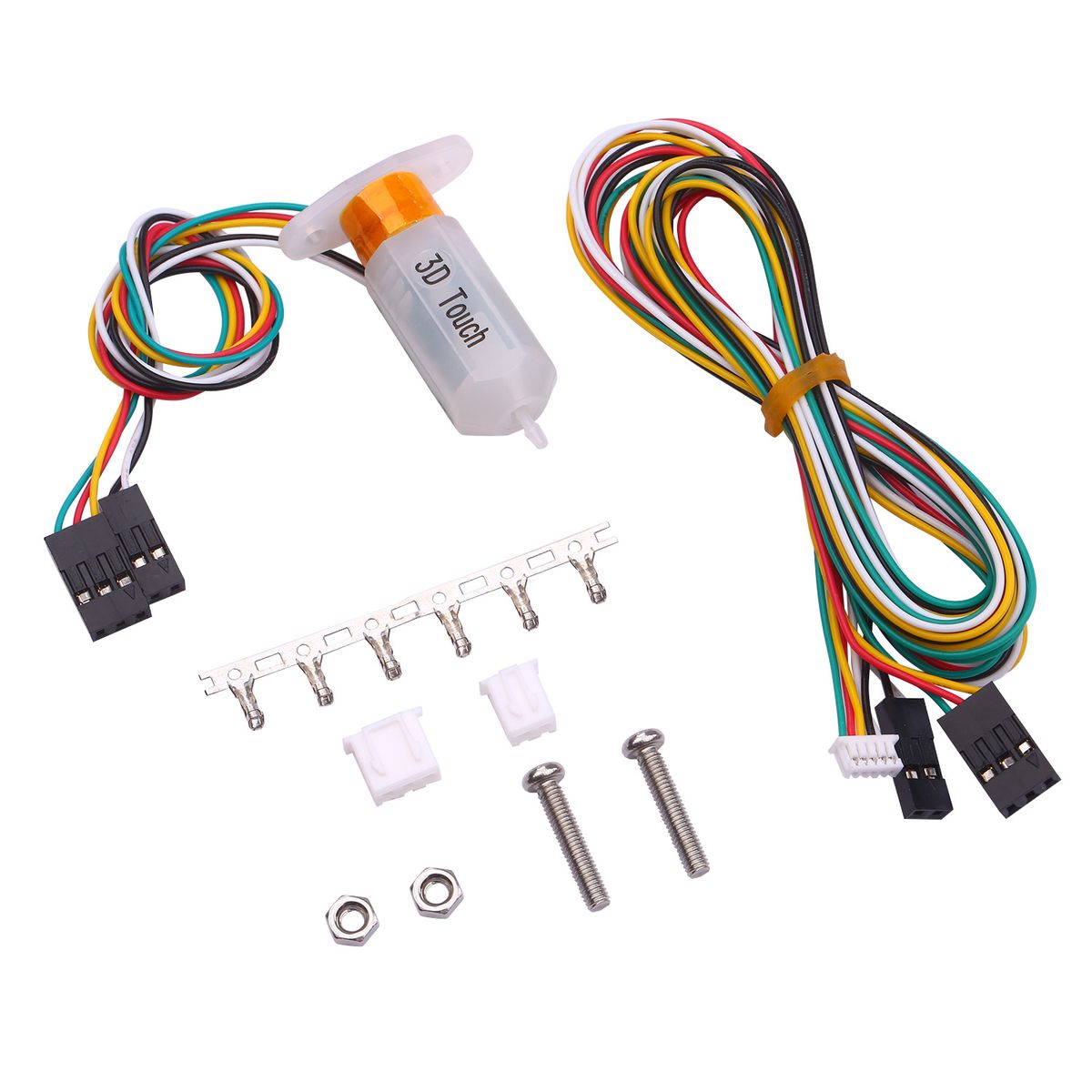

Packing List:
1 * Sensor
1 * Screw Pack
1 * Wire
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Hall effect provids high precision performance to the printer, suitable for most heatbed materials, such as glasses, metals, etc.
Helps improve the quality of printing and bed adhesion. Adjusts all movement to follow the tilt or contours of the bed, giving enjoyable printing experince for you.
The 3DTouch auto leveling sensor is a device that uses the Hall effect to achieve leveling.
The position of the point can be obtained by touching the point on the heatbed, and then compensated by adjusting the z-axis height during printing.
Printing can also be achieved even though the platform is not flat.
