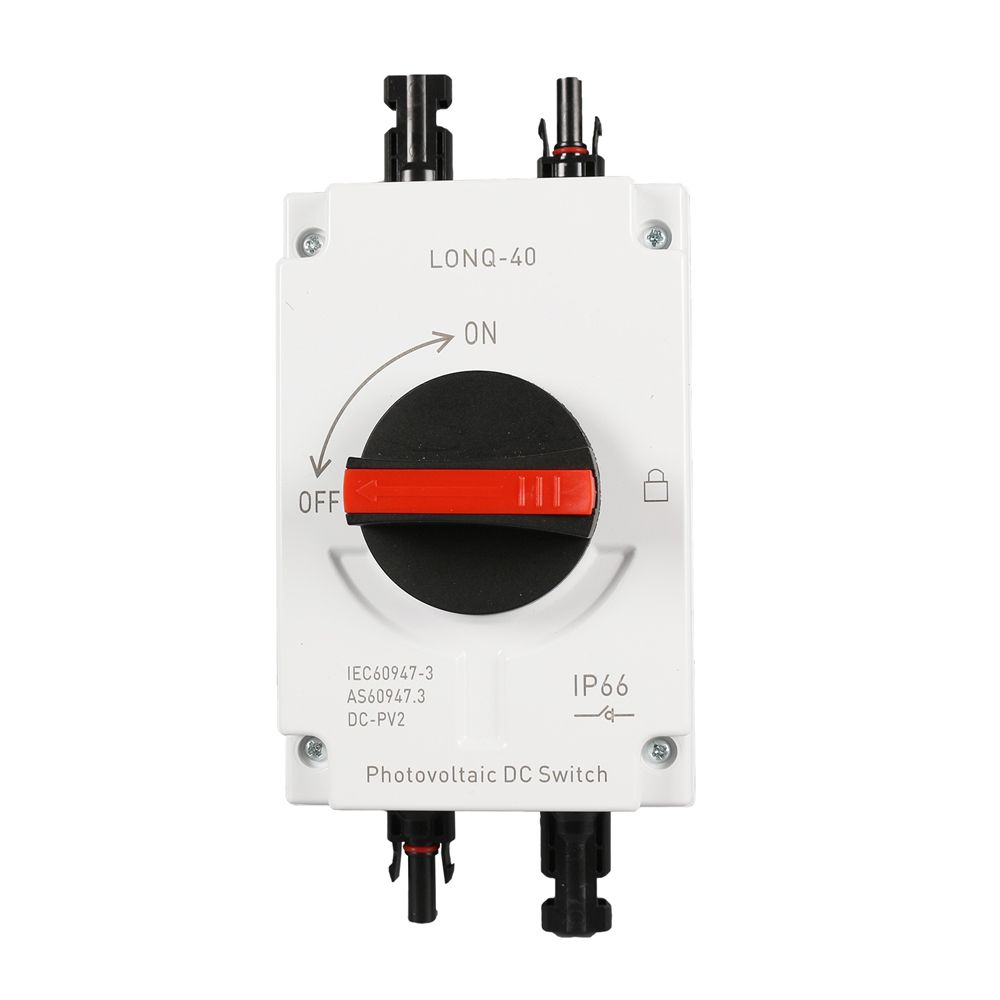

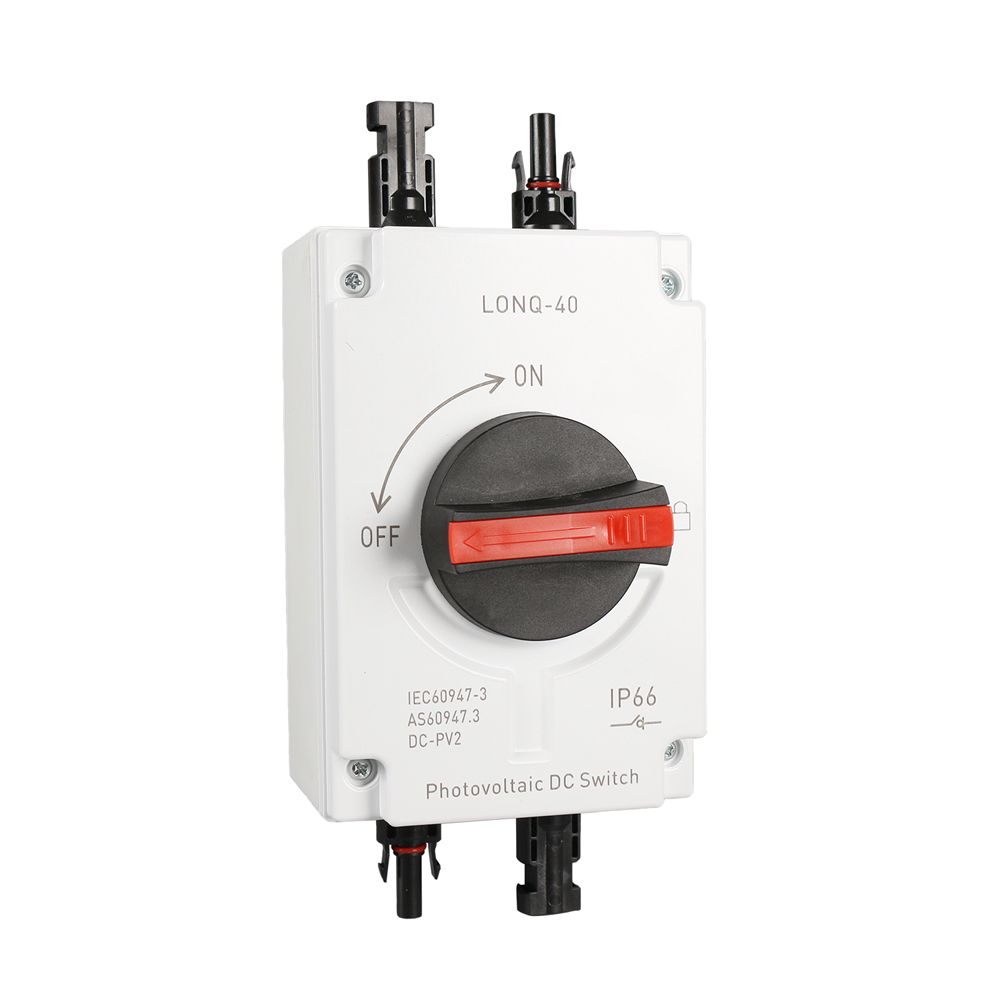

This PV direct current disconnect switch is made of PPE material, with high insulation and fireproof, safer to use. It uses magnetic double arc extinguishing, which can effectively inhibit the arc. Equipped with safety padlock, safer and more reliable to use. Selected premium materials, using high-strength waterproof rings, with nice waterproof and dustproof effect.
Features:Insulation & Fireproof Material: This switch is adopts PPE material, high insulation and fireproof, safer to use.

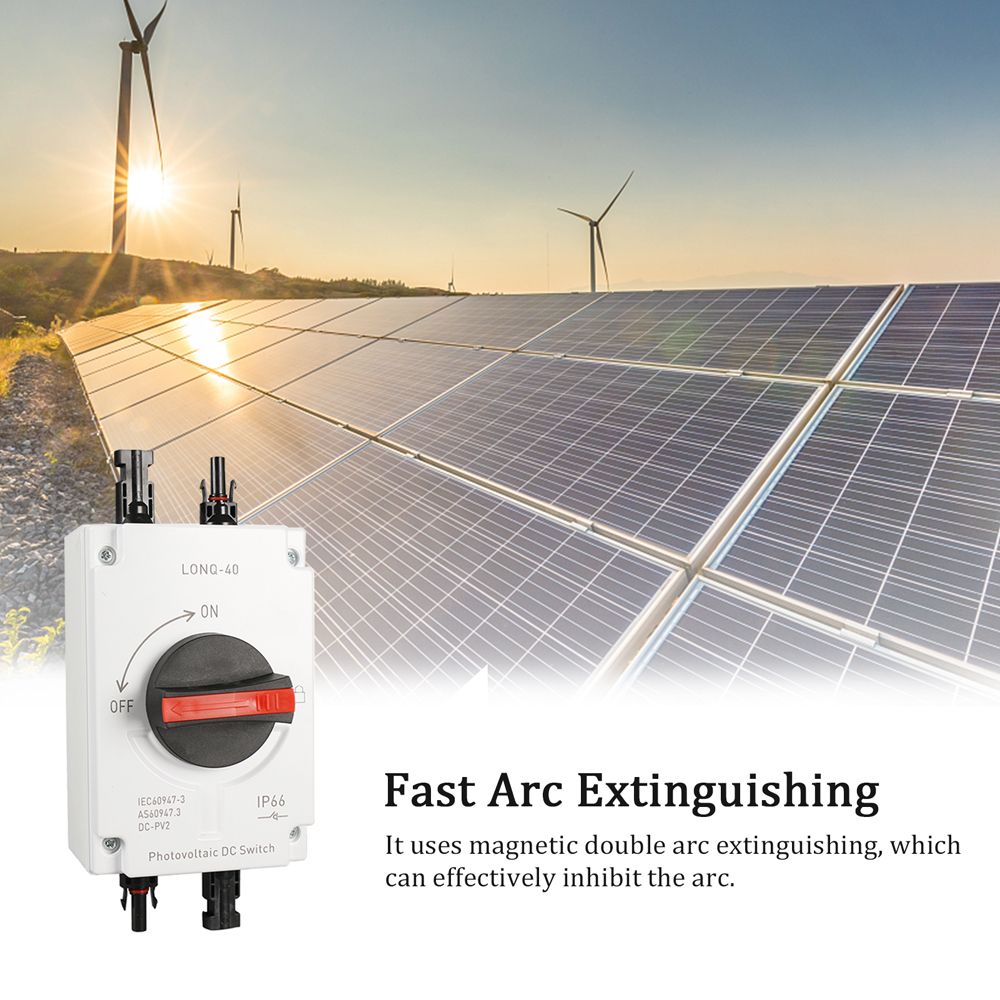

Arc Extinguishing: It uses magnetic double arc extinguishing, which can effectively inhibit the arc.

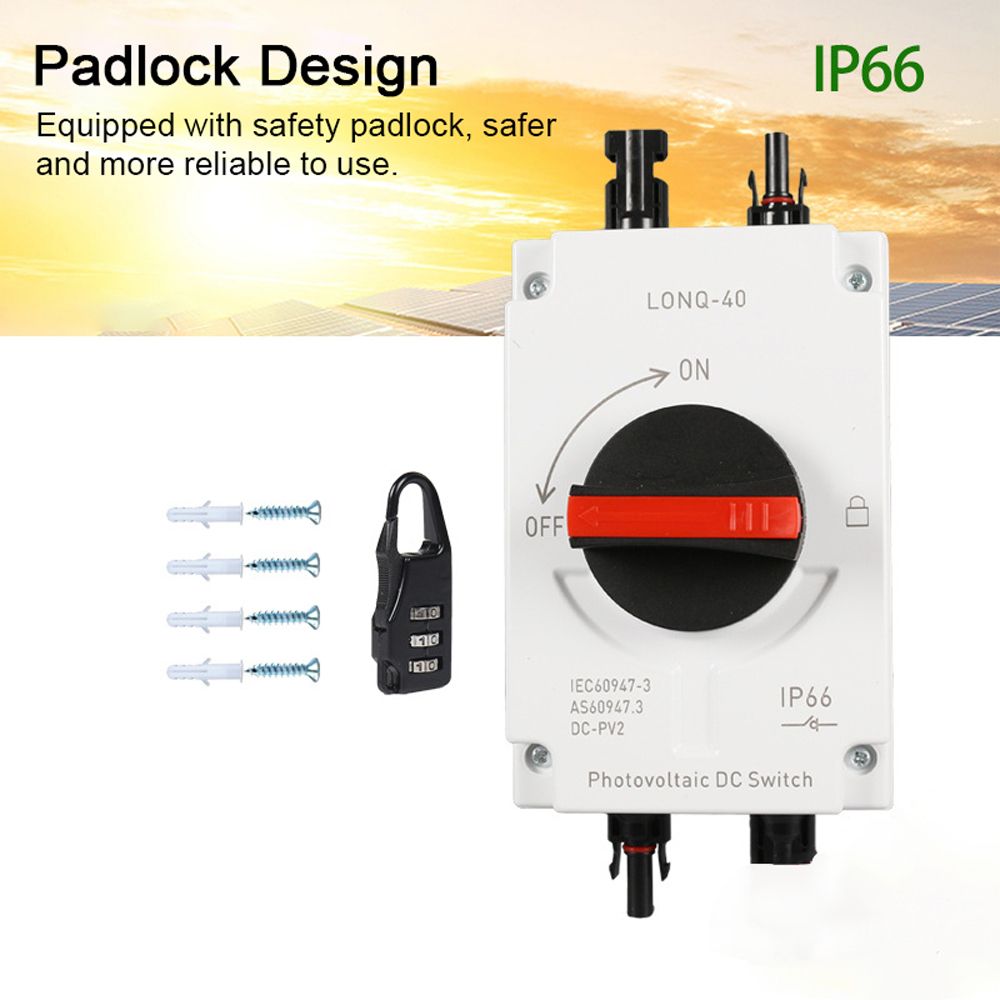

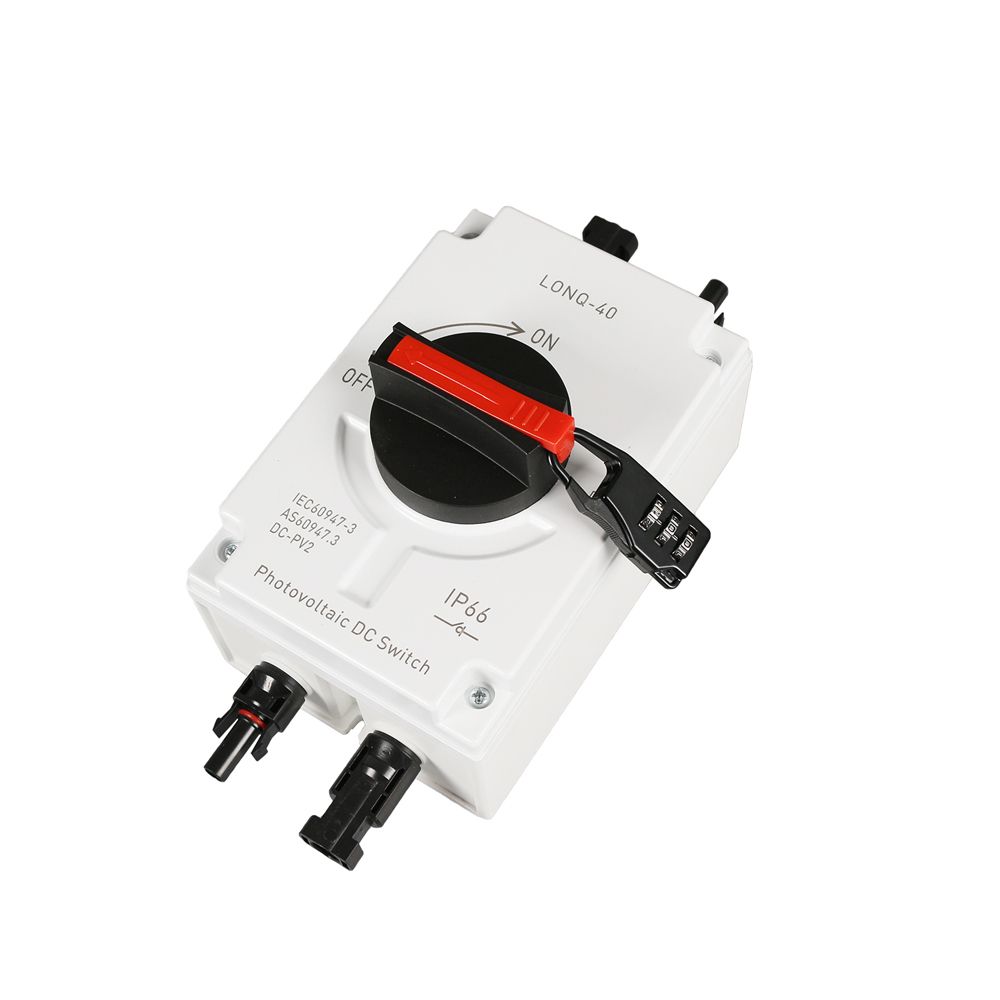

Padlock Design: Equipped with safety padlock, safer and more reliable to use.

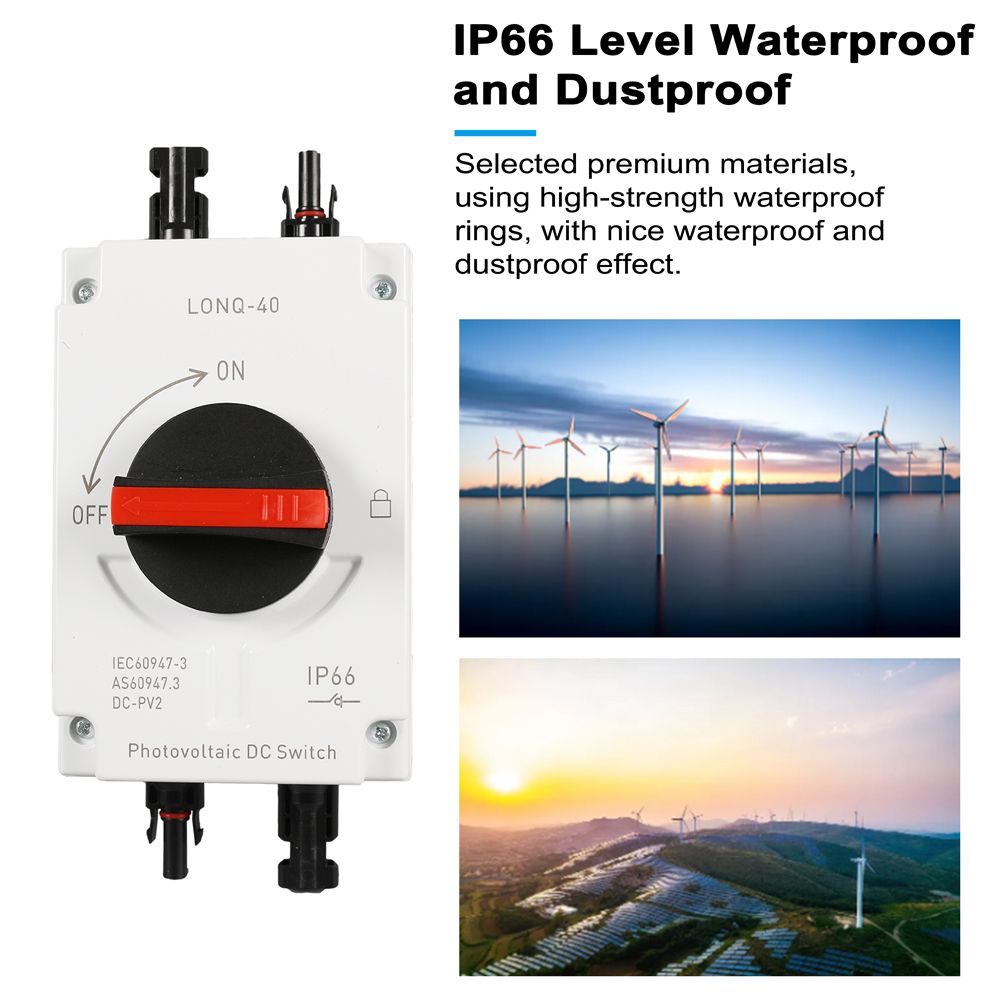

IP66 Level Waterproof and Dustproof: Selected premium materials, using high-strength waterproof rings, with nice waterproof and dustproof effect.
3 Types Optional: There are 3 types available, you can choose common version, upgraded version, two in one out version depending on your needs.
Wide Applications: Widely used in various scenarios, such as generation, oil, metallurgy, ships, public facilities, domestic factories and other construction sites.
Specifications:Name: Photovoltaic Direct Current Switch
Material: PEE
Type: common version, upgrade version, two in one out version
(optional)Pole: 4P
Rated voltage: 300VDC to 1200VDC
Rated current: 32A
Waterproof: IP66
Ambient temperature: -40℃ to +85℃
Insulated voltage: 1500VDC
Item size: 110 * 120 * 160mm / 4.33 * 4.72 * 6.30in
Package size: 260 * 120 * 110mm / 10.24 * 4.72 * 4.33in
Package weight:
Common Version: 750g / 1.65lb
Upgrade Version: 860g / 1.90lb
Two In One Out Version: 970g / 2.14lb
Packing List (Common Version):1 * Photovoltaic Direct Current Switch
1 * Safety Lock
4 * Expansion Screws
4 * Screw
ORPacking List (Upgrade Version):
1 * Photovoltaic Direct Current Switch
1 * Safety Lock
4 * Expansion Screws
4 * Screw
4 * Accessory
1 * Wrench
ORPacking List (Two In One Out Version):
1 * Photovoltaic Direct Current Switch
1 * Safety Lock
4 * Expansion Screws
4 * Screw
6 * Accessory
1 * Wrench
Key Features
Insulation & Fireproof Material: This switch is adopts PPE material, high insulation and fireproof, safer to use.
Arc Extinguishing: It uses magnetic double arc extinguishing, which can effectively inhibit the arc.
Padlock Design: Equipped with safety padlock, safer and more reliable to use.
IP66 Level Waterproof and Dustproof: Selected premium materials, using high-strength waterproof rings, with nice waterproof and dustproof effect.
3 Types Optional: There are 3 types available, you can choose common version, upgraded version, two in one out version depending on your needs.
Wide Applications: Widely used in various scenarios, such as generation, oil, metallurgy, ships, public facilities, domestic factories and other construction sites.
What's In the Box
(Common Version):,1 x Photovoltaic Direct Current Switch,1 x Safety Lock,4 x Expansion Screws,4 x Screw,
