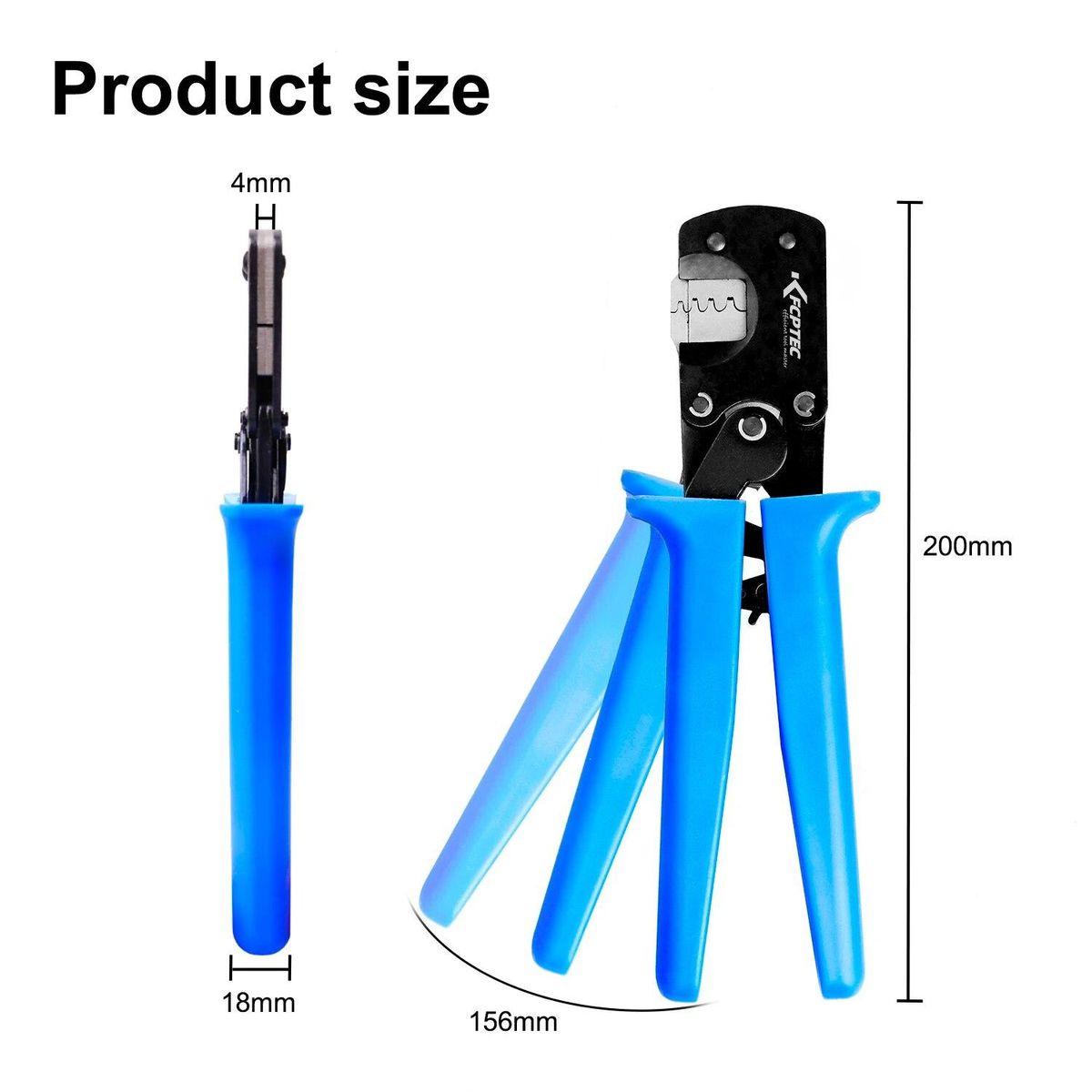

Size (L x W x H cm) |
20 x 8 x 2 cm |
Weight (kg) |
0.4 |
This clamp can press 1.25 one point two seven Terminals with 2.0, 2.5 and 2.54 spacing
Including pH, PA, PhD, ydh200, smh200, San
Suitable for DuPont terminal 2.0, XH / tjc3, ha, xhb, eh, SCN, 5264, 250, LGC, ch2.5
EI / Xiao Si P, S11, HR, yh025, 35155, 5102 / 5240, smh250 / smp250, 2048hs, 25045hp, SM
Applicable to tjc8 / DuPont, tjc8a, 5051 / 2510
Applicable to meishangmei, ch10, 25415
The terminals of the above models can be crimped.
Suitable for crimping: xh2.54xh2.5ph2.0 double row phd2.0sm2.5 male and female pins scn2.5san2.55264 and other wiring copper cold pressed terminals
Key Features

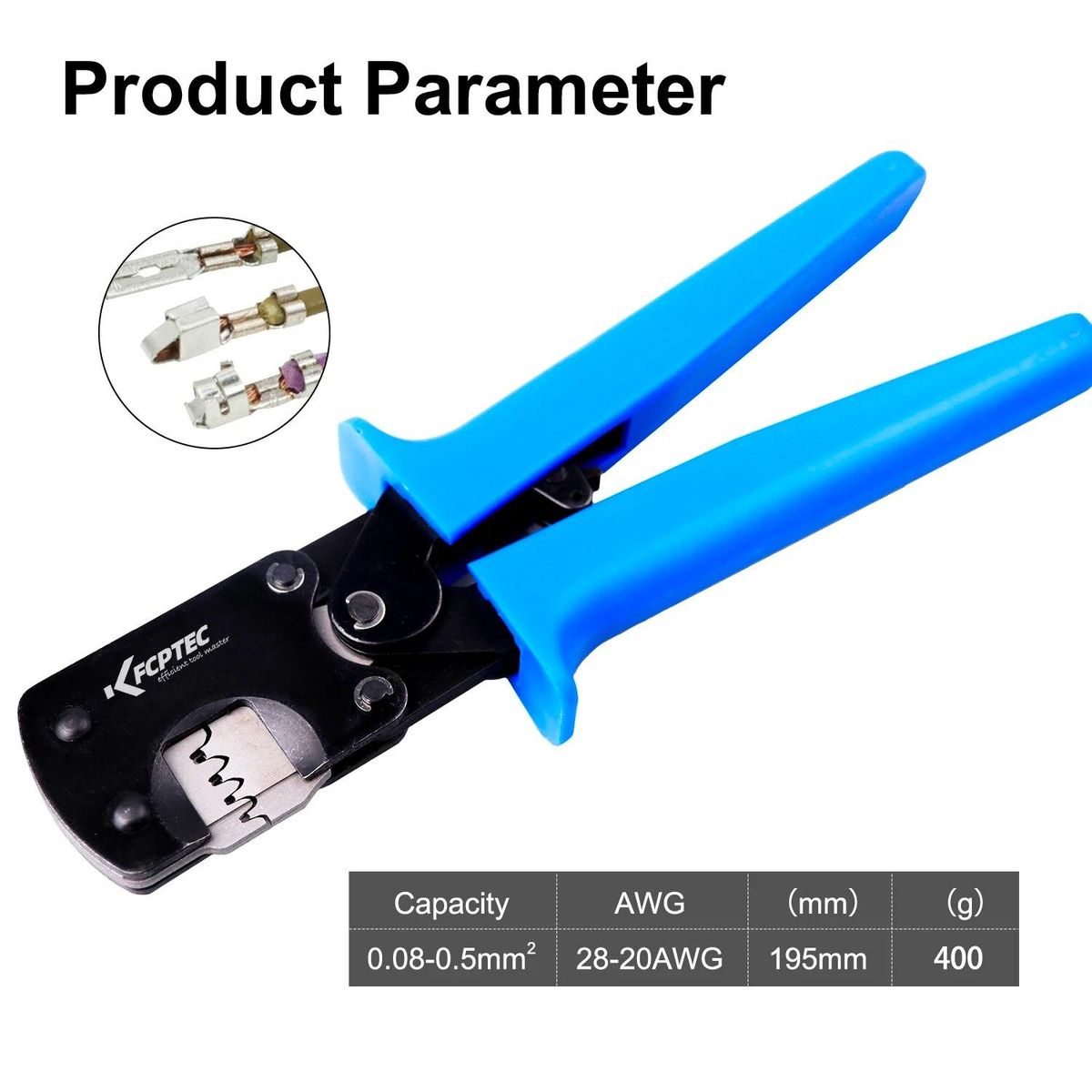

CRIMPS RANGE - 32-20 AWG (0.03-0.52mm²), good for for micro connector pins.
JAW DESIGN - Double-layer Wire Electrical discharge machining(EDM) Cutting jaw crimping conductor and insulation sheath simultaneously.

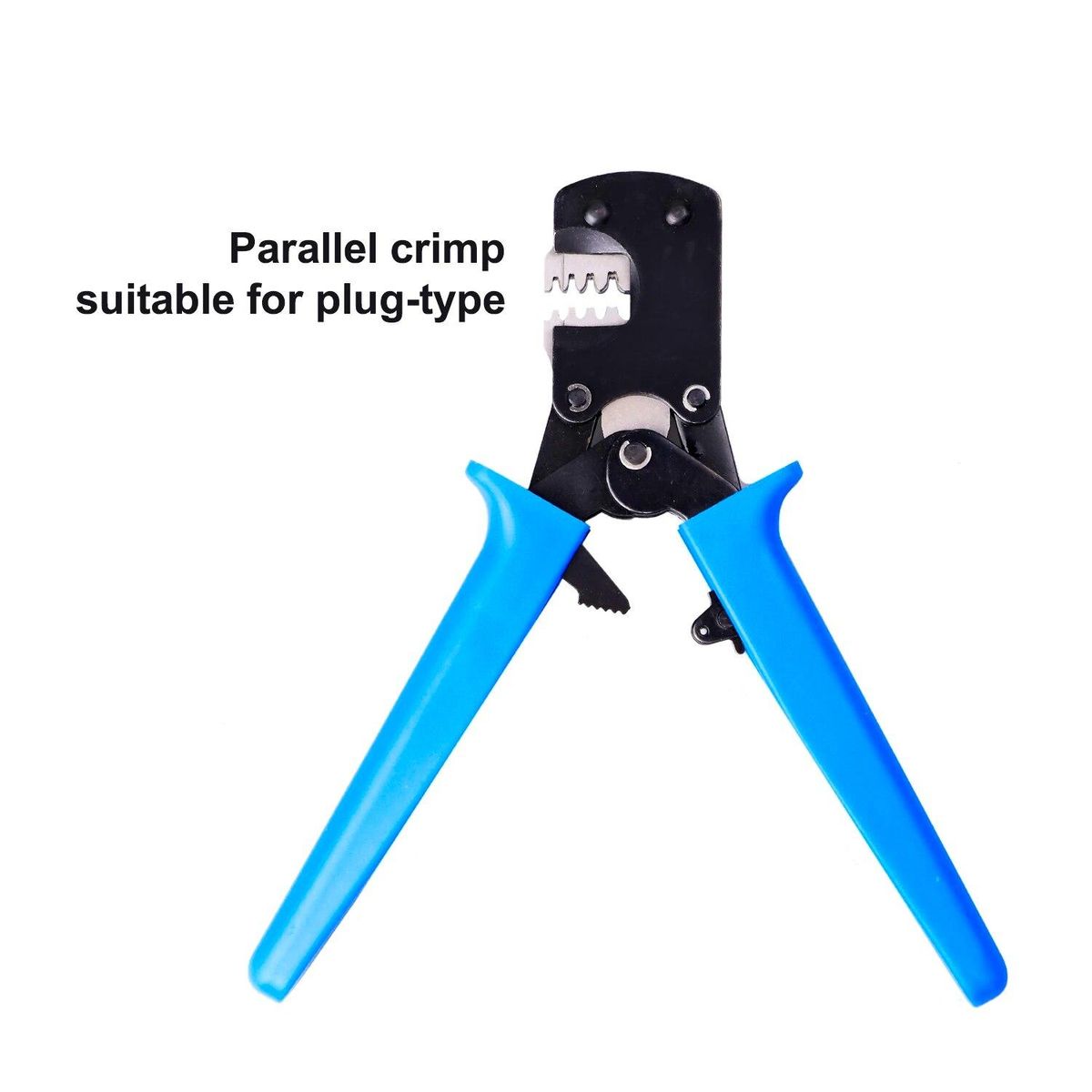

CRIMPING TYPE - Typical parallel crimping type ensures stability and power equality and improves 30 percent of the crimping-tightness

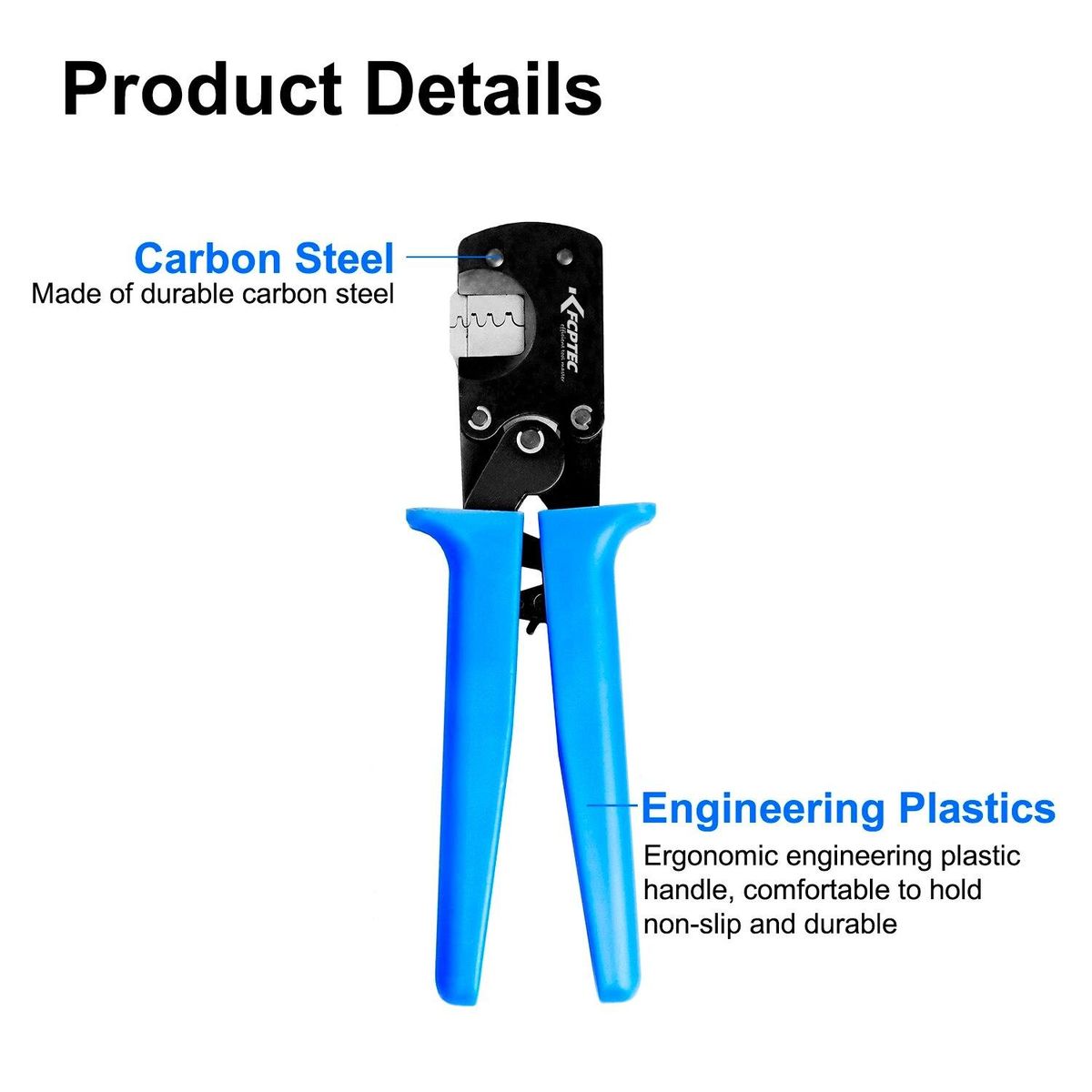

PRODUCT FEATURE - Easy to operate with well-made ratchet mechanism and light environment-friendly handle made of TPR.
Multi-Function Application - Suits Molex CLIK-Mate,Molex PicoBlade,JST SHD,JAM,TYCO D-100,etc.
