Current autofocus MPPT tracking charging, high charging efficiency, charging process does not stop detection, two-way focus tracking.
Charge 12V /24V lithium battery, super wide charge and discharge adjustable
The minute is adjustable when the output is turned off, which is more convenient (there is no adjustment when the market is only available).
Built-in overheating, overcurrent, short circuit, open circuit protection, fault elimination, controller automatic recovery
Two-way MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat. R5.0 solar charging DC plug, R5.0 DC lamp output DC plug, easy to connect
Product parameters:

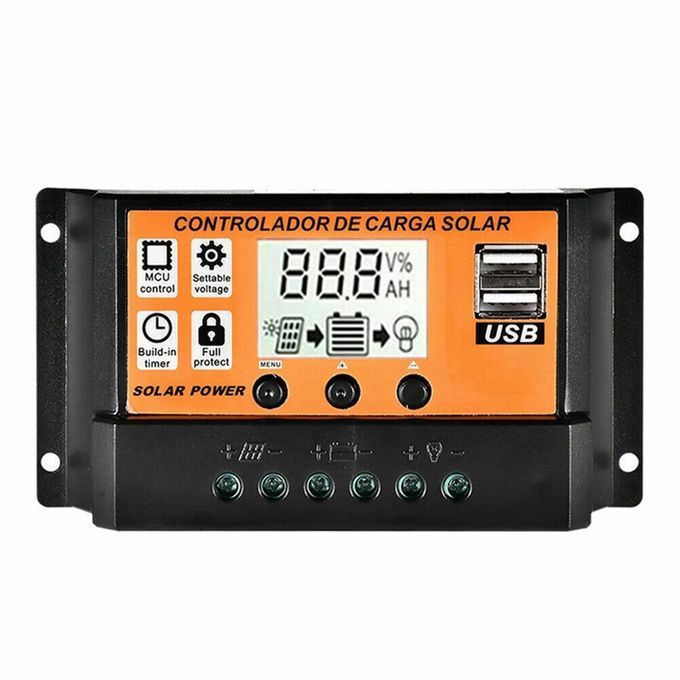

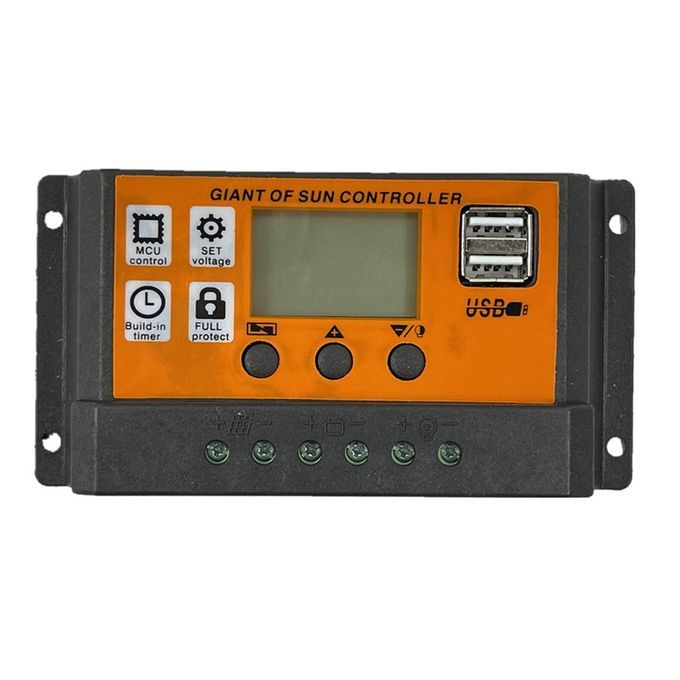

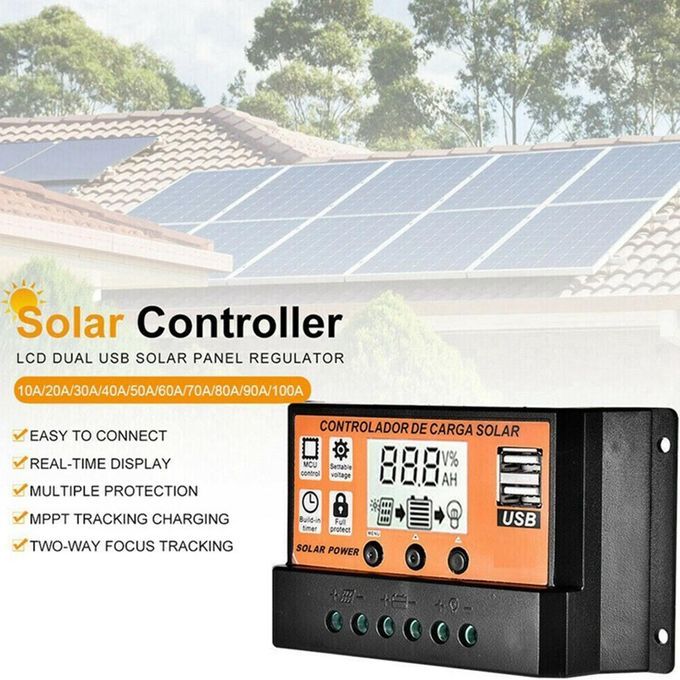

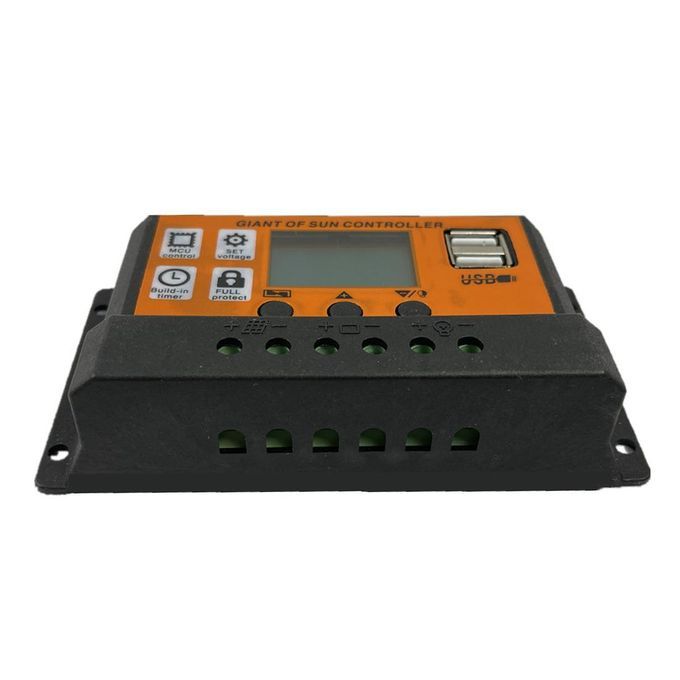

Product Name: LCD screen solar controller
Voltage: DC 12V / 24V
Display: LCD screen
Self-consumption: less than 10MA
Overcharge protection: 14.4V / 28.8V
Overcharge Float charge: 13.7V / 27.4V
Charge recovery voltage: 12.6V / 25.2V
Over discharge protection: 10.7V / 21.4V
Over discharge recovery: 12.6V / 25.2V
Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)
Working temperature: -35 ℃ -60 ℃
12V fits 18V solar panel, 24V fits 36V solar panel
12.0 volt lead acid battery corresponding
The float voltage is set to: 13.6
The recovery discharge voltage is set to: 12.6
The discharge cut-off voltage is set to: 10.7
12.8 volt lithium iron phosphate battery corresponding
The float voltage is set to: 14.6
The recovery discharge voltage is set to: 13.6
The discharge cut-off voltage is set to: 11.0
11.1 volt lithium battery corresponding
The float voltage is set to: 12.6
The recovery discharge voltage is set to: 11.6
The discharge cut-off voltage is set to: 9.6
Type: 30A Solar Controller
color:Black+orange
Material:plastic
Package Contents:
1 x Solar Panels Battery Charge Controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
