Size (L x W x H cm) |
10x5x5 |
Weight (kg) |
0.12 |
Color |
Black |

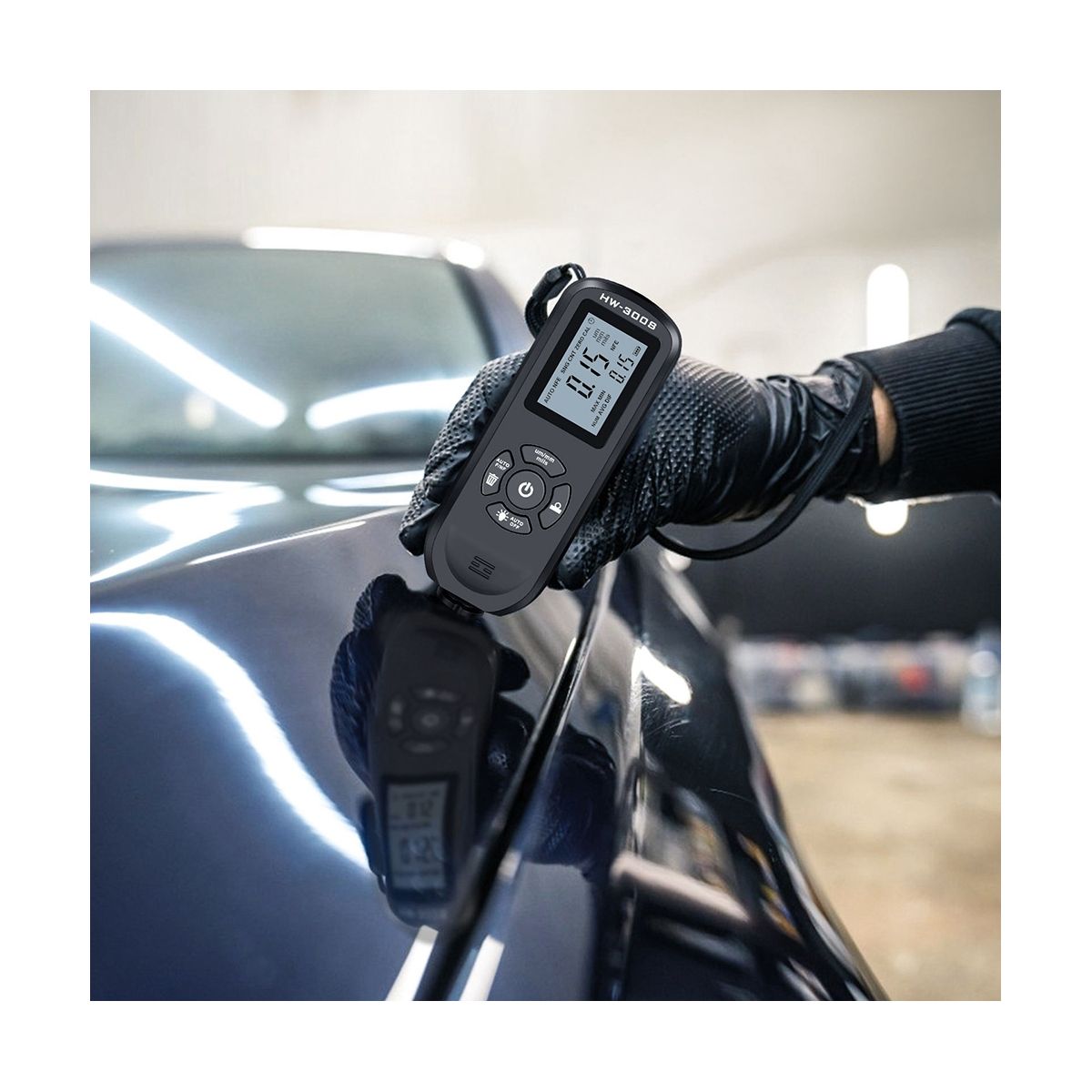

This product is mainly used to measure the thickness of non- coating on metal surface, as as the thickness of non-ferromagnetic coating on ferromagnetic metal (such as iron, , cobalt, etc.), such as paint thickness on automobile surface, coating thickness of metal parts and so on.
This product also has built-in magnetic induction and vortex double principle probe, can automatically identify the measured metal substrate, only need to be placed on the measured surface, can automatically calculate the thickness of the coating.
Probe: F probe, N probe
Magnetic induction: Measuring principle(F), Eddy current effect(N)
Measuring range: 0-2000um
Precision: ±(3%+1um)
Resolution: 0um-99.9um(0.1um) 100um-999um(1um) 1000um(0.01mm)

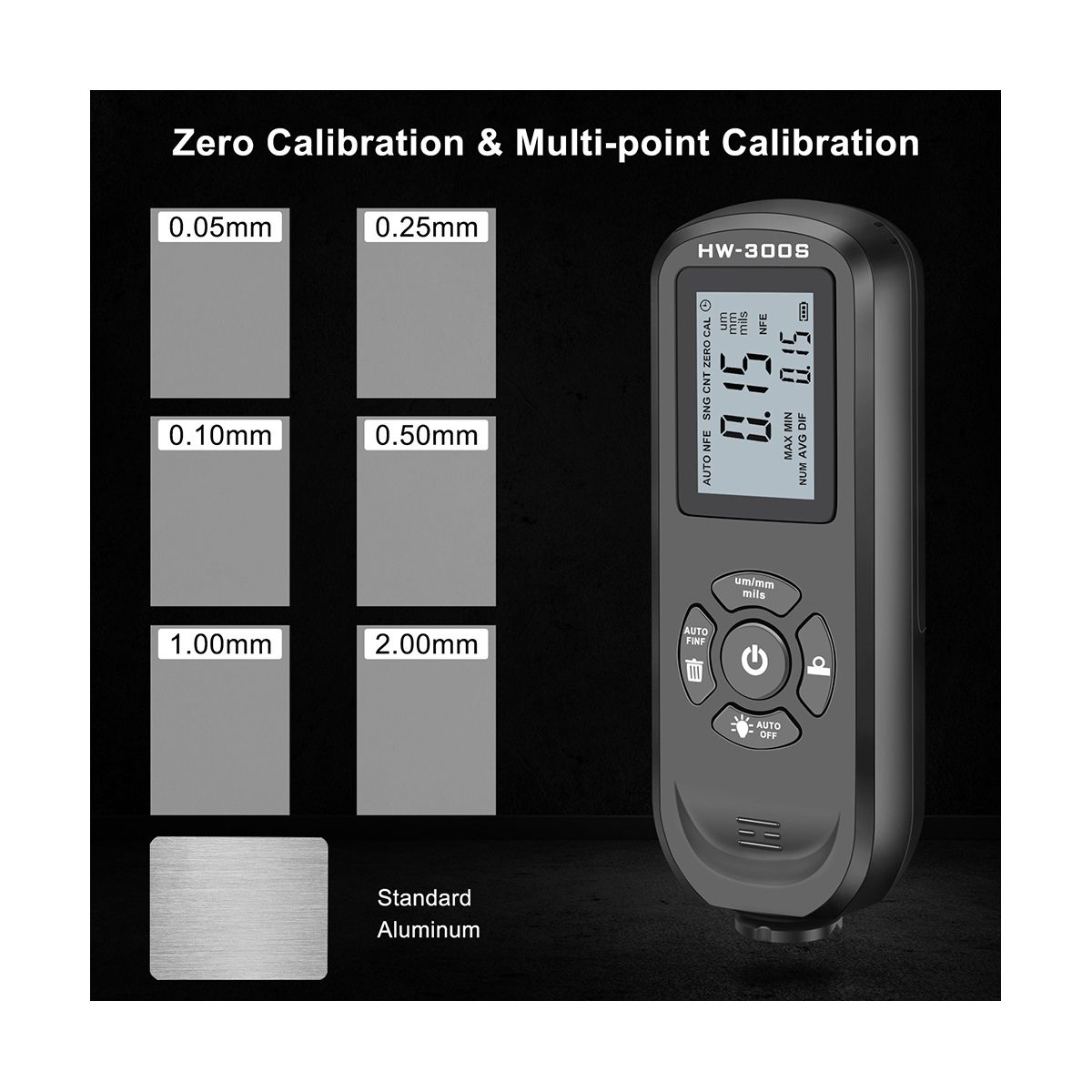

Zero calibration: Support
Statistics: Average, minimum, maximum, number
Unit: um,mm,mils
Minimum convex Radian: 5mm
Minimum concave Radian: 25mm
Minimum measured area: Diameter 20mm
Minimum substrate thickness: 0.2mm 0.05mm
Maximum measuring speed: 2 readings per second
Power supply: 2*1.5V AAA battery(not included)
Operating environment: Temperature 0-50°C, 20-90% rh (non-condensed)
Preservation environment: Temperature:-10-60°C, 20-90% rh (non-condensation)
color:Black
Material:ABS
size:113mm x 53mm x 24mm
Package Contents:
1 x coating thickness tester
1 x lanyard
6 x calibration
1 x backing paper
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
