Applications of the 30KVA 3 Phase Stabilizer
BROADCAST: Regulation for broadcast transmitter sites and studios
COMMERCIAL: High-rise building, elevator control, large A/C chillers, lighting, other sensitive critical systems.
INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy load machinery.
MEDICAL: X-ray, CT scanner, MRI system, Radiation therapy, machine, other medical imaging equipments.
TELECOM: Mobile base stations, exchanges stations, control centers and transmission relay stations.
HOUSEHOLD: Flats, Houses, etc

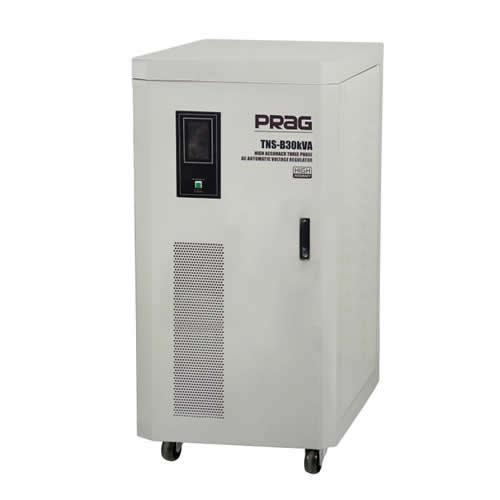

Model TNS-B 30KVA
Input voltage 260V – 456V
Output voltage AC 380V±1-3%, 50/60Hz
Delay Time Short Delay: 3 – 5 Sec
Protection Over Volatage, Overload, High Temperature, Short Circuit
Power 30,000VA
Product Size (cm) 59.5 X 49 X 111
Packing Size (cm) 66 X 55.5 X 134
PCS/Carton 1
N.W. (Kgs) 125
G.W. (Kgs) 135
Method of Voltage Regulation Regulation transformer with servo motor
Efficiency >97% on full load
Functions Power-on style, Malfunction protection, Short-circuit protection, Lack of phase protection, Over voltage shutdown, Under voltage shutdown, Safe start, Surge Protection
