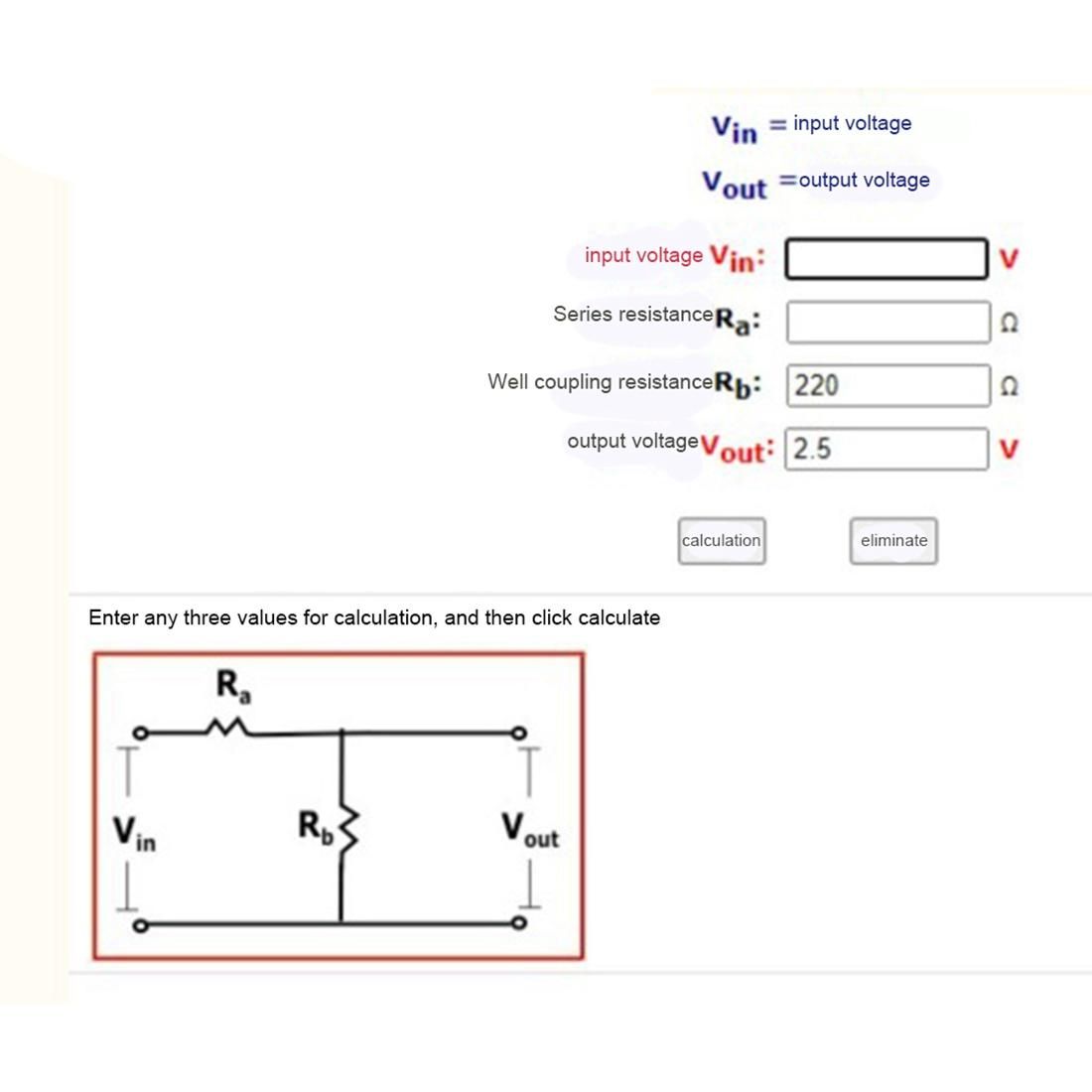

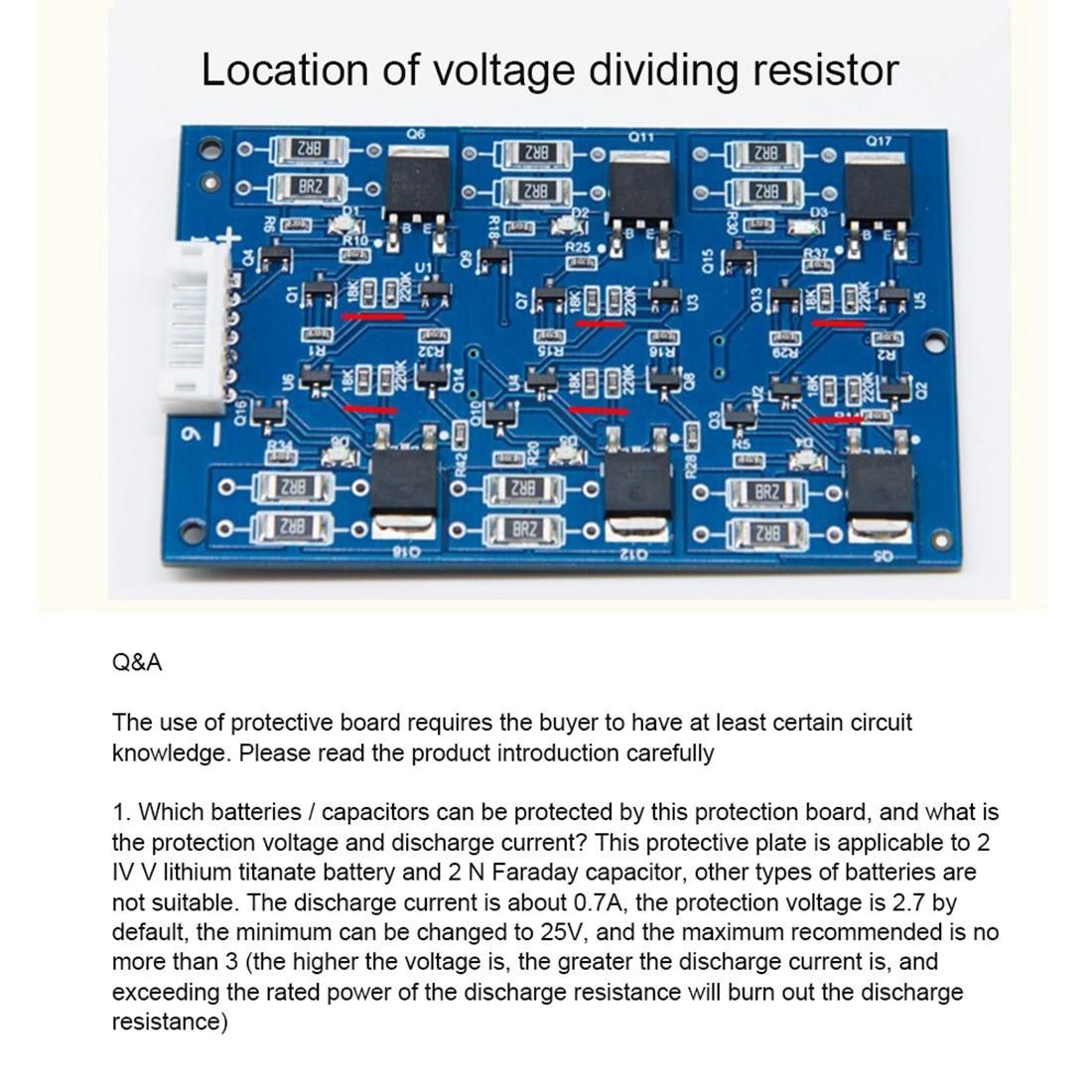

Detailed Information About The Product:This protection board can protect the farad capacitor and lithium titanate battery. It is suitable for 179V voltage farad capacitor and lithium titanate battery. The protection voltage can be finely adjusted in the range of 2.5V-3V by replacing the voltage divider resistor (higher equalization voltage is needed). Replace the high resistance power resistor).
The working principle of the circuit is that when a single cell/capacitor voltage is higher than the equalization voltage, the circuit internally discharges the battery/capacitor by turning on the triode, and the excess power is dissipated by the power resistor. Circuit equalization voltage accuracy is plus or minus 1%.

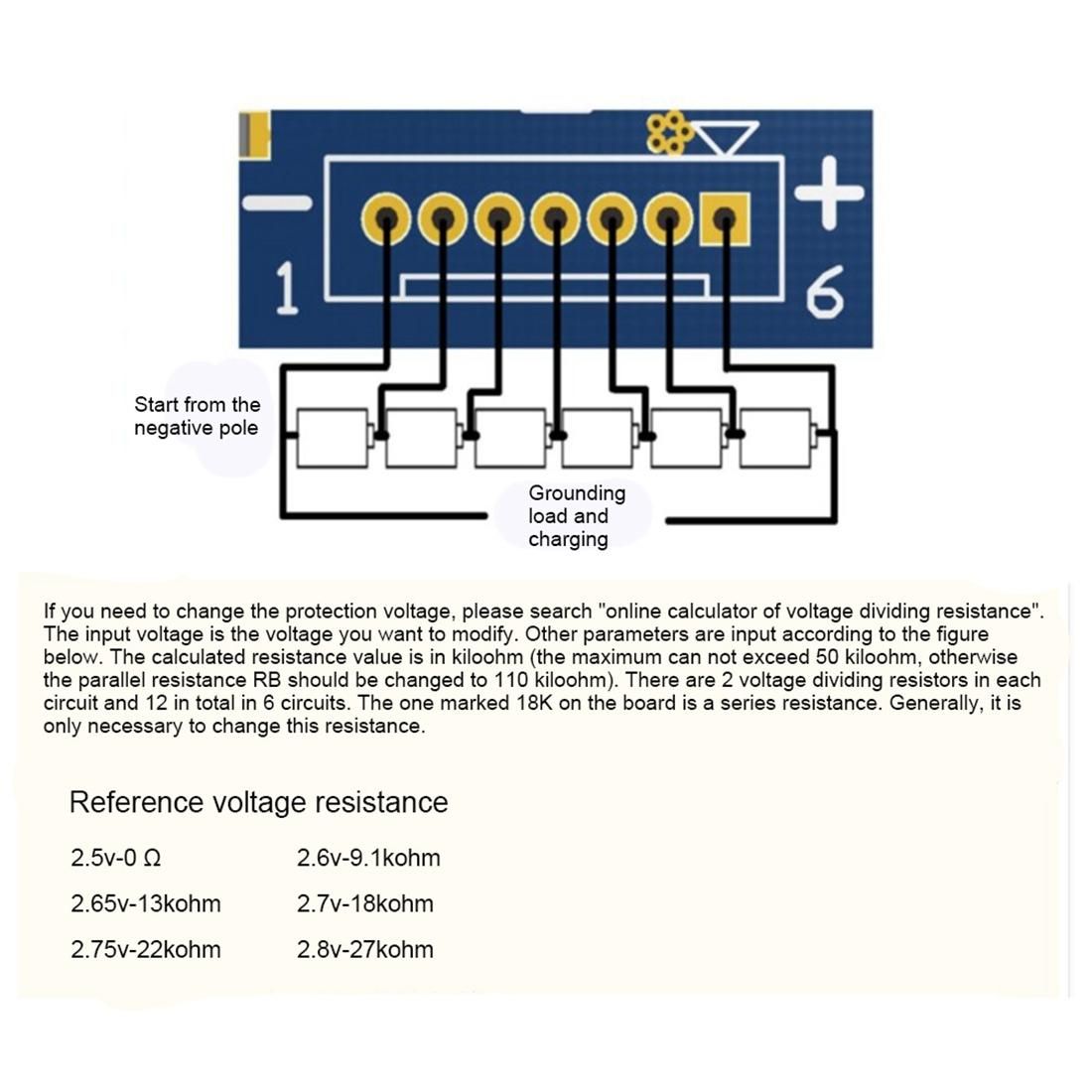

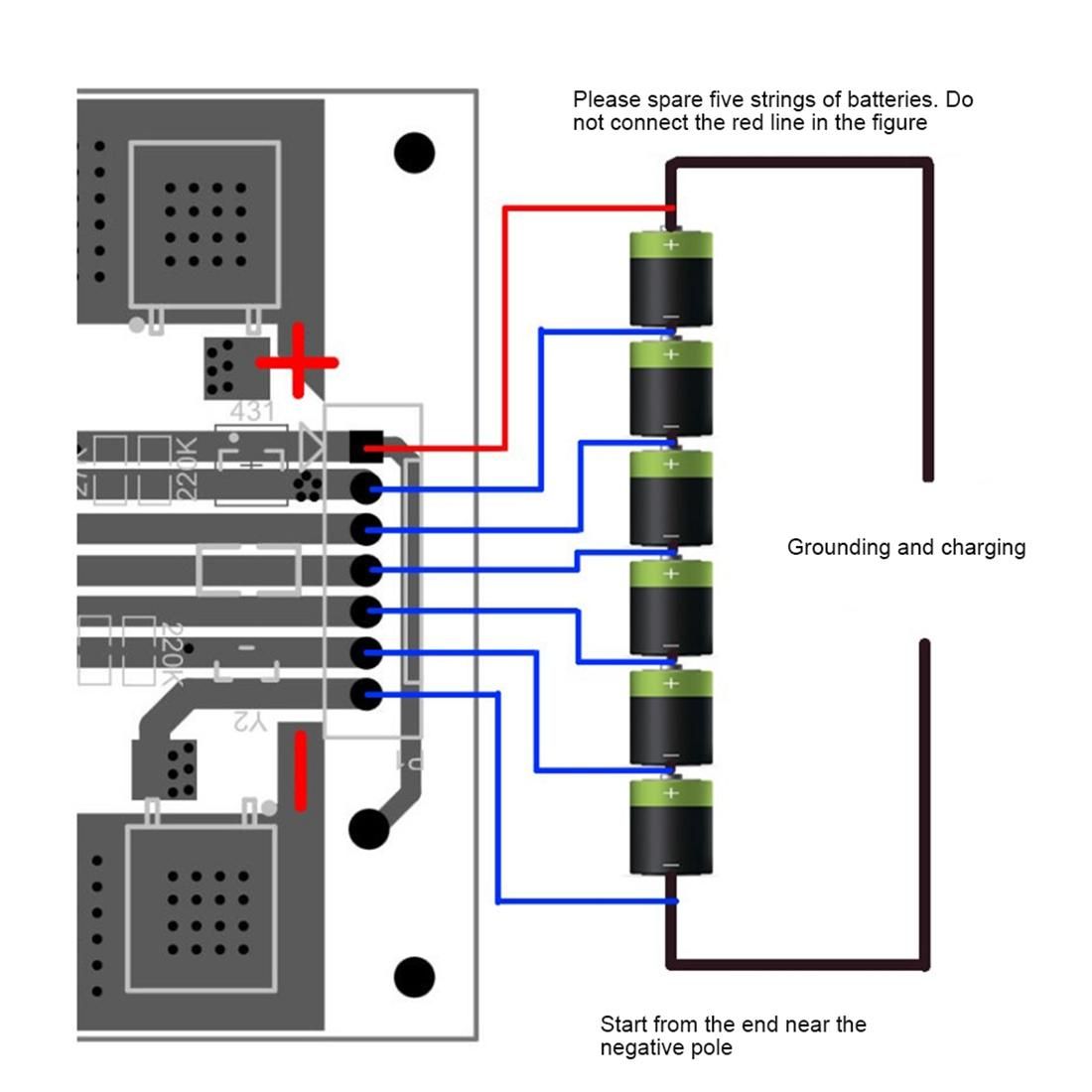

Connect from the negative pole of the battery pack. The first line labeled "-" on the protection board is connected to the negative pole of the first battery, and the second line is connected to the second battery of the first battery compartment. On the chip, in turn, it is connected to the positive pole of the entire battery pack.
Colour: as shown
Material: PC+metal
Package Contents:
1 * LTO 6S Balance Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands.
About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customers. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
3. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! ! !
Key Features
Durable and good quality
LTO 6S Balance Board
Equalization Circuit
Capacitor Protection Board
Equalization Board
Lithium Protection Board
The details are as described above
What's In the Box
1 * LTO 6S Balance Board
