| Production Country |
Italy |
| Size (L x W x H cm) |
3.9" x 3.1" x 1.8" |
| Weight (kg) |
0.724 |
| Color |
Red, yellow, blue |
| Main Material |
Plastic |
| NAFDAC Reg. Number |
n/a |
- This dual purpose float switch can be used for both emptying and filling operations.
- Directly Controls pumps up to 1/2 HP at 120 Volts or 220 Volts
- Up to 12 Amperes continuous or 13.3 Non continuous AC Amperage
- 12 VDC motor loads up to 13.3 Amps. Contact us for other DC Applications
- Environmental friendly (Mercury Free)
- suitable for use in septic, sump, and potable water applications
- Built with a Honeywell Micro switch, rated for 100,000 operations
- Cable is Coated with PVC / Thermoplastic jacket
- Internally Contains a Stainless Steel Ball
- Includes adjustable counterweight.
- Manufactured in Italy
- One year warranty
- Constructed with non-toxic polypropylene
- Float dimensions are 4.1 in x 3 in x 1.6 in (105 x 78 x 41 mm)
- Rated for indoor or outdoor use: operating temperatures (0 to 45C)
- CE Marked, IP68 Rated, tested to IEC 60730-1 (08-2003) + IEC 60730-2-16 (08-2001)
- Reinforced Double O Ring Cable Entry
Key Features

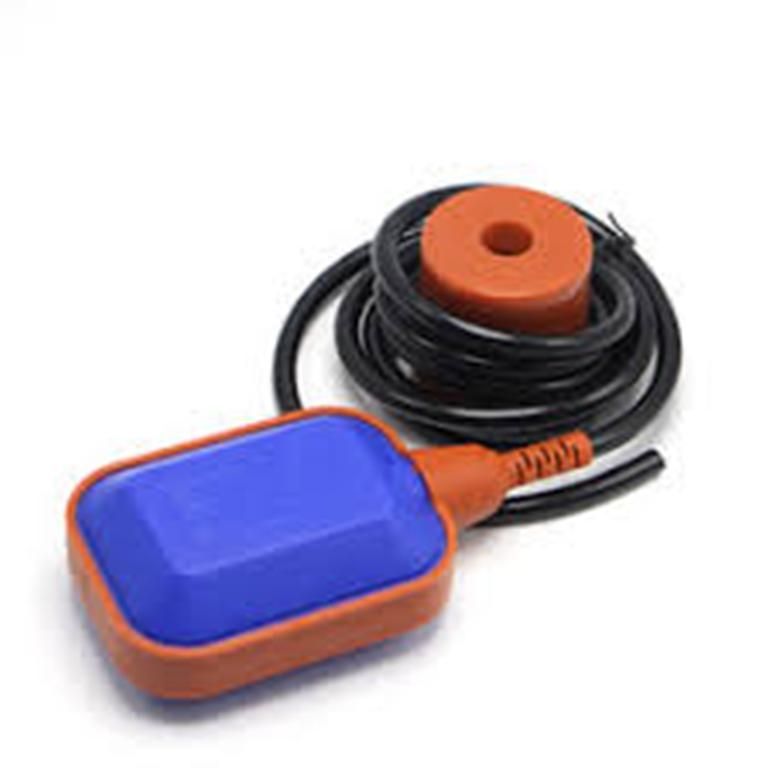

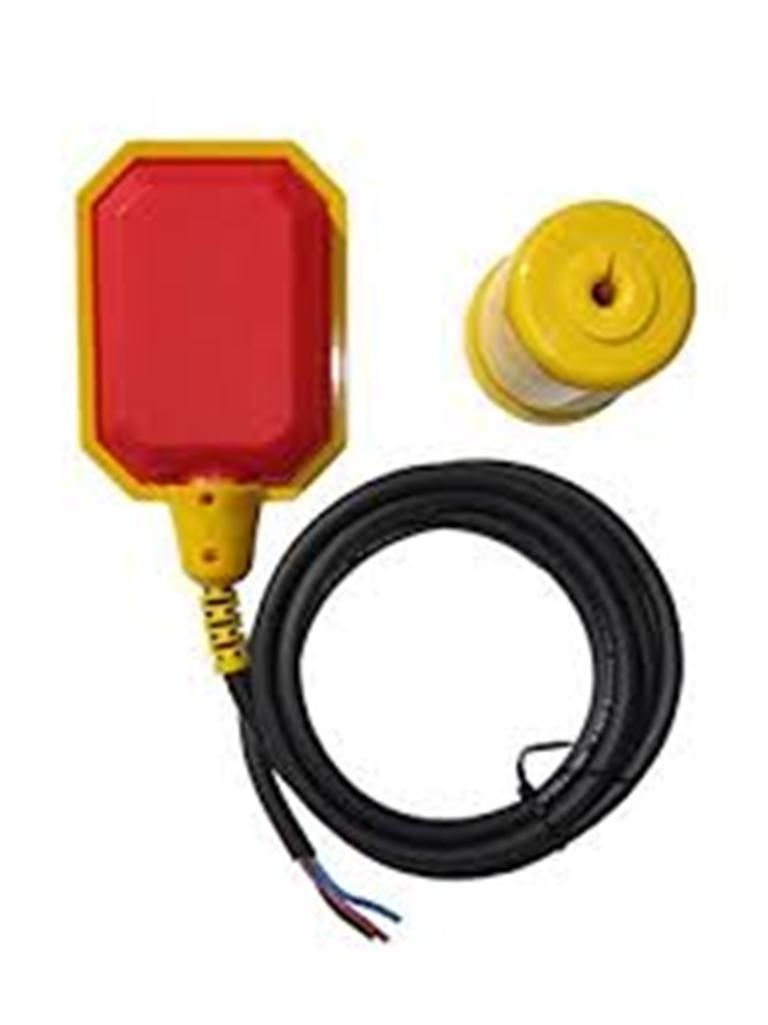

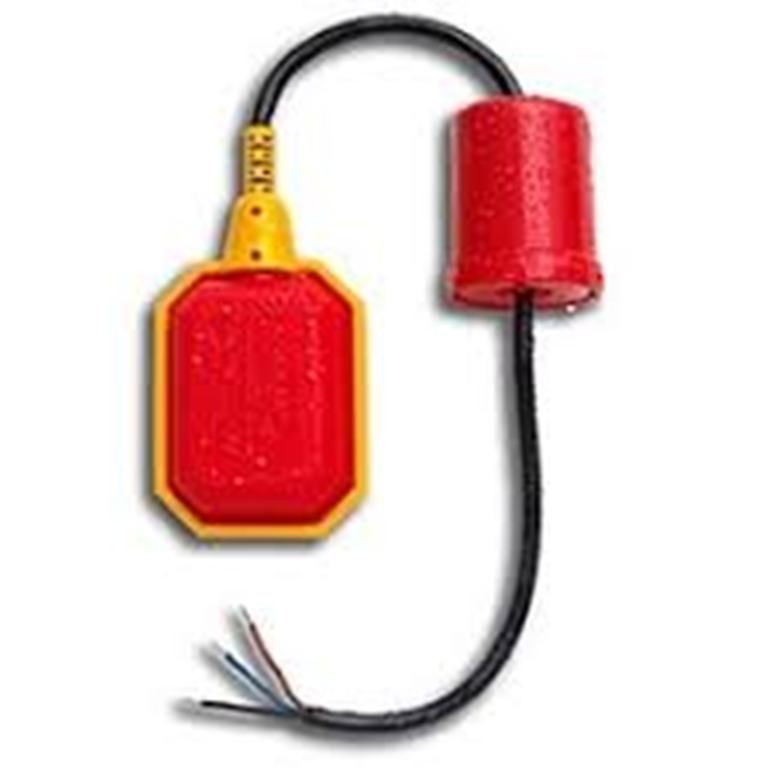

Product Name: Float Switch Water Level Controller.
Model: NIS-EE4783
Rated Current/Voltage: AC 10(8A) 250V~10(4A) 380V;
Working Temperature: 0A°C~45A°C; Control Range: 0.2m; Electrical Endurance: 50,000 times Contacts: NO+NC
Shape: Rectangle;
Cable Length : 3m / 10ft; Body Size: 10 x 8 x 4.5cm / 3.9" x 3.1" x 1.8"(L*W*T)
Net Weight : 742g; Package Content: 1 x Float Switch Water Level Controller
What's In the Box
Part NumberNIS-EE4783Item Weight1.45 poundsPackage Dimensions9 x 5 x 3 inchesItem model numberNIS-EE4783MaterialPlastic, MetalItem Package Quantity1Batteries Included?NoBatteries Required?NoUsageSump Pump; lift station; pump control; septic tank; alarm
