Model |
Controller |
Production Country |
China |
Size (L x W x H cm) |
17x10x6 |
Weight (kg) |
0.42 |
Color |
multicolor |
Description: Made of high quality material, durable and practical to use
Fit for 24V500W,24V750W,36V500W,36V750W,48V500W,48V750W Brushless Motor
Applicable with or without Hall Motor
Suit For Electric scooter,ebike
The controller only fit for UART No.2 protocol controller

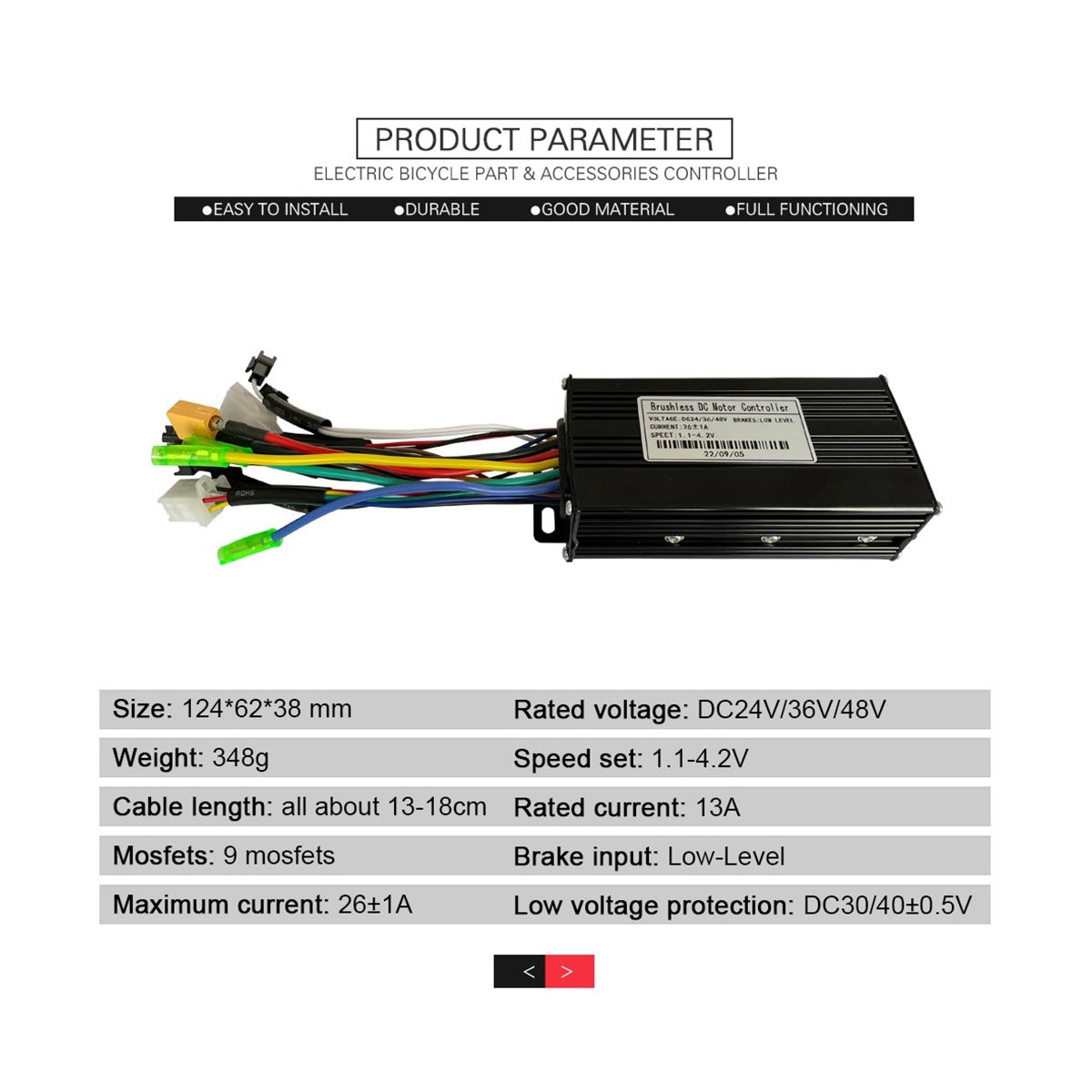

Specification:
Maximum current: 26±1A
Power: 500-750W
Rated voltage: DC24V/36V/48V
Speed setting: 1-4.2V
Rated current: 13A
Mosfets: 9 mos
Brake input: low level
Low voltage protection: DC30/40±0.5V

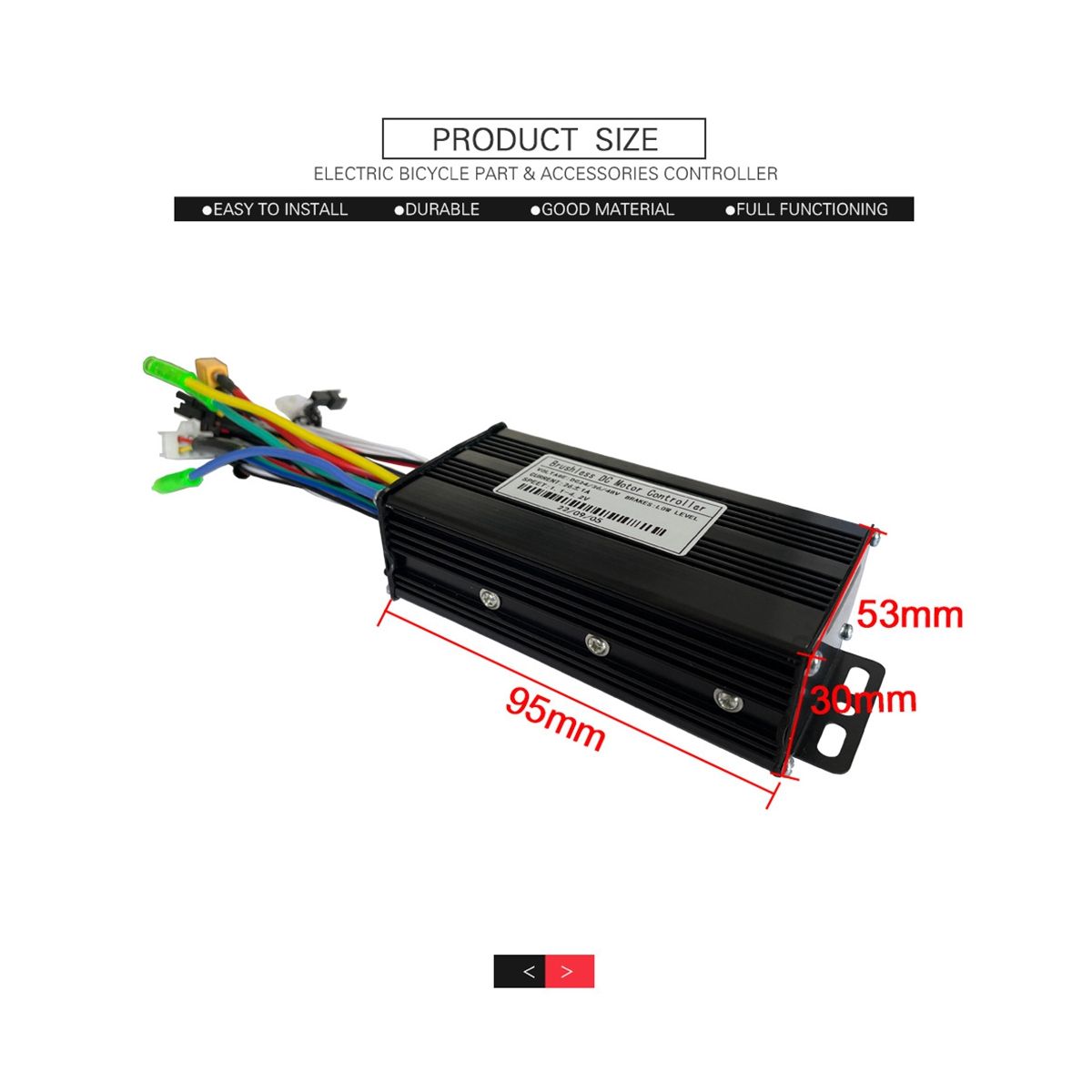

Controller size: 124 x 62 x 38 mm(Approx.)
Model:Three mode
Color: As Shown
Material: plastic+metal
Package Contents:
1 x Controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
E-Bike Sine Wave Controller
Brushless Controller
Electric Scooter
Bicycle Accessorie
Three Mode Brushless Controller
The details are as described above
What's In the Box
1 x Controller
