Description:
Control Lights, TV, Motors, Fans, Cameras, Video Signals, Audio Signals, Electric Doors/Locks/Windows/Curtains/Cars or Other Appliances

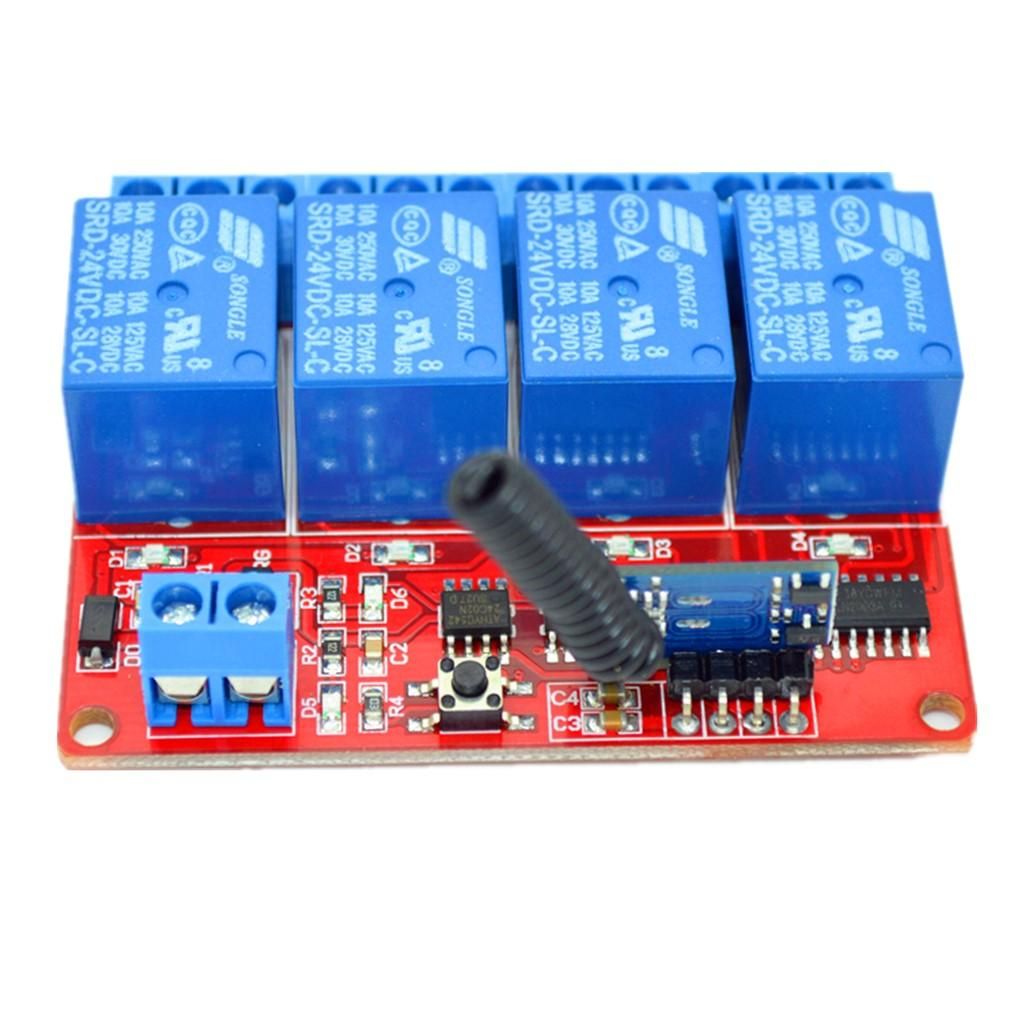

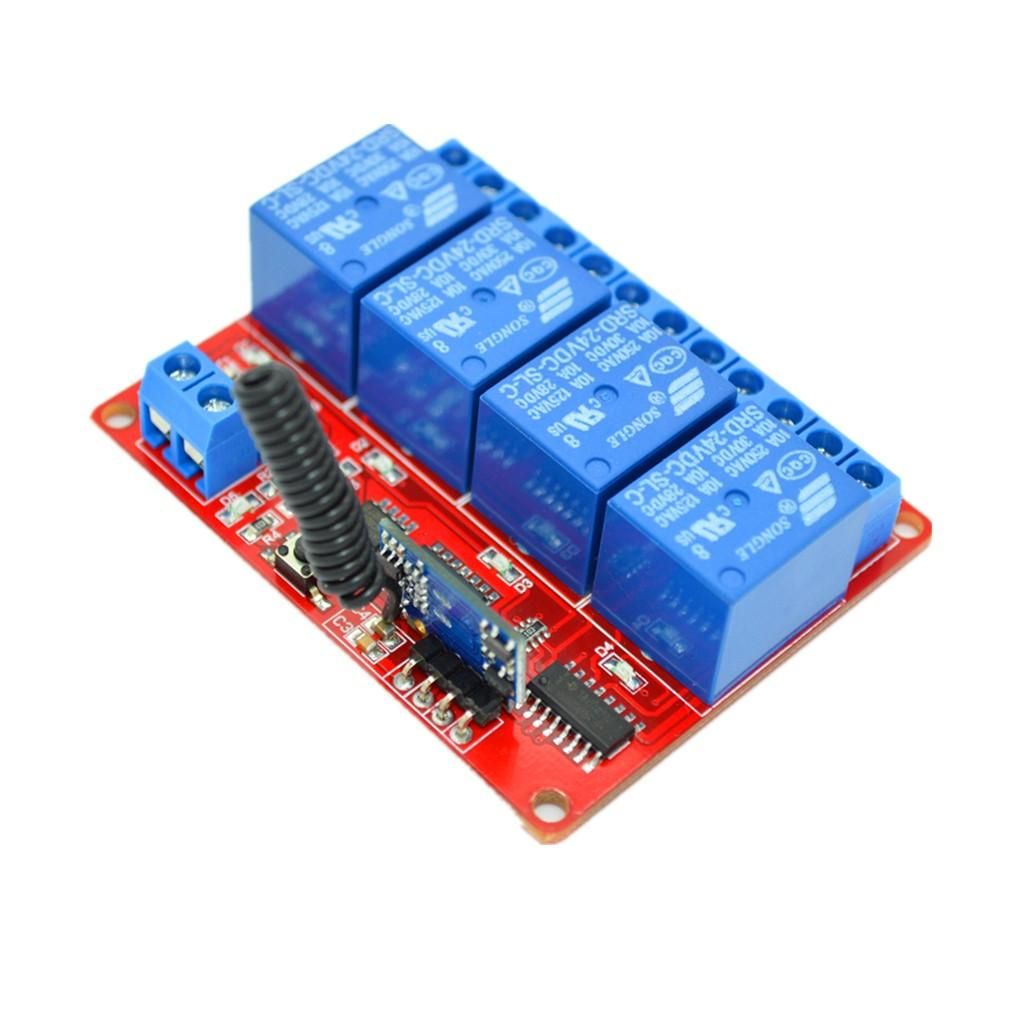

4 Relays which can make the equipment turn or , on/off and so on come true
The volume is small and the performance is stable and reliable, high receive sensitivity
With the functions of controlling household appliances remotely, setting time on phone, delaying switch, etc
You can use wireless remote control, even without wifi
Specification:
Jog/Self-lock/Interlock can be switched as you choose, after the complete settings of the mode, it would not change, even if the module power off and restart
Jog: press one button is ON, loosen your finger on the same button is OFF (need one channel switch and one buttons remote control)
Self-lock: press one button for one time is ON, press the same button again is OFF (need one channel switch and one buttons remote control)
Inter-lock: Any channel works, the other three would be closed
With the function of 433M wireless remote control study, the switch can compatible 2260/2262/2264/1527 and other several code wireless remote control
WIFI phone APP remote intelligent control: after the pairing of the phone and module, the infinite distance control can be realized
Working Voltage: 22.5-24V
Working Current: Approx. 130mA ( relay closed )
Quiescent Current: Approx. 8mA ( relay released )
Receive Distance: 10-30m( can pass through wall )
Frequency: 433mhz
Receiver Size: 62x53x22mm/ 2.44x2.09x0.87inch
Press the learning code, the indicator flash, loosen finger, press any button of the remote control, the indicator flash 2 times and off, it means learning successfully
Remove/clean: press the learning button about 8 seconds , the indicator turn on to off, it means that it has been removed
Package Includes:
1 x Remote Control
1 x Receiver
Note:
Battery is Not included
Please allow 1-3mm error due to manual measurement, make sure you do not mind before you bid
The colors may be different for the different display, please understand
Relay Module;Remote Switch;Wireless Remote Control;Relay Board;Switch Module;Transmitter and Receiver;4CH RF Remote Control;4 Channel;Wifi Switch;24V Controller
Key Features
Control Lights, TV, Motors, Fans, Cameras, Video Signals, Audio Signals, Electric Doors/Locks/Windows/Curtains/Cars or Other Appliances
4 Relays which can make the equipment turn or , on/off and so on come true
The volume is small and the performance is stable and reliable, high receive sensitivity
With the functions of controlling household appliances remotely, setting time on phone, delaying switch, etc
You can use wireless remote control, even without wifi
What's In the Box
1 x Remote Control 1 x Receiver
