Applicable number 2-24S
Applicable battery type LTO ternarylithium ironlithium titanate fully compatible

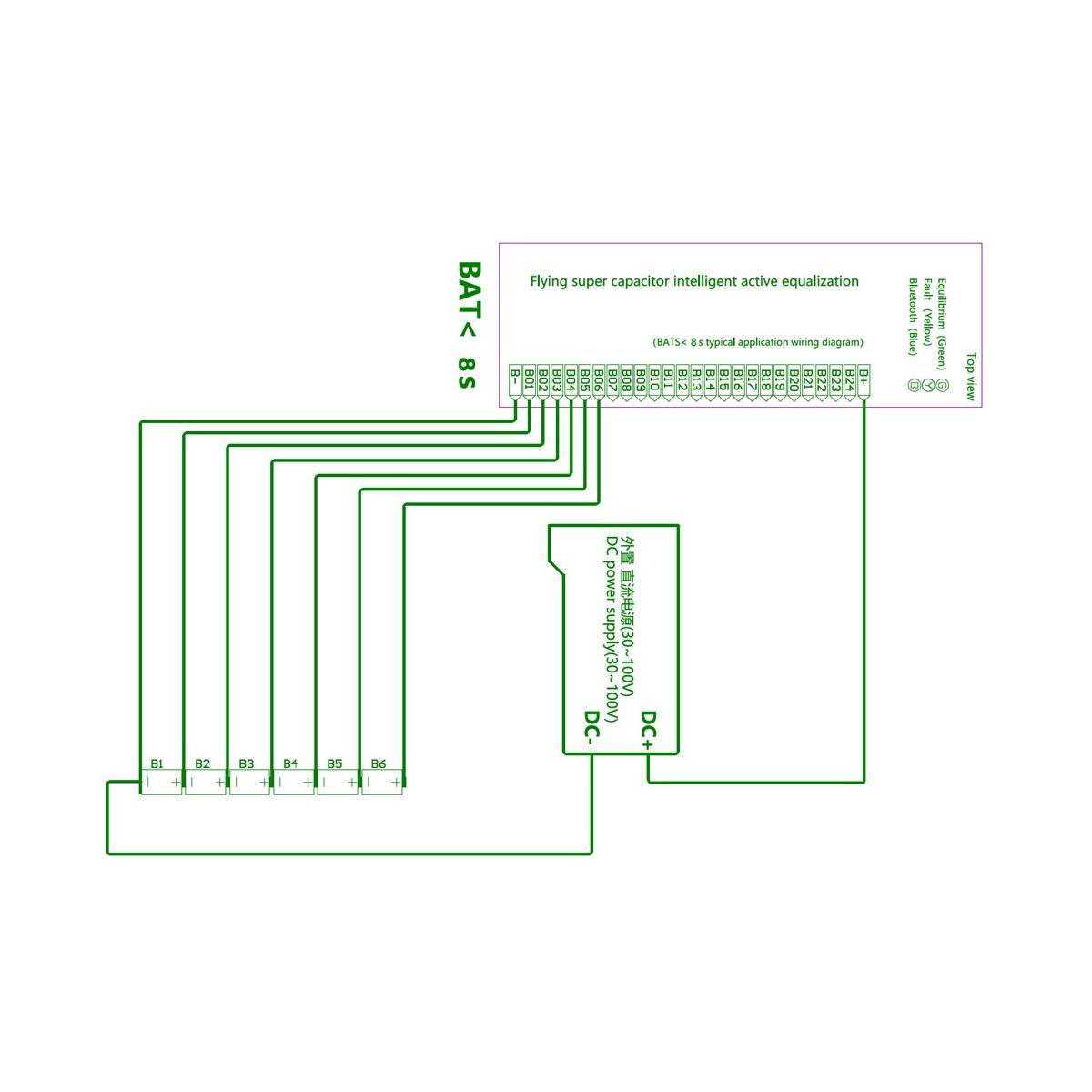

The number of s applicable to the power supply range the minimum voltage of the battery pack is 30V and the recommended value ≥ 10 s for ternary batteries ≥ 12 s for lithium iron batteries ≥ 20 s for LTO batteries
Working range of single voltage 10 ~ 45V
Voltage balance accuracy ± 1mv voltage measurement accuracy ± 1mv voltage balance accuracy
Color black
Material ABS
Equalization patented equalization architecture flyover capacitance combined with point-to-point energy transfer algorithm for efficient balancing
Equalizing current APP custom setting 1-4A since constant current and constant voltage technology is adopted the equalizing current is of battery voltage difference
Offline detection offline detection
Under voltage protection sleep voltage Under voltage sleep voltage can be customized by APP 15-42V
Static working current balanced closing 10mA balanced opening 25mA
Product size MM L140 x W128 x T22
Whether external power supply is needed no external power supply is needed and the whole group is balanced by the internal energy transfer of the battery
be careful
Blue Bluetooth status indicator always on link successful Blinking is broken
Red fault status indicator normally on internal fault Flashing battery detection failed
Green working status indicator normally on balanced The flashing equalization is working

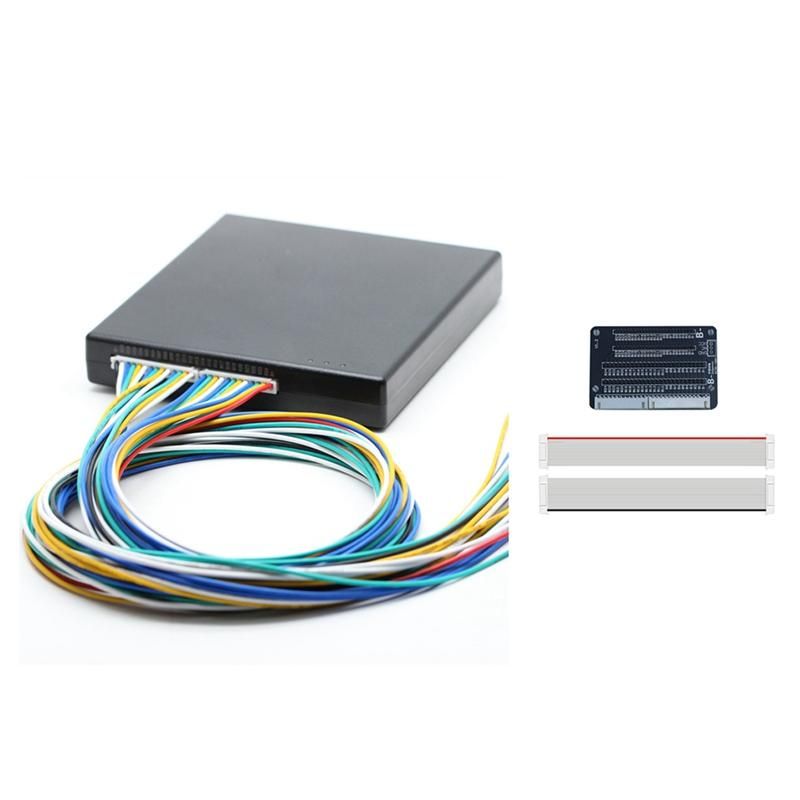

Package Contents
1 x Equalizing energy transfer device
1 x Flat cable
1 x Adapter plate
2 x Connecting line
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Equalizing energy transfer device
1 x Flat cable
1 x Adapter plate
2 x Connecting line
