I. Main features
1. Dual decoding supports MP3, WMA, WAV, FLAC, APE lossless format music;

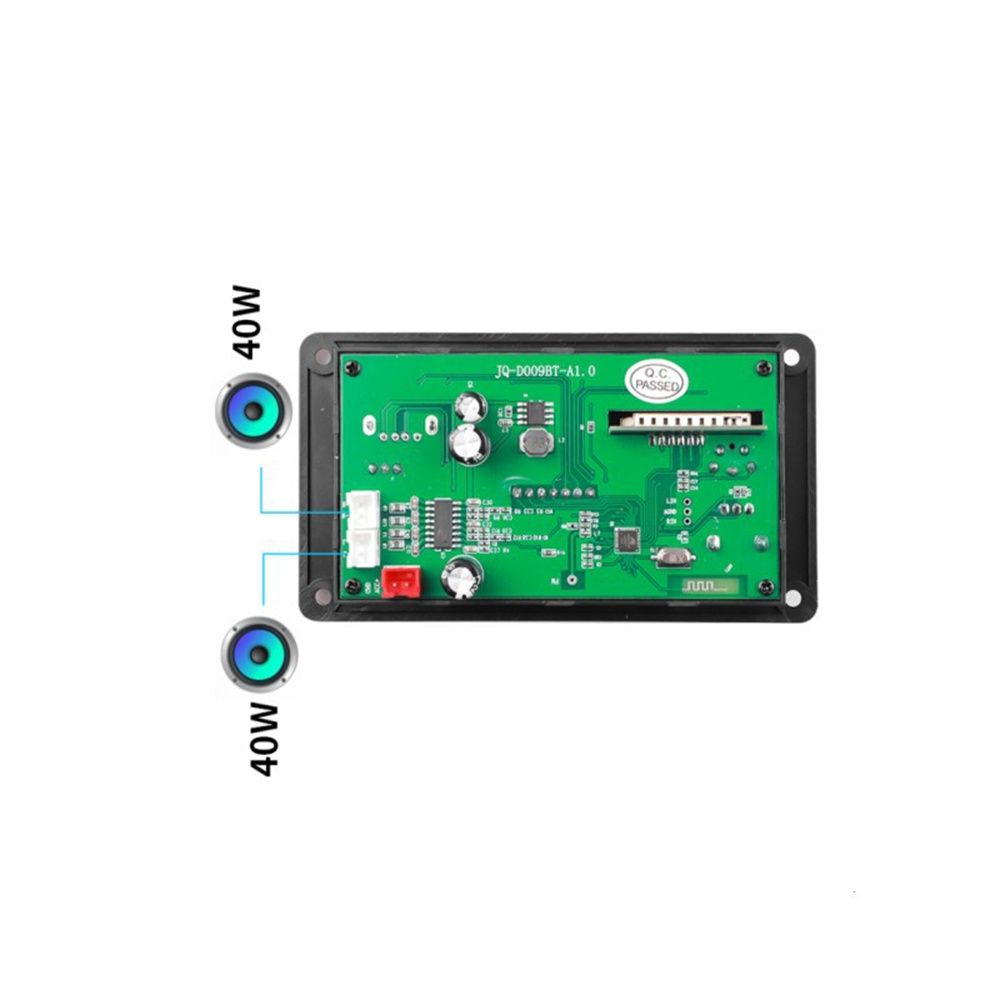

2. The power amplifier is 2*40W, and 2 40W speakers can be connected at the same time;
3. The voltage range is 7V-25V, and the current is not less than 2A
4. Support Bluetooth-compatible call function, Bluetooth-compatible version 5.0;
5. Support recording function;
6. Digital color screen display;
7. Support MMC/SD/MMA and other cards, support USB interface (U disk);
8. Power-off memory function;
9. Support 10 meters distance infrared remote control operation;
10. Support external audio source input LINE IN;
11. Support radio FM, search frequency band (87.5MHZ-108.0MHZ);

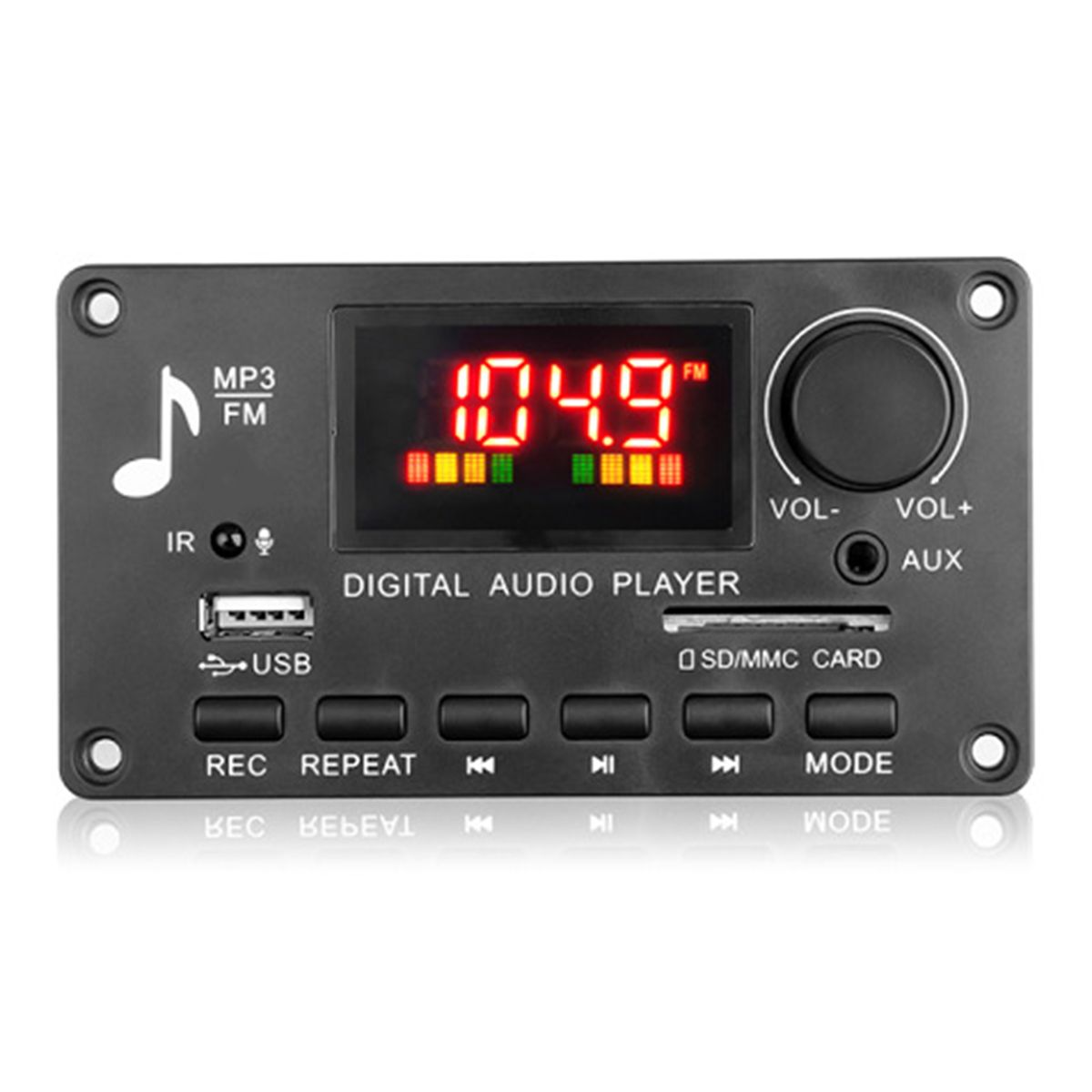

12. Buttons: six-button multi-directional control, REC / REPEAT / VOL- / AUTO / VOL+ / MODE;
II. Key operation description
1. REC: Long press the REC button to start recording, then long press the REC button to cancel the recording function and play the recorded file; when recording, you need to connect a storage device, such as a U disk or TF card;
2. REPEAT: Press the single cycle function once, press it again to cancel the single cycle, and play it in order;
3. PREV button (previous song): in MP3 state, VOL-short press is the previous song, and long press is the volume reduction; in FM state, short press is to increase a station number; in the bluetooth-compatible function, short press is bluetooth-compatible previous piece.
4. AUTO button (play/pause): in MP3 state, short press AUTO to play/pause; in FM state, short press to play/pause, long press to automatically close and save the station; short press to play in bluetooth-compatible function /pause.
5. NEXT button (next song): in MP3 state, short press VOL+ for the next song, long press for volume increase; in FM state, short press for down one station number; in bluetooth-compatible function, short press for bluetooth-compatible down a song.
6. MODE button: switch between USB / SD card / FM / audio input / Bluetooth-compatible function in turn.
III. Description of the recording function
1. Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recorded file;
2. When recording, it is necessary to connect a storage device, such as: U disk or TF card.
IV.Specifications:
Model: JQ-D009BT
Main control IC: Zhongke Nanxun AB5362B
Bluetooth-compatible IC: Zhongke Nanxun AB5362B Bluetooth-compatible version 5.0
Music format: MP3/WMA/WAV/FLAC/APE lossless format music
Radio FM frequency: 87.5 mdash;108.0 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / Bluetooth-compatible / remote control connection / DC 12V

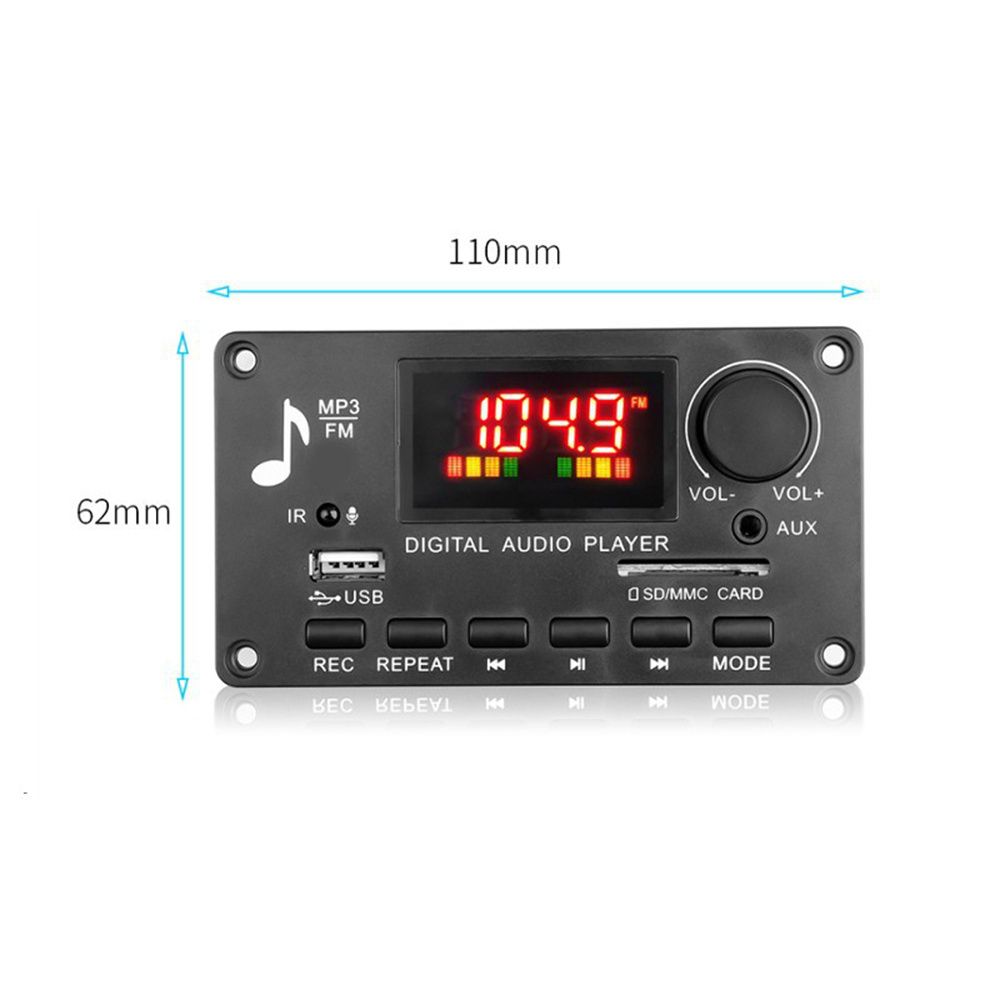

About the structure: Panel size: length 112 * width 62MM, the panel is surrounded by screw holes, the depth of the panel is 22MM
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
I. Main features
1. Dual decoding supports MP3, WMA, WAV, FLAC, APE lossless format music;
2. The power amplifier is 2*40W, and 2 40W speakers can be connected at the same time;
3. The voltage range is 7V-25V, and the current is not less than 2A
4. Support Bluetooth-compatible call function, Bluetooth-compatible version 5.0;

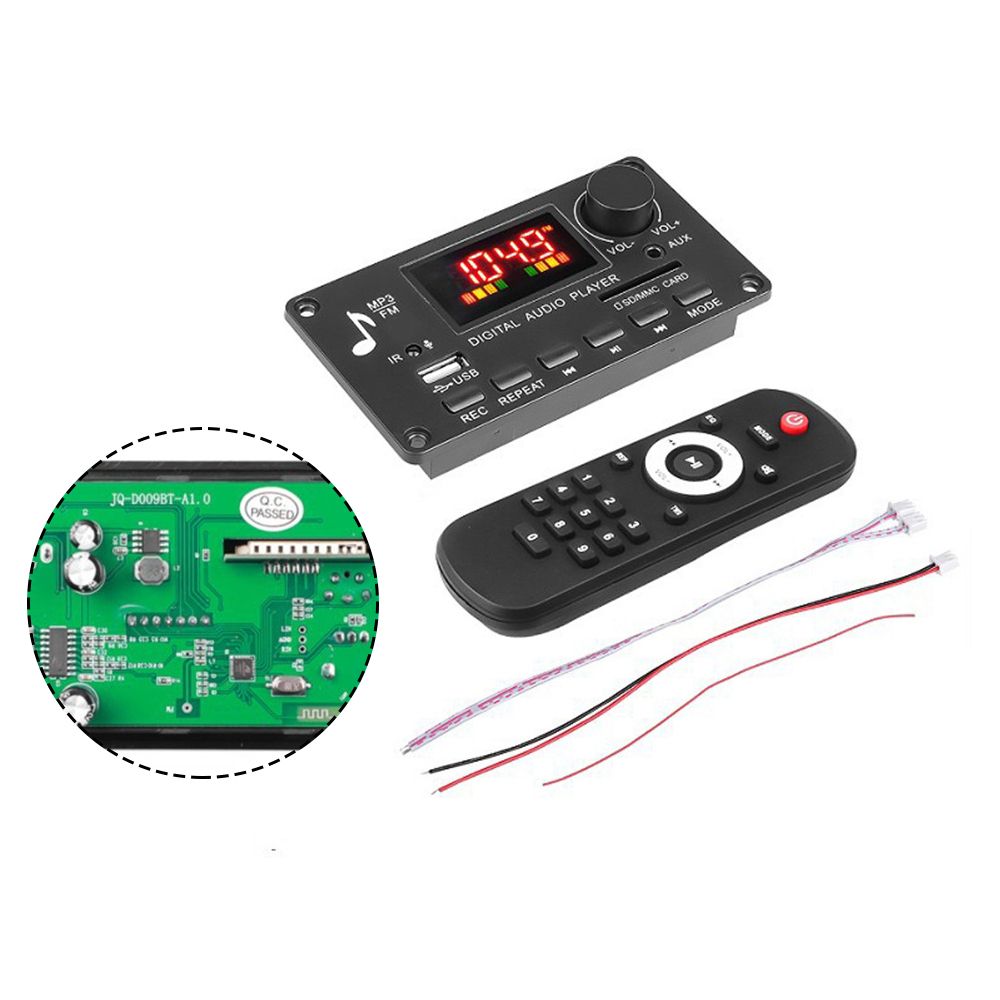

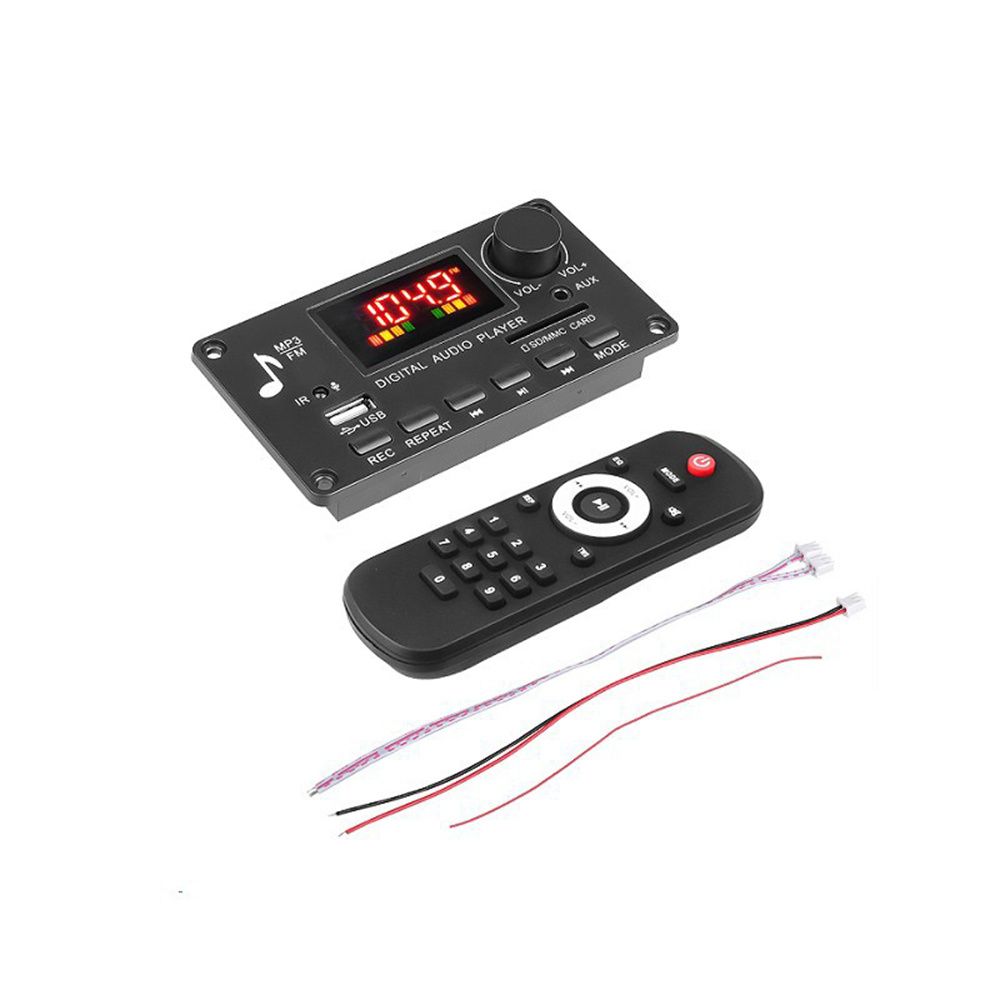

What's In the Box
1 * Decoder
1 * Remote Control (without battery)
3 * Cables
