Buy 24 Series Lithium Battery Voltage Detector With Acrylic

24 Series Lithium Battery Voltage Detector With Acrylic

₦ 326,142.66 ₦ 343,308.06 -5%

0 No Reviews

Product SKU: RENG250702

Brand: Generic

Variants

Blue With expansion board Blue Without expansion bo

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	N/A
Production Country	China
Weight (kg)	0.41
Color	N/A
From the Manufacturer	N/A
Care Label	N/A

Features:

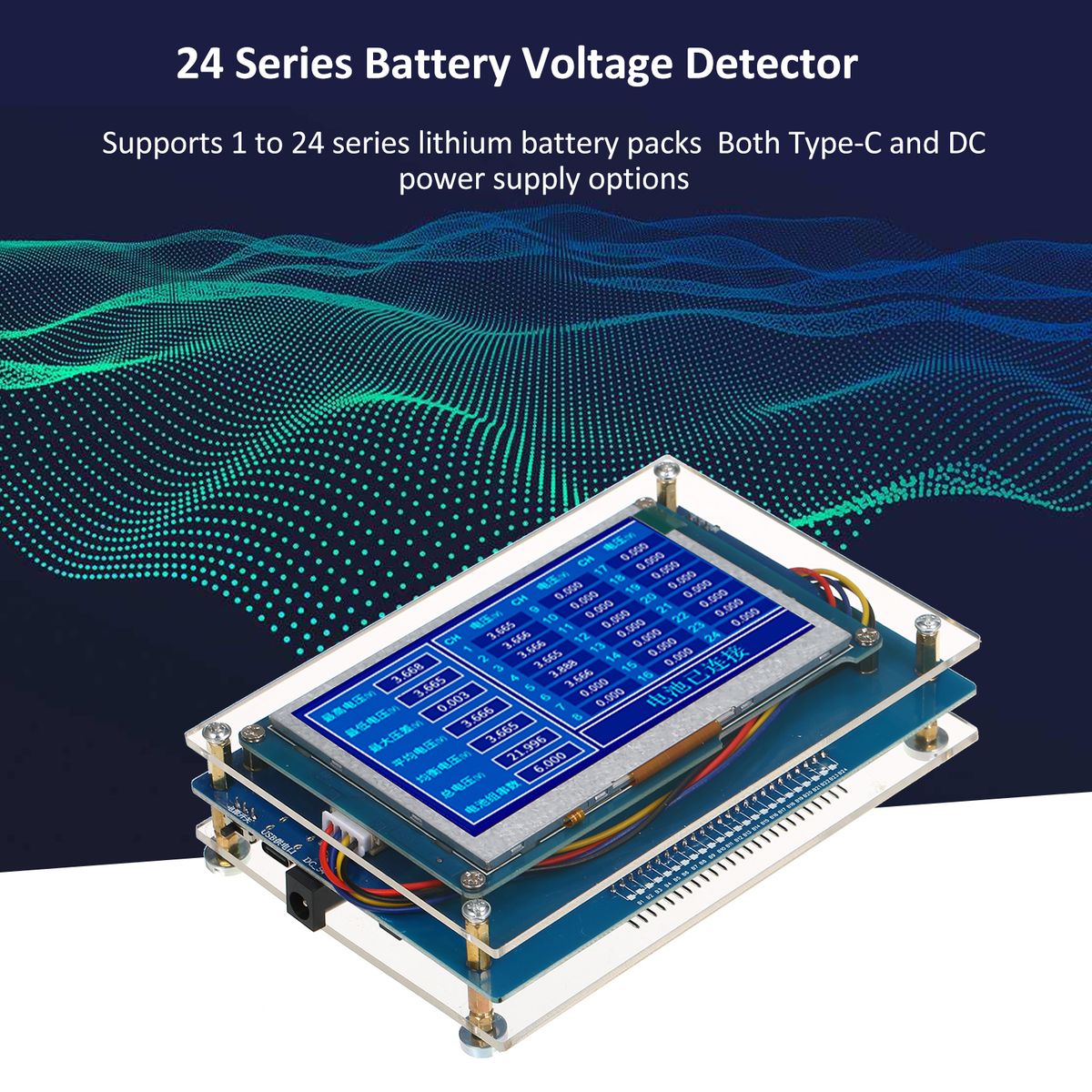

Equipped with an acrylic shell baffle that protects the device from damage and provides a clear view of the display.

Support 1~24 series lithium battery pack (voltage between 2V~4.5V battery).

Display the voltage of each string, total voltage, highest string voltage, lowest string voltage, maximum voltage difference of the battery pack, average voltage, equalization voltage, number of battery pack strings.

Each string voltage accuracy 0.003 or so.

With reverse connection, high voltage (more than 4.5V), low voltage (less than 2V) warning sound and prompt.

Type-C and DC two kinds of power supply (power supply 5V).

Support mixed plug (no need to start from B1).

Can switch between English and Chinese.

Operation Steps:

1. Turn on the power switch after the device is powered on.

2. The battery pack is wired according to the label on the device or the adapter board.

3. Check whether the display data on the display is normal, if not, check the wiring or the battery pack.

Note:

The matching adapter board is self-contained 2.0/2.54 pitch pin position, can not be connected to two interfaces at the same time.

Specifications:

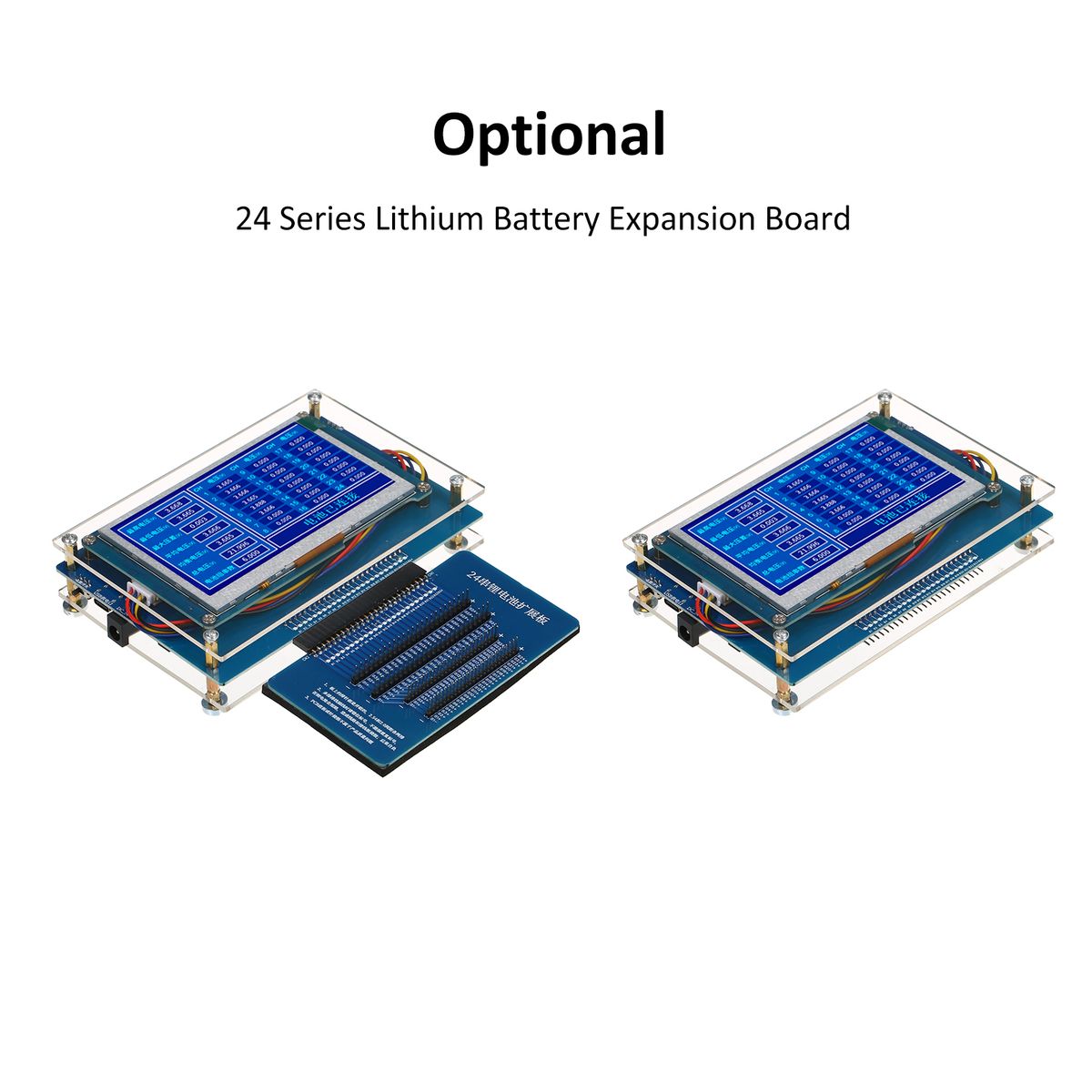

Type: With expansion board / Without expansion board (Optional)

Material: Acrylic

Model: 24 series

Power Supply: Type-C and DC

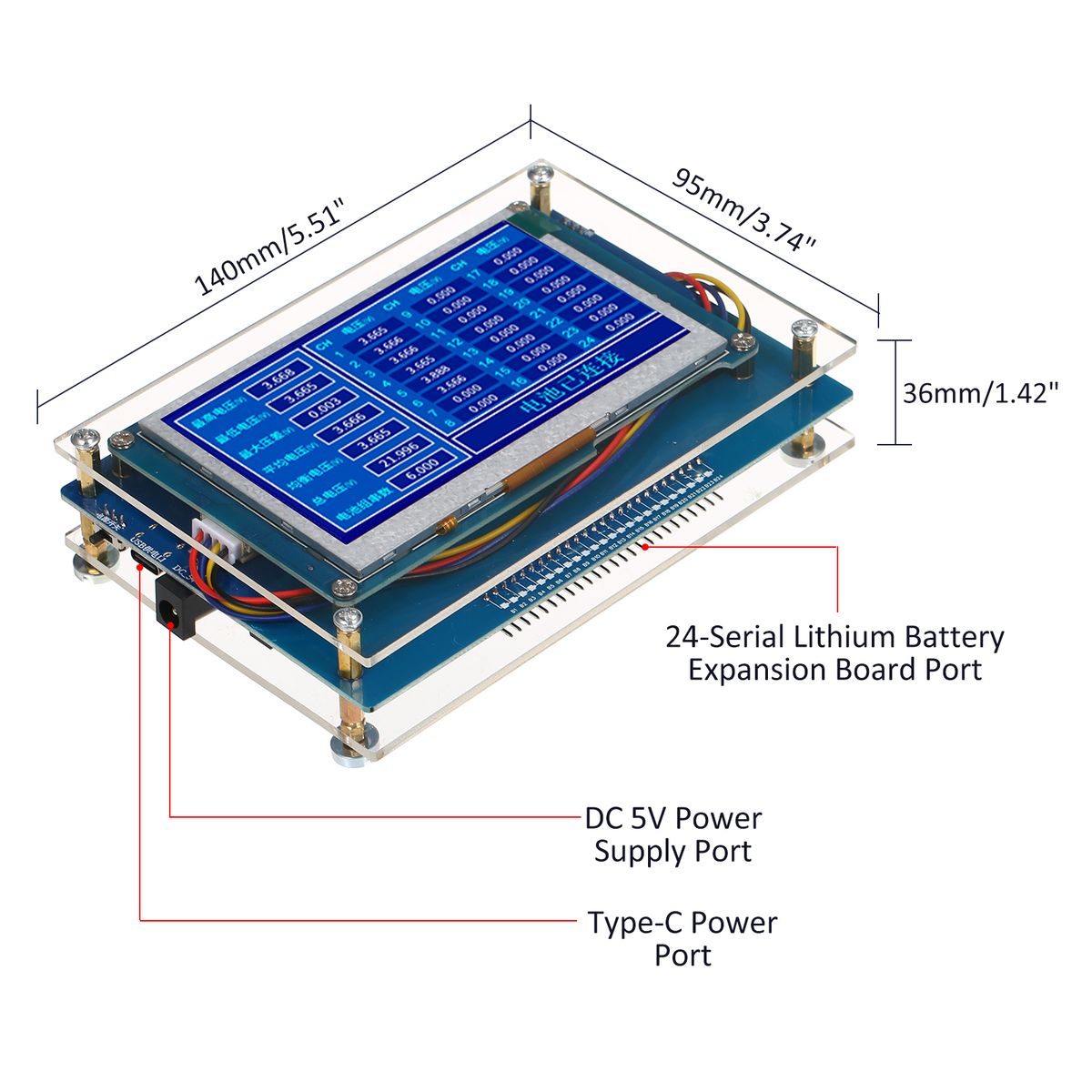

Size: 140 * 95 * 36mm / 5.51 * 3.74 * 1.42in

Weight: 243g / 8.57oz

Package Weight: 369g / 13.01oz

Package Size: 203 * 140 * 70mm / 7.99 * 5.51 * 2.76in

We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.

*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.

*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

Equipped with an acrylic shell baffle that protects the device from damage and provides a clear view of the display.
Support 1~24 series lithium battery pack (voltage between 2V~4.5V battery).
Display the voltage of each string, total voltage, highest string voltage, lowest string voltage, maximum voltage difference of the battery pack, average voltage, equalization voltage, number of battery pack strings.
Each string voltage accuracy 0.003 or so.
With reverse connection, high voltage (more than 4.5V), low voltage (less than 2V) warning sound and prompt.
