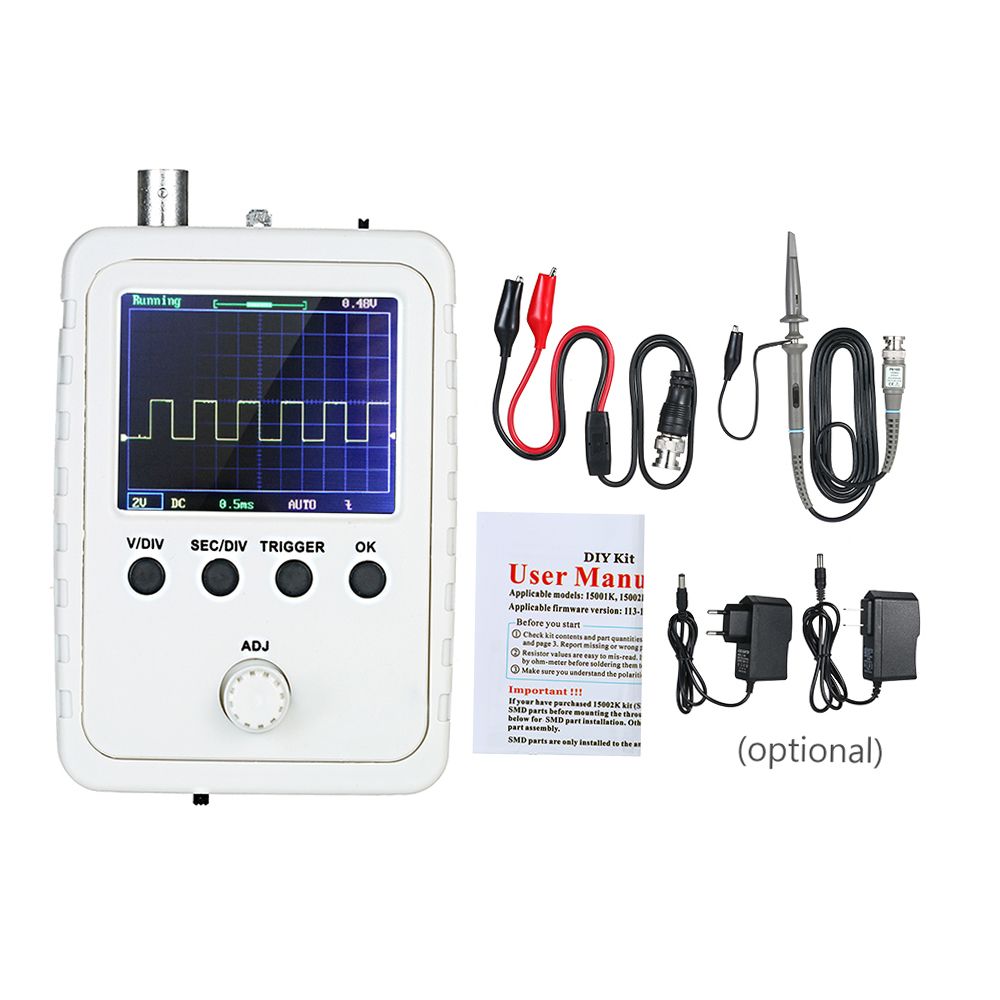

Buy 2.4-inch TFT Digital Oscilloscope Kit With Power Adapter

2.4-inch TFT Digital Oscilloscope Kit With Power Adapter And

₦ 151,198.04 ₦ 159,155.83 -5%

0 No Reviews

Product SKU: RENG225239

Brand: Generic

Variants

EU plug US plug

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	N/A
Production Country	China
Weight (kg)	0.31
Color	N/A
From the Manufacturer	N/A
Care Label	N/A

Features:

Adopts ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen

Used for secondary development on the basis of this kit, for example, it can be changed to millivoltmeter, data loggers.

Come with instructions, easy to install and operate.

Auto/normal/single trigger modes, easy to capture the moment waveform.

Available rising or falling edge trigger.

Observable previous waveform before trigger (negative delay).

Can freeze waveform display at any time (HOLD function).

Waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Waveform storage function: Will not lose the waveform after powering off.

Short-circuit and open-circuit detection: Can help the user find out the soldering error.

TFT controller recognition function.

The SMD has been soldered, more suitable for electronic beginners.

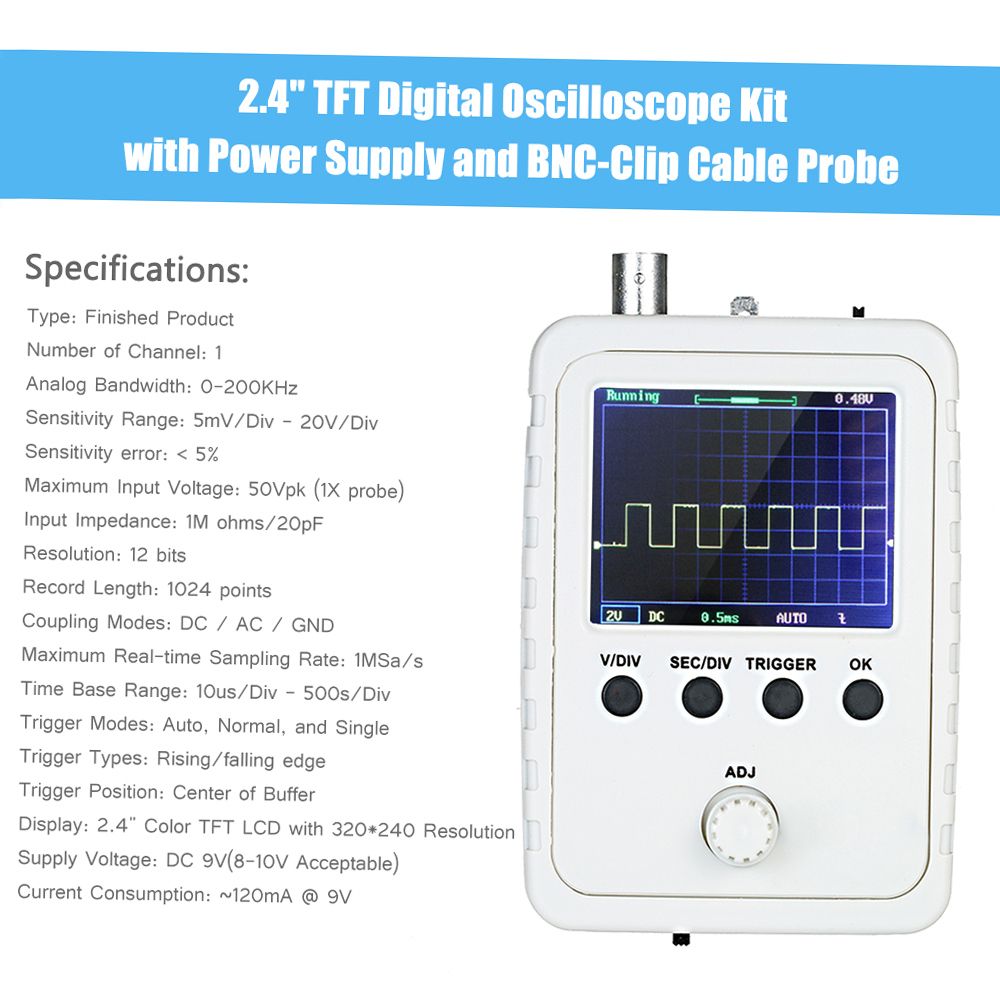

Specifications:

Type: Finished Product

Model: US/ EU (optional)

Number of Channel: 1

Analog Bandwidth: 0-200KHz

Sensitivity Range: 5mV/Div - 20V/Div

Sensitivity error: lt; 5%

Maximum Input Voltage: 50Vpk (1X probe)

Input Impedance: 1M ohms/20pF

Resolution: 12 bits

Record Length: 1024 points

Coupling Modes: DC / AC / GND

Maximum Real-time Sampling Rate: 1MSa/s

Time Base Range: 10us/Div - 500s/Div

Trigger Modes: Auto, Normal, and Single

Trigger Types: Rising/falling edge

Trigger Position: Center of Buffer

Display: 2.4 quot; Color TFT LCD with 320*240 Resolution

Supply Voltage: DC 9V(8-10V Acceptable)

Current Consumption: ~120mA @ 9V

Product Size: 115 * 75 * 22mm / 4.53 * 2.95 * 0.87in

Product Weight: 92g / 3.24oz

Package Size: 202*110*38mm/7.95*4.33*1.50in

Package Weight: 314g/11.07oz

Note:

Due to the light and screen difference, the \'s color may be slightly different from the pictures.

Please allow 1-3cm differences due to manual measurement.

We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.

*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.

*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

features high sensibility, light and portable size, 2.4-inch TFT screen and protective case. It can display waveform parameters, such as frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Adopts ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen
Used for secondary development on the basis of this kit, for example, it can be changed to millivoltmeter, data loggers.
Come with instructions, easy to install and operate.
Auto/normal/single trigger modes, easy to capture the moment waveform.
