Product Specifications
Description

Size (L x W x H cm)	60x40x40
Weight (kg)	1

Descirption:

1. Backlight: press the button for 3 seconds to switch the backlight color when the odometer is in the ODO state;

2. Switch between KM/H and MPH: press and hold the button while do not release and then open the electric switch, the screen displays P0000, at this time the 0 on the ones place flashes; long press to jump to the tens place, short press and the tens place displays 1; and then long press to jump to the hundreds digit; short press 6 times and the hundreds digit displays 6; then long press to thousands digit, press 6 times and the thousands digit displays 6. At this time, the screen displays 00466 which means 46.6Hz, and 46.6Hz corresponds to 60KM/H. Short press to skip (this item does not need setting), then the screen displays 1001 which stands for 1001 KM/H, if you want to switch to MPH, press and hold the button for ones digit flashing, long press to switch to 1002, which means that it has been set to MPH. Short press to jump to the next item;

3. Set RPM cylinder: follow the above steps, short press the screen to display 2002 which indicates that it displays 2 cylinders (166Hz corresponds to 10*1000RPM/MIN), short press to skip, long press and the ones digit flashes, then press the ones digit 2 times switching to 4, and it has been switched to 4 cylinders (333Hz corresponds to 10*1000RPM/MIN), short press to jump to the next item;

4. Oil level meter setting: following the above steps, short press the screen and it displays 3002, indicating that this is a 2-line oil meter, short press and all settings have been saved and exit; long press and ones digit flashes, then long press and it displays 3003, indicating that it has been switched to 3-wire oil meter.

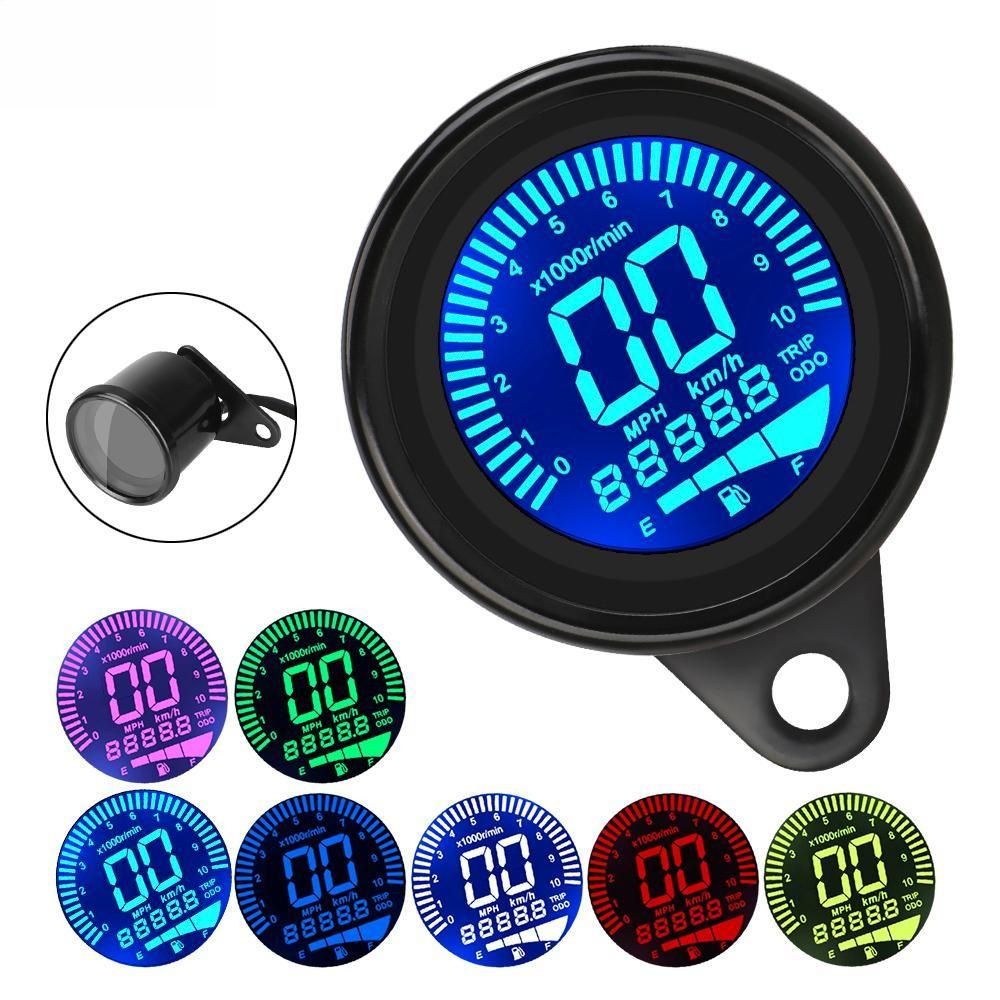

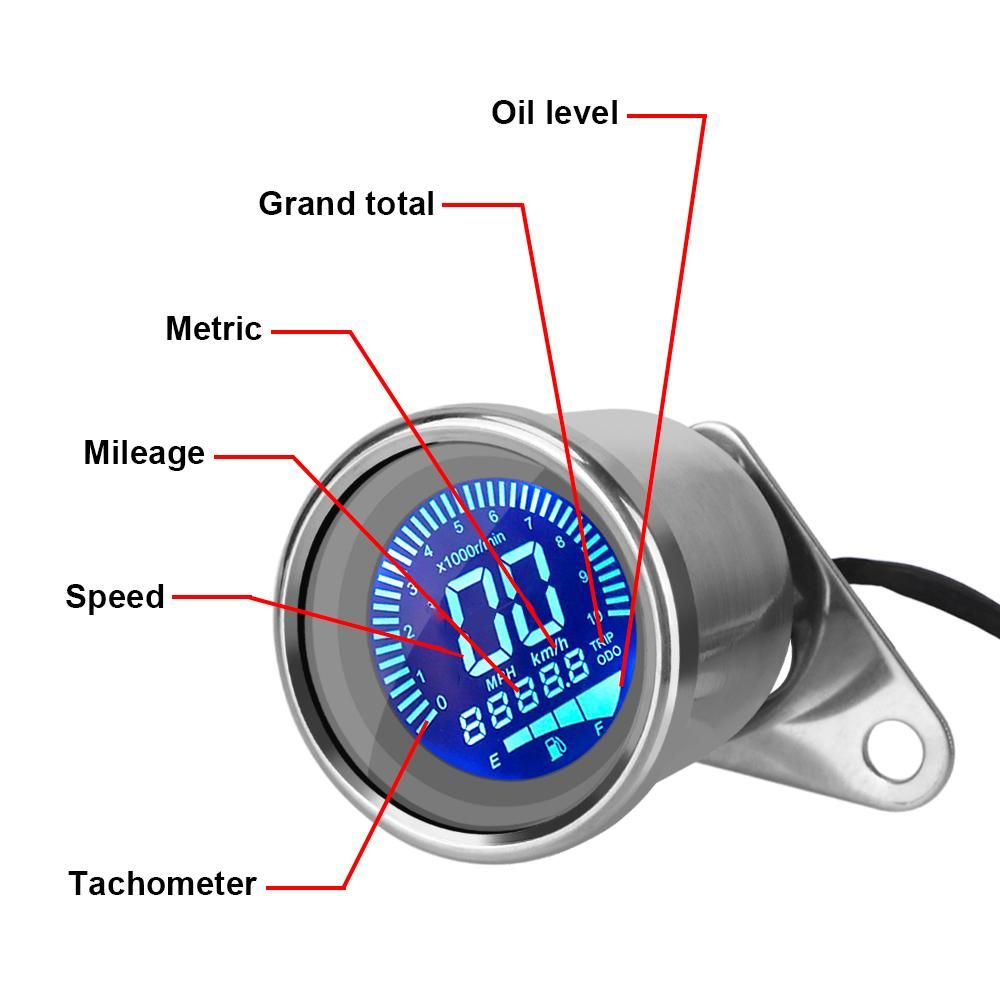

Features:

1. Liquid crystal digital display;

2. Oil level;

3. Tachometer (0-10000RPM);

4. Speedometer (0-199KM / H);

5. Odometer;

6. 7 backlight colors, free to switch;

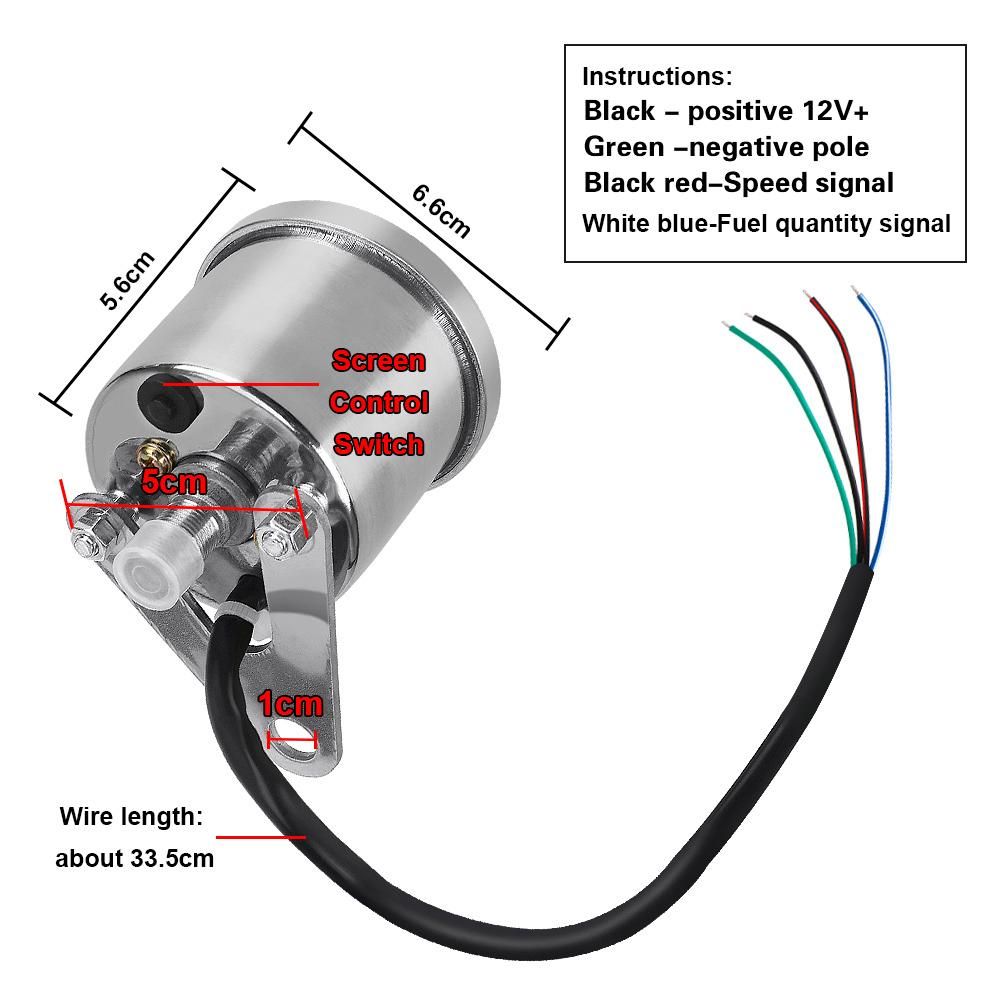

Wiring:

Black wire to the positive electrode

Green wire to the negative electrode

Yellow and black wire to RPM signal

Blue and white wire to oil level gauge

Product application: universal for 12V motorcycle

Key Features

Special Features：0000
Material Type：ABS
Item Diameter：8cm
Item Weight：0.25kg
Item Height：6cm
Item Width：9cm
Item Length：16cm
External Testing Certification：ce
Model Name：0000
Brand Name：Hapdd
Origin：Mainland China
