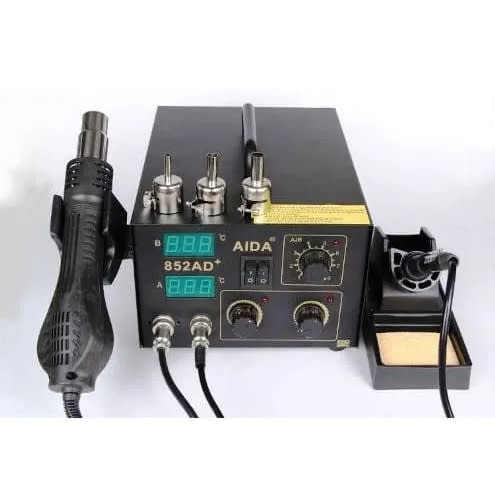

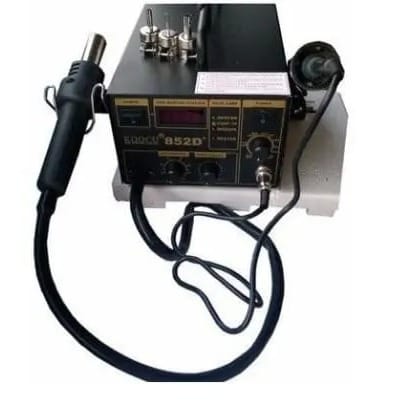

This new and improved 2-in-1 SMD rework soldering station heats up fast and maintains a stable temperature so that you can solder and Desoldering SOIC, CHIP, QFP, PLCC, BGA, or other temperature-sensitive components uninterrupted. The smart design keeps the iron safe and functional. Rotation will stop automatically when the temperatures drop under 158 Fahrenheit and the same time intelligent error detection stops short circuits and overheating before they occur. The hot air gun starts working only when the power is on and it is placed on top of the holder to keep you safe.
Important ! The user must remove the RED protective screw from the base before using. The screw holds the compressor during transport..
Specifications:
Power Voltage: 220V
Power Consumption: 320W (Max.)
Pump: Diaphragm Pump
Capacity: 24L/min (Max.)
Standard Iron Tip: AT-900M
Hot Air Temperature: 212-896°F/100-480°C
Tip of Iron Temperature: 392-896°F/200-480°C
Outer Dimensions: 7.4x5.9x9.6 inches / 187x150x245 mm
Weight: Around 4 Kilo with Packing
Outer Dimensions: 187 (W) x150 (H) x245 (D) mm
Package Includes:
1 Rework Station with Air Output
1 Rework Tray
1 Soldering Iron Holder
1 Soldering Iron
1 Soldering Iron Foam
3 Nozzles
1 Manual
