Features:● The RM shielded inductance is specially designed for WAHWAH tone, which guarantees outstanding tone.
● It takes lesser space of the pedal board, compact & lightweight & portable.

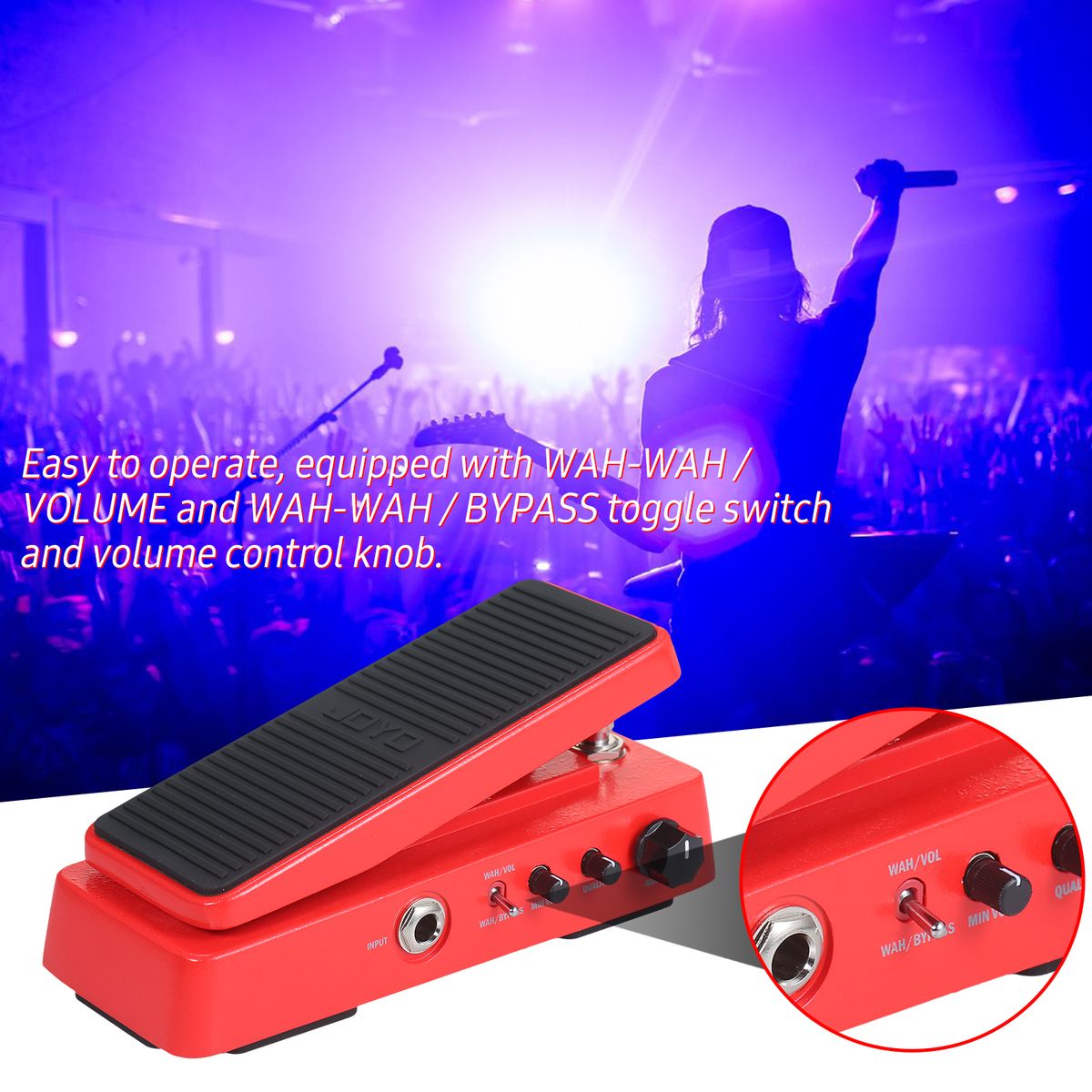

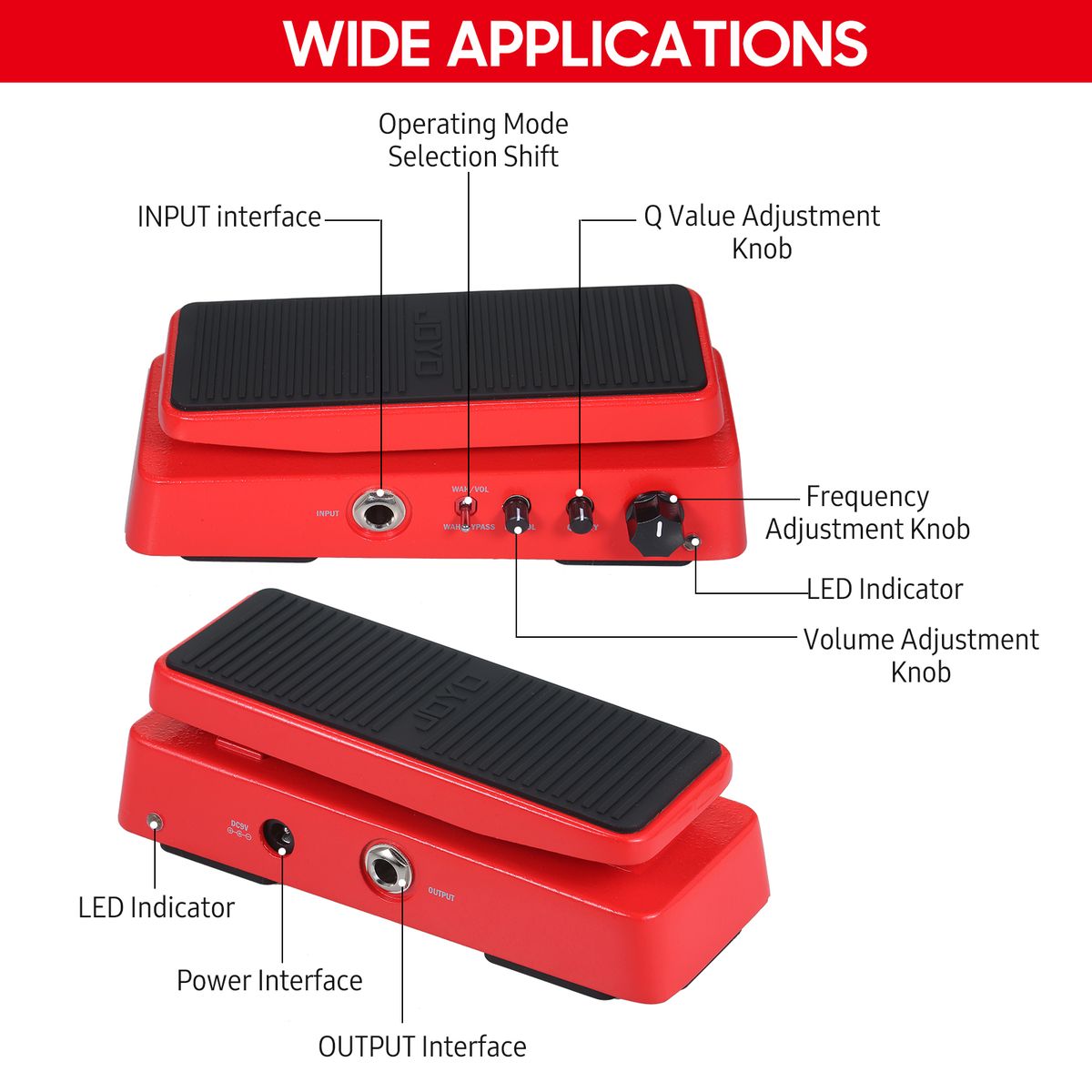

● Easy to operate, equipped with WAH-WAH / VOLUME and WAH-WAH / BYPASS toggle switch and volume control knob.

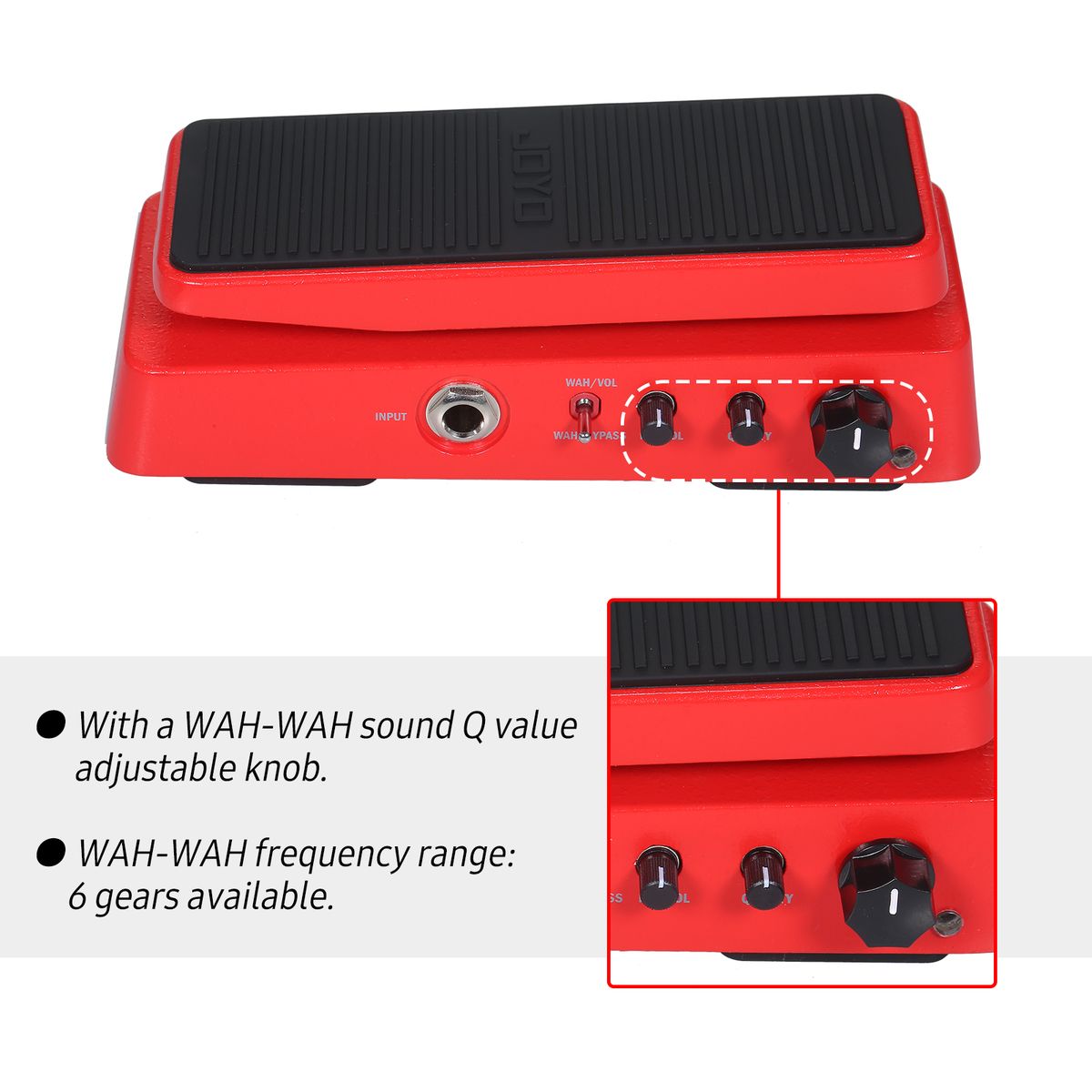

● With a WAH-WAH sound Q value adjustable knob.
● WAH-WAH frequency range: 6 gears available.
● It integrates WAH-WAH and VOLUME functions, achieving much wider applications.

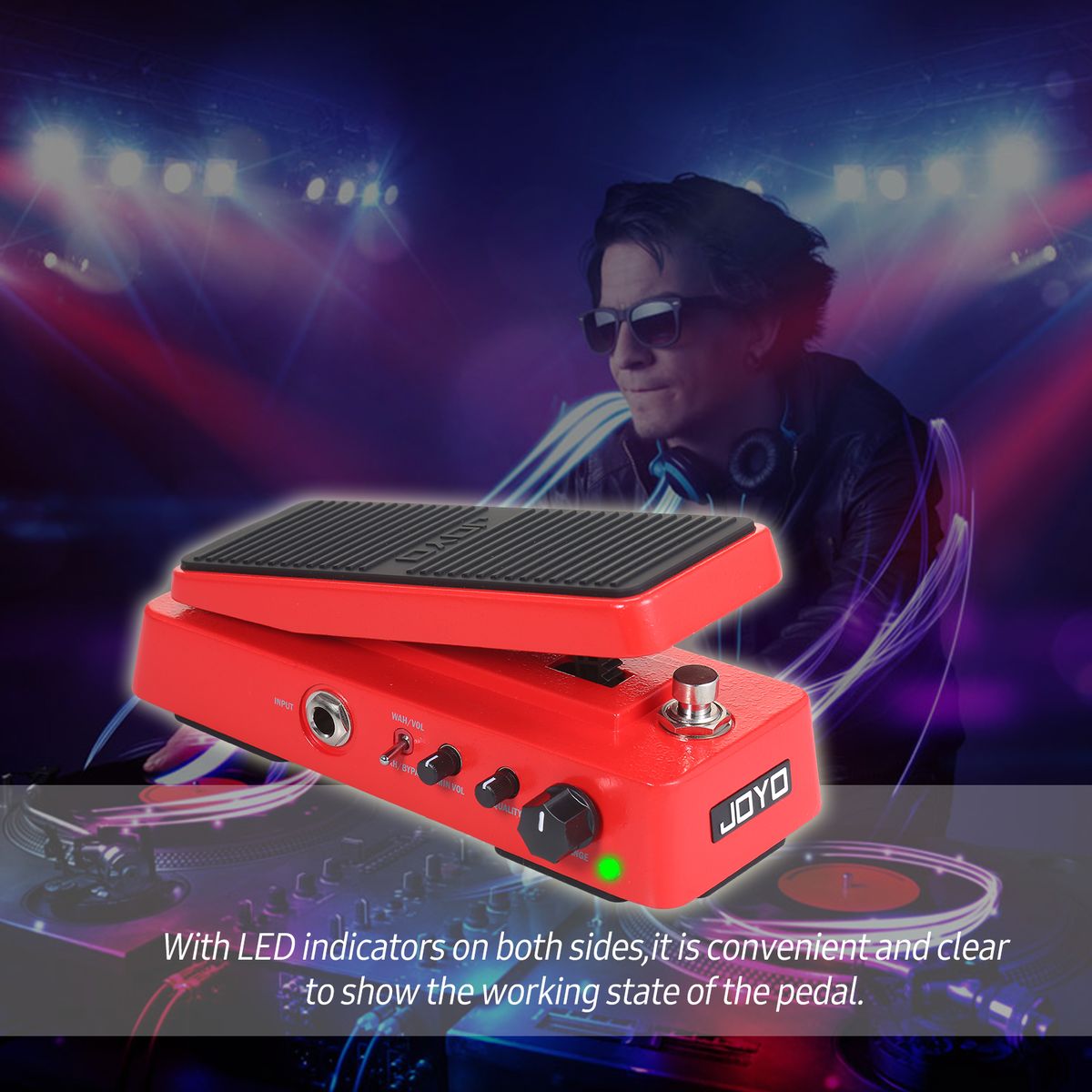

● With LED indicators on both sides, it is convenient and clear to show the working state of the pedal.
● True Bypass (for WAH-WAH mode only).
● Active volume control circuit is designed to ensure the minimum signal loss and signal integrity of the tone and reduce the timbre loss.

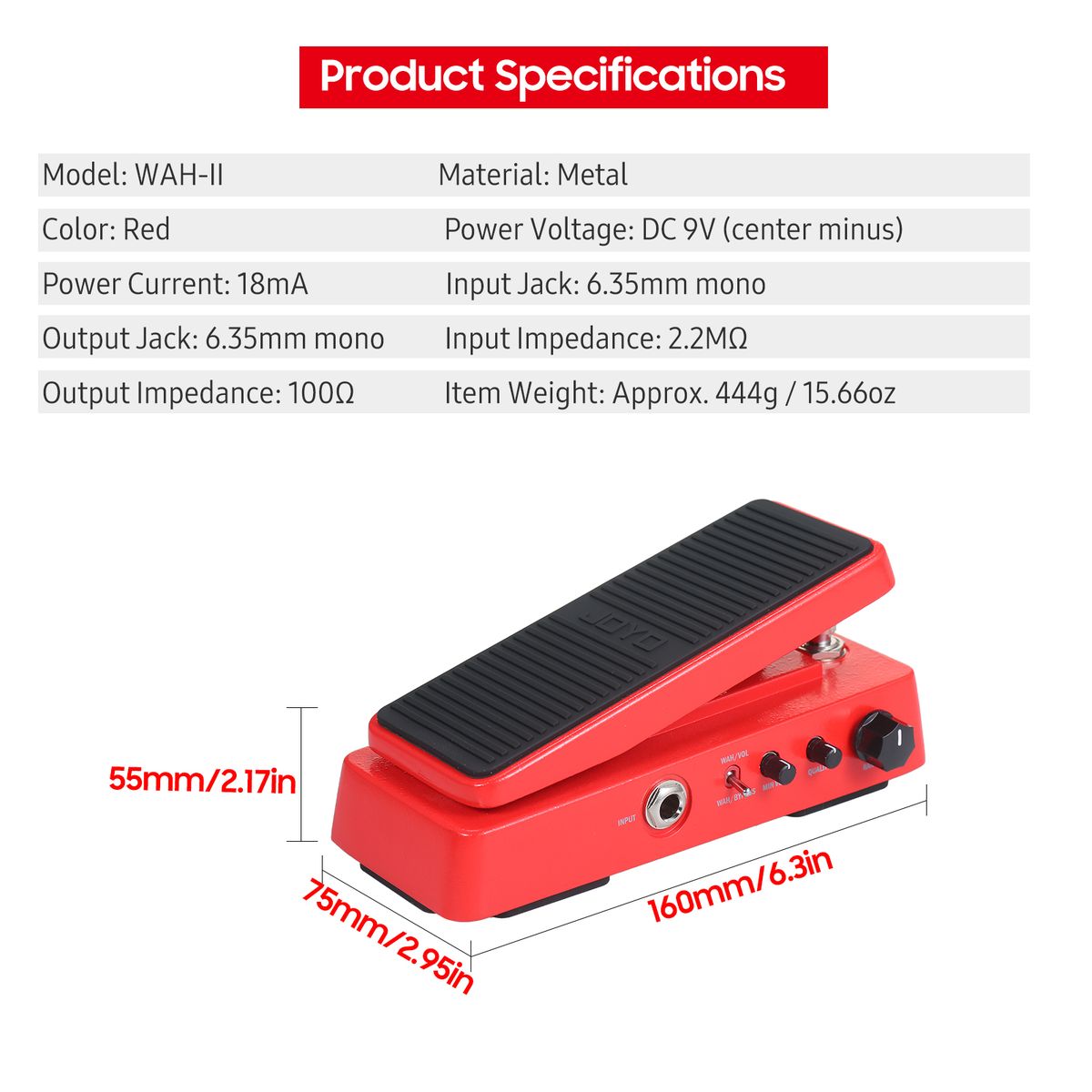

Specifications:Model: WAH-Ⅱ
Material: Metal
Color: Red
Voltage: 9V (center minus)
Current: 18mA
Input Jack: 6.35mm mono
Output Jack: 6.35mm mono
Input Impedance: 2.2MΩ
Output Impedance: 100Ω
Item Size: Approx. 160*75*55mm / 6.3*2.95*2.17in
Item Weight: Approx. 444g / 15.66oz
Package Size: Approx. 17.5*8*6cm / 6.89*3.15*2.36in
Package Weight: Approx. 496g / 17.5oz
Packing List:1 * Pedal
1 * User Manual (English)
Key Features
● The RM shielded inductance is specially designed for WAHWAH tone, which guarantees outstanding tone.
● It takes lesser space of the pedal board, compact & lightweight & portable.
● Easy to operate, equipped with WAH-WAH / VOLUME and WAH-WAH / BYPASS toggle switch and volume control knob.
● With a WAH-WAH sound Q value adjustable knob.
● WAH-WAH frequency range: 6 gears available.
● It integrates WAH-WAH and VOLUME functions, achieving much wider applications.
What's In the Box
1 x Pedal,1 x User Manual (English)
