This is the new design solution for 1S Lipo/Li-ion/LiHv recharging board with Series connection, not the parallel recharging board. The principle is that this series recharging board makes the batteries as one battery series group. It can recharge-up to 6 lithium batteries at the same time when connected with a balance cable, effectively save your time. Without the problem of voltage deviation limited and safety problem. Comes with 4.0mm banana plug to XT60 male cable, which has fine conductivity and reliability, with a strong overload bearing capacity.
Features:
This is the new design solution for 1S Lipo/Li-ion/LiHv recharging board with series connection, it is not the parallel recharging board.
The principle is that this series recharging board makes the batteries as one battery series batterypack.
You can easily use this series board to recharge /storage/discharge with monitoring each cell.
It can recharge-up to 6 lithium batteries at the same time when connected with a balance cable, effectively save your time.
As you know, the parallel recharging board has the voltage deviation limited and safety problem.
For parallel recharging board, if the voltage deviation between batteries is high than 0.1V, so you can\'t recharge them at the same time due to the safety problem.
And In parallel recharging, if one of your batteries has problem or short circuit, then it will affect and do harm to others .
But it has not the problem using this series board, you can storage your batteries at the same time.
So this Series recharging board is better and more safety.

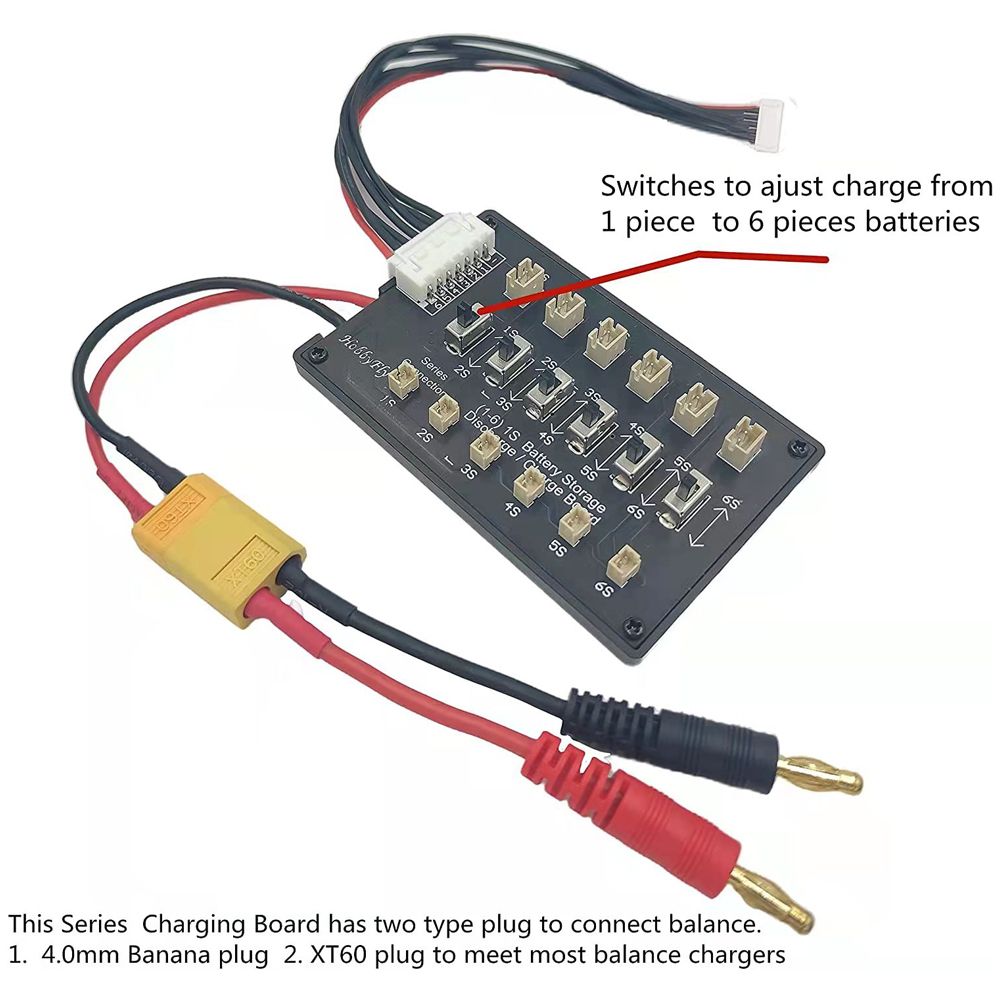

Comes with 4.0mm banana plug to XT60 male cable, which has fine conductivity and reliability, with a strong overload bearing capacity.
Recharging Use Guideline:

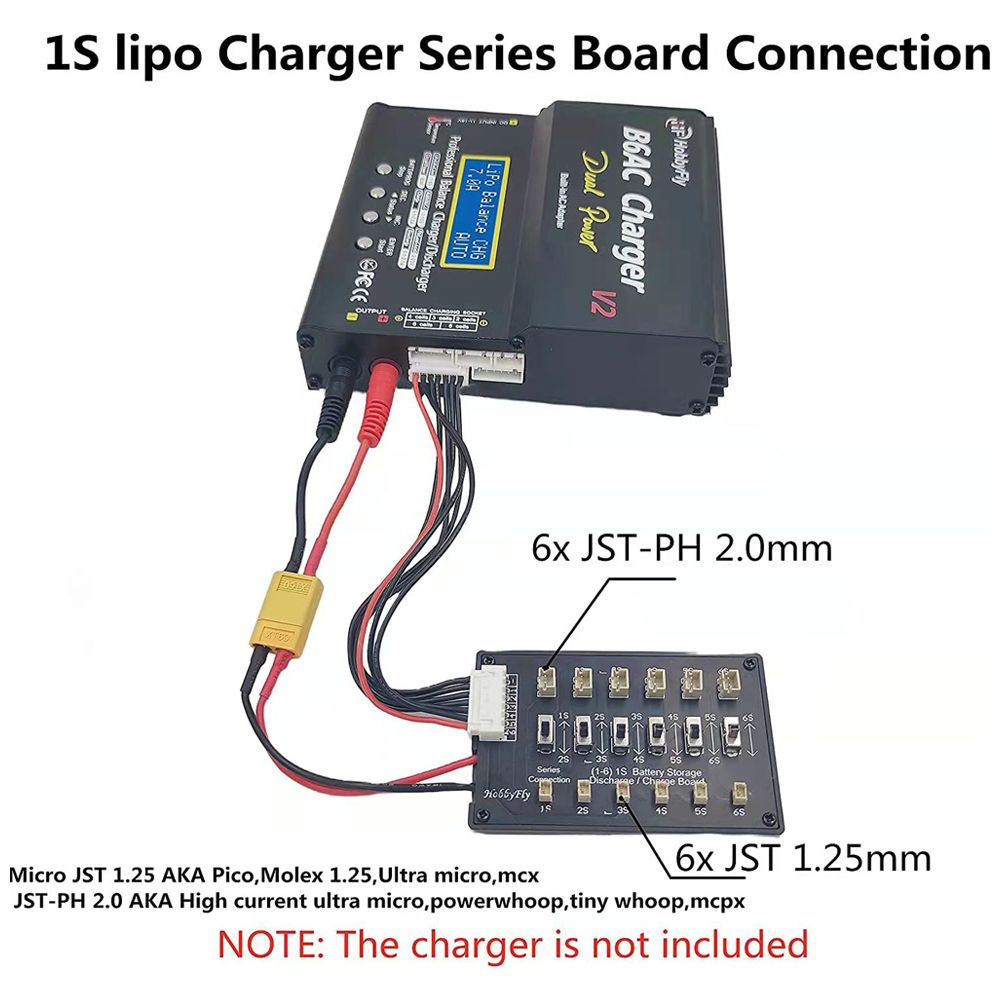

Stp1: connect the board to the recharge and batteries as the pic. Shows

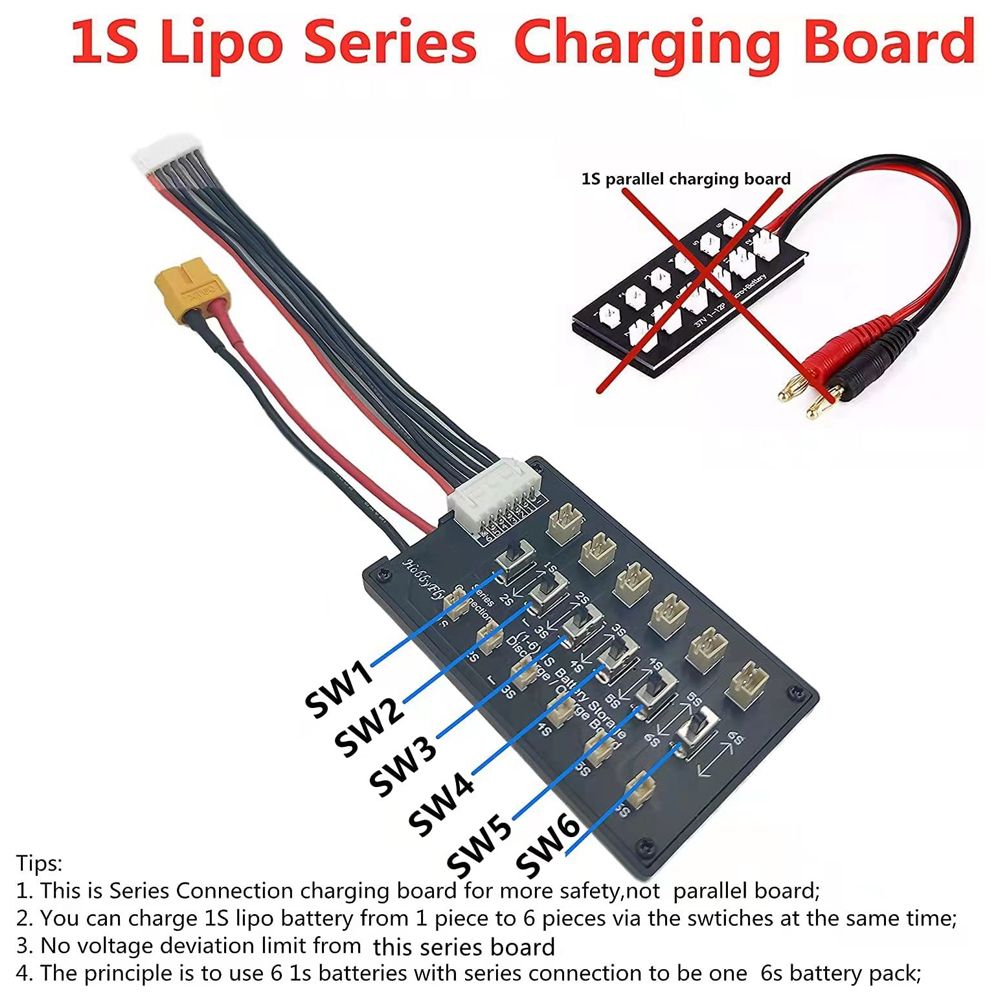

Stp2: Set up the switches as the table.
Specifications:
Name: 1S Lipo series recharging board
Battery connector: JST-PH2.0mm and JST 1.25mm
Recharge cable: Female XT60 16AWG silicone cable and 4.0mm Banana plug to Male XT60 cable
Balance cable: 6S 22awg silicone
Max Current: 4A

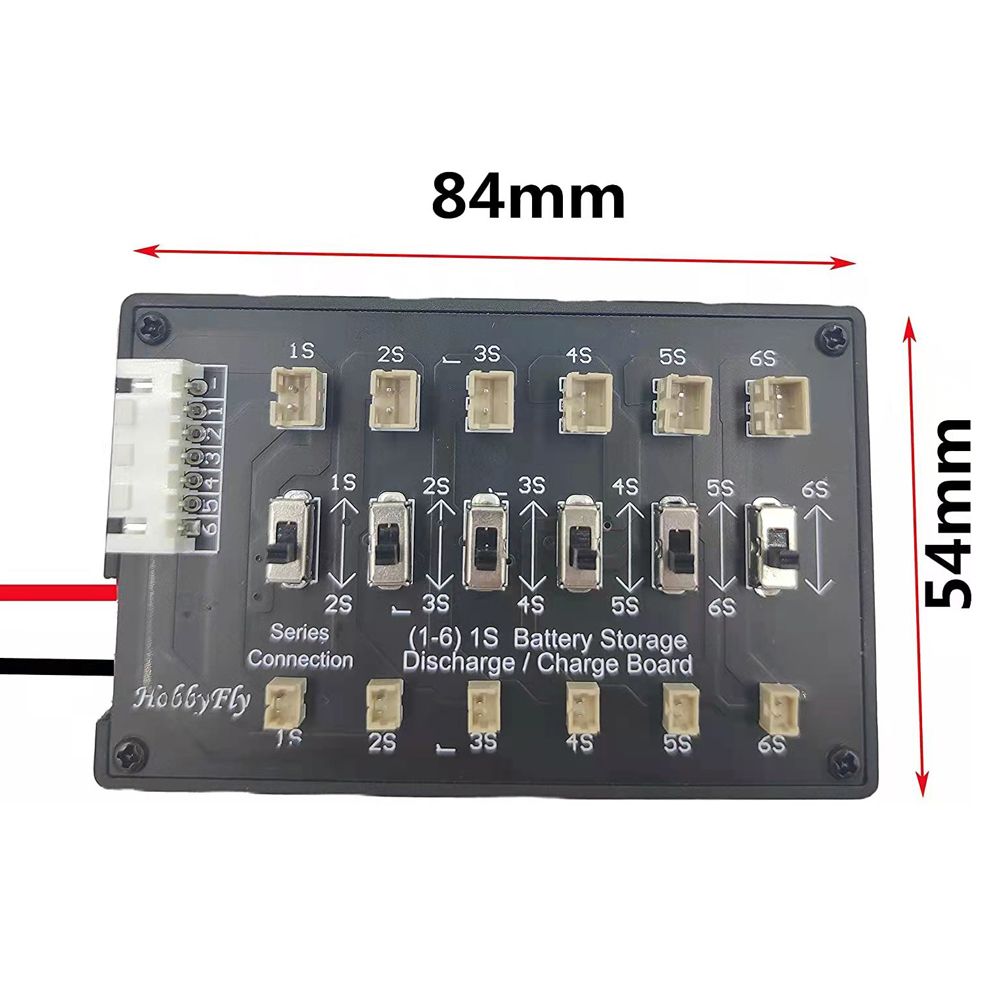

size: 84 * 54mm / 3.31 * 2.13in
Package size: 125 * 115 * 18mm / 4.92 * 4.53 * 0.71in
Package weight: 76g / 2.68ounce
Packing List:
1 * 1S PH2.0 /1.25mm Series Recharging Board
1 * 6s Silicon Balance Cable
1 * 4.0mm Banana Plug to XT60 Male Cable
