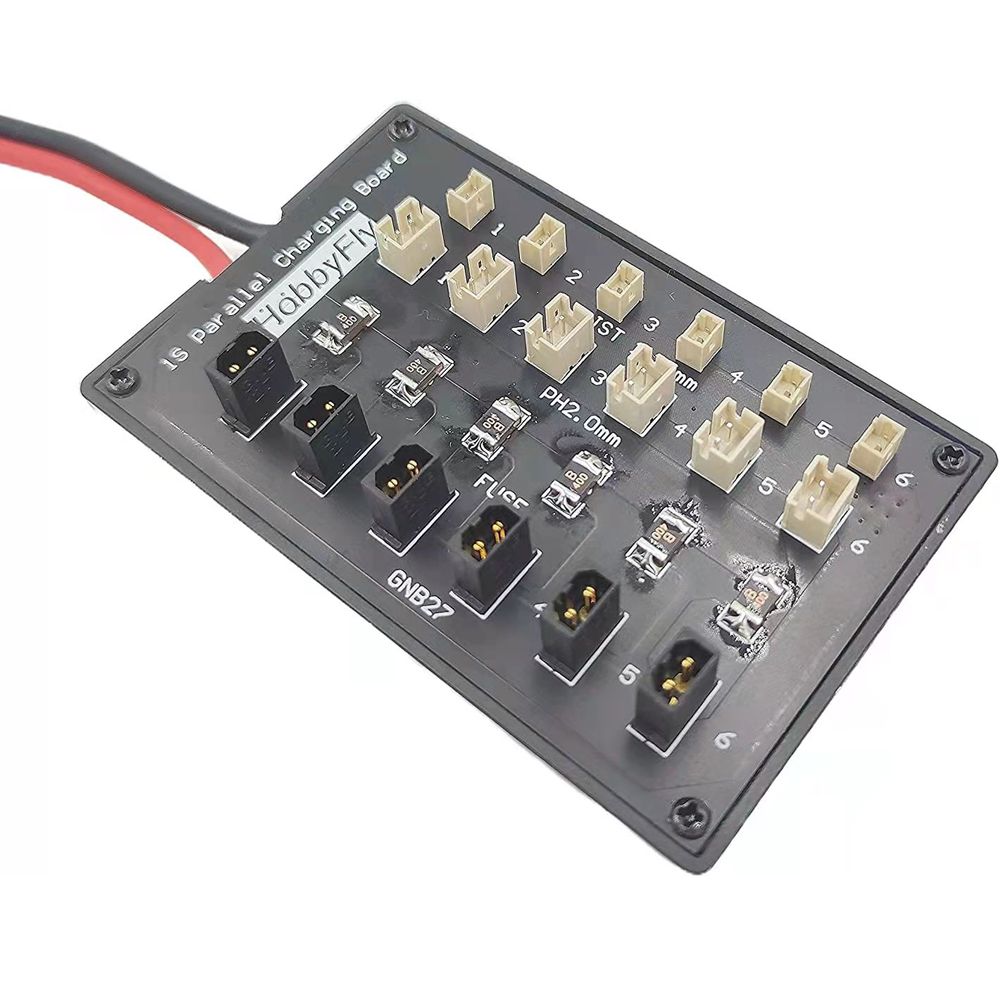

This is the parallel recharge board for GNB27 and PH2.0mm connector. You can recharge max 6 pcs batteries at the same time. The batteries request the same type /voltage(Max 0.3v deviation) and mah.It has two type plugs for the common balance chargers such as SKYRC,EV-PEAK etc..
Features:
Updated Recharging Board: With GNB27 for GNB27 recharger and JST-PH 2.0 jst1.25mm connector in one board, allows you to recharge the 1s lipo battery with GNB27 plug and JST PH2.0 jst1.25mm plug directly.
High Compatibility: Suitable for battery of various of batteries.
Save Recharging Time: It can recharge-up to 6 lithium batteries(including LiPo, LiFe, and Li-ion types) at the same time when used with a balance recharger, instead of balancing batteries one by one, effectively save your time. (The batteries request the same type /voltage (Max 0.3v deviation) and mAh.)
Built-in Short Circuit Protections: With 3A PTC fuse protections able to handle the large battery pressure, can protects the recharging batteries when short circuit happens.
Supports most lipo balance recharger: It has two type plugs to connect the rechargers, they are 4.0mm banana plug and XT60 plug. (Fit for the common balance rechargers such as SKYRC, EV-PEAK etc. )
High Safety: The board uses fine quality connectors for insurance.
Recharging Use Guidline:

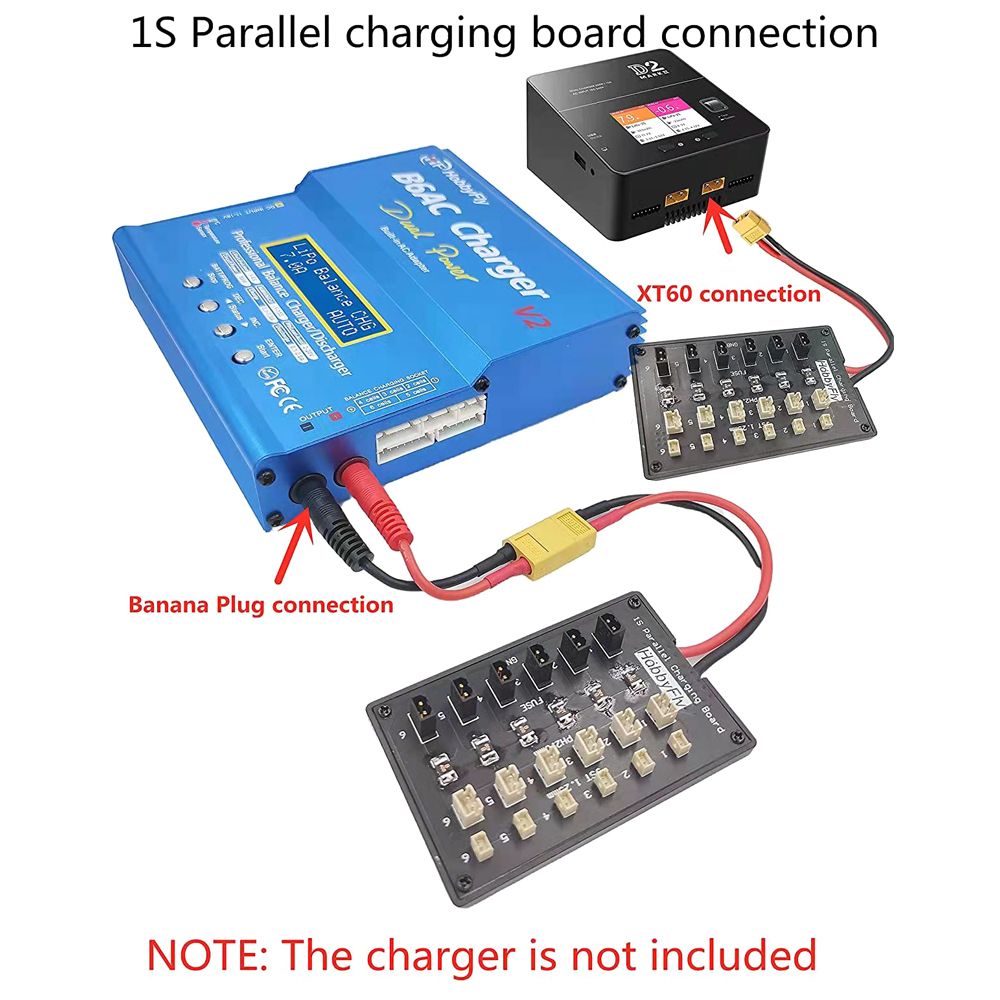

Step1: connect the board to the recharge and batteries as the pic. Shows
Step2: set up your recharger to starts recharging.
Specifications:
Name: Battery Parallel Recharging Board
Material: printed circuit board

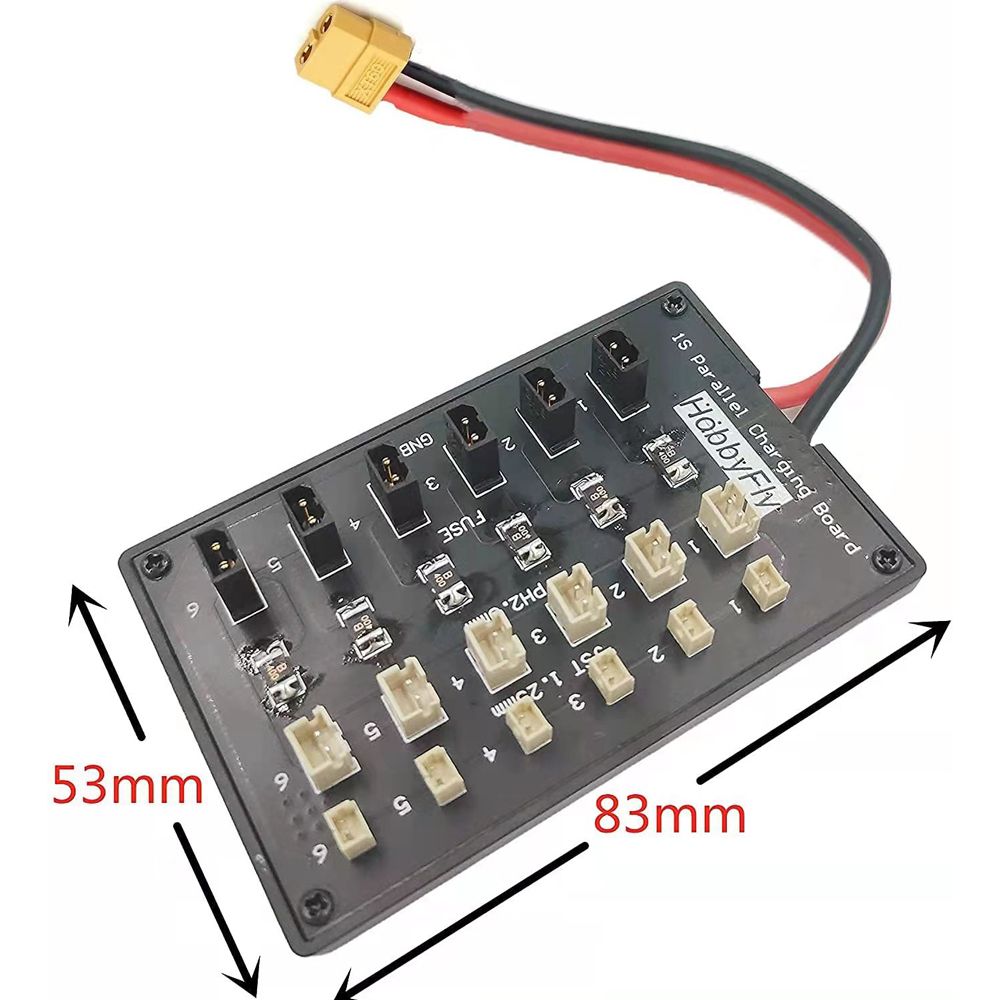

size: 83 * 53mm / 3.27 * 2.09in
Package size: 125 * 115 * 18mm / 4.92 * 4.53 * 0.71in
Package weight: 64g / 2.26ounce

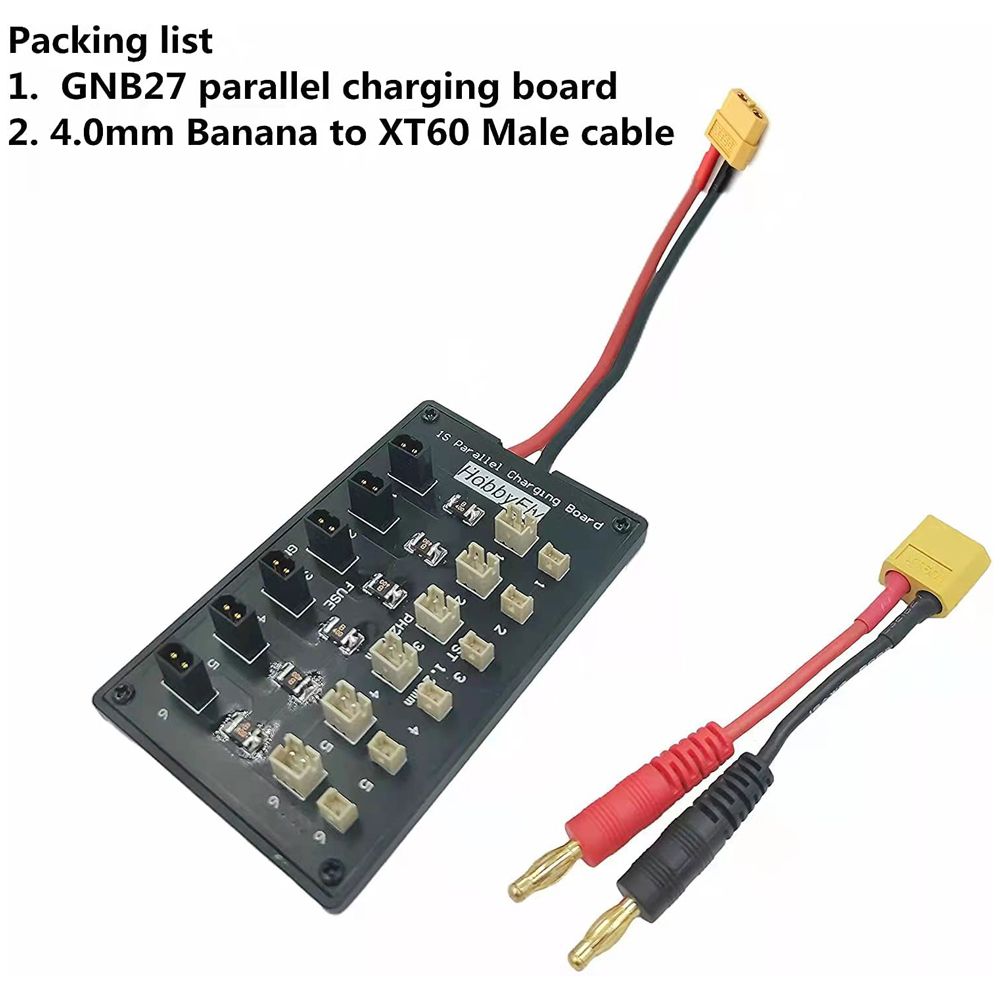

Packing List:
1 * 1S Lipo GNB27/PH2.0mm/ JST 1.25mm Battery Recharger Board
1 * 4.0mm Banana-plug to XT60 Male Cable
