Model |
Lithium battery protection board |
Production Country |
China |
Size (L x W x H cm) |
4x4x1 |
Weight (kg) |
0.0085 |
Color |
multicolor |
Main Material |
PCB |
Applicable to series 3 series, the following lithium/cobalt acid lithium/lithium cobalt/lithium/lithium polymer/triples battery pack
Perfect overcharge protection, overdischarge protection, discharge overcurrent protection and discharge short circuit protection

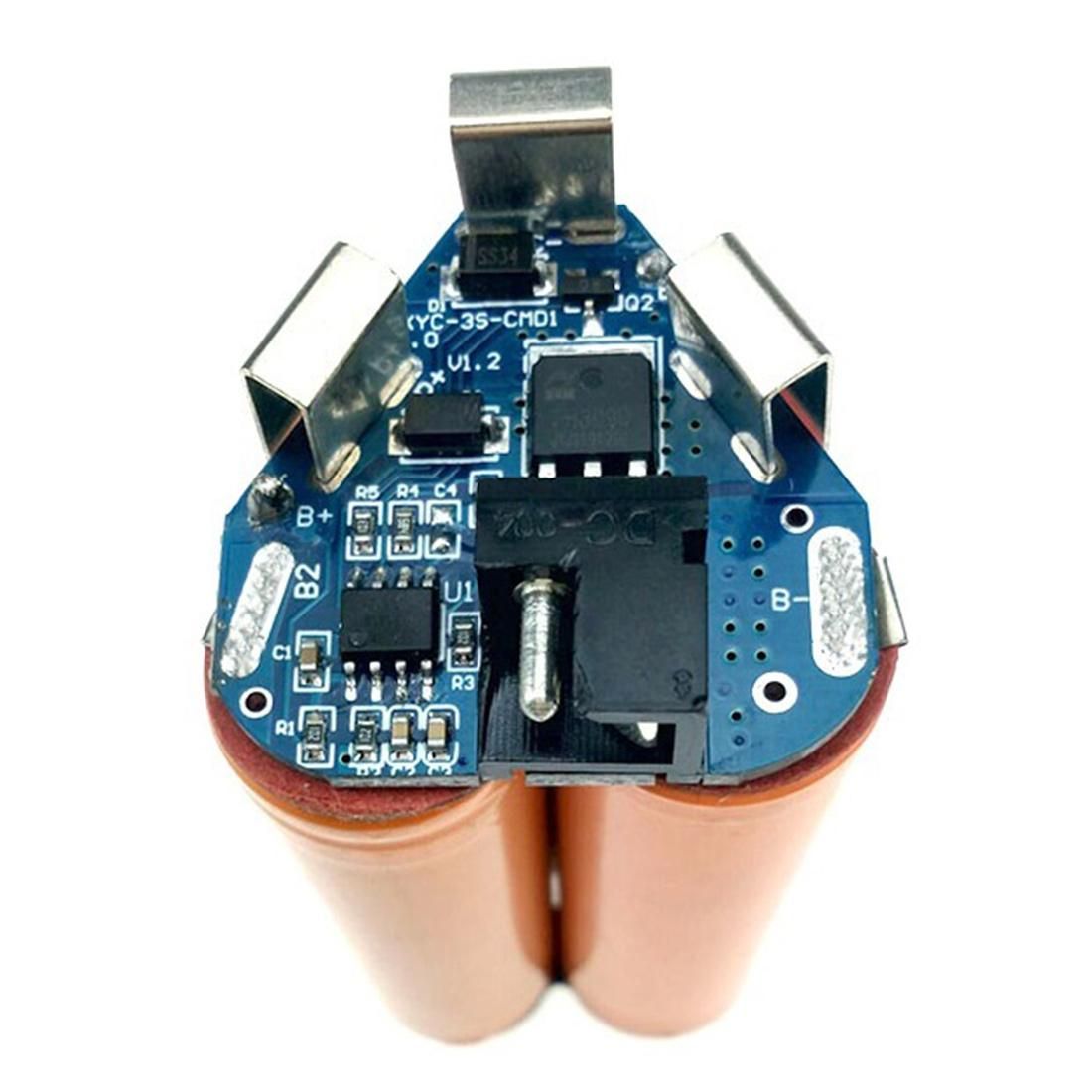

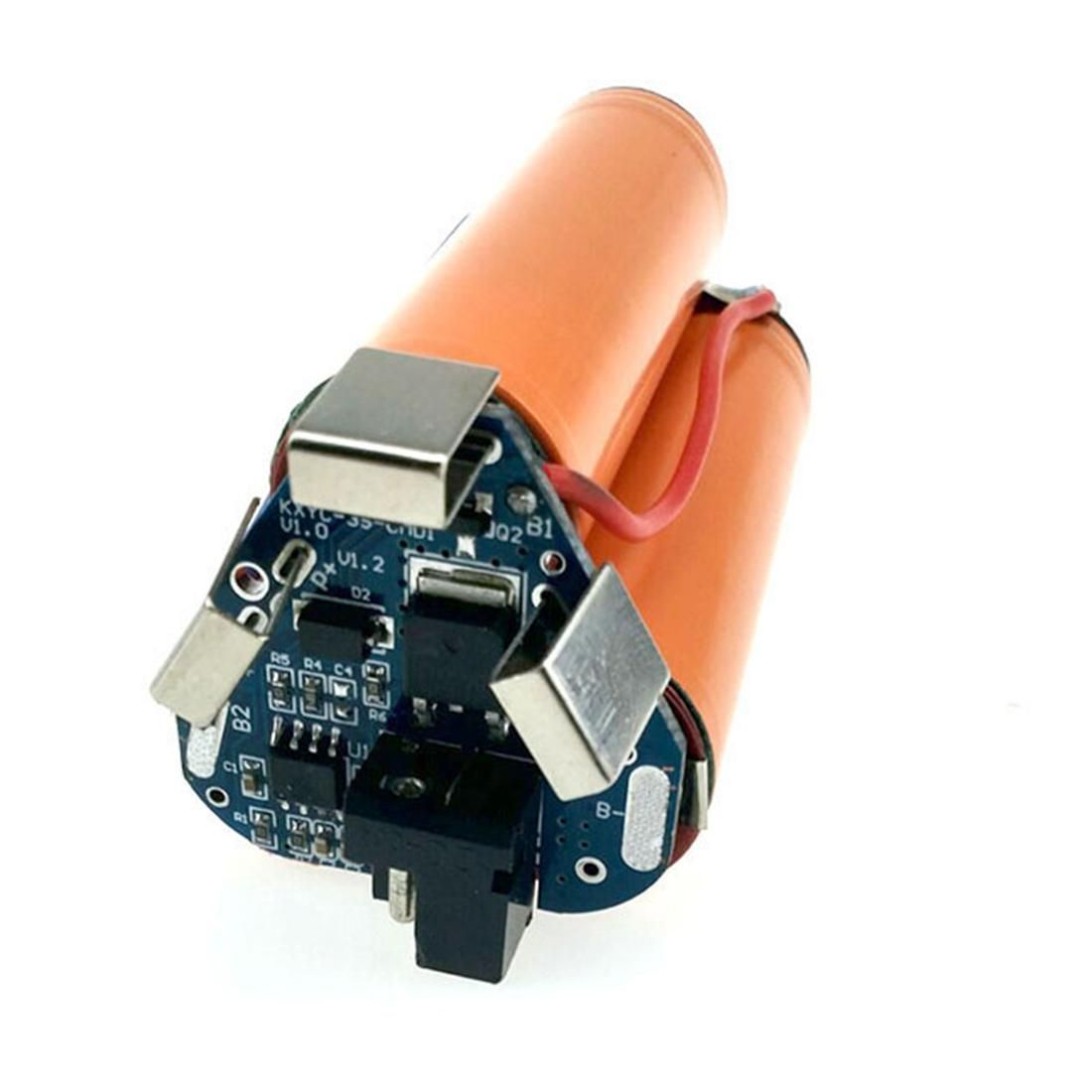

Model: 3S 12.6V Lithium Battery Board BMS
Application:12V screwdriver and 3S Pack use
upper operating current: 8A upper transient current: 40A±5A
overcharge range: 4.25±0.05V
over disvoltage range: 2.5±0.05V
charging voltage:12.6-13V
function: over charge/ over discharge/short circuit/ over current protection
Colour:blue
Material:PCB Size: 36 x 33.5 x 12mm Package Contents:
1 x Lithium Battery Protection Board Only the above package content, other are not included.
Note: Light and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
Battery Board
3S 12.6V Board
BMS for Screwdriver
18650 Lithium Battery Board
Lithium Battery Protection Board
The details are as described above
What's In the Box
1 x Lithium Battery Protection Board
