Descriptions:
1.Model: 85C1-A
2.Measuring Range: 0-5A
3.Accuracy Class: 1.5/2.5
4.withstand voltage:2000V for 1 minute

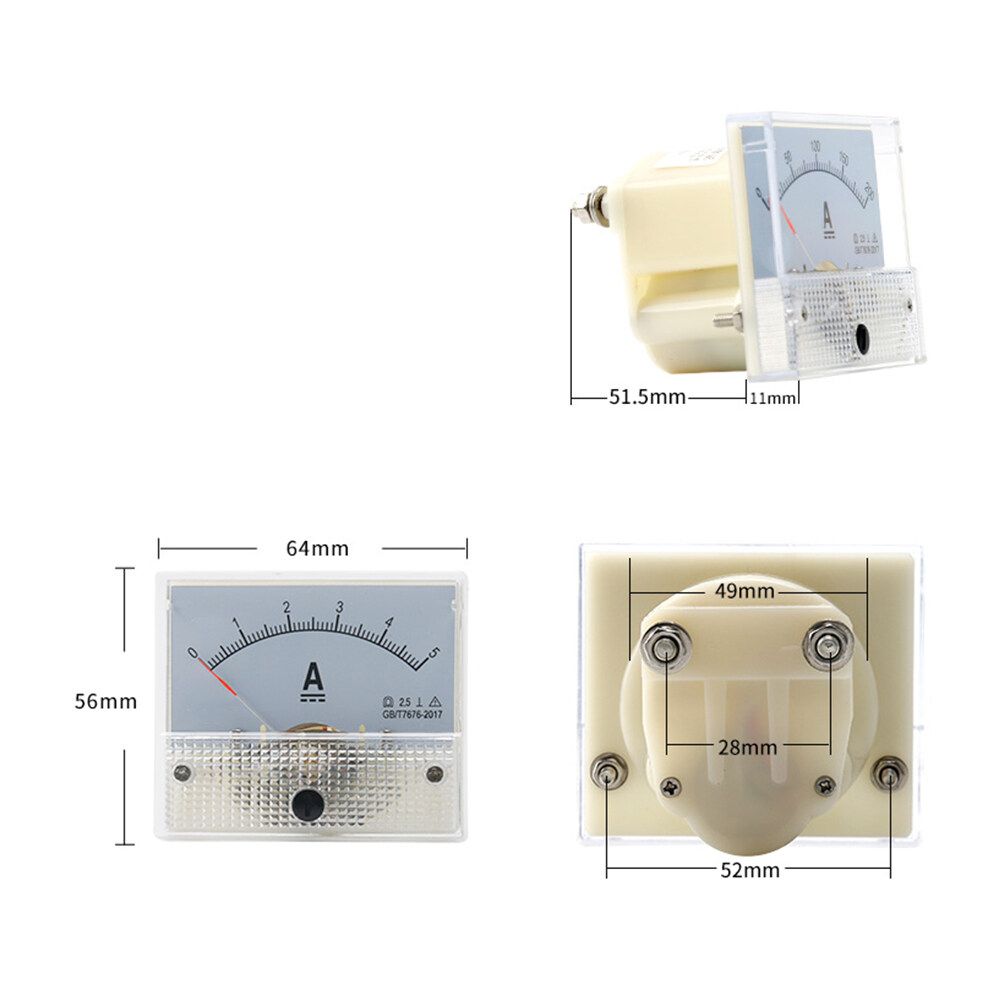

5.Size: 64 mm x 56 mm x 51.5 mm
6.: White
7.Operating Temperature: -20 ~40°
8.Package Content: 1 x Analog Voltmeter

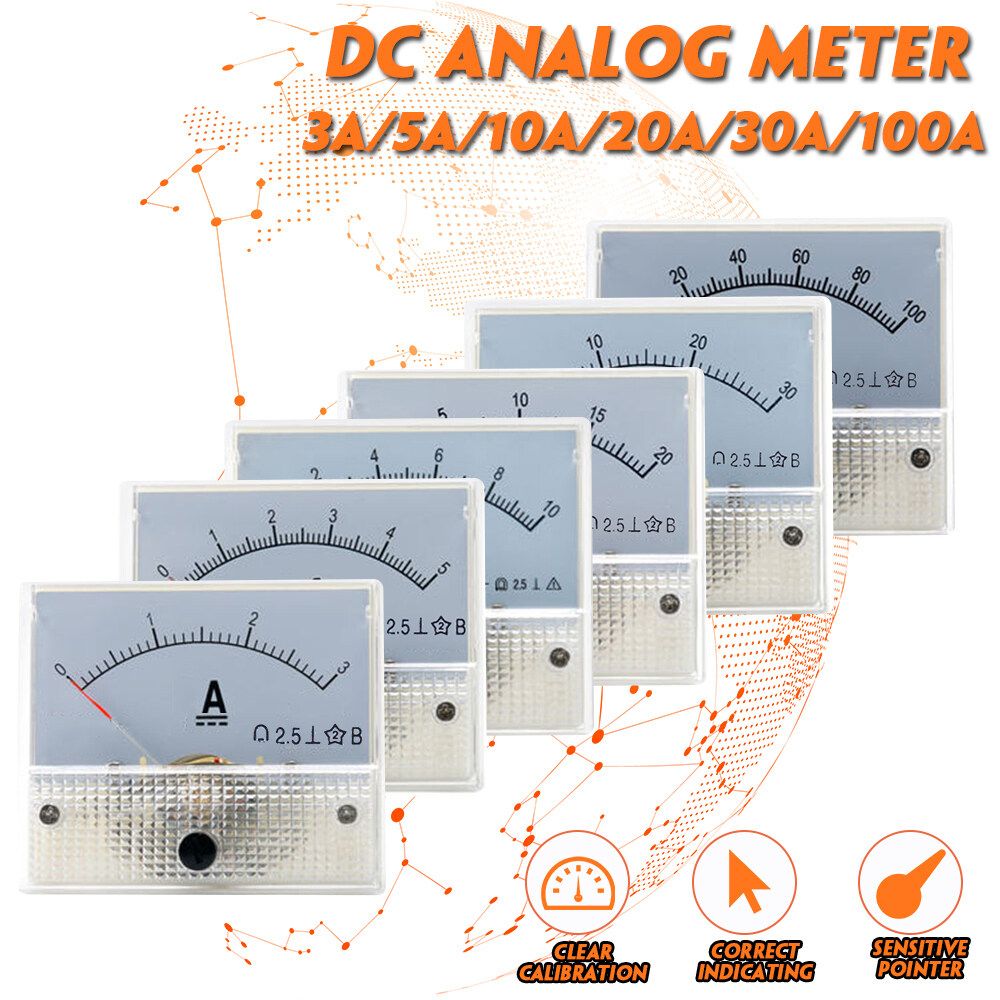

Can be used directly in series: 3A 5A 10A 20A 30A 10MA 30MA 50MA 100MA
Need to use the same current shunt: 100A
Use:
This instrument is a switched magnetoelectric instrument, which is used for measurement of current or voltage. The ambient temperature is -20~40 , and the relative humidity is not more than 96% (25).
The main technical characteristics
1. Degree of accuracy: level 1.5 and 2.5.
2, the damping time is less than 4S.
3. Insulation strength: AC2000V (50HZ), 1 minutes
Use of rules
1, work position: vertical.
2, instrument installation should be fastened, not loose or inclined.
3, the current ratio of the external current transformer must be in line with the calibration ratio of the instrument, and the accuracy grade is matched.
Note:
1.Due to the difference between different monitors,the picture may not reflect the actual of the item. We guarantee the style is the same in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3cm deviation.Thanks!

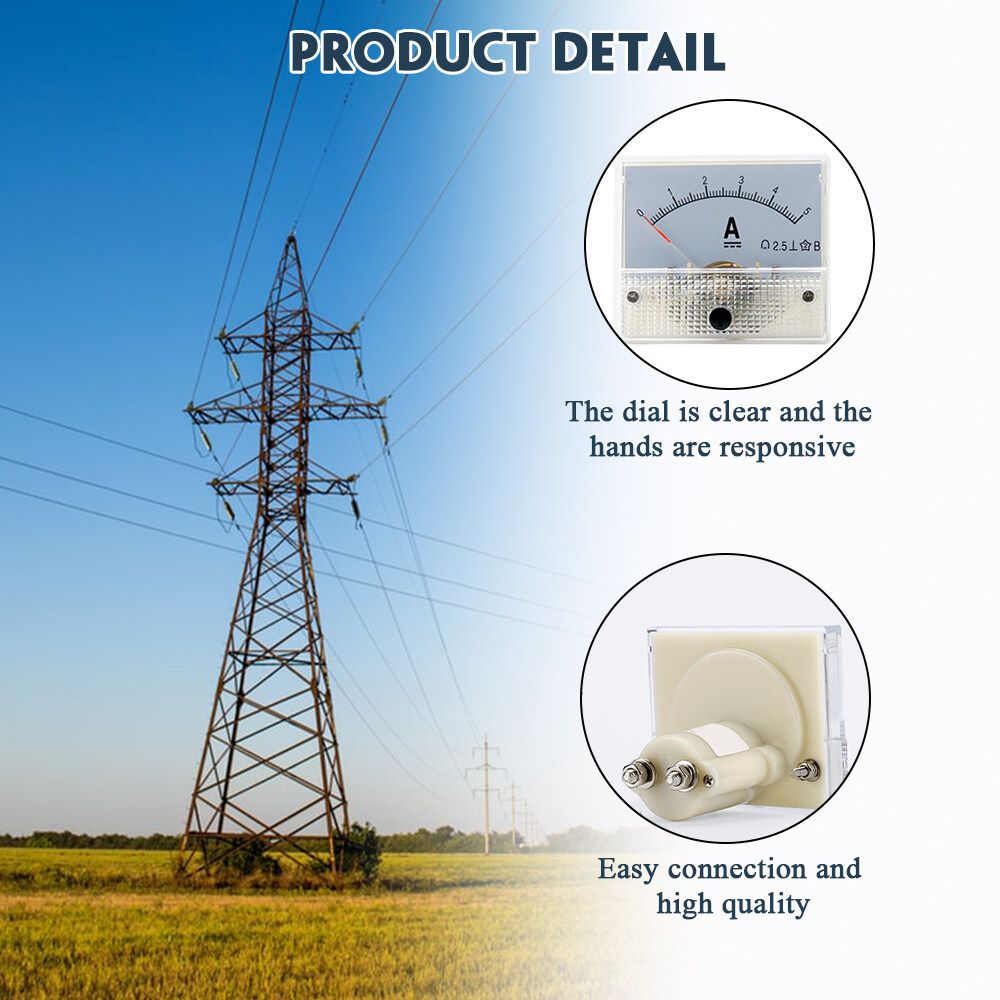

Detail Image
