100% New and high quality. Flexible, easy to strip.
Suitable for solar power station, pv connector and pv junction box.
Double insulation jackets,all-weather adaptability.
Good abrasion resistance,excellent softness and stripping performance.
High current carrying capacity.

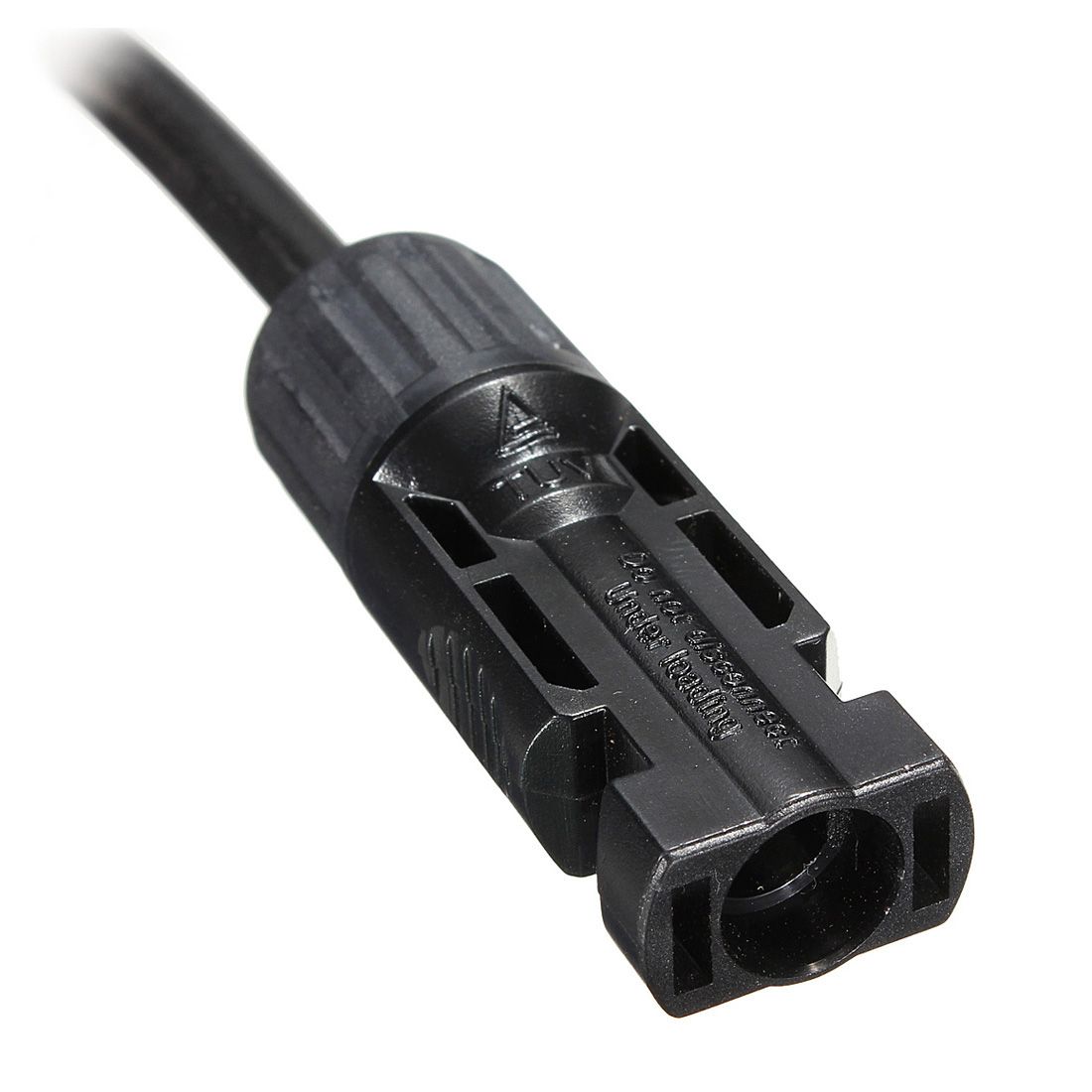

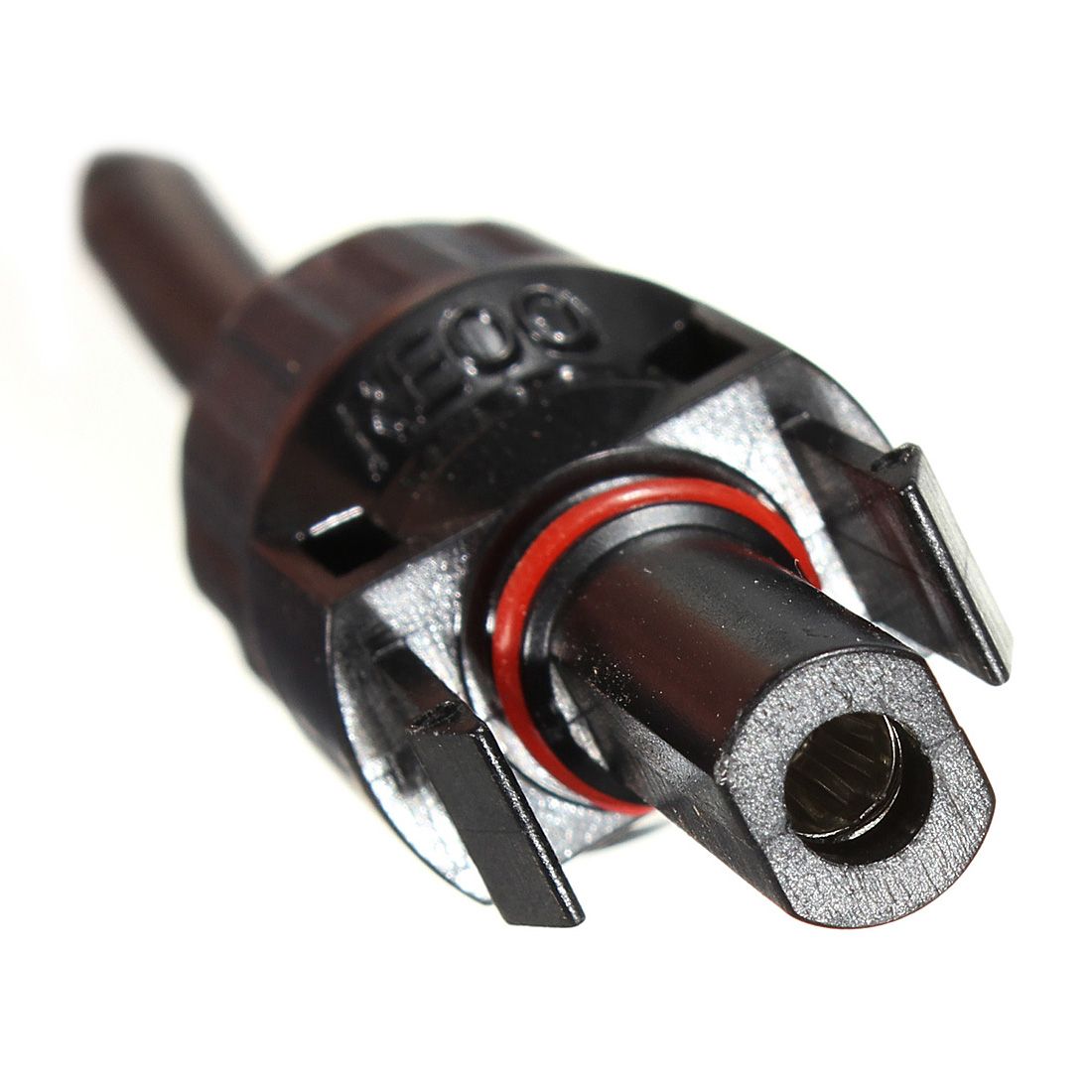

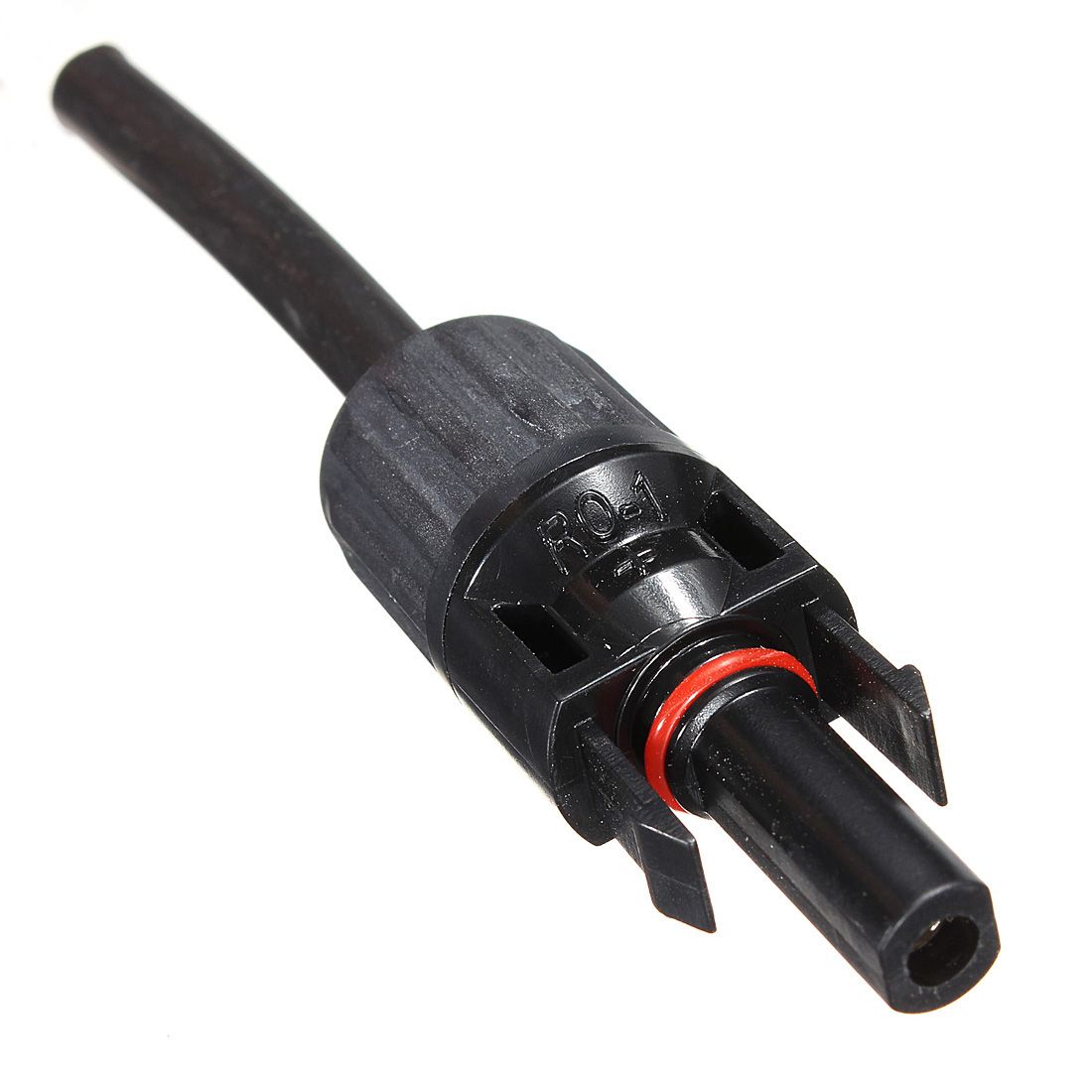

Connector:
Maximum working current : 25A (4mm2)
Maximum working voltage : DC1000V
Contact resistance : less than equal 0.5mΩ
Insulation resistance :less than 500MΩ
single-core cable cross-section : 6mm2
Ambient temperature : -40 ℃ ~ + 105 ℃
Protection class: IP67
Safety class : Ⅱ
Pollution degree : 2
Operating temperature : -40 ~ +85 ℃
Insertion force : less than equal 50N
Withdrawal force : greater than equal 50N
Insulation Material : PC
Contact : Copper cn, sn Nickel
Flammability rating : UL94-VO
Terminal Connection: Crimp
Cable:
Nominal cross section : 6.0mm2
Rated Current: 70A
Rated Voltage:600V/1800V (AC/ DC)
Ambient Temperature Range:-40℃ ~ +125℃
Strand Design(No.xo(mm)):84 /0.30
Conductor diameter: 3.42mm
Outer diameter:7.15mm
Available Cable Length:1M
Package Contents:
1 x 10 AWG Solar Extension Cable With Connectors Male And Female
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/-1-3cm.
About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands.
About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
12966. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! ! !
Key Features
100% New and high quality. Flexible, easy to strip.
Suitable for solar power station, pv connector and pv junction box.
Double insulation jackets,all-weather adaptability.
Good abrasion resistance,excellent softness and stripping performance.
High current carrying capacity.
Connector:
Maximum working current : 25A (4mm2)
Maximum working voltage : DC1000V
Contact resistance : less than equal 0.5mΩ
Insulation resistance :less than 500MΩ
single-core cable cross-section : 6mm2
Ambient temperature : -40 ℃ ~ + 105 ℃
Protection class: IP67
Safety class : Ⅱ
Pollution degree : 2
Operating temperature : -40 ~ +85 ℃
Insertion force : less than equal 50N
Withdrawal force : greater than equal 50N
Insulation Material : PC
Contact : Copper cn, sn Nickel
Flammability rating : UL94-VO
Terminal Connection: Crimp
Cable:
Nominal cross section : 6.0mm2
Rated Current: 70A
Rated Voltage:600V/1800V (AC/ DC)
Ambient Temperature Range:-40℃ ~ +125℃
Strand Design(No.xo(mm)):84 /0.30
Conductor diameter: 3.42mm
Outer diameter:7.15mm
Available Cable Length:1M
Package Contents:
1 x 10 AWG Solar Extension Cable With Connectors Male And Female
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/-1-3cm.
What's In the Box
1 X Solar Extension Cable With Connectors Male And Female
