Model |
JMVANLIN785354 |
Production Country |
China |
Size (L x W x H cm) |
11 x 7 x 1 |
Weight (kg) |
0.1 |
Certifications |
Organic |
Color |
multicolor |
Main Material |
1 |
From the Manufacturer |
1 |
Care Label |
1 |
Description:

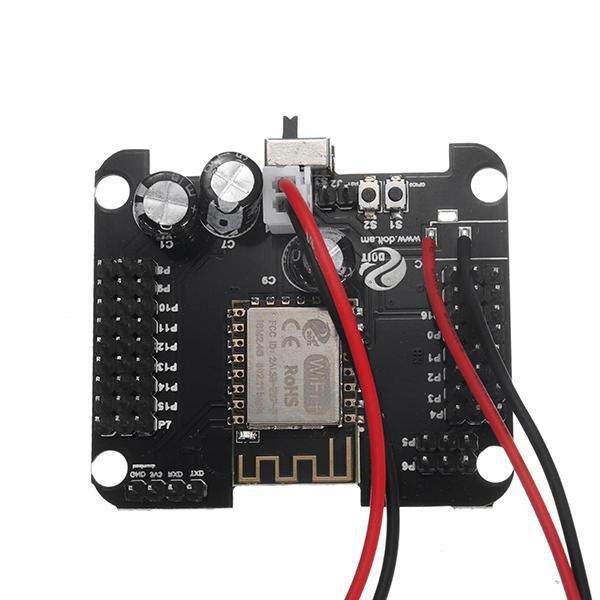

- ViVi Humanoid Robot Control Panel ESP-F WiFi Module R D leads the serial TTL pin to set the EN, STATE button. - The product can complete the device TTL port to WiFi/cloud data real-time transparent transmission, with low control, status indication and functions. - The module can directly replace the wired serial port, to achieve embedded data transmission and control . -It's Based on ESP-F high-performance WiFi module
Features:
1. Compatible with the wifi transparent transmission module electrical interface and physical interface 2. Robot is reliable and stable, WEB interface configuration download, graphics action download programming 3. serial AT command 4. reprogrammable, OTA upgrade 5. Serial and WiFi data in real time seamless transmission 6. Built-in HTTP Web Server, web configuration 7. Serial port set baud rate, data bits, parity, stop bit,Subcontract time 8. Supports reconnection in WiFi STA mode, reconnection in TCP client mode 9. WiFi AP, STA, AP + STA three modes
Specification The overallsize 24*16*3mm Supply Voltage 4.5V ~ 6.4V, TTL Voltage: 3.3V Leadout 3.3V,TXD,RXD,GND Average Current 80mA, WiFi data transmission maximum operating current 3000mA Baud Rate(bps) 300/600/1200/2400/4800/9600/19200/38400/57600/74800
/115200/230400/460800/921600/1843200/3686400 Working Temperature -40℃-125℃
Package included:

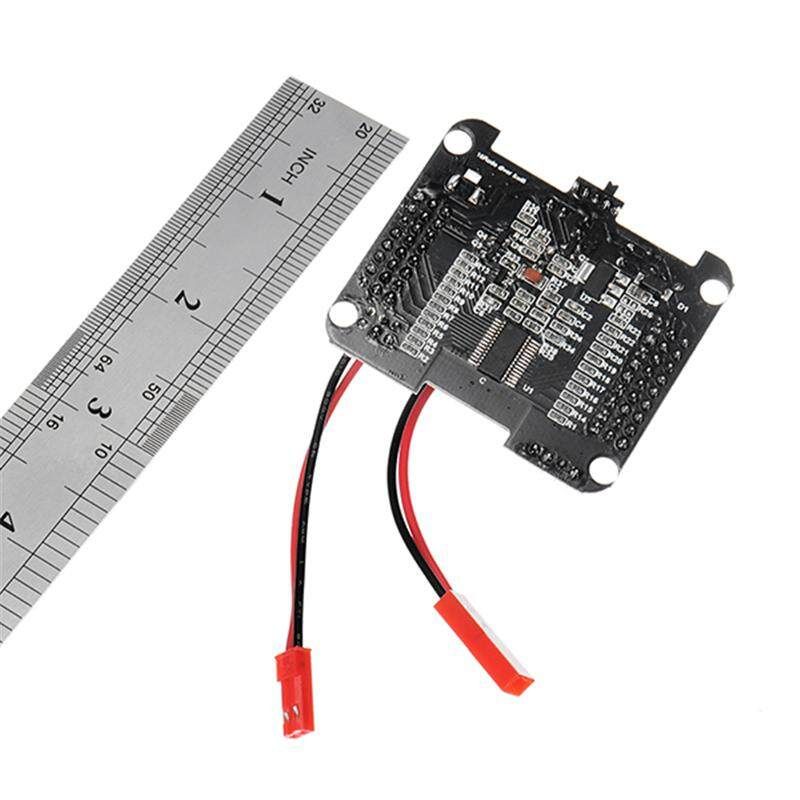

1 x Board
a a a a a
Key Features
The overall size:24*16*3mm
Supply Voltage:4.5V ~ 6.4V, TTL Voltage: 3.3V
Leadout:3.3V,TXD,RXD,GND
Working Temperature:-40℃-125℃
Reasonable Price
:As the picture
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x Board
