Buy 18650 Lithium Battery Capacity Tester Automatic Internal

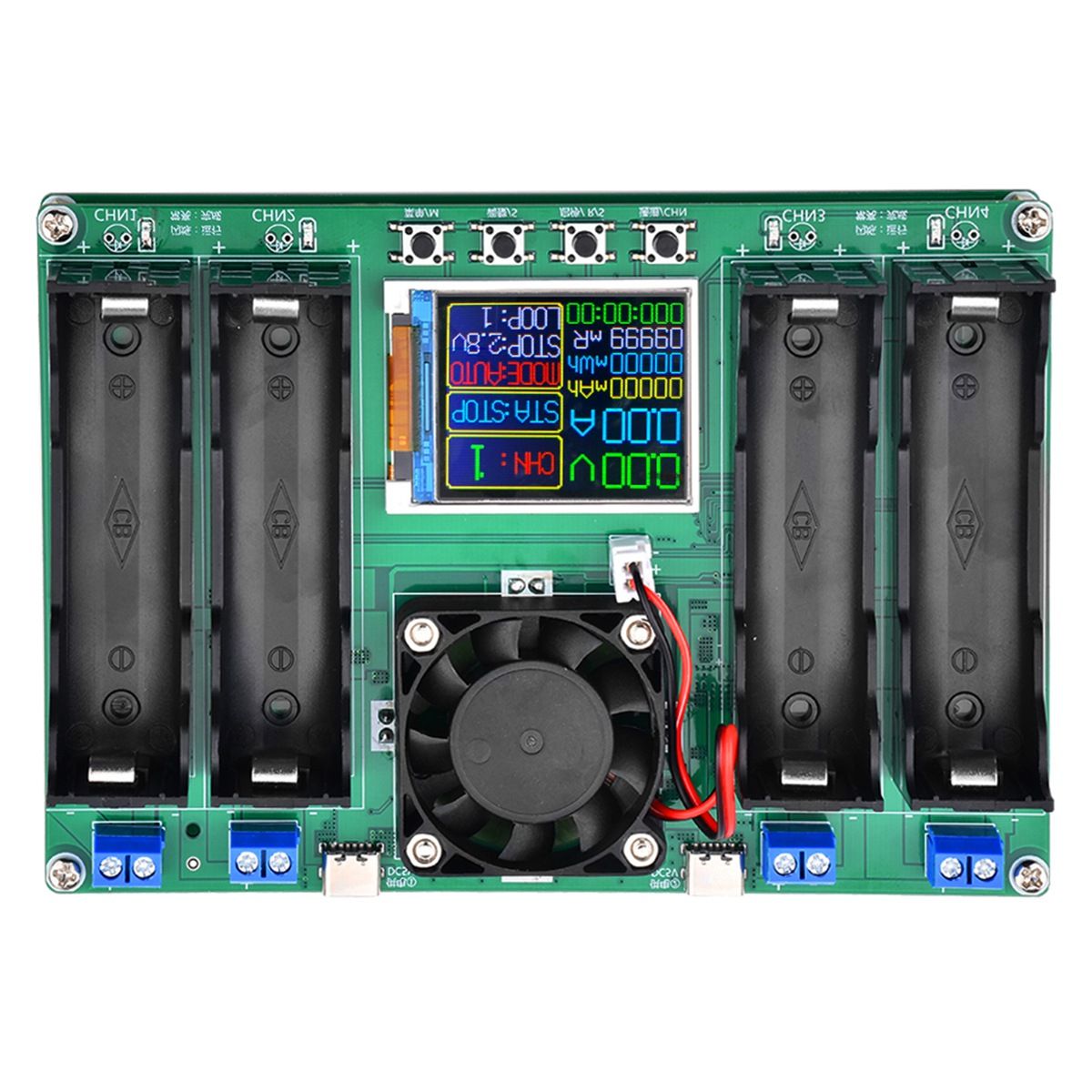

18650 Lithium Battery Capacity Tester Automatic Internal Resistance Tester MAh Digital Battery Power Detector Module

₦ 78,575.34 ₦ 82,710.88 -5%

0 No Reviews

Product SKU: RENG317280

Brand: 915 Generation

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	Battery Capacity Tester
Production Country	China

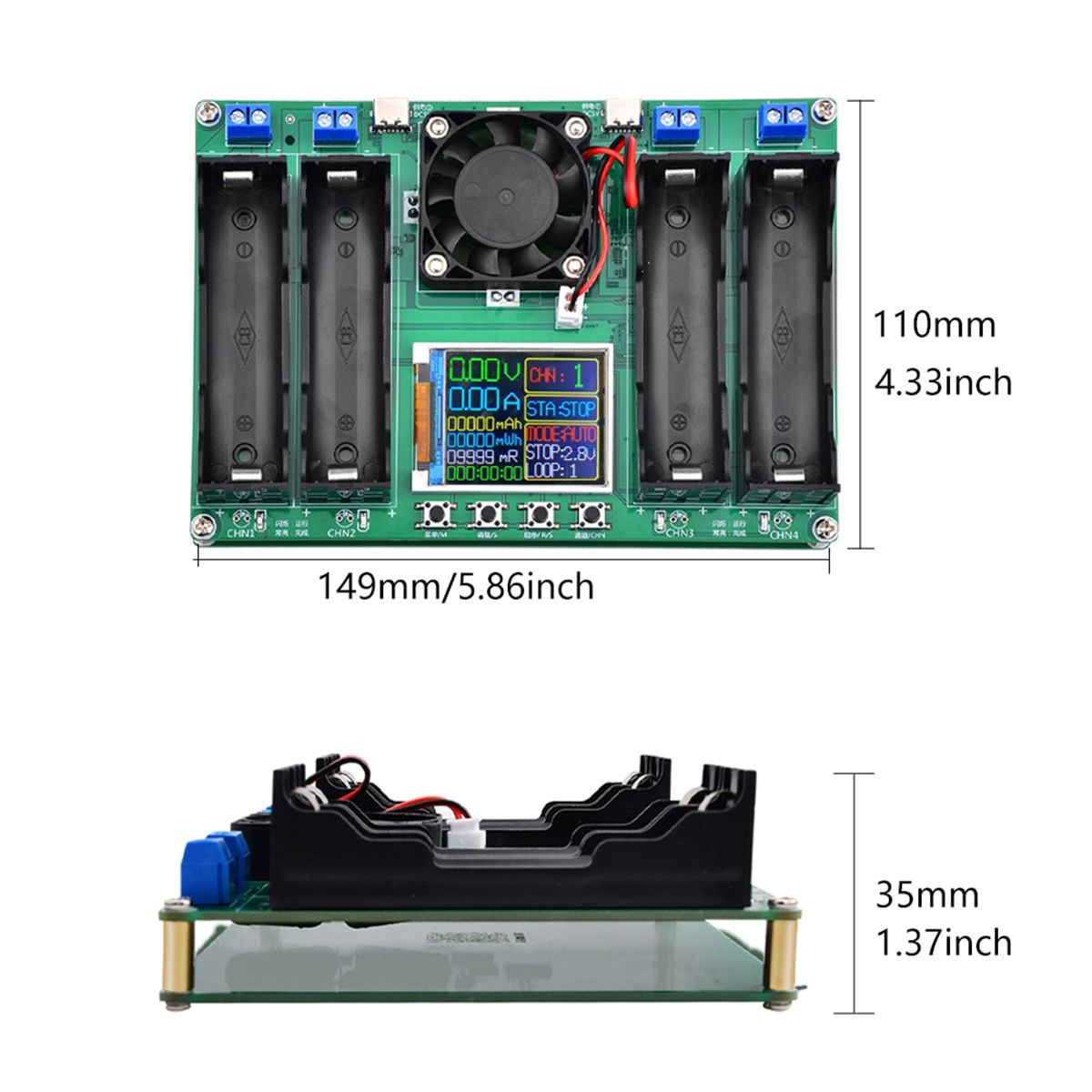

Size (L x W x H cm)	8x5x2
Weight (kg)	0.24
Color	multicolor
Main Material	plastic

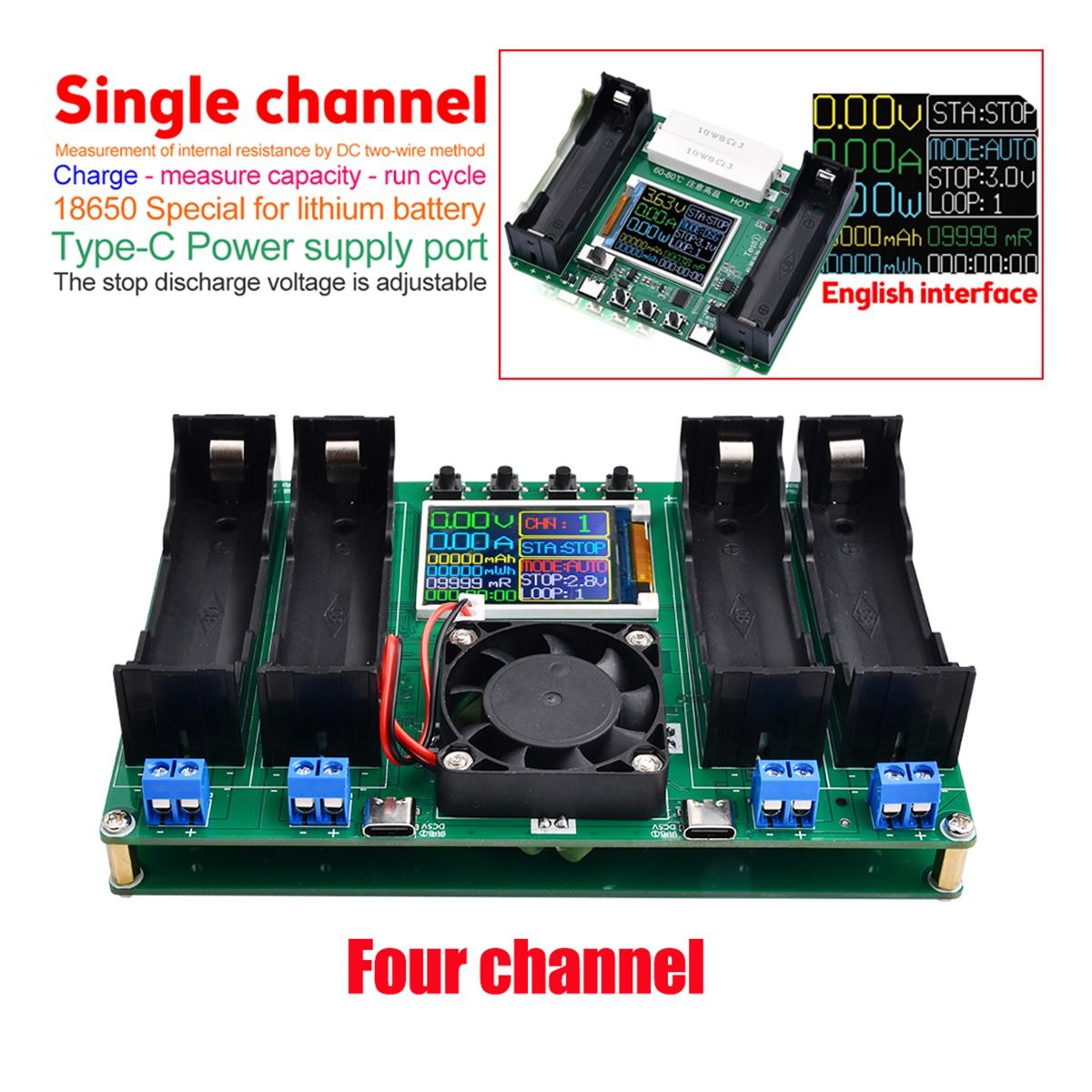

The product supports four-channel capacity and internal resistance measurement.Support separate charging and discharging, and support up to 9 charging and discharging cycles in automatic mode
Each channel is independent of each other, set separately, operates independently, and does not interfere with each other. 18650 battery holder uses compact battery holder, suitable for flat-head battery measurement
Active cooling of fan supports overheating protection. Using DC two-wire method to measure internal resistance. Working voltage: DC5V. Applicable battery: suitable for all batteries that meet the requirements of stopping discharge voltage of 2.5~3.5V and starting from 2.8V to 4.2V

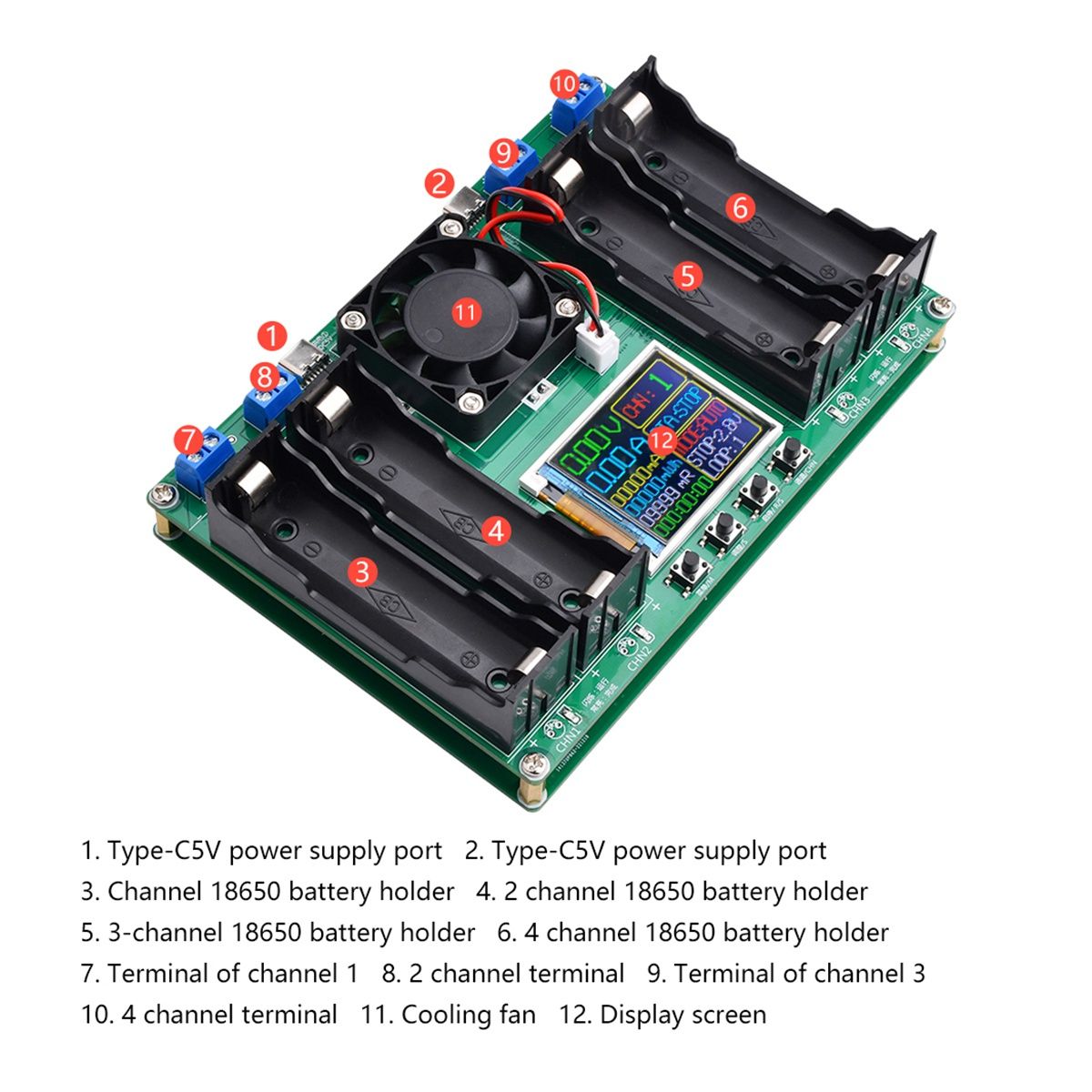

Power supply interface: Dual Type-C power supply interface (power supply and power cord are not included)
System language: English/Chinese can be switched

Test quantity: 4-way charging and discharging measurement
Internal resistance measurement: support, use DC two-wire method to test internal resistance
Charging function: support, automatic cut-off charging when fully charged (lithium iron phosphate battery charging is not supported)
Discharge function: support, automatically stop when conditions are met, and the discharge current is not adjustable
Automatic charging and discharging: supported. The battery is fully charged at the end of automatic mode
Cyclic charging and discharging: supported, 1~9 cycles adjustable (only supported in automatic mode)
Status prompt: Supported
Cooling mode: fan active cooling
Overheat protection: support
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 adjustable gears
Discharge current: the maximum current is about 1A, which is not adjustable, and does not support independent transformation
Charging voltage: controlled by a special battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2V
Power-off saving: only save the set parameters, not the measurement data
Note:
lithium iron phosphate battery charging is not supported
The product display defaults to Chinese if you need to switch, watch the video below
Colour:green
Material:plastic

Package Contents:
1 x Battery Capacity Tester

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Key Features

Durable and good quality
Battery Capacity Tester
Battery Tester
Capacity Tester
LCD Digital Display Tester
Internal Resistance Tester
The details are as described above

What's In the Box

1 x Battery Capacity Tester
