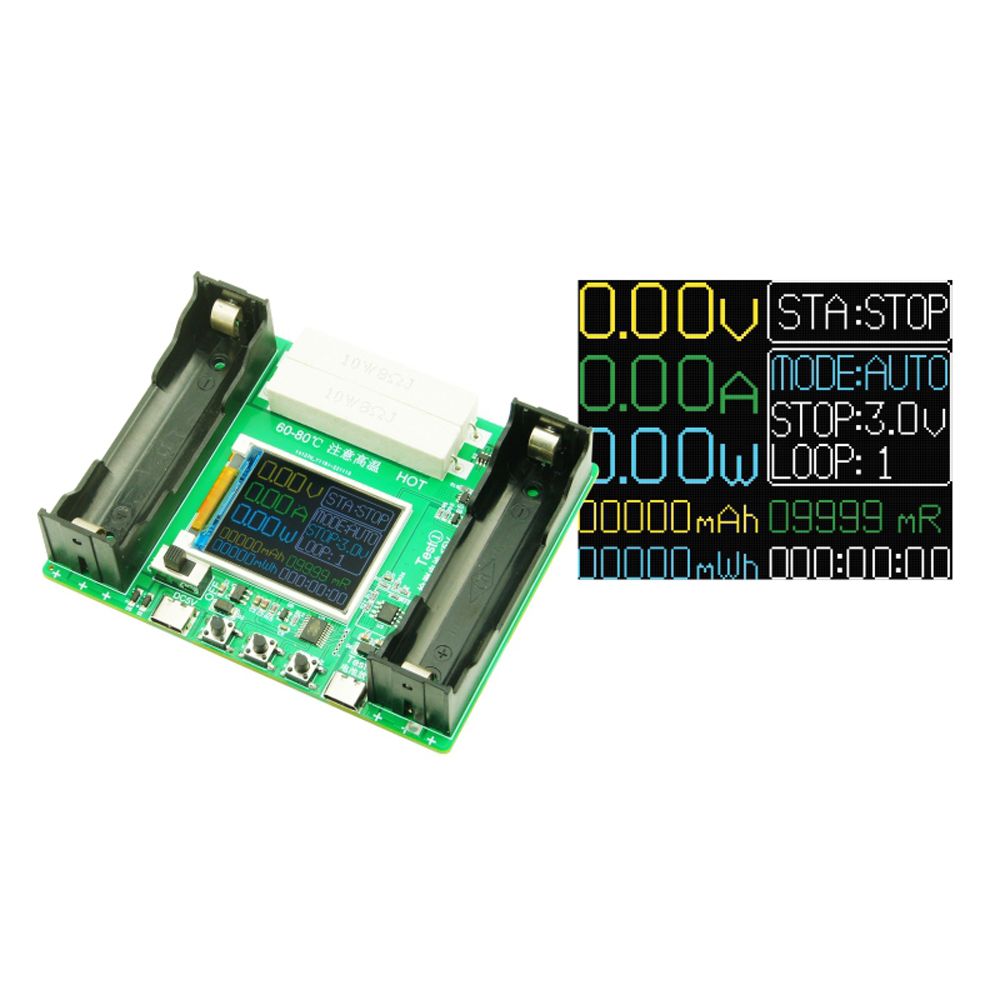

This product supports single channel internal resistance and capacity measurement; supports and up to 9 -and-discharging cycles in automatic mode. It not only can be used to battery, but also can be used to measure the battery internal resistance and capacity. And more important, it can be used to dispense battery capacity and run cycles.
Features:

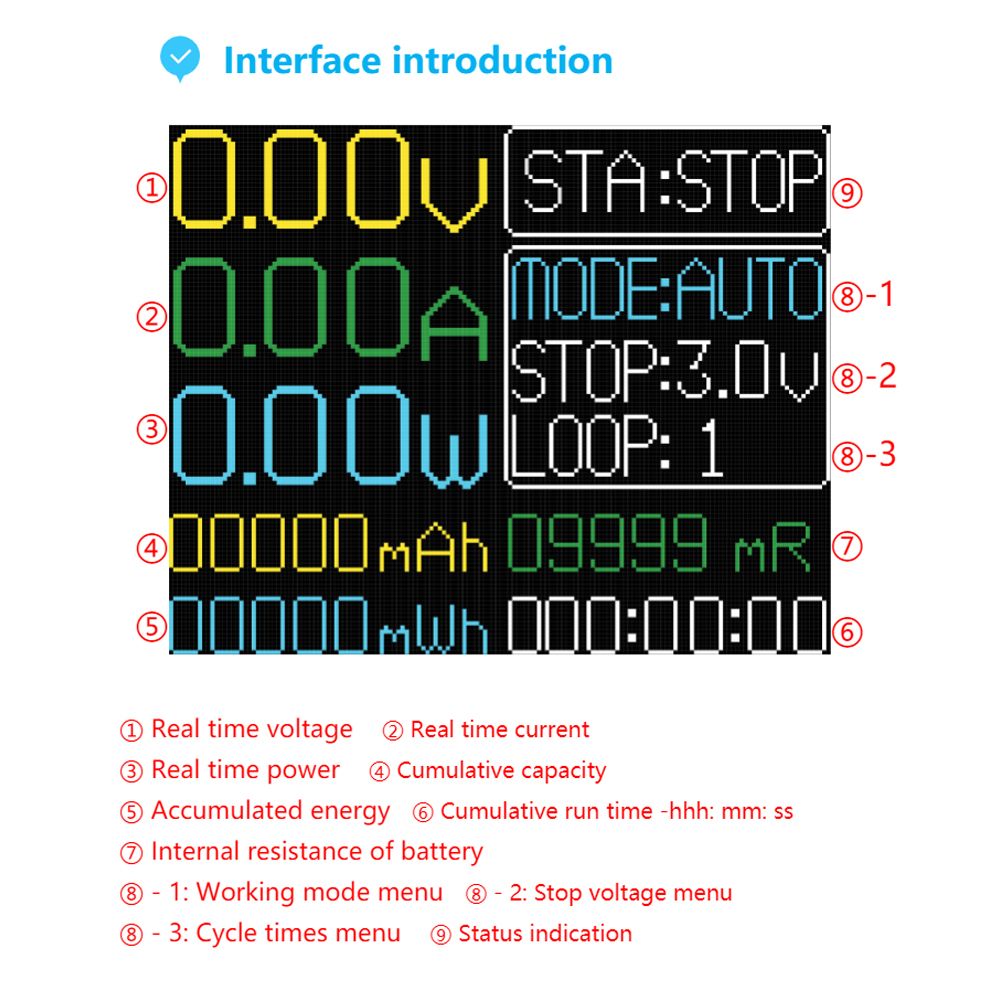

Digital Display: 1.77inch digital display, clearly display the real time voltage, real time current, real time , accumulated capacity, accumulated energy, status indication, operating mode, stop discharge voltage, number of cycles, battery internal resistance and accumulated time.
Multifunctional Design: It not only can be used to battery, but also can be used to measure the battery internal resistance and capacity. And more important, it can be used to dispense battery capacity and run cycles.
Three Working Modes Design: Preset automatic, and discharging three modes, select the corresponding mode, the program automatically run, the discharge current can be switched for ease of use.
Function: External 5V supplys, maximum 1A current through the chip when , and the process will record the capacity and energy amount time. (Not suitable for LiFePO4 batteries.)

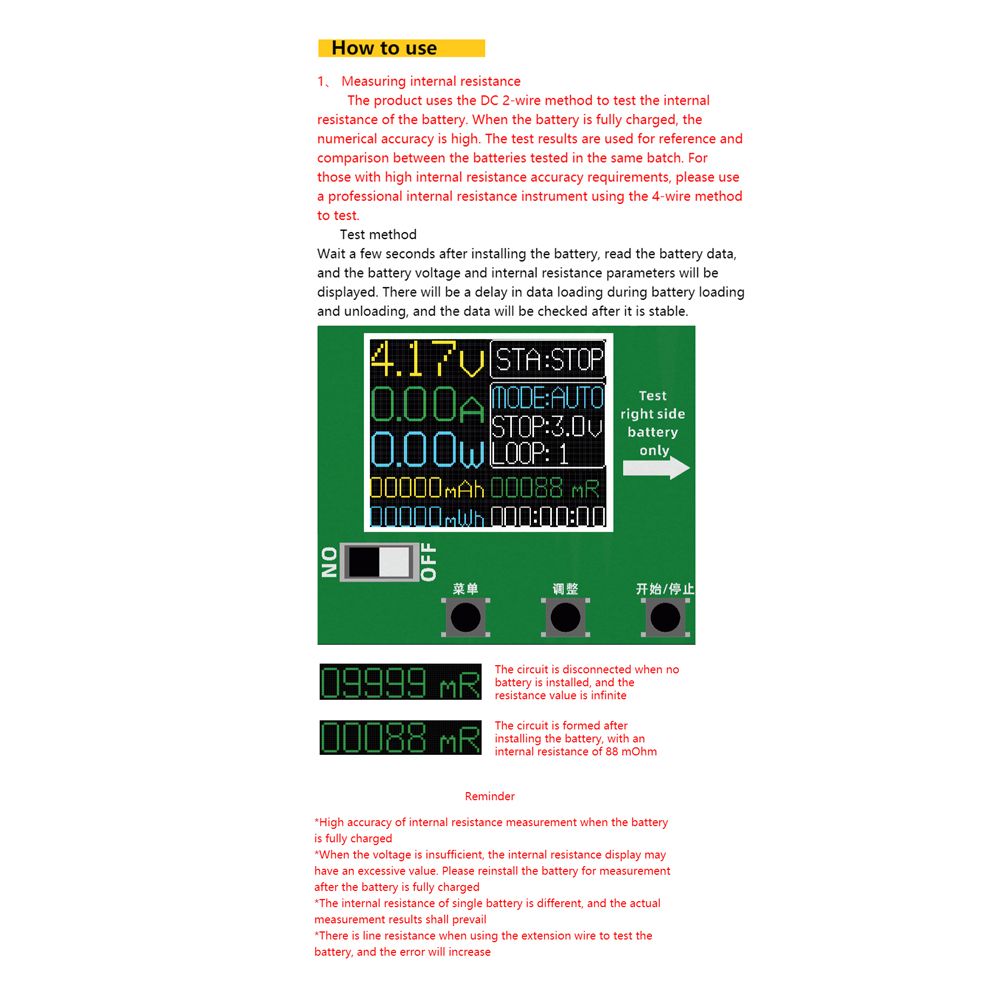

Internal Resistance Test: The product uses the direct current 2-wire method to test the internal resistance of the battery, with high accuracy when the battery is fully charged.

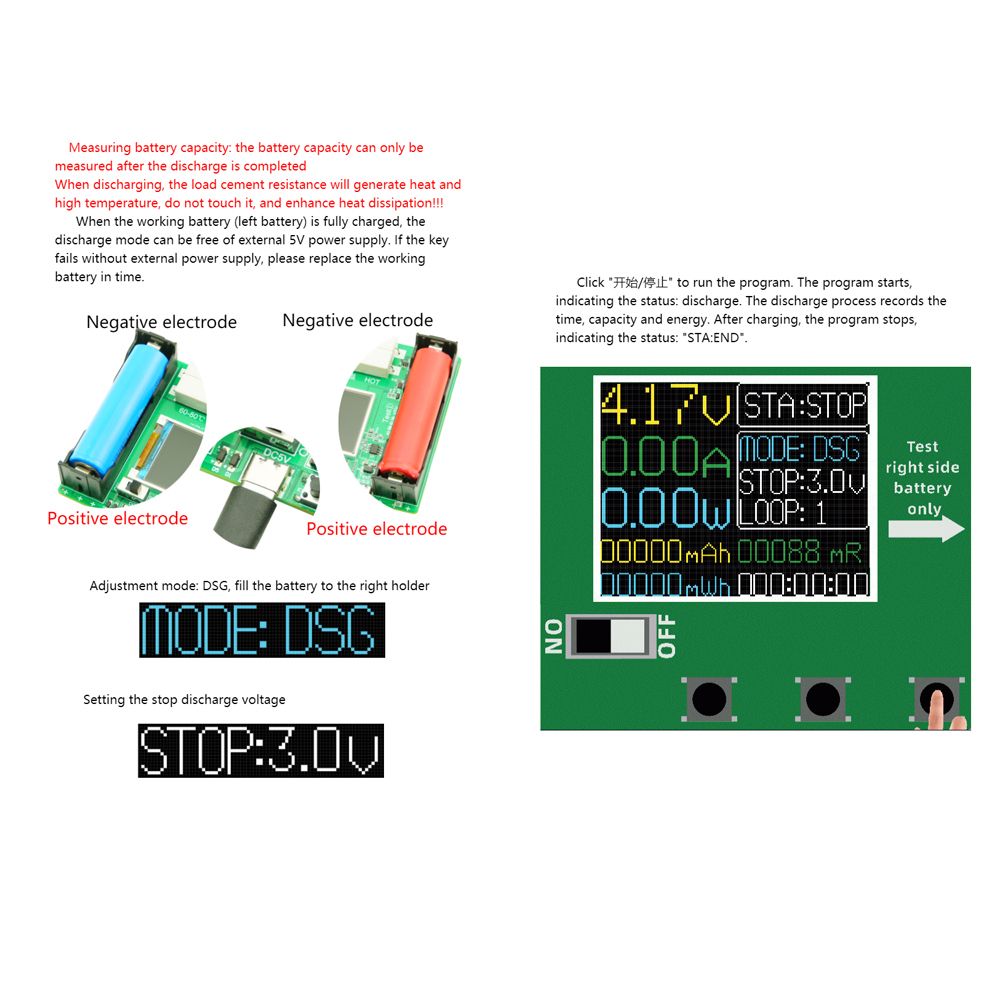

Capacity Test: The capacity test is carried out by resistance discharge, and the results are only the capacity measured between the starts of the battery discharge during the test phase and the trigger stops. The cumulative capacity, energy and time are recorded during the discharge process.
Battery Capacity Division and Running Cycle: The battery capacity dividing and running cycle is a process of , discharging and recharging. The stopping voltage cannot be lower than 2.8V when in use, otherwise it cannot be charged and the program cannot run properly.
Data Clear Function: Automatic zeroing of capacity, energy and time data when switching off and switching modes.

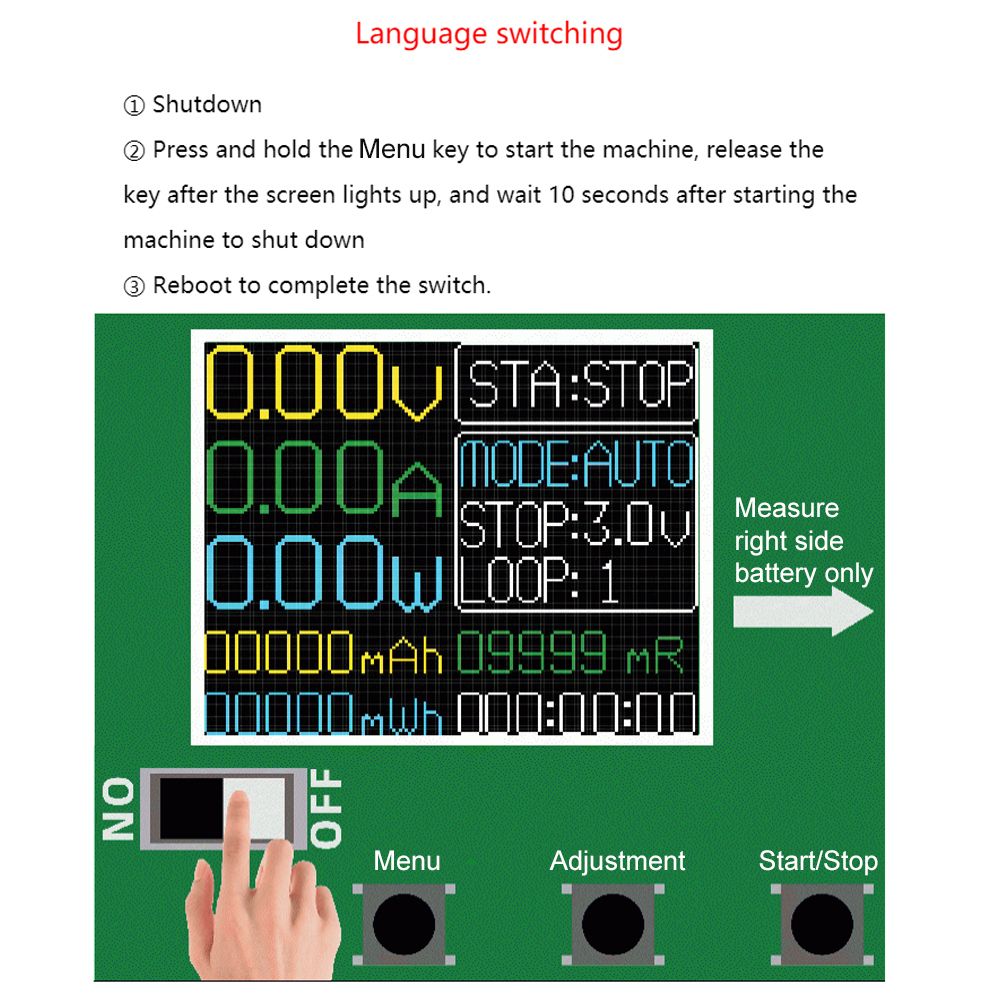

Language Switching: Two working languages design, the factory default language is Chinese, but you can freely switch according to your preference.

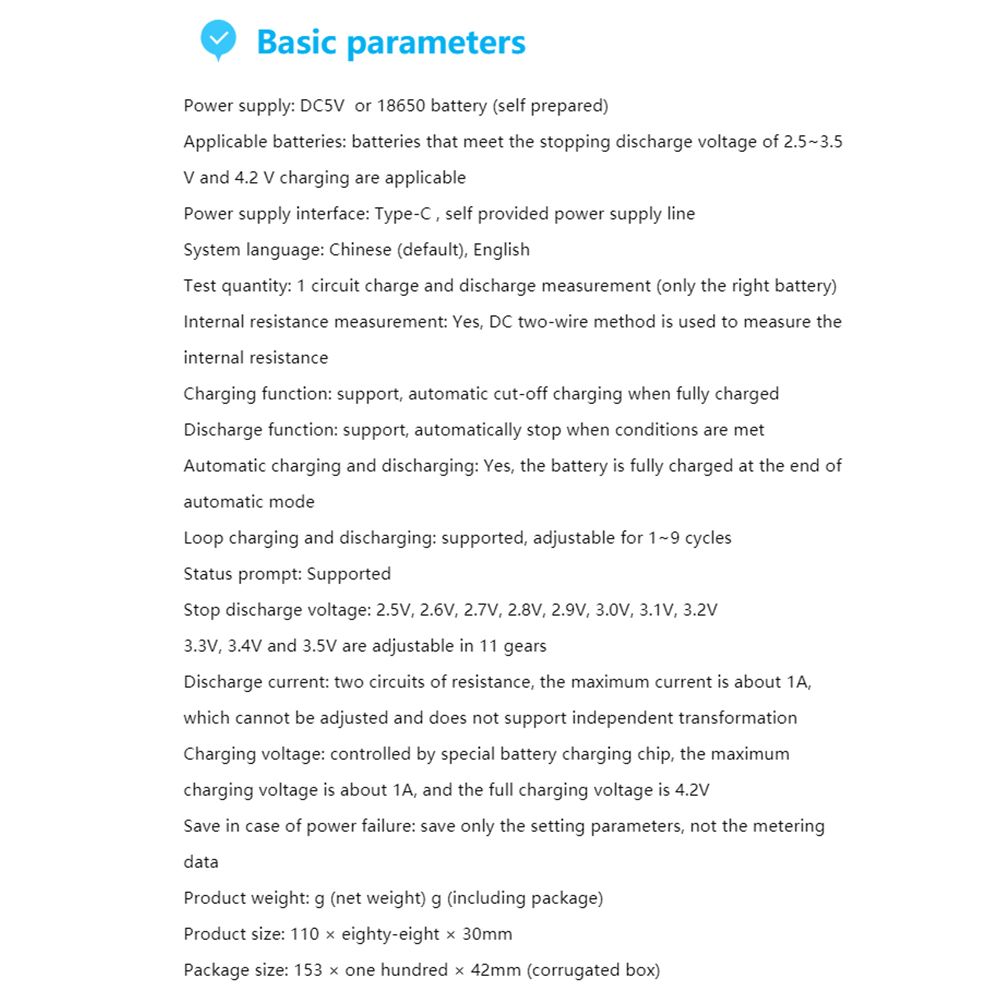

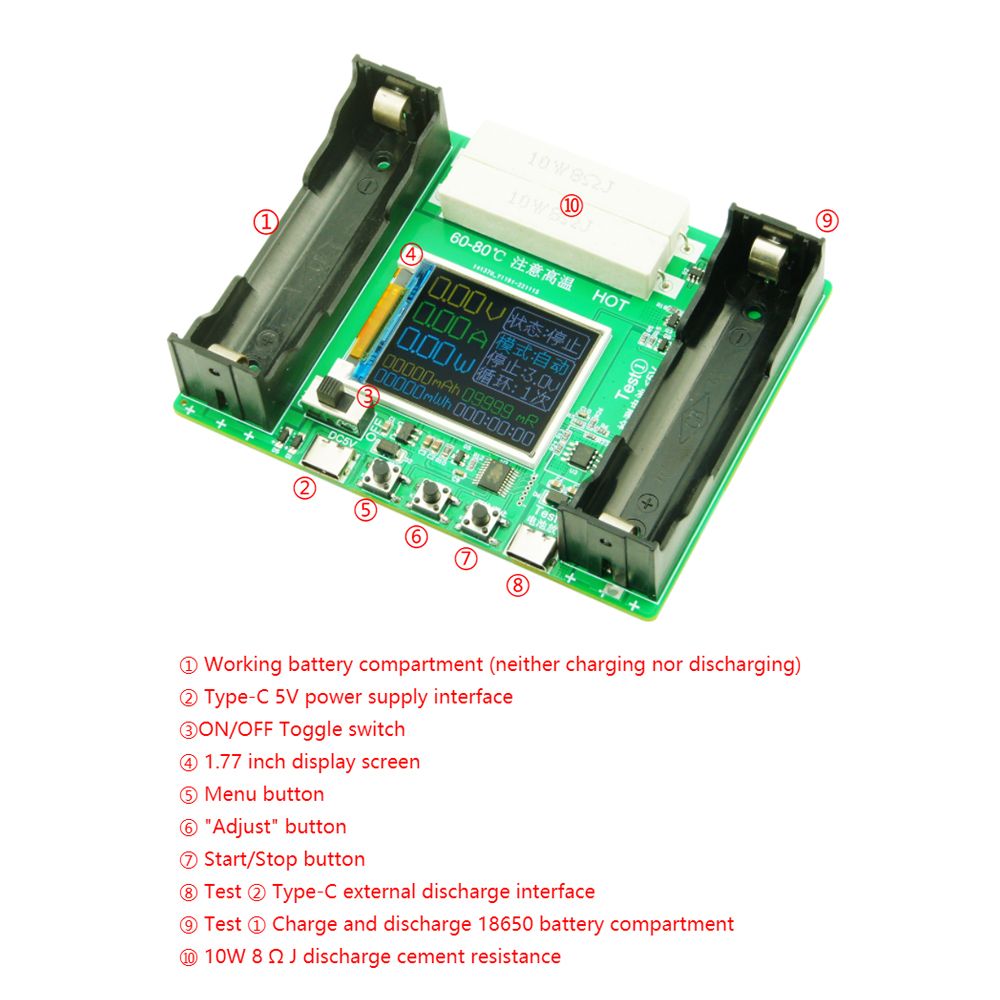

Specifications:Name: Battery Capacity Tester
Material: printed circuit board
Working supplys: DC5V supplys or 18650 battery (need to prepared by yourself)
Applicable battery: meet the stop discharge voltage of 2.5-3.5V, 2.8V starts 4.2V full battery are applicable too.
supplys interface: Type-C interface, supplys cable self-provided (C-port mobilephone cable)
System language: Chinese (default), English
Number of tests: 1-channel and discharging measurement (right-hand battery position only)
Internal resistance measurement: supported, using the direct current two-wire method to test internal resistance
function: supported, full automatic cut-off (LiFePO4 not supported)
Discharge function: supported, automatic stops when conditions are met, discharge current is not adjustable
Automatic and discharging: supported, battery is fully-recharged at the end of automatic mode
Cycle and discharging: supported, 1~9 cycles adjustable (only supported in auto mode)
Status indication: supported
Stops discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 levels adjustable
Discharge current: two-way resistor, max. 1A current, not adjustable, does not support independent transformation
voltage: special battery chip control, max. 1A , full-charged voltage is 4.2V
failure save: only the setting parameters are saved, not the measurement data
Item size: 110 * 89 * 30mm / 4.33 * 3.50 * 1.18in
Item weight: 80g / 2.82ounce
Package size: 153 * 100 * 42mm / 6.02 * 3.94 * 1.65in
Package weight: 120g / 4.23ounce
Packing List:1 * Battery Capacity Tester
Key Features
Digital Display: 1.77inch digital display, clearly display the real time voltage, real time current, real time , accumulated capacity, accumulated energy, status indication, operating mode, stop discharge voltage, number of cycles, battery internal resistance and accumulated time.
Digital Display: 1.77inch digital display, clearly display the real time voltage, real time current, real time , accumulated capacity, accumulated energy, status indication, operating mode, stop discharge voltage, number of cycles, battery internal resistance and accumulated time.
Digital Display: 1.77inch digital display, clearly display the real time voltage, real time current, real time , accumulated capacity, accumulated energy, status indication, operating mode, stop discharge voltage, number of cycles, battery internal resistance and accumulated time.
Digital Display: 1.77inch digital display, clearly display the real time voltage, real time current, real time , accumulated capacity, accumulated energy, status indication, operating mode, stop discharge voltage, number of cycles, battery internal resistance and accumulated time.
Digital Display: 1.77inch digital display, clearly display the real time voltage, real time current, real time , accumulated capacity, accumulated energy, status indication, operating mode, stop discharge voltage, number of cycles, battery internal resistance and accumulated time.
Digital Display: 1.77inch digital display, clearly display the real time voltage, real time current, real time , accumulated capacity, accumulated energy, status indication, operating mode, stop discharge voltage, number of cycles, battery internal resistance and accumulated time.
What's In the Box
1 x Battery Capacity Tester
