Buy 17-2 Bearing Separator - 7/8" To 4 1/2" Diameter in Nigeria

17-2 Bearing Separator - 7/8" To 4 1/2" Diameter

₦ 418,308.02 ₦ 440,324.23 -5%

0 No Reviews

Product SKU: RENG112456

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

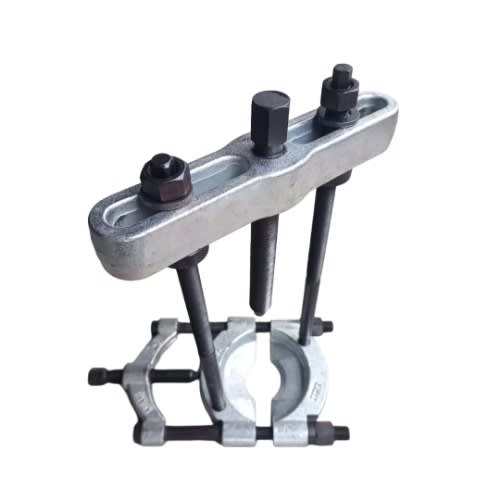

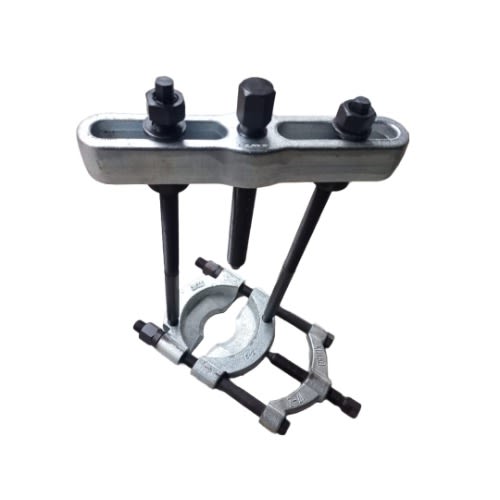

KUKKO 17-2 SEPARATOR TYPE, 7-1/2" TONS CAPACITY, 4-1/2" MAXIMUM SPREAD MECHANICAL PULLER

For removing ball bearings, roller bearings, inner races and other tight parts if there is not enough space to use pulling hooks.

Description

Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).

With quick-clamping pressure spindle.

The sharp blades enable flush parts to be removed where pulling jaws cannot be used.

Can pull outer diameters between 7/8" and 4 1/2"

Advantage

Easy to use, as the separator jaws are quickly and centrally tensioned with just one pressure spindle.

Ultimate stability when removing, as the separator and pulling device are screwed firmly together.

Almost all components available as replacement parts, time-saving order process thanks to numbering system.

How it works

The wedge-shaped separator jaws are secured underneath the component to be removed.

Separate the part by tightening the quick clamping pressure spindle.

The flat surfaces of the separator blades are used to remove sensitive parts without damaging them. The separator blades provide a larger supporting surface to prevent the parts from twisting.

For removal, the tension bolts on the pulling device series 18 have to be screwed into the separator.

The part is removed by tightening the spindle against the end of the shaft.

Can be used with jaw pullers or 18-2 pulling device or 18-2-B hydraulic pulling device. This unit does not include a pulling device, only the separator.

BENEFITS

Easy to use, as the separator jaws are quickly and centrally tensioned with just one pressure spindle.

Ultimate stability when removing, as the separator and pulling device are screwed firmly together.

APPLICATIONS

Removal of Ball Bearings, Roller Bearings, Inner Races and Other Tight Parts When There's Not Enough Space To Use Standard Puller

FEATURES

With quick-clamping pressure spindle.

The sharp blades enable flush parts to be removed where pulling jaws cannot be used.

The wedge-shaped separator jaws are secured underneath the component to be removed.

The large supporting surfaces protect the parts to be pulled.

Quality made in Germany.

Strong design, high performance and long service life.

TECHNICAL SPECIFICATIONS

BRAND: KUKKO

MODEL:. 17-2 INCHES

CAPACITY:. 7-1/2 INCHES

MAXIMUM SPREAD:. 4-1/2 INCHES

TYPE:. SEPARATOR

APPLICATIONS:. REMOVAL OF BALL BEARINGS, ROLLER BEARINGS, INNER RACES, AND OTHER RIGHT PARTS WHEN THERE IS NOT ENOUGH SPACE TO USE STANDARD PULLERS

APPROXIMATE POWER: 7.5 TONS

JAW OPENING: 41/2 INCHES

LOAD CAPACITY: 7.5 TONS

PROP.65:. YES

TOP MATERIAL: CAST STEEL

WEIGHT:. 7.36 LBS

COUNTRY OF ORIGIN:. GERMANY
