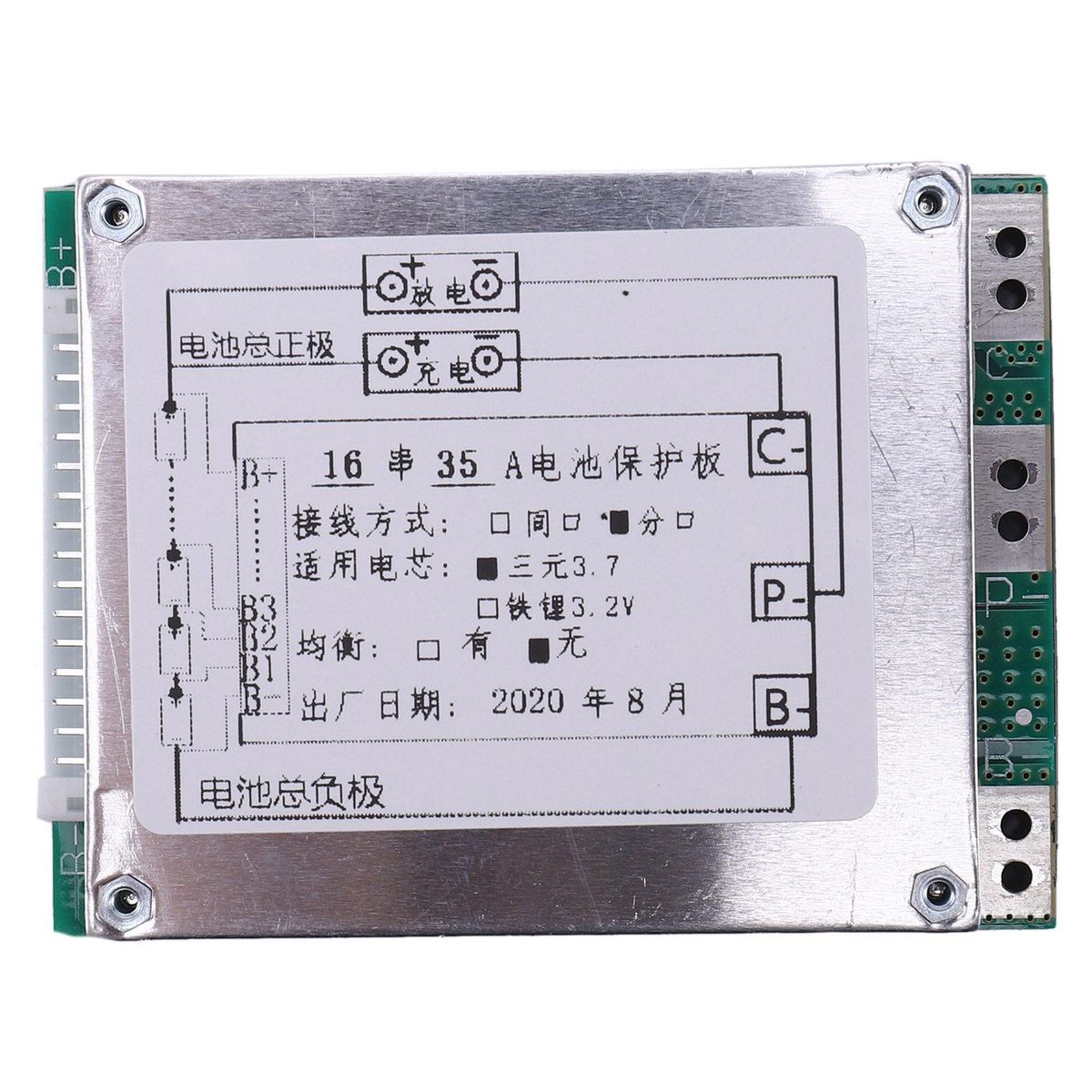

16S 60V 35A Li-Ion Lithium Protection Board with UPSDescription:16 string 60V lithium battery protection board. Split port 35A, 4-16 string universal, can be directly downgraded
Scope of application: 18650 special lithium battery protection board, scooter, drift car protection board, solar street light, LED protection board, motorcycle lithium battery protection board, tricycle power protection board, backup power lithium battery protection board
Specification:Without equalization protection board
Continuous Discharge Current: 35A
Instantaneous discharge current:100A
Charging voltage: 7V
Maximum charging current: 20A
Overcharge detection voltage: 4.28±0.05V
Overcharge protection delay: 100ms
Overcharge release voltage: 4.08±0.05V
Battery balance detection voltage: 4.2±0.025V
Battery balance release voltage: 4.2±0.05V
Battery balance current: 45±5A
Overdischarge detection voltage: 2.55±0.08V
Overdischarge detection delay: 50ms
Overdischarge release voltage: 3.0±0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 15ms
Overcurrent protection current: 120±20A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 200uS
Short circuit protection release condition: disconnect load
Temperature protection: /
Main circuit conduction internal resistance: ≤15m ohm
Working current: ≤60uA
Sleep current (when the battery is over-discharged): ≤10uA
Temperature range: -30/+80 Celsius
Colour:Silver + Green
Material:Metal + PCB
Size:69x51.5x10mm
Package Contents:

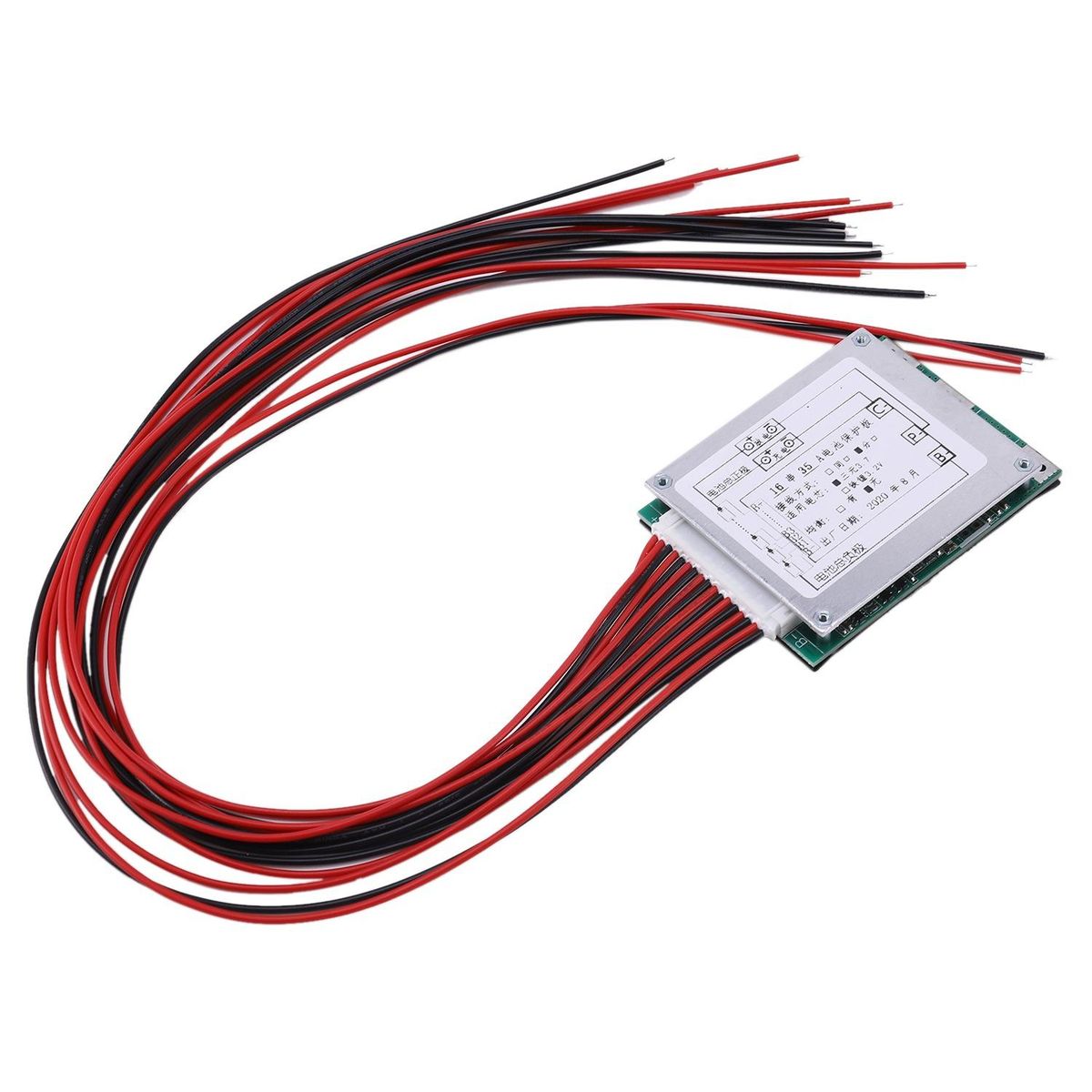

1x Li-ion Battery Protection Board

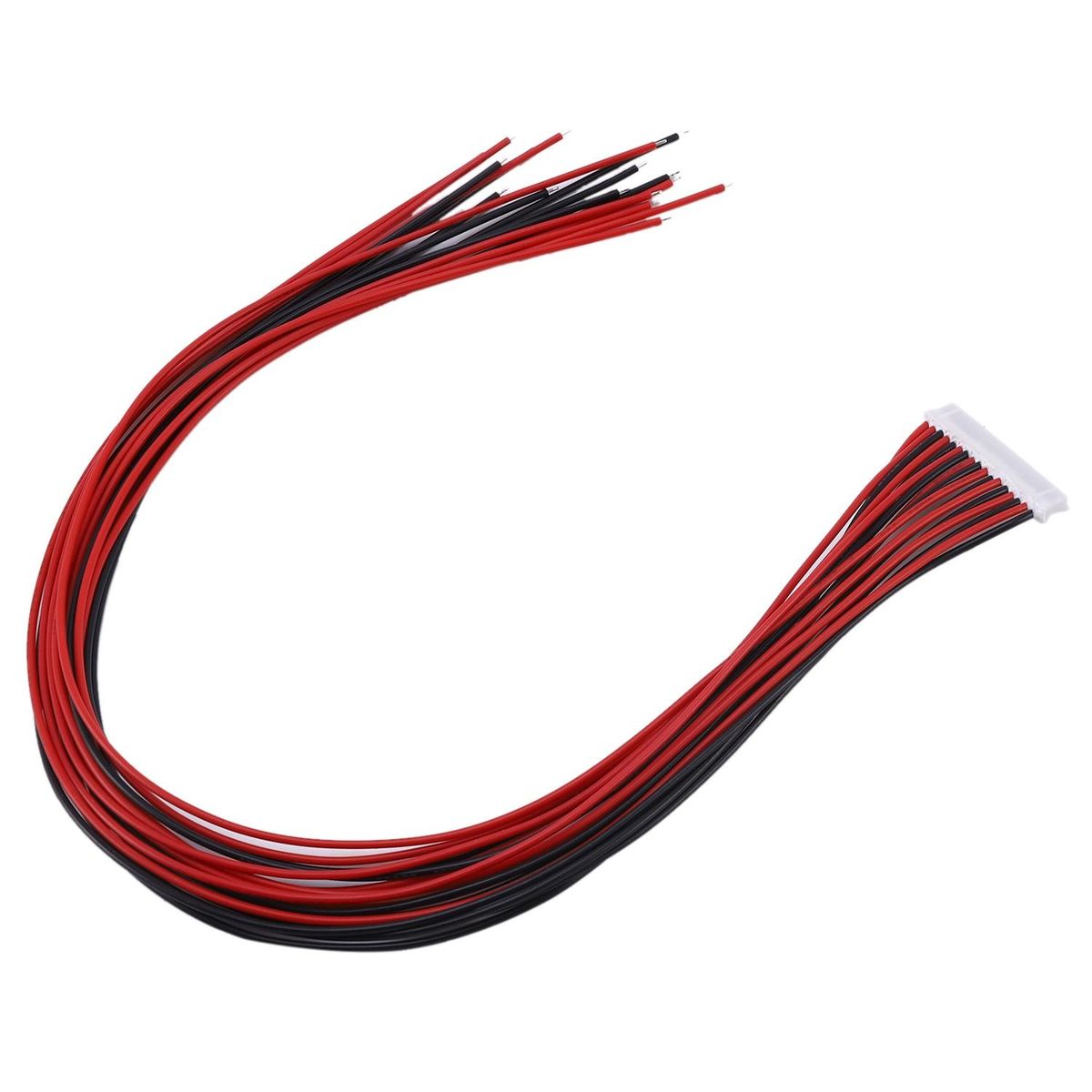

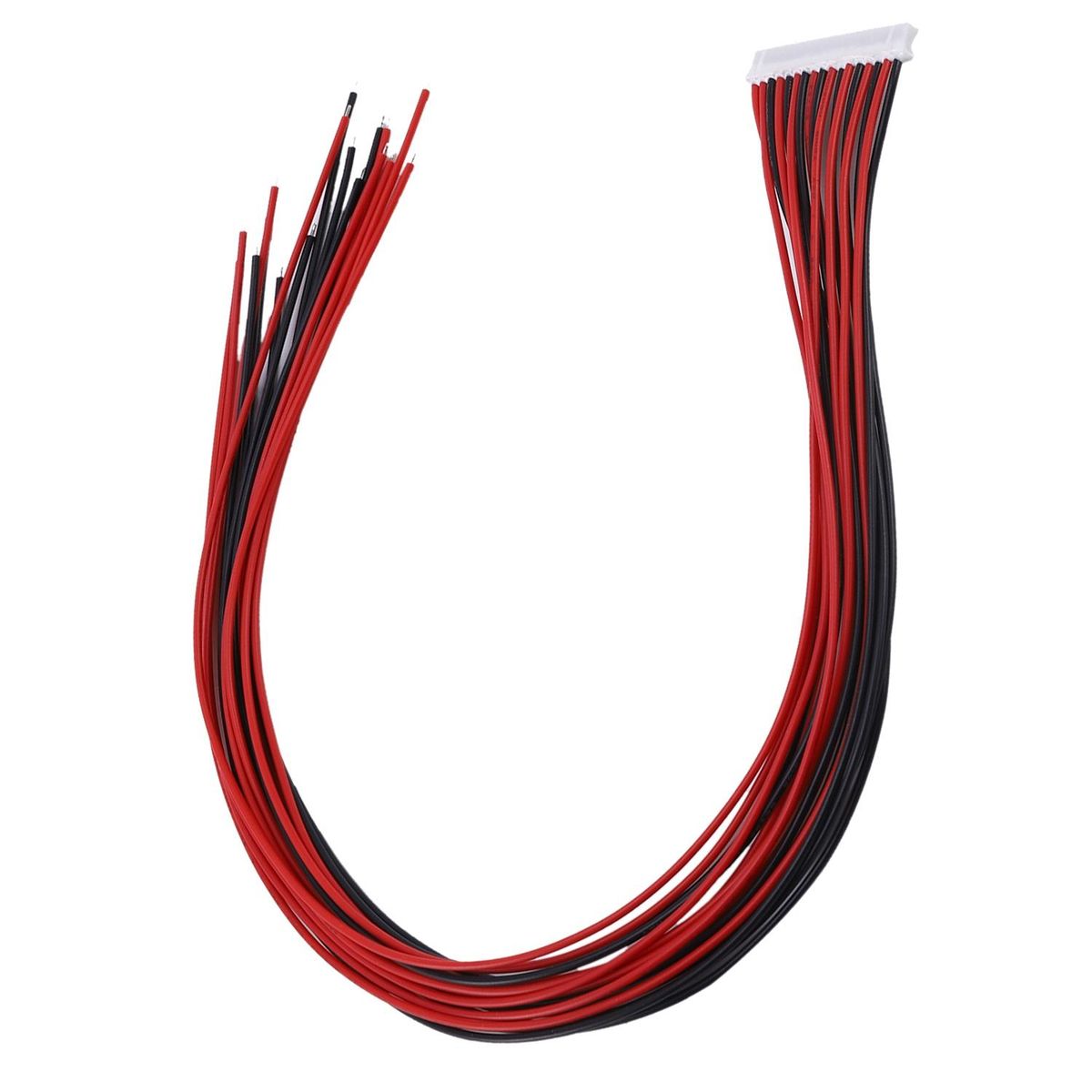

1x Terminal Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
