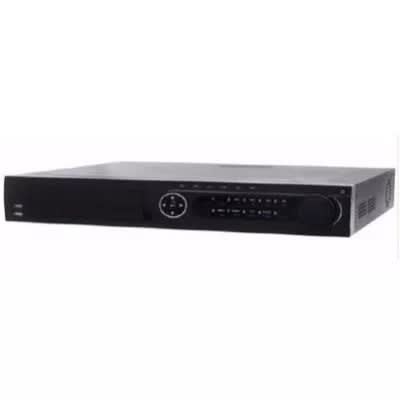

DS-7716NI-E4/16P 4SATA 16 independent POE 16 ch network video recording IP video input: 16 ch Two-wayaudio input: 1-ch, RCA (2.0 Vp-p, 1k?) Incoming bandwidth: 160Mbps Remote connection: HDMI/VGA output: 1-ch, resolution: VGA:1024x768/60Hz1280x720/6. This system also comes with an installed 3 Terabyte Hard disk drive for video storage.
IP base video recorder, that work with IP cameras. Support I phone, Blackberry, Windows mobile, Symbian, Android remote view. Lower stream, higher quality, longer recording time, taking less bandwidth resources. Viewing and Recording from up to 16 IP Cameras.
This DVR is for those who want to monitor their premises and get crisp clear videos and audio. Yes! Audio! monitor surroundings and hear every conversation easily. Features 4 channels video inputs and audio inputs. CCTV DVR with 3G function, icloud function for easy internet viewing, just plug and play. No need for complex settings like port forwarding, domain name settings etc. Can accommodate SATA hard disks of all capacity, has DVD-RW bay, comprehensive menu very easy to use, plug in your Mtn/glo/airtel or any other USB modem directly to it to connect to the internet. Mobile phone viewing is enabled for streaming live videos to your mobile phone.

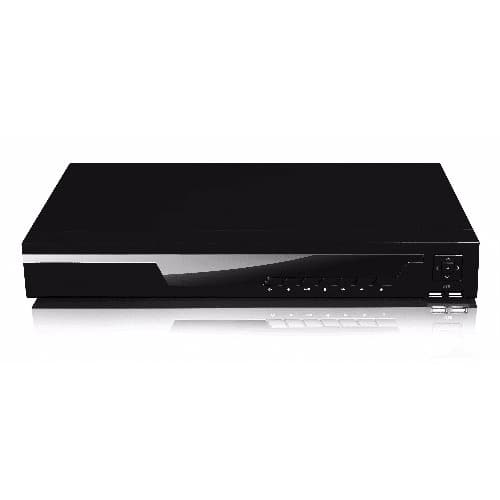

This 16ch 1080P Hybrid NVR AHD TVI CVI DVR 5-in-1 video recorder features in H.264 video compression, P2P cloud function, supporting for Android/IOS devices remote view anywhere anytime. It is also with functions of motion detection alarm, dual-stream encoding, which is widely used at home, supermarket, office and other surveillance needed places.
Features:
*NVR CVI TVI HVR AHD 5-in-1 function, support both 1080P AHD camera and 1080P IP camera input.
*Support 16-ch 1080P AHD cameras input and 4-ch sync playback (960*1080).
*P2P cloud service for Android/IOS mobile devices remote view anywhere anytime.
*Motion detection recording. The DVR will be triggered to record when detect something moving. NO trigger, no record, more intelligent and space-saving.
*Alarm notification. When motion detection is triggered, the DVR will automatically send out buzzer sound and push alarm notifications to your phone.
*Multiple ways to access on the PC, phone and pad, can be viewed by PC client, Phone APP and IE browser.
*Support 3.5 inch SATA port hard drive, capacity about 500G/1.5T/2T/3T, and less than 500G is not supported.
*This NVR default VGA resolution is 1280*1024, so we suggest you to use the monitor with 1280*1024 or higher resolution for normal use.
*PTZ function: Pan/Tilt/Zoom, to ensure that the tracking object appears in the middle of the monitoring area, provide with wide viewing angle.
Specifications:
Operating System: Embedded Linux System
Menu Display: 1/4/8/9/16 Screen
Video Compression: H.264
Record Resolution: 960*1080
VGA Resolution: 1920*1080, 1440*900, 1280*1024, 1024*768
Signal System: PAL/NTSC
Frame Rate: 1-30fps (NTSC), 1-25fps (PAL)
Max Synchronous Playback: 4-ch (960*1080)
Analog Input: 16*1080N (analog)
Hybrid Input: 8*1080N (analog) + 8*960P (IPC)
Network Input: 8*1080P+8*960P; 4*3M ; 4*5M
Code Capacity: 16*1080N/960H/D1
HDD Supported: Max. 3.5in 3TB SATA HDD (not included)
Dual Stream: Support; Video Blind: Support
OSD Language: English, French, German, Spanish, Italian, Japanese, etc
Item Size: Approx.25.6*23.8*4.4cm / 10.08*9.37*1.73in
Item Weight: Approx. 1009g / 2.23lb
