Features:
Model: 21C
:150W
Temperature range:200-480°
Melted solder capacity: 500g
Tin pot diameter(mm): 50mm
Material: Stainless steel
Input voltage: AC220v 50Hz

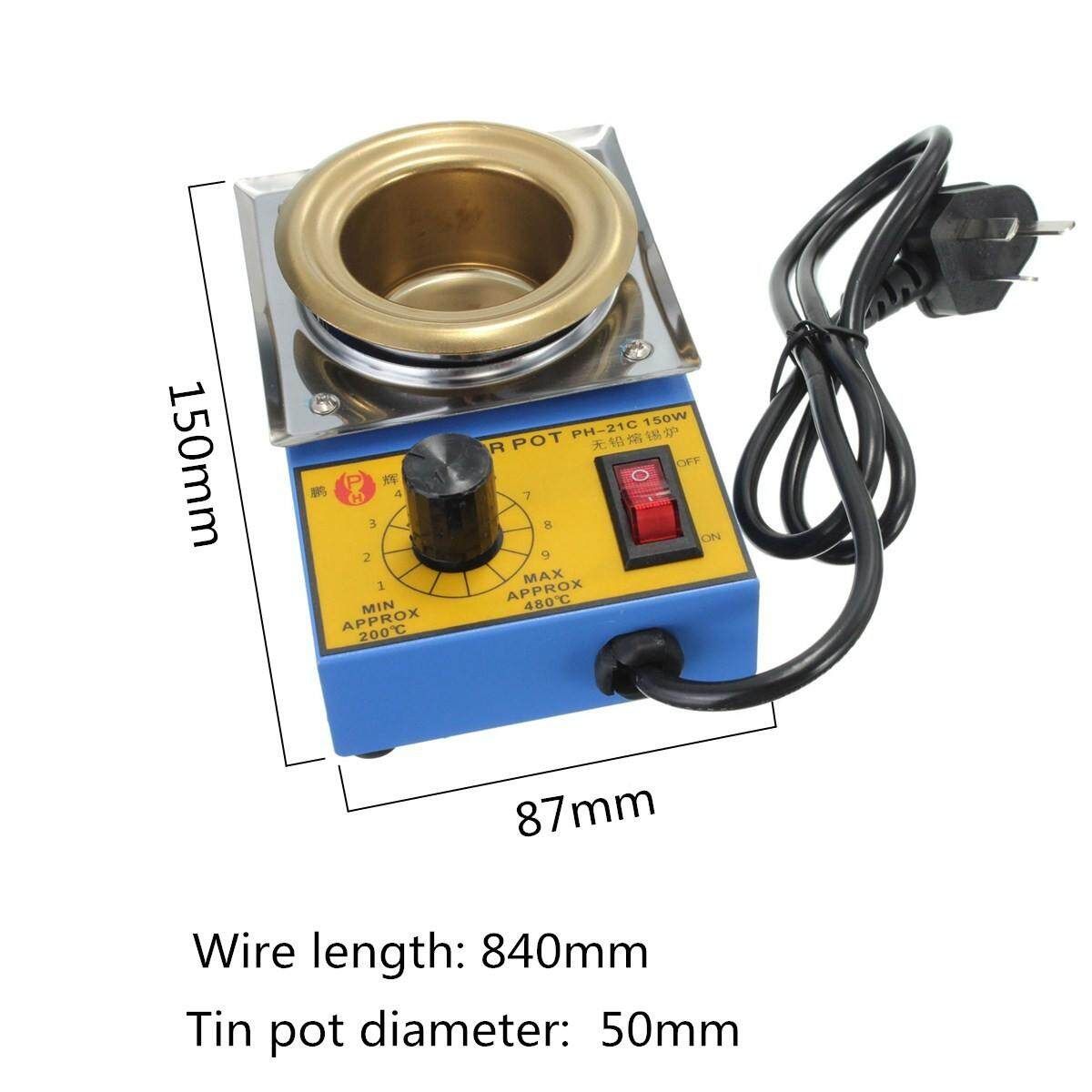

Product size: length:150mm
width:87mm
Wire length:840mm
Specifications;
1 Electronic temperature regulating plates, some of the components production.
2 Tin furnace is made of stainless steel plate, according to regulate the temperature, automatic constant temperature.
3 Easy to use, easy maintenance, good heat effect, melting tin fast.
4 The titanium alloy solder bath and heavy duty compents offer greater durability.
5 High heater,quickly melten the lead-free tin bar.
Welding method:
1 Firstly,you should put the tin bar into the furnace to melt (melting point of Pb SN is about 250 DEG , lead-free solder melting point of 300 DEG or so, slug melting 328 DEG or so)
2 Secondly,put the flux in another container (the welding foot to touch);
3 Thirdly,when you are welding,you should put the welding feet on the flux to dip, then put into the dip tin stove.
4 Lastly,after the temperature of welding becomes cooling,it means the welding is finish.
Package Included:
1 pc lead-free solder pot
a a a a a
Key Features
Model: 21C
:150W
Input voltage: AC220v 50Hz
width:87mm
Wire length:840mm
Temperature range:200-480°
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 pc lead-free solder pot
