Detailed Information About The Product:Input current: 10-30V input voltage, maximum current 30A; 31-60V input voltage, maximum current 25A
Static working current: 15mA (when 12V rises to 20V, the higher the output voltage, the static current will increase
Output voltage: 12-90V continuously adjustable (default output is adjusted to 19V for shipment, please explain if it is necessary to adjust to other voltage values. If there is a multimeter, the buyer can adjust it by himself), 12-90V fixed output (for batch customers)
Output current: 20A MAX more than 15A, please strengthen heat dissipation (related to input and output differential pressure, the greater the differential pressure, the smaller the output current)
Input anti reverse connection: Yes (150A power MOS anti reverse connection)
Module name: 1500W step-up constant current module
Module nature: non isolated booster module (BOOST)
Input voltage: DC10-60V
Constant current range: 0.8-20A (+/-0.3A)
Color: red
Material: PCB+ metal
Low battery protection: with (8-50V adjustable) self recovery type
Working temperature: - 40 ℃~+85 ℃ (please strengthen heat dissipation when the ambient temperature is too high)
Operating frequency: 150KHz
Installation method: 4 3mm copper pillars
Input over-current protection: Yes (input exceeds 35A, automatic protection, power supply does not rise)
Short circuit protection: double short circuit protection (input 30A fuse) for safer use
Input reverse connection protection: Yes (150A power MOS tube is anti reverse connected for a long time)
Wiring mode: terminal block (please use high current pure copper wire)

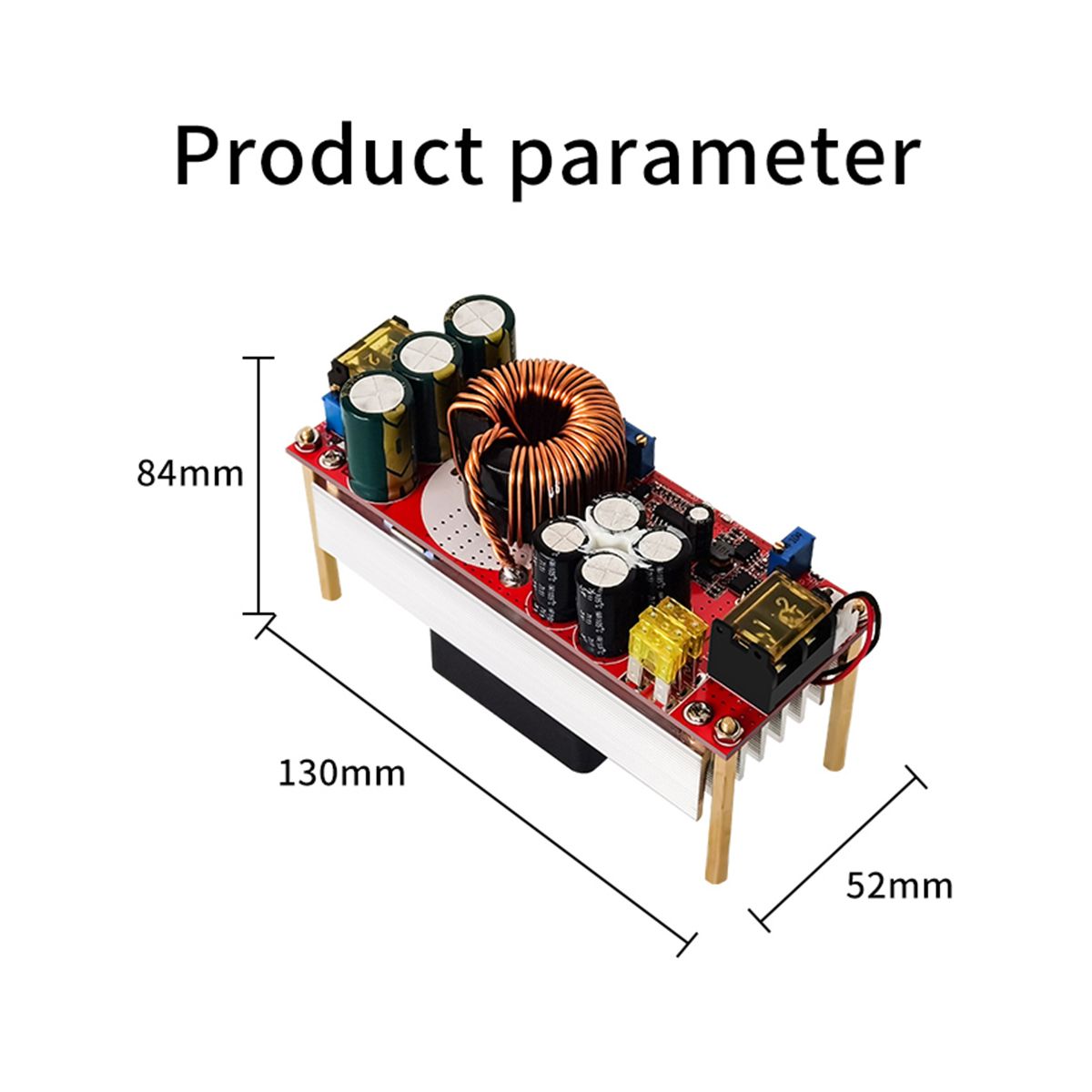

Module size: 130 x 52 x 84 (mm)
Output power:=input voltage x 30A, for example: input 12V x 30A=360W, the maximum power when input 12V is 360W; Input voltage x 30A, e.g. input 24V x 30A=720W, i.e. the maximum poweris 720W when input 24V
Package Contents:
1 x 1500WDC-DC booster module
1 x Screw package
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands.
About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
3. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! !
Key Features
Durable and good quality
Electric Vehicle Power Board
1500W DC-DC Booster Module
1500W power board
DC-DC Booster Module
1500W step-up constant current module
The details are as described above
What's In the Box
1 x 1500WDC-DC booster module
1 x Screw package
