Continuous Discharge Current: 15A
Instantaneous discharge current:150A
Charging voltage: 54.6V
Maximum charging current: 15A
Overcharge detection voltage: 4.25±0.025V
Overcharge protection delay: 100ms
Overcharge release voltage: 4.15±0.05V
Overcharge detection voltage: 4.2±0.025V
Overdischarge detection voltage: 2.80±0.08V
Overdischarge detection delay: 50ms
Overdischarge release voltage: 2.9±0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 10ms
Overcurrent protection current: 75±5A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 200uS
Short circuit protection release condition: disconnect load
Temperature protection: Set as needed
Main circuit conduction internal resistance: less than equal 15mΩ
Working current: less than equal 40uA
Sleep current (when the battery is over-discharged): less than equal 10uA
Temperature range: -30/+80°C
Size: 63*33*9mm
colour:Silver + green
Material:Metal + PCB
Package Contents:

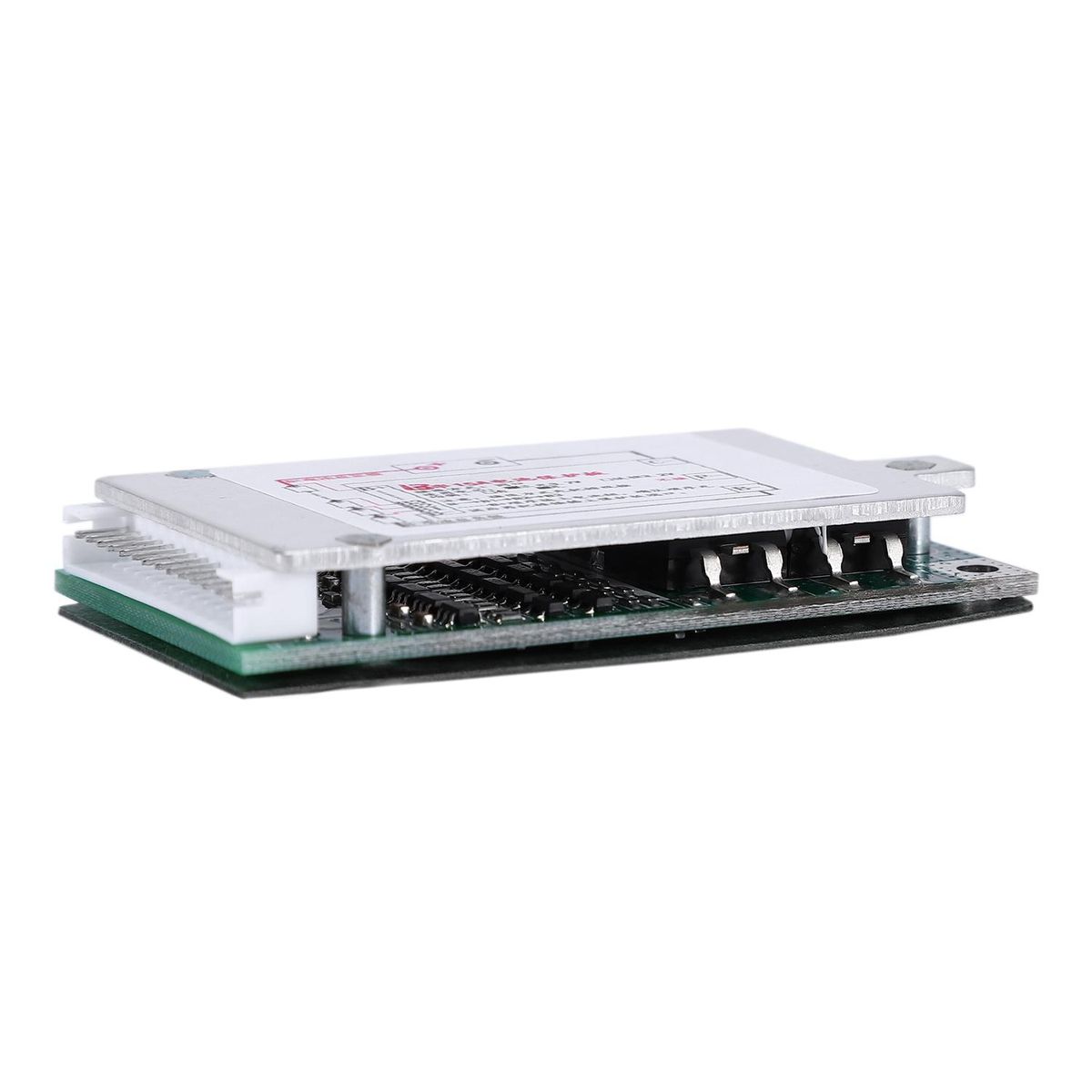

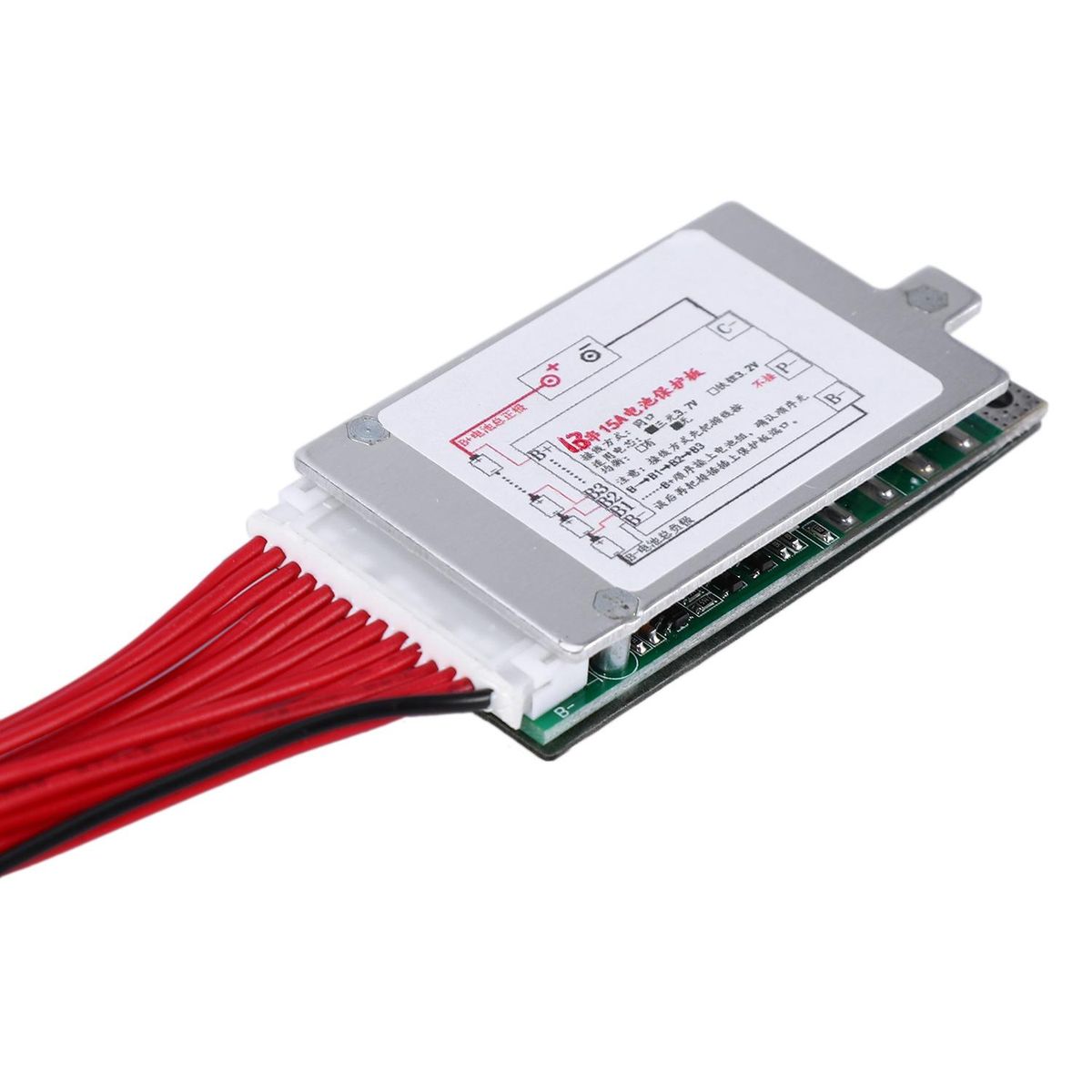

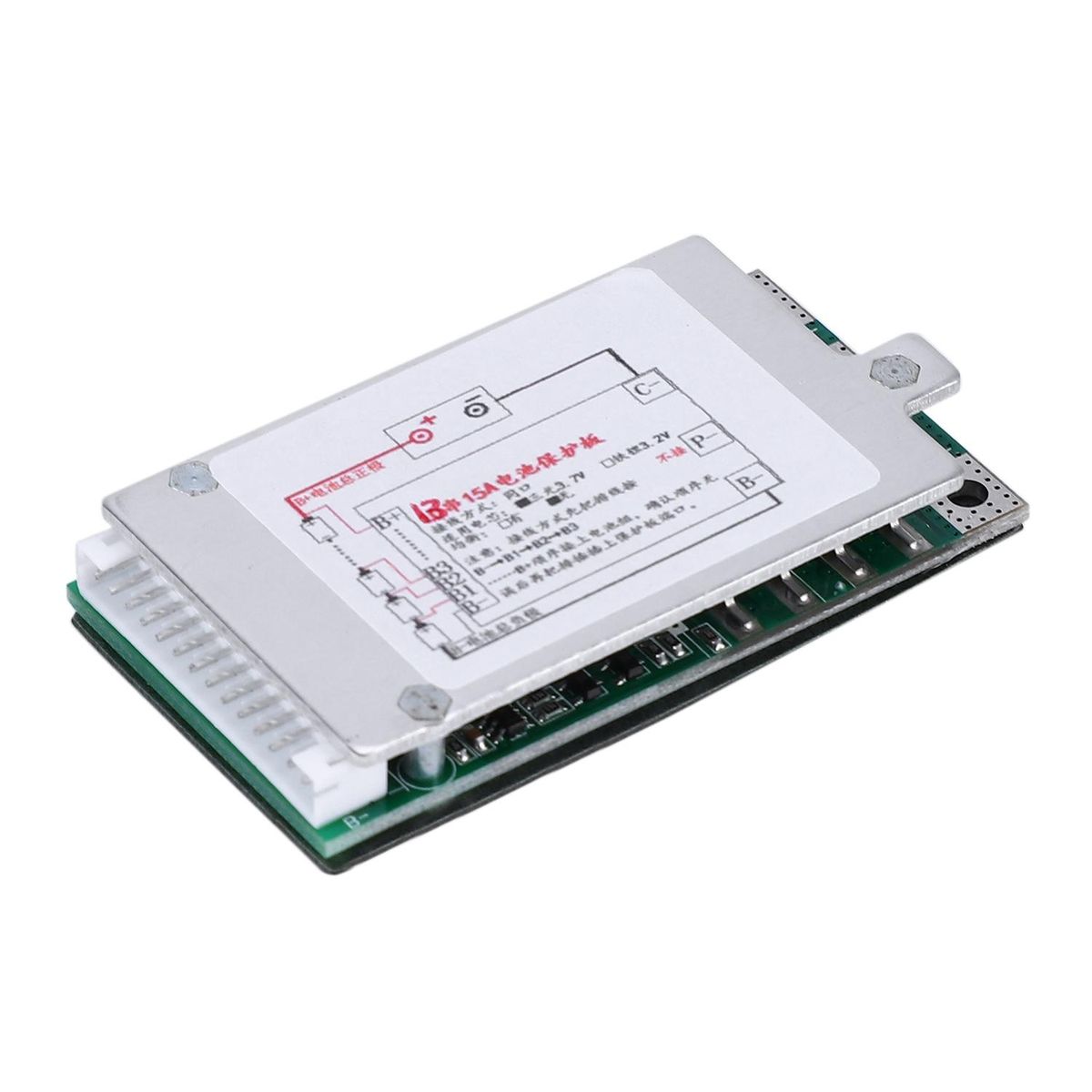

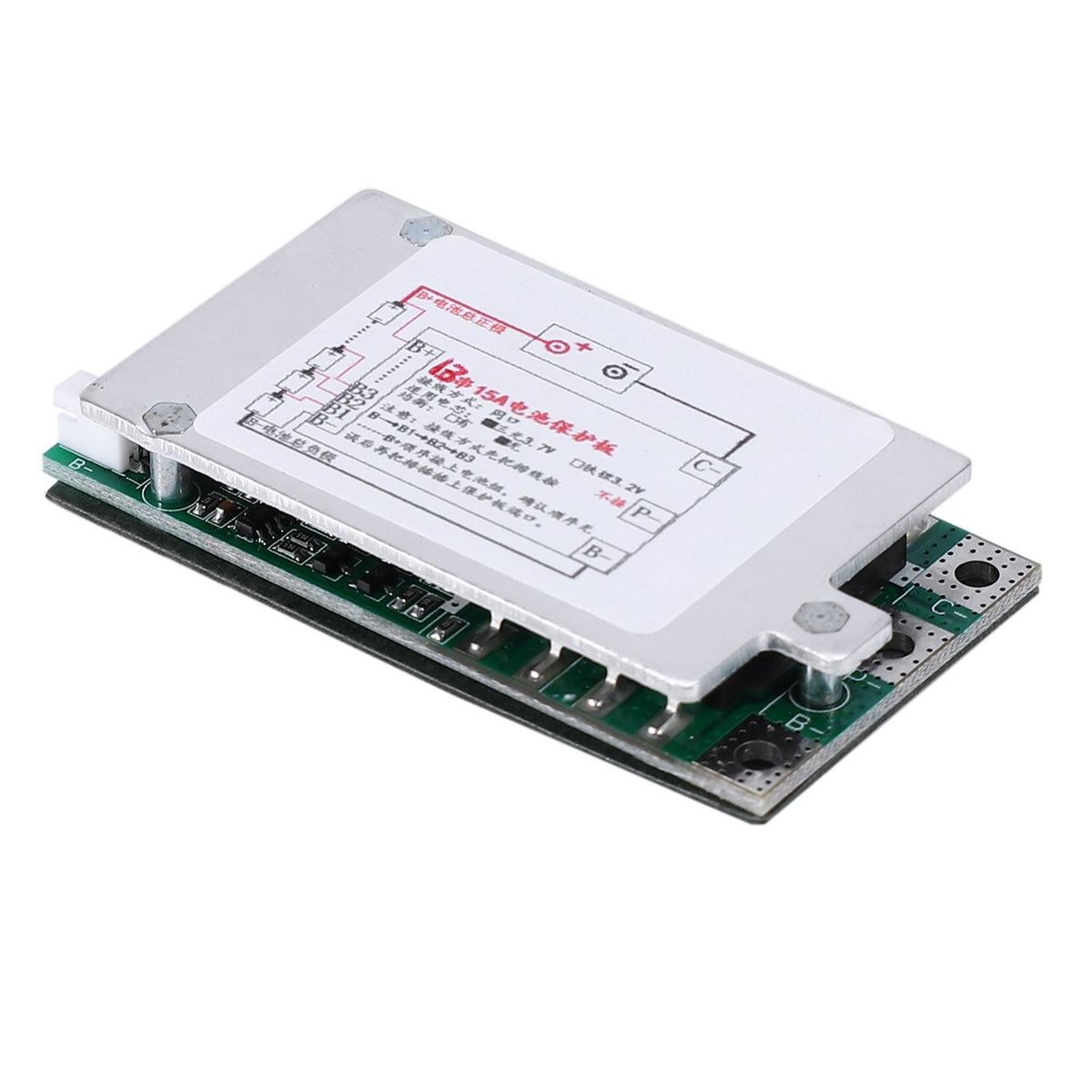

1 * Li-ion Battery Protection Board

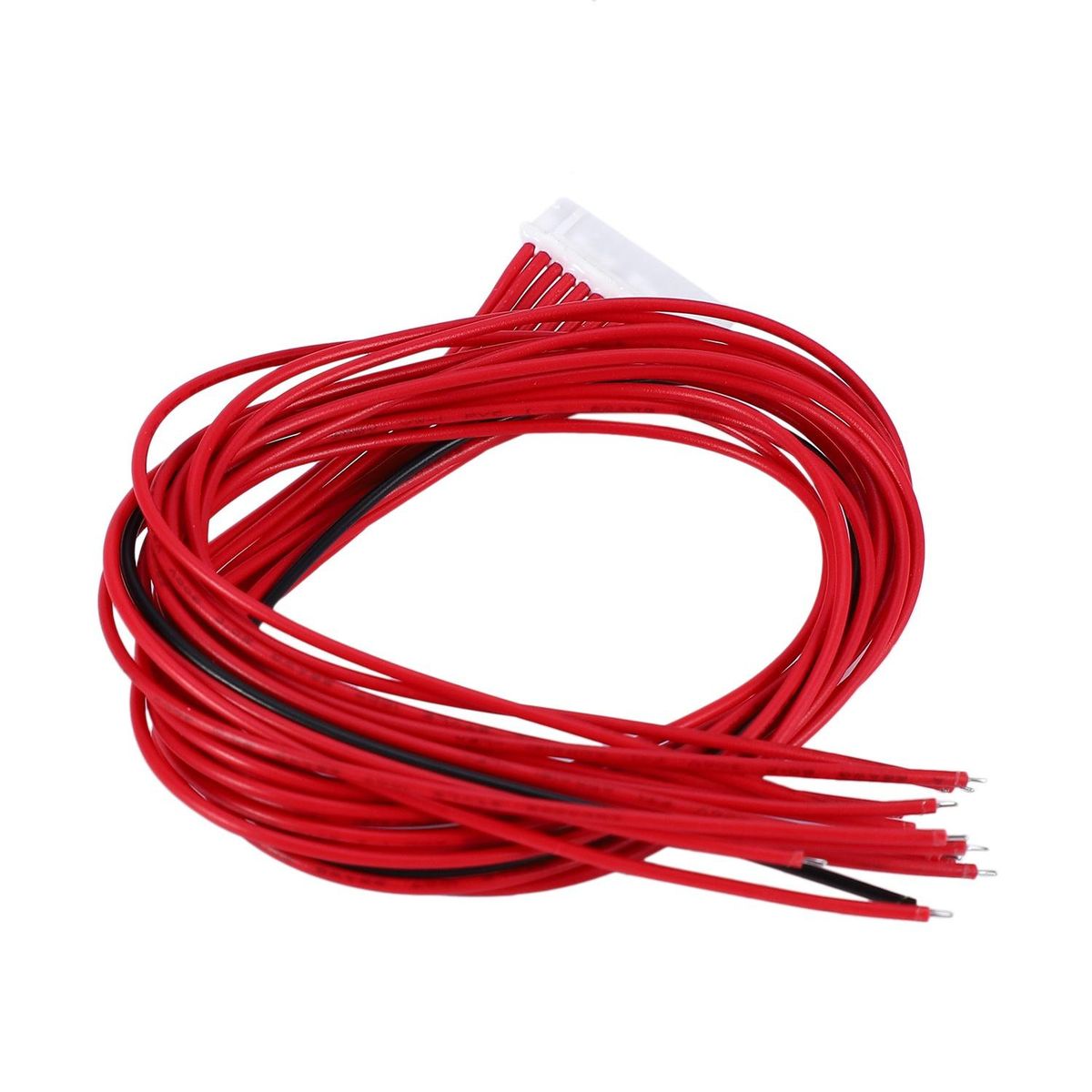

1 * Cabel wire
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
