Mini and Powerful: The mini temperature controller can both make heating and cooling control with wide temperature measuring range from
-50°C-120°C.Clear LED Display: With red and blue 2 color display,it is easy for distinguish and more convenience for better readability.
Precision Control: This controller with 0.1 centigrade control accuracy,high Control precision good for domestic freezer, water tanks,etc.
Safe and Reliable: Relay output. All parameters setting can be saved after short circuit.
Widely Application: Can be used for domestic freezer,water tanks,refrigerator,
industrial chiller,steamer,industrial equipment and other,temperature-controlled system.
Specifications:
Material: ABS
Color: Black
Power Supply: 12V
Temperature Control Range: -50°C-120°C
Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
Color of Displaying: red/blue
Measurement Accuracy: ±0.1°C
Control Accuracy: 0.1°C
Sensor: NTC10K Waterproof sensor
Environmental Requirements: -10-60°C , humidity 20%-85%RH

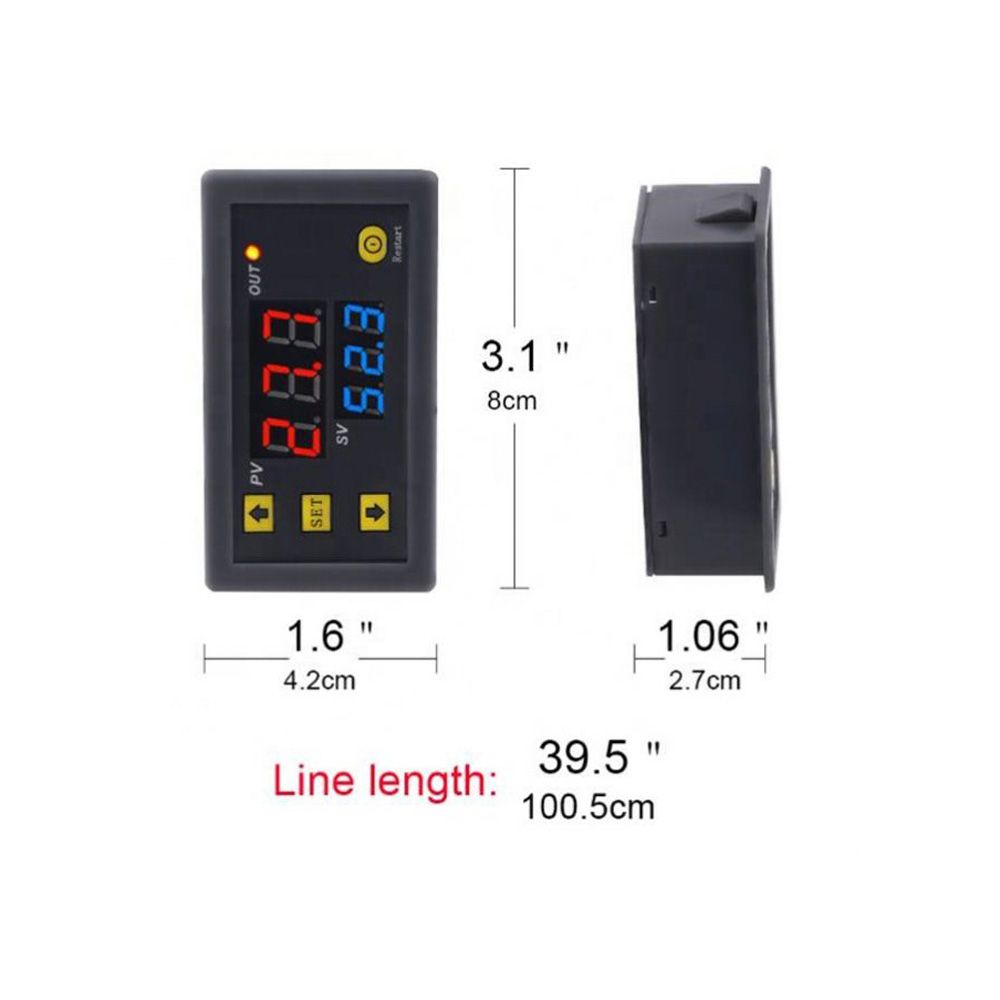

Dimension: 79*43*26mm / 3.1*1.7*1.0"
Cutting Size: 73*39mm / 2.9*1.5"
Item Weight: 43g / 1.5oz
No Retail PackageNo User Manual
Function description:
P0: refrigeration or heating mode
P1: return difference setting
P2: maximum temperature setting upper limit
P3: minimum temperature setting lower limit
P4: temperature correction
P5: delay start time (unit: minute)
Key Features
2 mode:Cooling or heating
Set maximum/minimum upper limit temperature to avoid accidents.
Automatically start cooling or heating constant temperature.
Temperature calibration. Temperature can be calibrated as required.
Temperature Range: -50 to 120℃
High temperature alarm,
What's In the Box
1 x Temperature Controller with Sensor Probe
