2 Automatic focusing tracking charging high charging efficiency charging non-stop detection two-way focusing tracking
3 LCD screen with adjustable charging and discharging parameters The ultra-wide charge and discharge can be adjusted As long as you know the battery characteristics and set the corresponding charging parameters you can charge all kinds of batteries lithium battery and lithium battery set the charging parameters

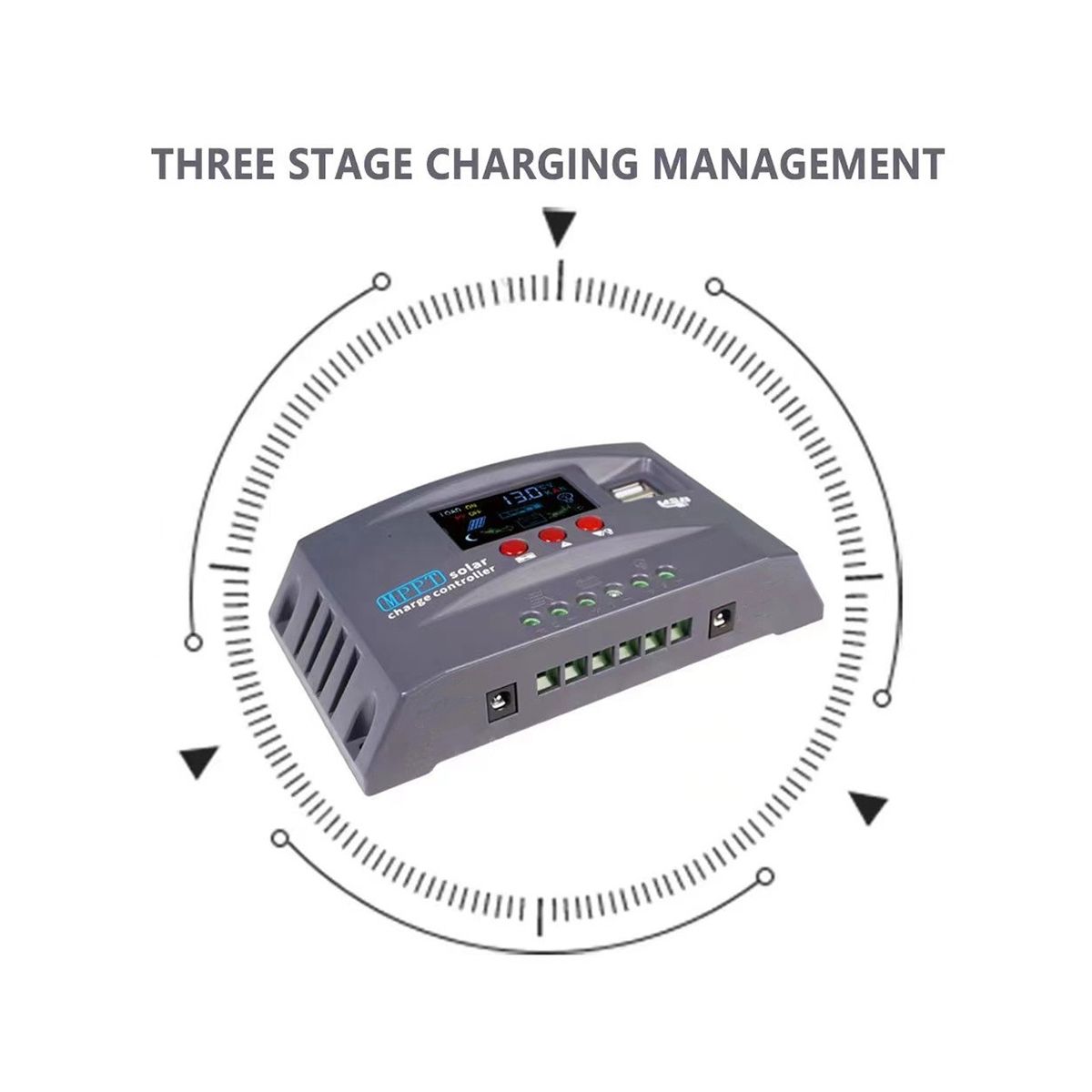

4 Complete three-level charging management Effectively protect the battery and more durable
5 Built-in overheat protection Overcurrent protection Short circuit protection Reverse connection protection When the fault is eliminated it will itself It will not damage the controller
6 Bidirectional MOS anti-backflow circuit high-power charging mode ultra-low heating
7 Dual DCS O DC load output Easy to connect

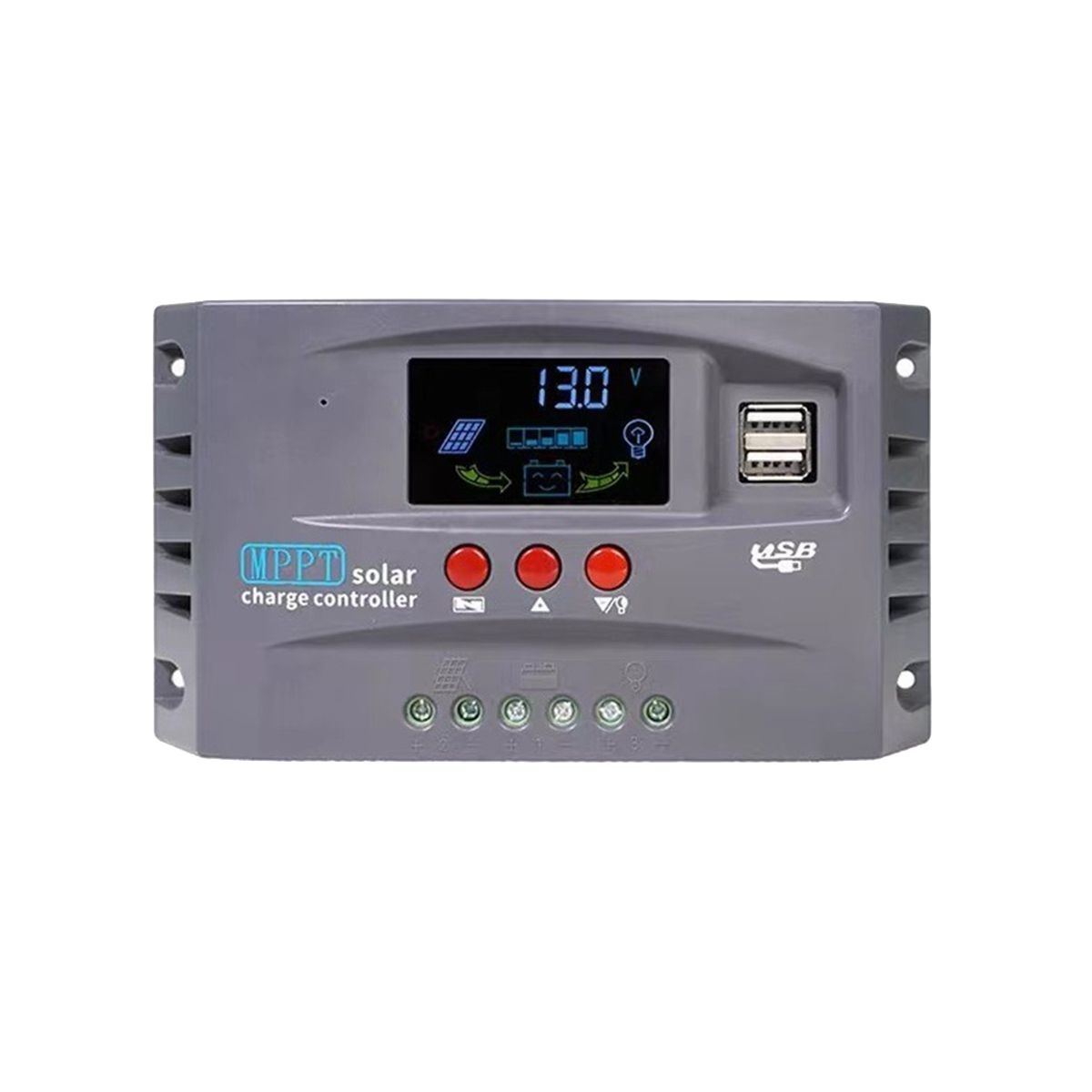

Product name MPPT controller
System voltage 12V24V automatic adaptation
Rated charging current 20A
Rated discharge current 10A
Maximum PV voltage input
12V system Less than 25V
24V system Less than 50V
Float charging voltage b1144V 142Vb3146V regulation range 13V-15V
Low-voltage breaking voltage LVD 107V regulation range 95V-11V
Discharge voltage 126V regulation range 115V-13V
Standby currentLess than 10 mA
USB port maximum 5V2A
Working temperature - 36~60
Product size 170 x 95 x 30mm
colorGrey
MaterialABS
Package Contents
1 x MPPT controller
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x MPPT controller
