Model |
N/A |
Weight (kg) |
1.2 |
Main Material |
ABS Material & Aluminium |

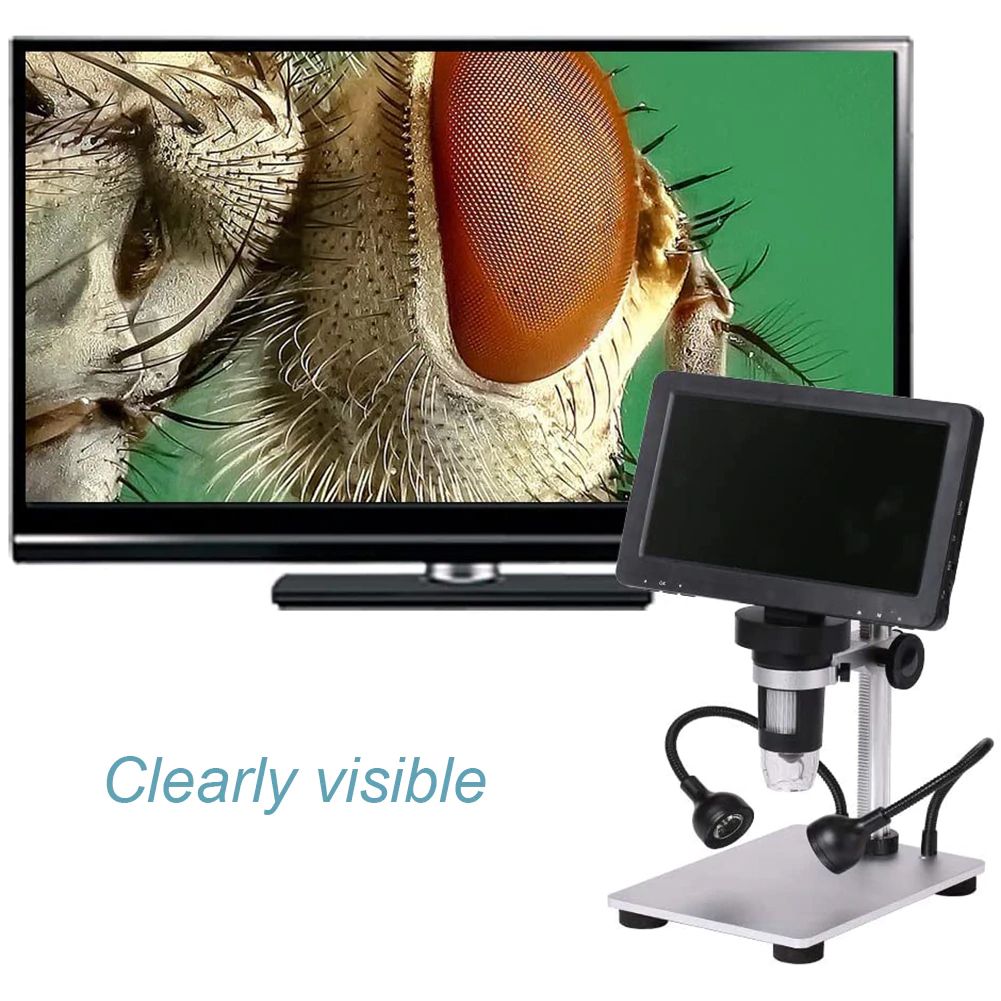

Feature:- Equipped with a 7inch high definition large screen, the image is clear and easily meets visual needs.
- Screen can be rotated, angle can be adjusted up to 270 degrees, the appropriate screen angle can be adjusted according to actual operation needs.
- Supports ultra‑long working distance, which is beneficial to mobile phone repair and circuit board inspection.

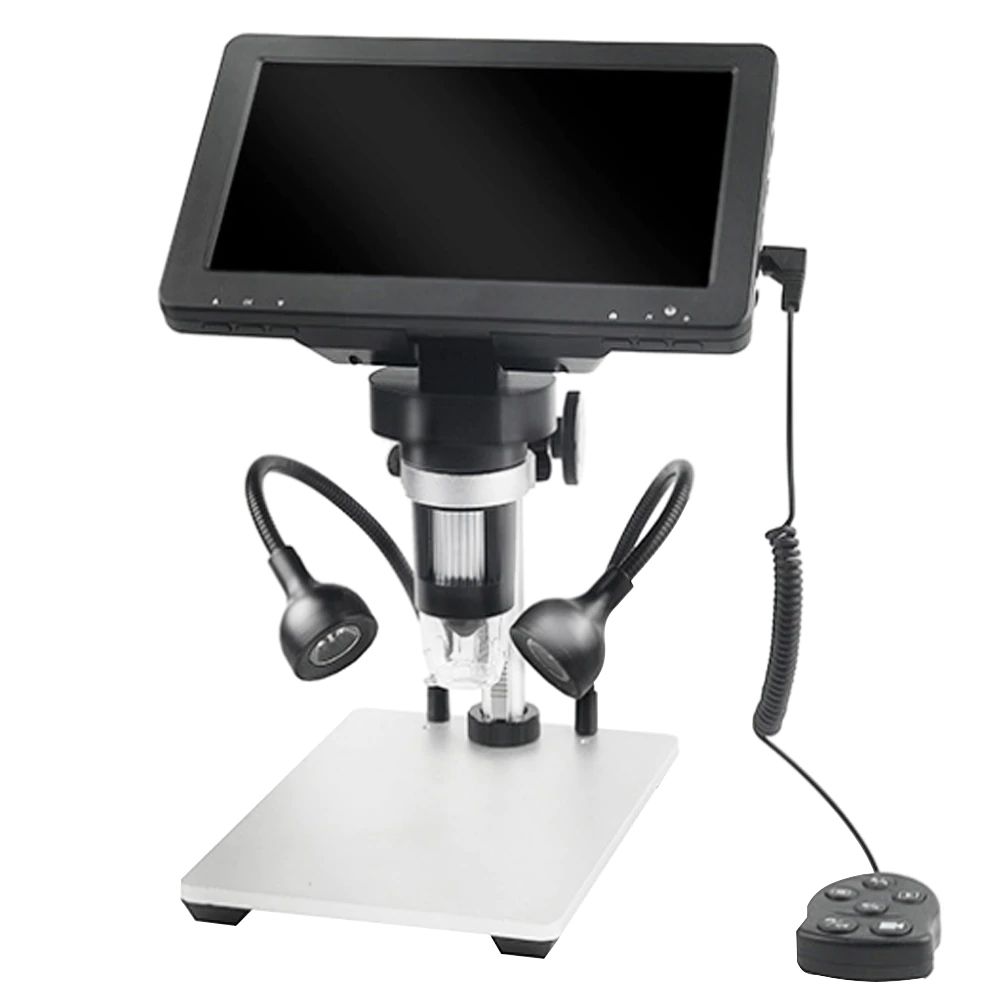

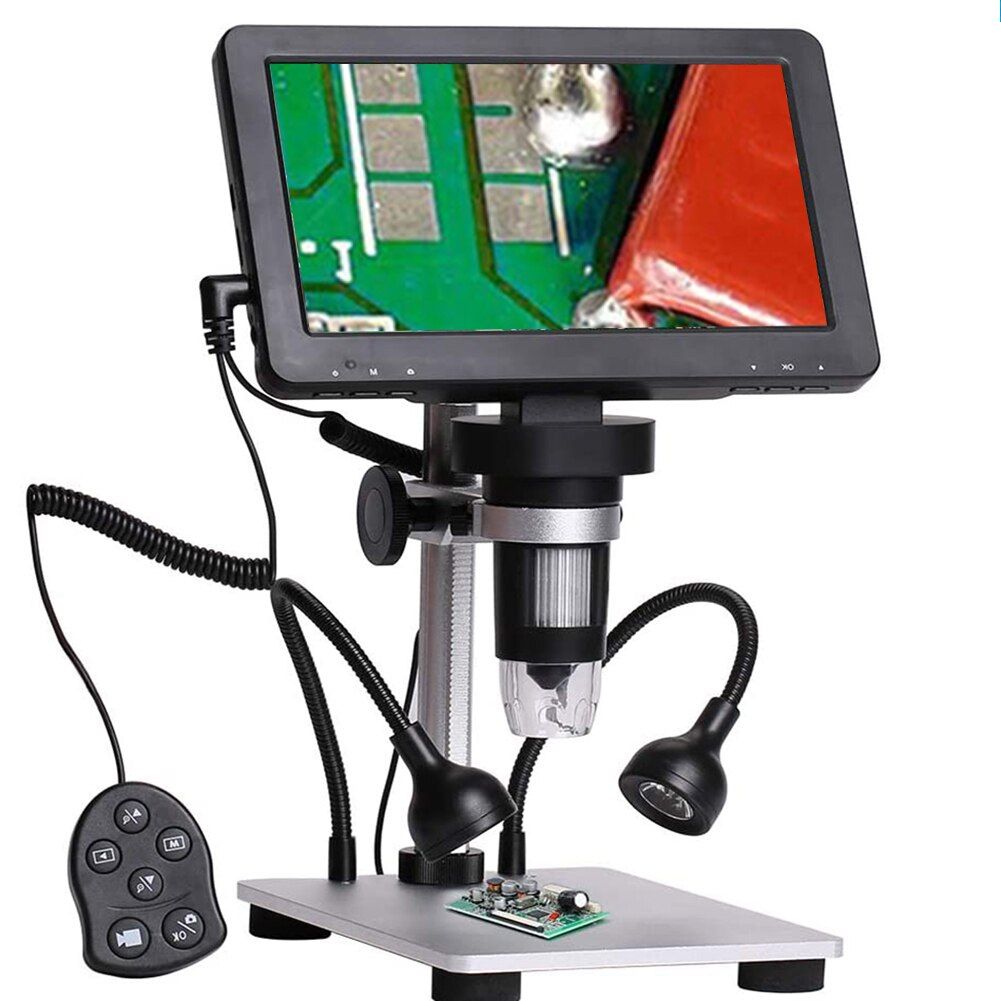

- With wired key remote control, conducive to the development of observation, identification and testing.

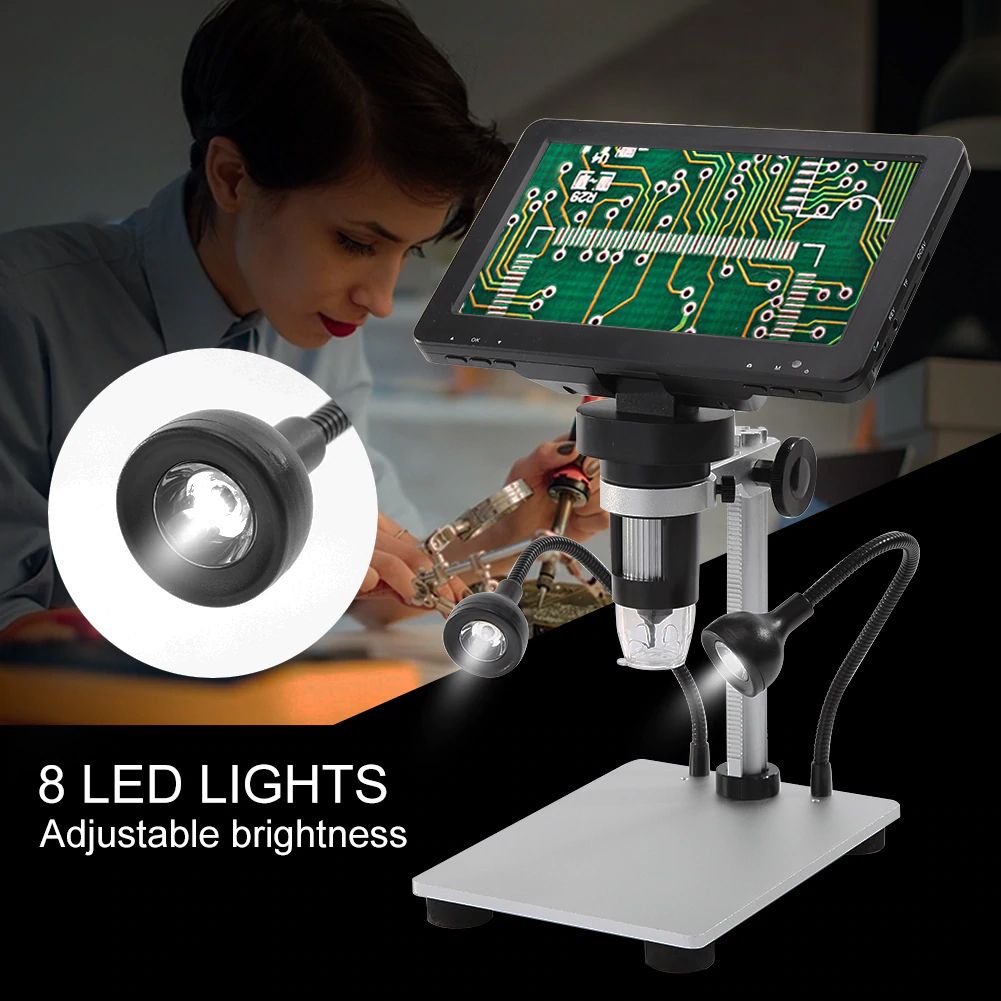

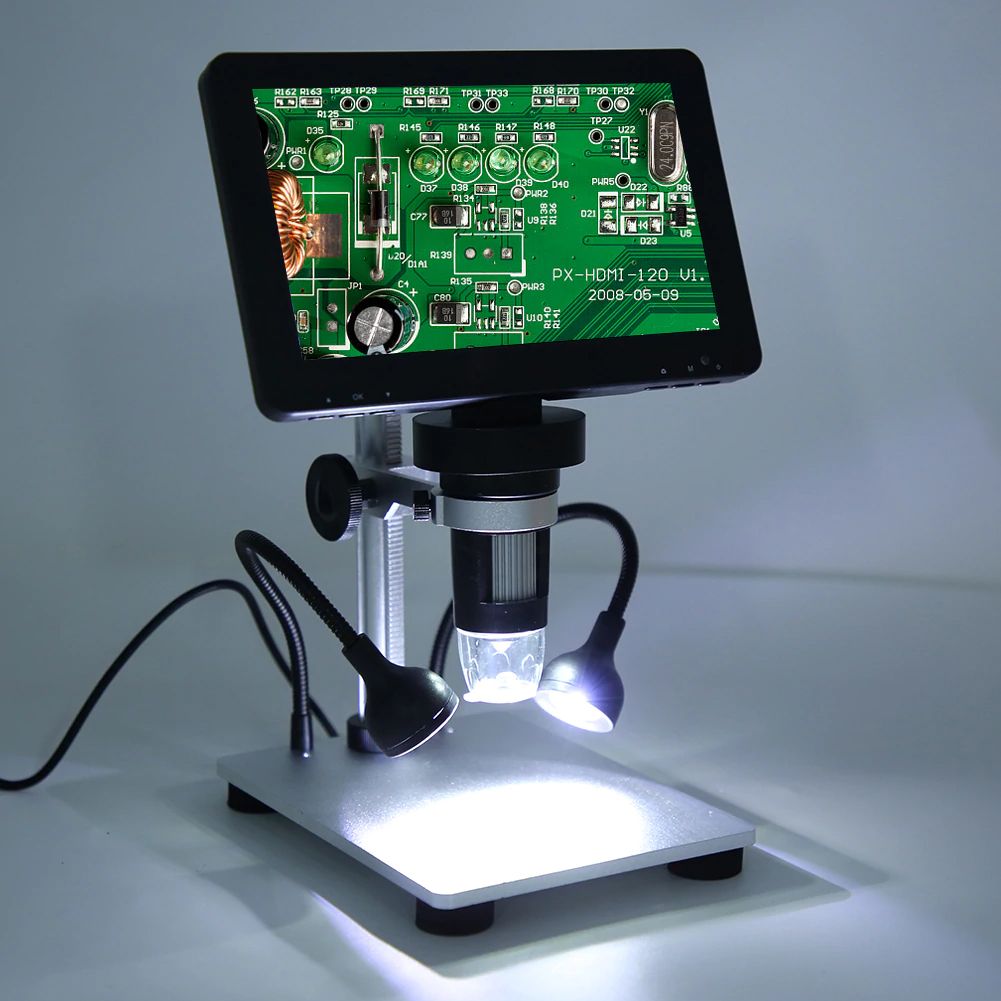

- Configure fill light, can deal with the light problem in a variety of complex environments, solve the problem of reflective objects under the light.

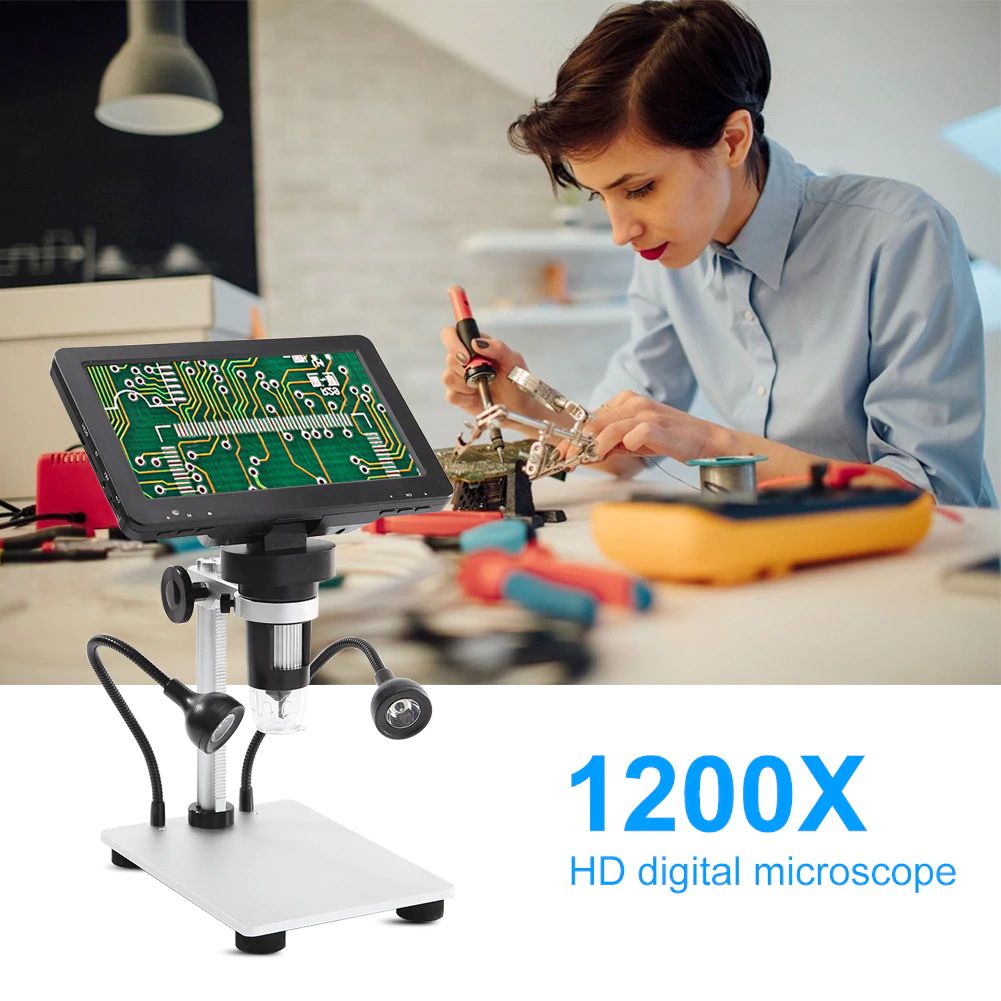

- Widely used in circuit board inspection, watch repair, jewelry appreciation, teaching and research tools, textile testing, skin quality testing, printing verification, coin identification.
Product use: Electronic circuit board inspection, industrial inspection, textile inspection, watch and mobile phone repair, skin inspection, scalp inspection, planning experiment test, printing inspection, teaching and research tools, magnification and measurement of precision objects, reading assistance, hobby research, etc.
Function Description: - Video resolution: There are 3 formats to choose from: 1080FHD, 1080P, 720P.
- Camera resolution: There are 5 formats to choose from: 12M, 10M, 8M, 5M, 3M.
- Continuous shooting: After turning on this option, you can take 5 photos continuously.
- Image quality: There are 3 choices of high quality, standard and economic.
- Sharpness: There are 3 options for strong, standard and soft.
- ISO: There are 3 options for automatic, 100, and 200.
- Exposure compensation: There are 13 kinds of exposure compensation values from +2.0 to -2.0 to choose from.
- Date label: After selecting the date or date/time, the photos and videos are marked with the date or date and time.
- Delete/Protect: Press the MENU button in the playback mode to enter the delete/protect mode, you can choose to delete or protect the selected content, you can also choose to delete all or protect all, or you can remove the protection.
- Playback mode: Users can view the photos or video files they need according to their needs. Long press the menu button on the device or the switch button on the remote control to switch modes.
- Micro USB charging port: When the power of the device is low, connect the charger to charge the device. It is not recommended to use the device during the charging process (it will reduce the battery life of the device). Use the USB with signal cable to connect to the computer terminal and enter the PC storage mode/camera mode/charging mode. When the USB signal cable is unplugged, the device will automatically shut down within 5 seconds.
- TF card socket: support minimum 8GB maximum support 32GB
- Date/Time: Set date and format/time parameters.
- Format: Format the memory.
- Automatic shutdown: select a suitable time to make the device automatically shut down when no one is operating.
- Screen saver: Choose a suitable time to make the device automatically turn off the screen when no one is operating.
- Language: Different languages can be selected for display.
- AC frequency: Mains frequency setting, 50HZ in China and 60HZ in foreign countries.
- Alignment assistance: display and hide the "cross" line on the photo and video interface.
- Default setting: restore factory settings.
- Version: View the current software version.
Package List: - 1 x Microscope
- 1 x Stand
- 1 x Base with Light
- 1 x USB Cable
- 1 x Wired Remote Control
- 1 x Reflector
- 1 x Disc
- 1 x Manual
Key Features
Equipped with a 7in high definition large screen, the image is clear and easily meets visual needs.
Screen can be rotated, angle can be adjusted up to 270°, the appropriate screen angle can be adjusted according to actual operation needs.
Supports ultra‑long working distance, which is beneficial to mobile phone repair and circuit board inspection.
With wired key remote control, conducive to the development of observation, identification and testing.
Configure fill light, can deal with the light problem in a variety of complex environments, solve the problem of reflective objects under the light.
Widely used in circuit board inspection, watch repair, jewelry appreciation, teaching and research tools, textile testing, skin quality testing, printing verification, coin identification.
