| Model |
N/A |
| Production Country |
China |
| Size (L x W x H cm) |
21.00 x 20.00 x 6.00 |
| Weight (kg) |
0.504 |
| Color |
as Picture |
| Main Material |
as described |
| From the Manufacturer |
<p>N/A</p> |
| Care Label |
<p>N/A</p> |
Description:

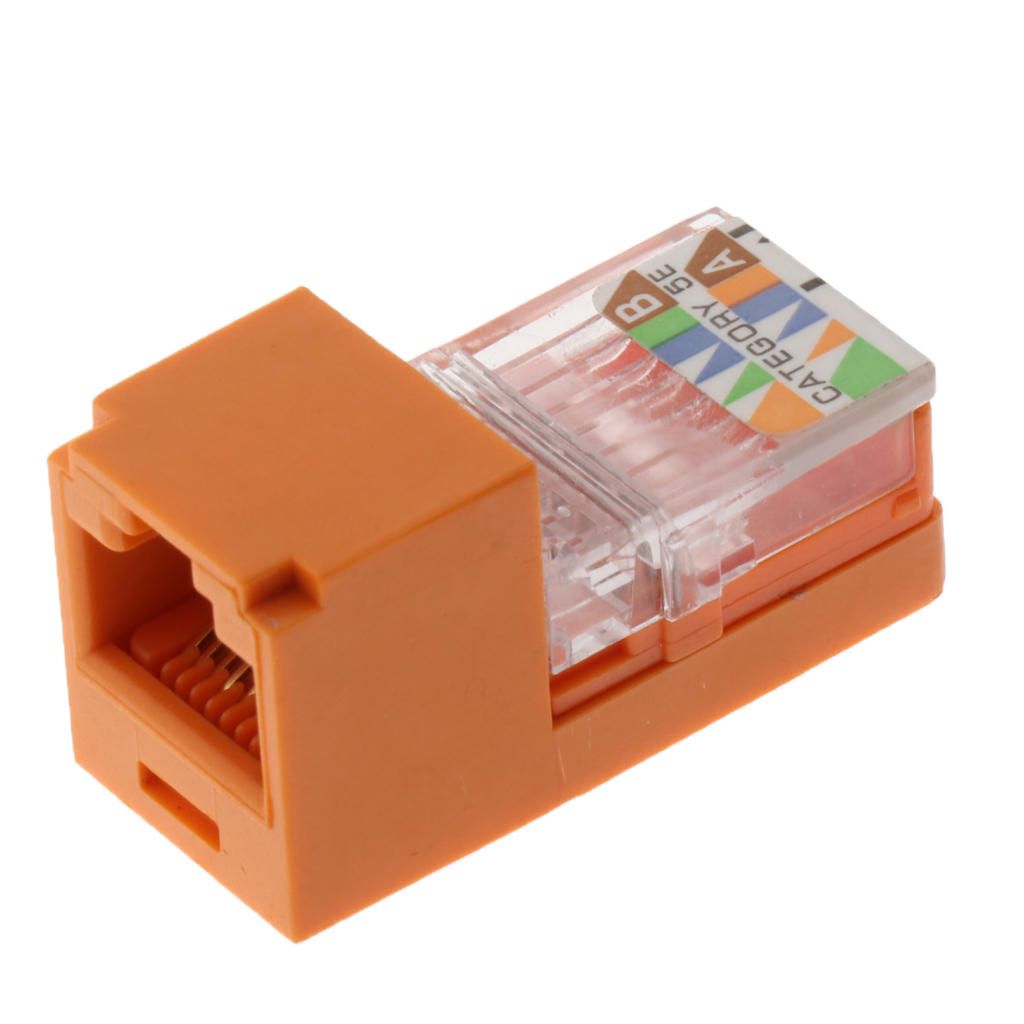

Material: plastic+metalSize: approx. 35x16x18mm/1.38x0.63x0.71Equipped with a dust cover to protect the module, shield dust and dirt from entering.Plug and socket repeated insertion and removal times ≥ 750 times.Applicable to the communication socket connection between the equipment and the work area to realize signal transmission, meeting the EIA/TIA 568A/B six-class transmission standard requirements.
Specification:
The IDC end is wired according to the color code of the note, which is convenient for fast and accurate wire bonding.IDC: The connection line can be 22~26AWG, the number of times the card can be repeated is ≥200 times.Contact resistance: contact resistance ≤2.5MΩ under normal atmospheric conditions.Insulation resistance: insulation resistance ≥1000MΩ under normal atmospheric conditions.High pressure resistance: no breakdown and arcing in AV 750V for 1 minute.Plastic materials: PC PBT fire rating is UL 94-V0.Terminal material: phosphor bronze.RJ45 interface terminal: gold plated 3μ''~50μ''.
Package Includes:
10 Pieces Network Module Adapter
Key Features
Material: plastic+metal
Size: approx. 35x16x18mm/1.38x0.63x0.71
Equipped with a dust cover to protect the module, shield dust and dirt from entering.
Plug and socket repeated insertion and removal times ≥ 750 times.
Applicable to the communication socket connection between the equipment and the work area to realize signal transmission, meeting the EIA/TIA 568A/B six-class transmission standard requirements.
What's In the Box
10 Pieces Network Module Adapter
