Description: This 16CH 1080p network DVR video recorder features H.264 video compression, P2P cloud function, supporting android/iOS devices remote view anywhere anytime. It is also with functions of motion detection alarm, dual-stream encoding, which is widely used at home, shop, office and other surveillance needed places.
Feature:
HD 1080P DVR: This 16Channel 1080p surveillance DVR features plug and play, point-to-point raw data, 2.0 Megapixel 1920×1080 Pro HD video transmission. Supports Live View 1080P, Recording & Playback 1080P

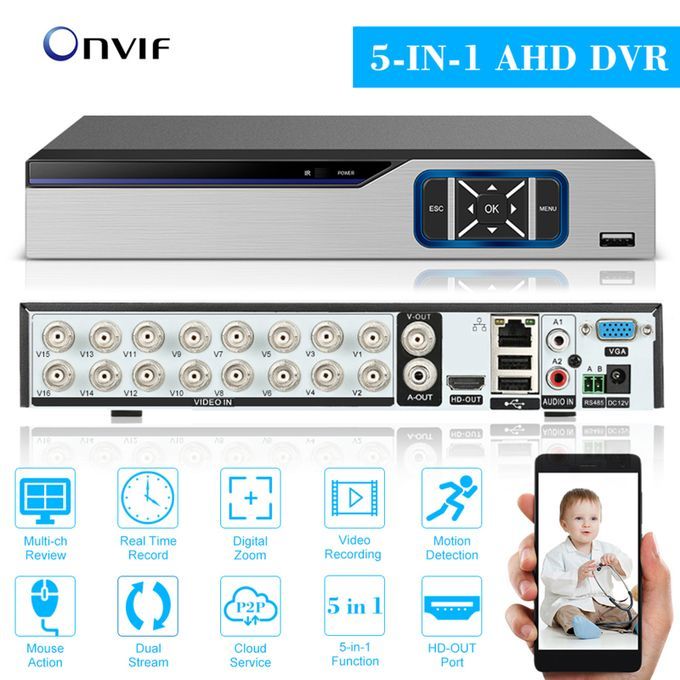

Wide Compatibility: This hybrid DVR recorder supports analog cameras and IP cameras since support ONVIF with limited compatibility to third-party IP cameras. Supports IP, AHD, analog cameras, CVI, TVI.
P2P Quick Remote Access: Surveillance DVR allows you to view the live streaming or playback video remotely by your phone and pad (Android & IOS). Just need connect to the internet and scan the DVR unique QR code to download free app.
Advance Motion Detection & Alert Push: You can customize motion detection area in each camera to minimize false alerts from moving branches or animals,and block out selected areas to grant privacy in situations, people can not view of certain areas or activities. Instant notifications and email alerts with screenshot will be pushed to your phone directly as long as the cameras detect moving objects.
Plug and Play: This Hybrid DVR transmits video, audio, and controls over single coaxial cable. Utilizes your existing coaxial cable networks, reducing the need to run new cables to your Security System. H.264 Compression Technology allows video files to be compressed without any noticeable difference in quality.
Specification:
Operating System: Embedded Linux System
Menu Display: 1/4/8/9/16 Screen
Video Code: H.264
Main processor: Hi3521A
Record Resolution: Encode ability:16*1080P@12fps(5 in 1)/16*960P/8*1080P
Decode ability:16*1080P@12fps(5 in 1)/8*960P/8*1080P
960P/720P
Multi-mode input: Analog: 16*1080P(5 in 1); 8*1080P; 16*960P;
Hybrid: 8*1080P (analog)+8*960P (network)
Network: 8*1080P+8*960P; 4*3M;4*5M
Motion detection: Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
VGA Resolution: 1920*1080, 1440*900, 1280*1024, 1024*768, 1280*960
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner
Wireless: 3G, WIFI (extend via USB)
Signal System: PAL/NTSC
Frame Rate: 1-30fps (NTSC), 1-25fps (PAL)
HDD Supported: Support Up to 4T (The hard drive disk not included)
OSD Language: English, French, German, Spanish, Italian, Japanese, etc
supply: 12V/2A
Item size: 25.3 * 22.9 * 4.1cm /9.96 * 9.02 * 1.61in (L * W * H)
Item weight: Approx.900g /31.75oz
Package size: 35 * 27.4 * 7.5cm /13.78 * 10.79 * 2.95in (L * W * H)
Package weight: 1289g /45.47oz
Package list:

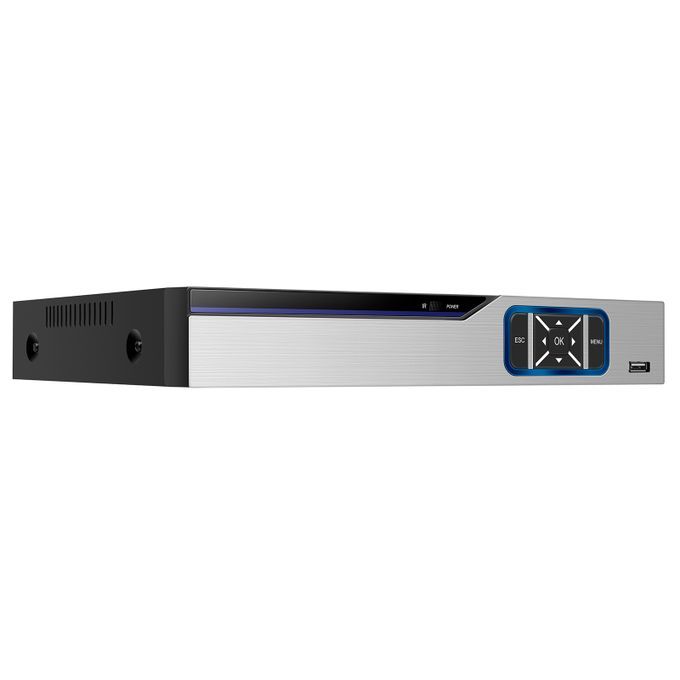

1 * 16CH 1080P/960P/720P DVR Video Recorder (HDD not Included)
1 * Adapter
1 * USB Mouse
1 * Bag of Screws for HDD Installation
1 * English User Manual
Key Features
H.264 video compression, P2P cloud function, supporting android/iOS devices remote view anywhere anytime. It is also with functions of motion detection alarm, dual-stream encoding, which is widely used at home, shop, office and other surveillance needed places.
H.264 video compression, P2P cloud function, supporting android/iOS devices remote view anywhere anytime. It is also with functions of motion detection alarm, dual-stream encoding, which is widely used at home, shop, office and other surveillance needed places.
H.264 video compression, P2P cloud function, supporting android/iOS devices remote view anywhere anytime. It is also with functions of motion detection alarm, dual-stream encoding, which is widely used at home, shop, office and other surveillance needed places.
H.264 video compression, P2P cloud function, supporting android/iOS devices remote view anywhere anytime. It is also with functions of motion detection alarm, dual-stream encoding, which is widely used at home, shop, office and other surveillance needed places.
H.264 video compression, P2P cloud function, supporting android/iOS devices remote view anywhere anytime. It is also with functions of motion detection alarm, dual-stream encoding, which is widely used at home, shop, office and other surveillance needed places.
H.264 video compression, P2P cloud function, supporting android/iOS devices remote view anywhere anytime. It is also with functions of motion detection alarm, dual-stream encoding, which is widely used at home, shop, office and other surveillance needed places.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x 16CH 1080P/960P/720P DVR Video Recorder (HDD not Included) 1 x Adapter 1 x USB Mouse 1 x Bag of Screws for HDD Installation 1 x English User Manual
