Feature:
1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects.
3. Using high-quality materials, strong and durable, has a long service life.
4. HD camera with 16 megapixel CMOS sensor 1/2.8 inch, with HDMI USB port.
5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.
Specifications:
Sensor：16 Megapixel IMX sensor
Pixel Size：2.0 times; 2.0 mu;m
Sensor Size ：1/2.8 inch
Video Output Interface ：HDMI / USB (HD Interface)
Resolution：1920x1080@60FPS（HDMI）

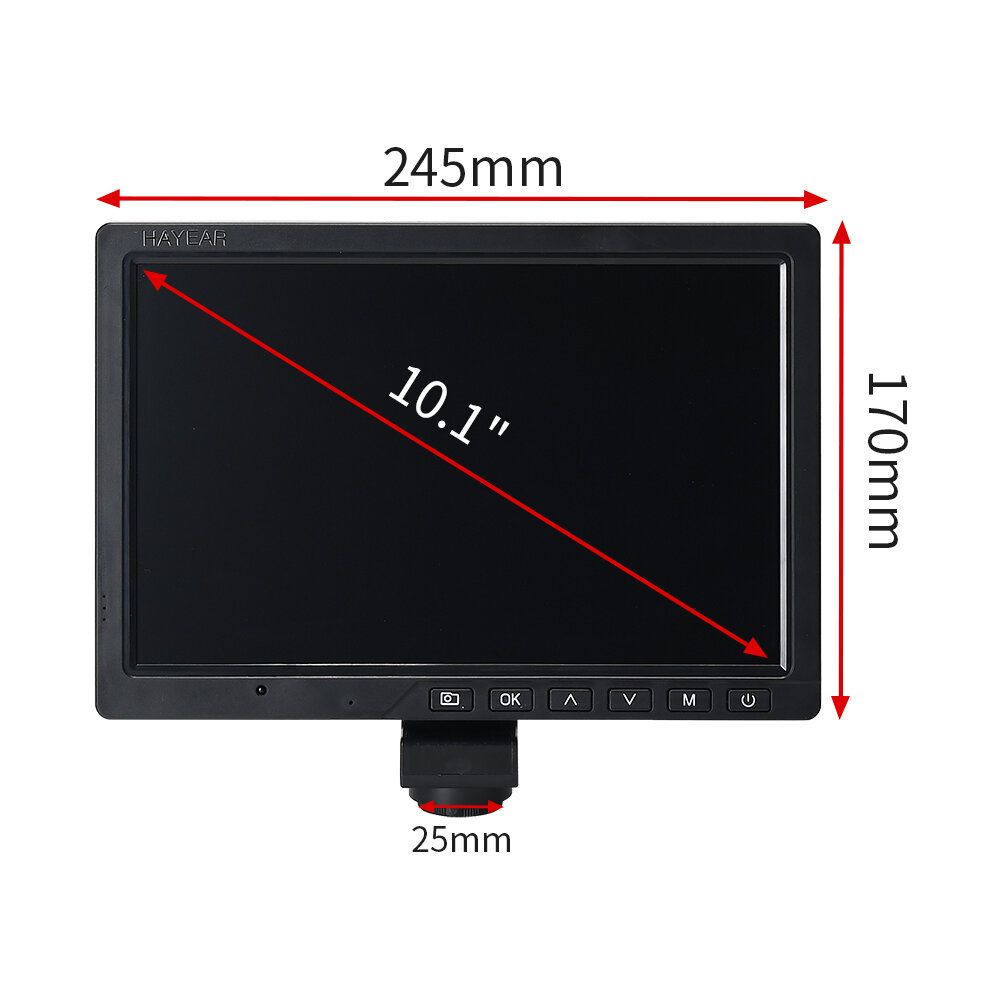

Monitor size ：10.1 inches
USB Output：1920x1080@30FPS(USB)
Video Ratio：Support 16:9, 4:3 Mode
Picture Resolution ：4608 x 3456
Frame Rate ：30@FPS
Color R/G/B：support manual adjustment
Cross line ：5 horizontal/vertical line, Color amp; size of line can be adjust, cross line with scale
Zoom：7X digital zoom
Magnifier Function ：Support magnifying in same screen
Sensitivity Level：Middle(can be used with extra light source)
Interface for Lens ：Standard C/CS Interface
Dynamic Range ：40dB
PC Systems ：Support Windows XP/7/8/10, with measurement software(gift)
Picture Format ：JPEG
Language：CN, EN, JP, FR, DE, RU, IT, KR, TUR
Working Voltage ：12V/1A
Spectral Response (Wavelength) ：400nm~700nm (Strong)
White Balance：Manual/Auto
SNR：45dB
Black amp; White Mode ：Support
Storage ：TF Card, Maximum support 256GB
Working Temperature ：-40 deg;C~70 deg;C
8X-150X Zoom C-mount Lens:
Working distance: 50mm-350mm
Field of view: 3.1mm-66mm
zoom c-mount Lens
zoom ratios:15:1
