Model |
RC Car Robot Control playing |
Production Country |
China |
Size (L x W x H cm) |
25x10x1.8 |
Weight (kg) |
0.025 |
Color |
multicolor |
Main Material |
Linen |
Frequency 40MHZ
fire board operating voltage 3V
receiver board operating voltage 45v-6v
Maximum output voltage of the receiving board 4 lines 2 groups 2 sets output two voltages the size is about 2v-35v respectively control one motor forward and reverse 3V voltage motor can be used
Features The two voltages of the output may have different sizes When the battery is low it may be obvious Therefore it is recommended to use the small voltage separately for the steering motor The remote control distance is sufficient when the power is sufficient no interference after connecting the antenna correctly about 10 meters the above is for reference only
Wiring
1 The transmitting board the V is connected to the positive pole of the power supply the black line V- is connected to the negative pole of the power supply and the ANT is connected to the antenna
2 Receiving board the black line is connected to the negative pole of the power supply the is connected to the positive pole of the power supply the yellow line is connected with a blue line to connect one motor two long wires are connected to the motor 1 and two short wires are connected to the motor 2
colourOrange
MaterialMetal plastic
sizeLaunch board 38*58cm
Receiver board 26*43cm

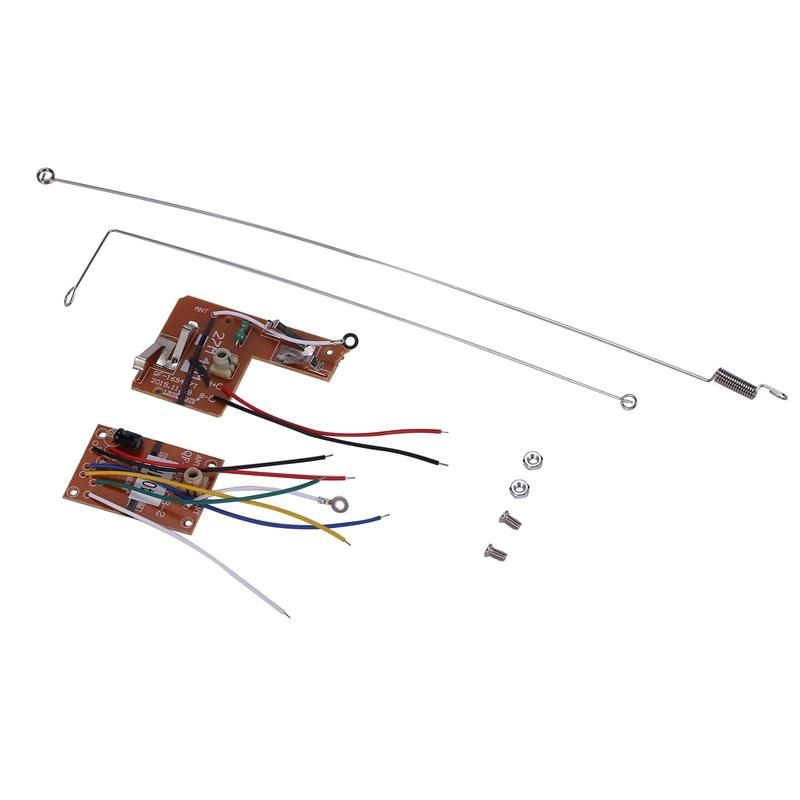

Package Contents

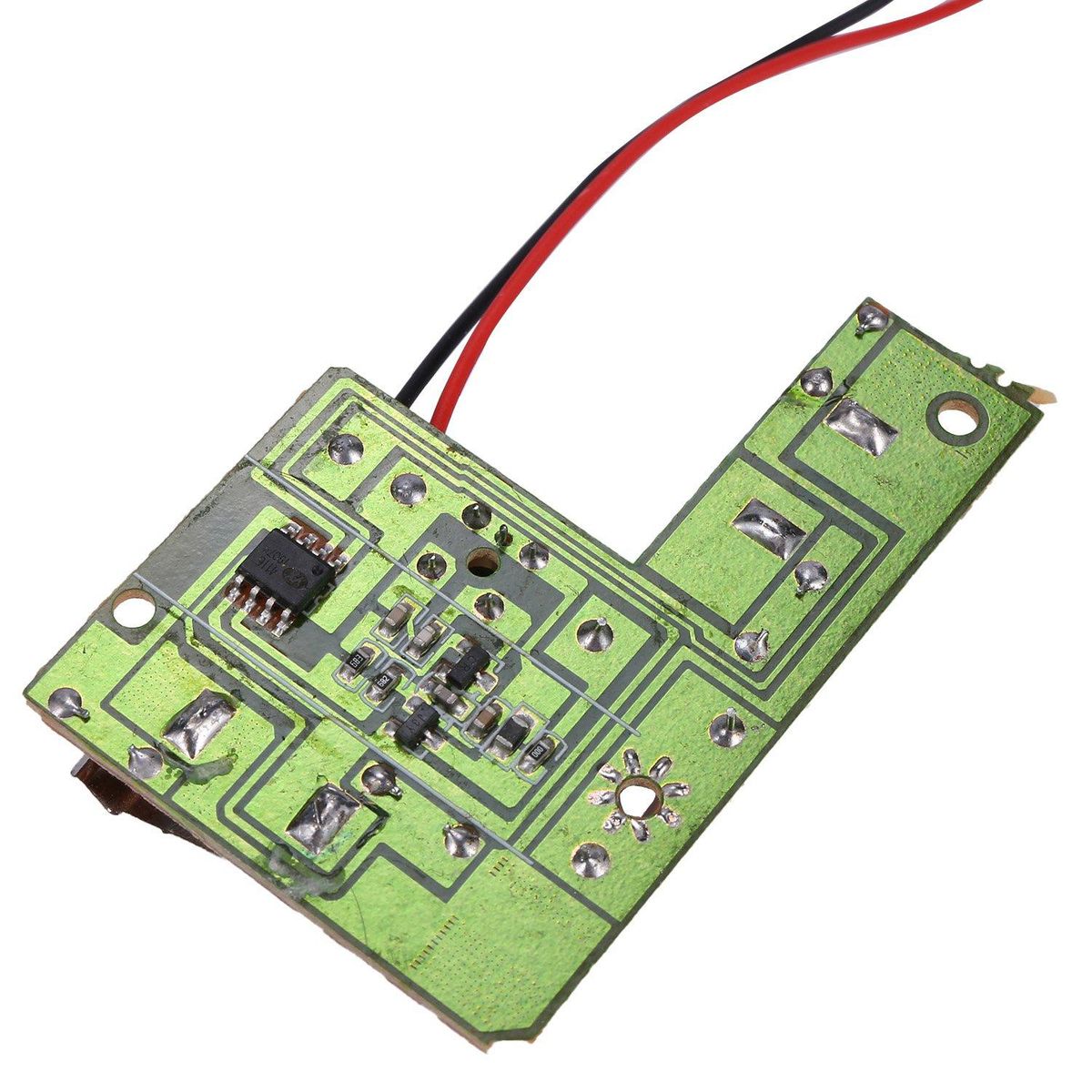

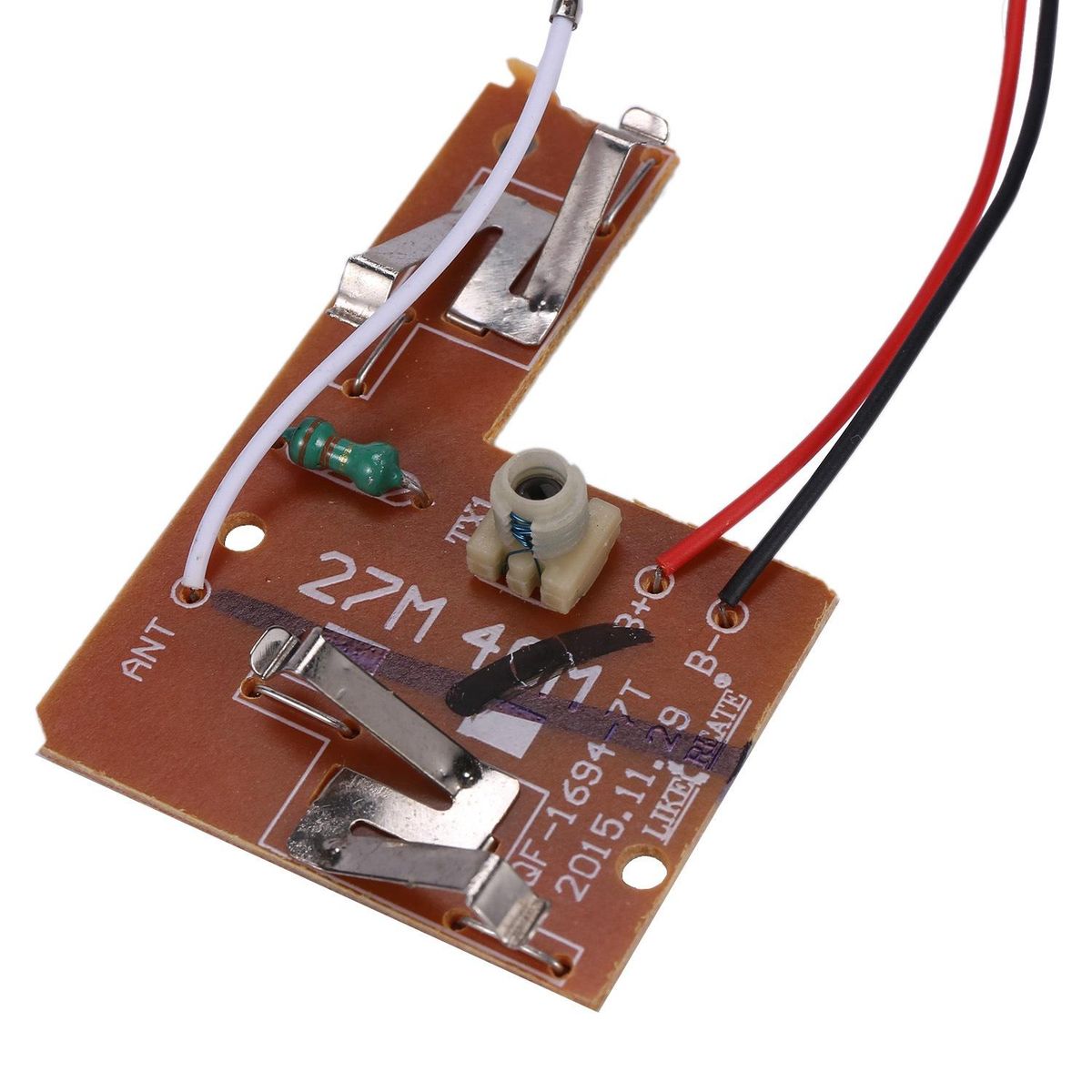

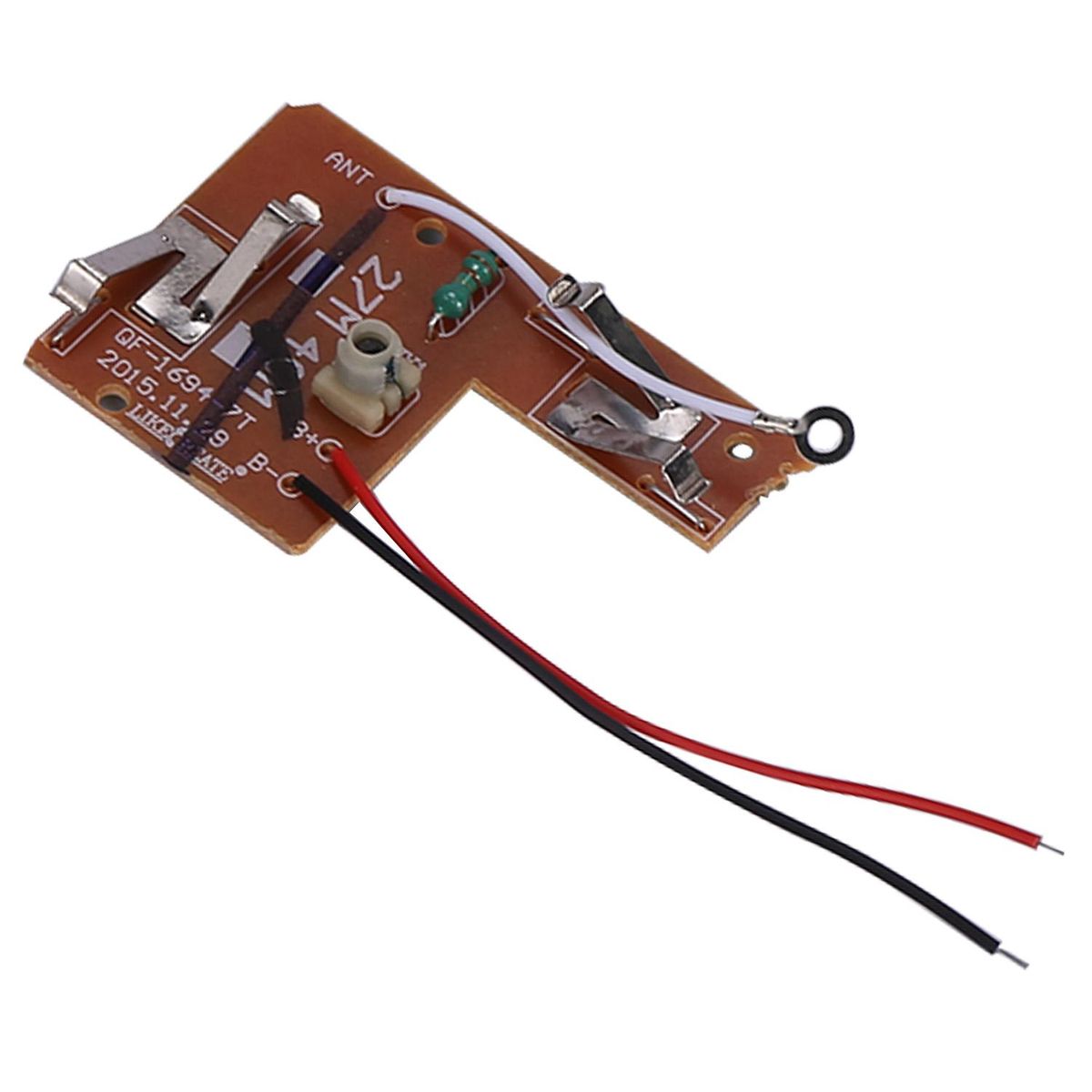

1 x 40mhz Transmitter Board
1 x 40mhz Receiver Board

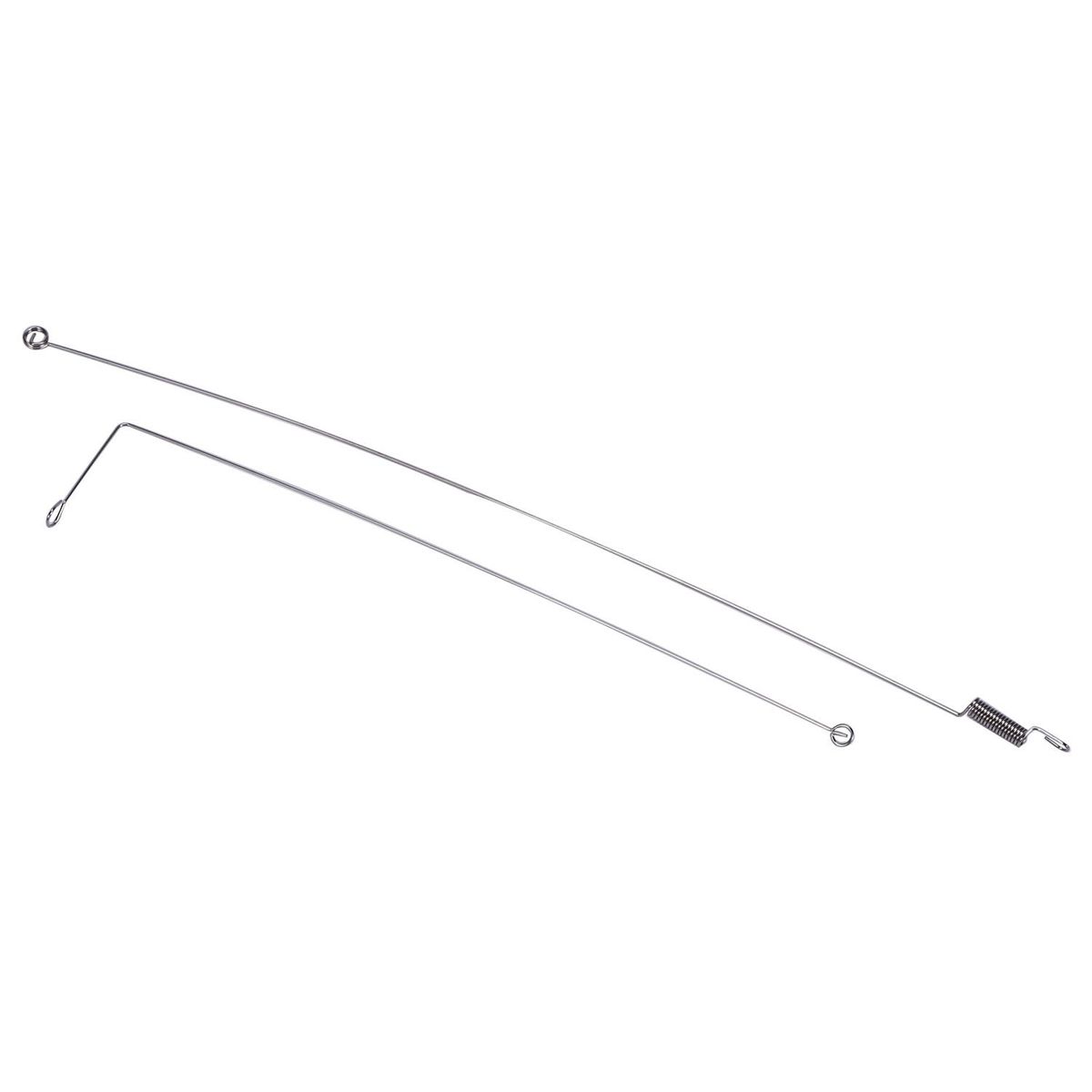

2 x Antenna
2 x Screws with nuts
Note
This version of the two-way output is basically the same suitable for the -motor with the blocking current 2A and the other 27M board of the can be used at the same time without interference
Only the above package content other products are not included
Note Light and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x 40mhz Transmitter Board
1 x 40mhz Receiver Board
2 x Antenna
2 x Screws with nuts
