Instructions: When a new battery is used for the first time, the rated voltage value is to the actual value. To the stop discharge voltage, a reasonable discharge voltage value can be obtained according to the universal voltage calculation of the battery.
When the battery is used, the actual voltage value and the rated voltage value are quite different, so you need to measure voltage value in actual use.
Battery charging usually uses slow charging (fast charging can be relatively in voltage and current, it is easy to damage the battery.) The charging voltage of slow charging is 1.2 the rated voltage, and the charging current is adjusted to about 2/10 of the rated capacity current of the battery. For example: the charging voltage of a 6V 50Ah battery is about 7.2 volts, and the charging current is adjusted to 10A.

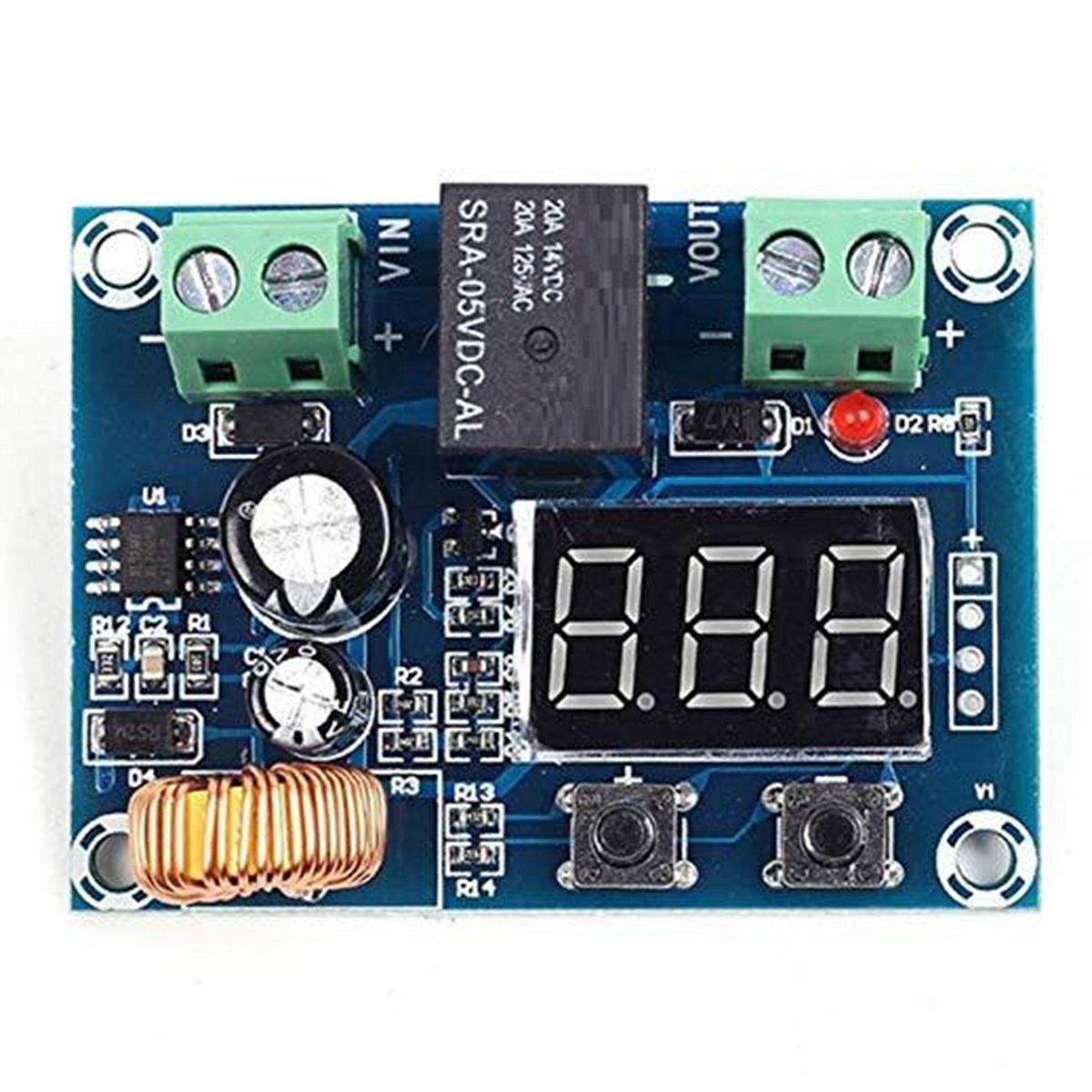

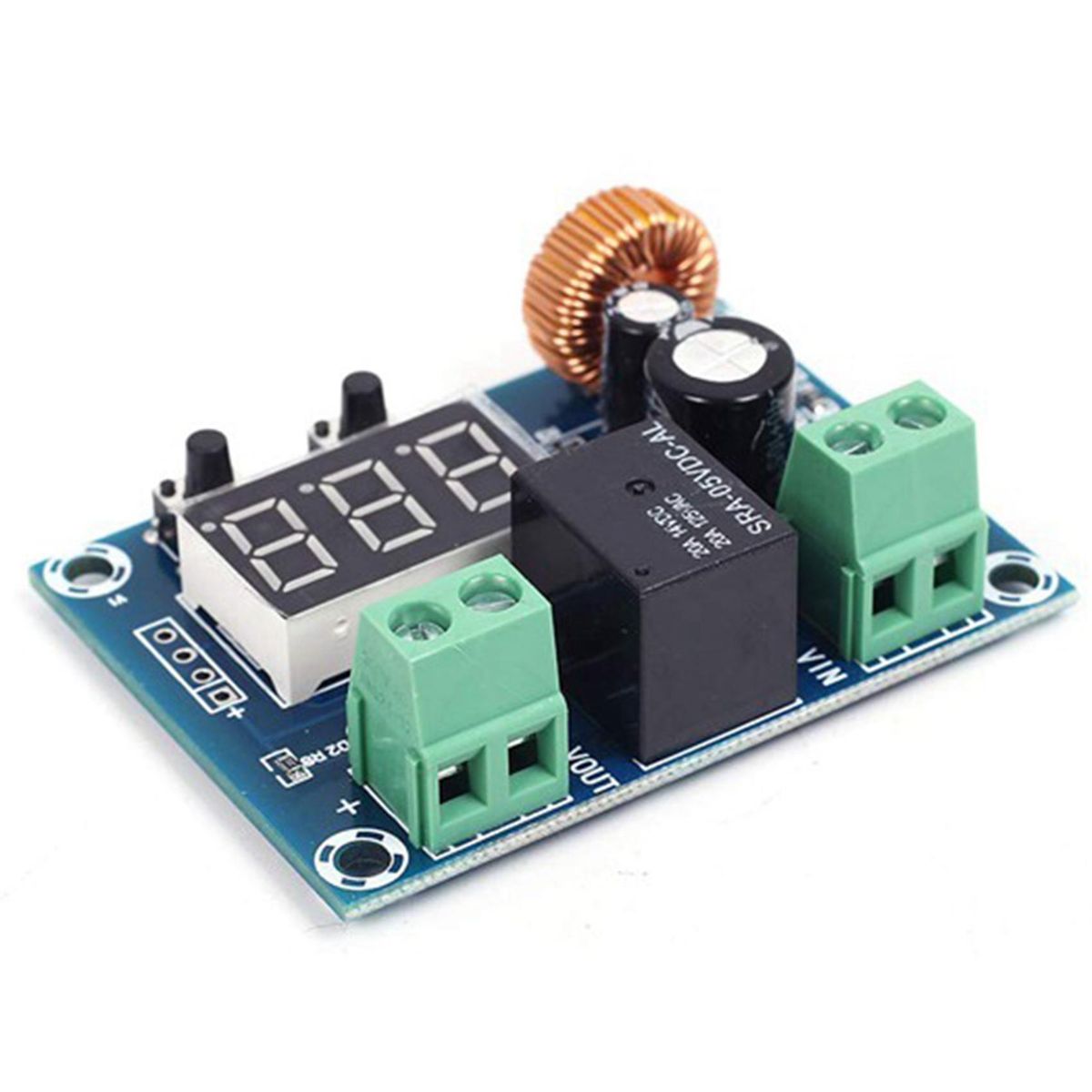

Reference formula: charging voltage = rated voltage X1.2 charging current = rated current X0.2 Product name: Battery over-discharge protection module

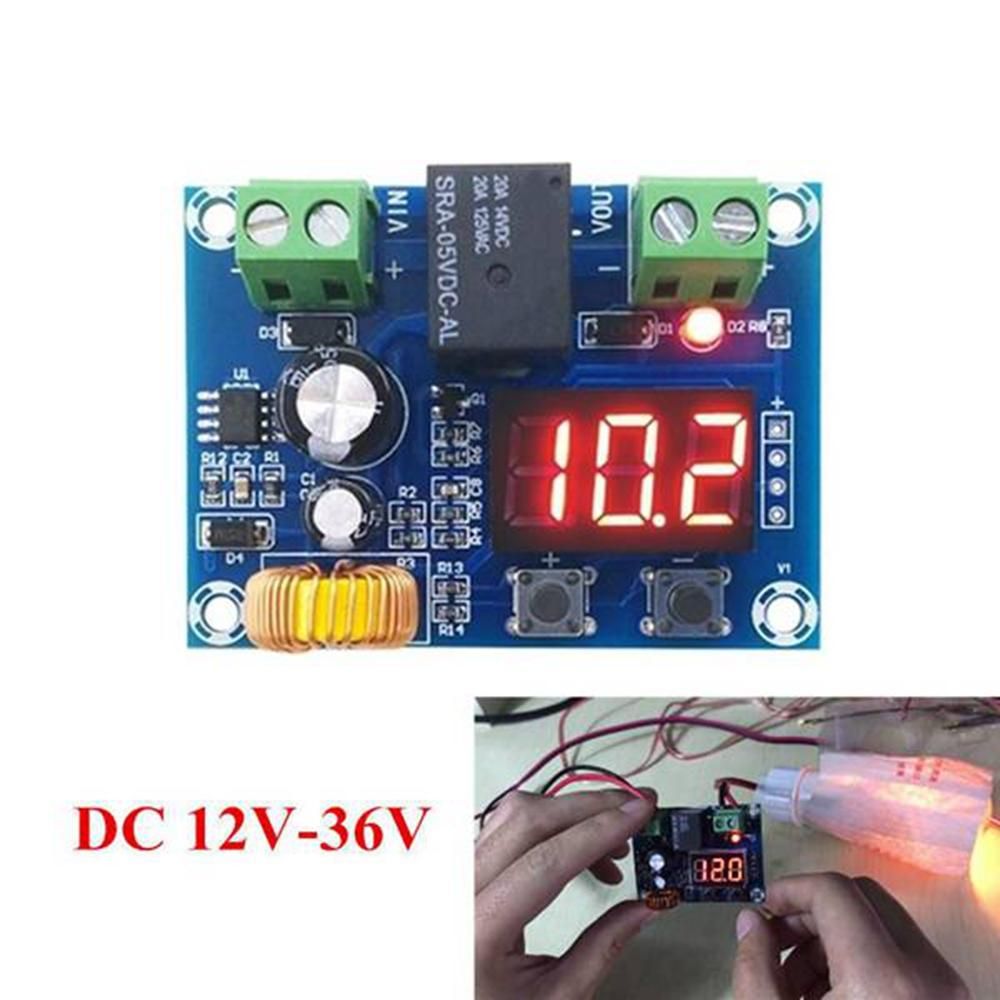

Power supply voltage: DC 12-36V
Output voltage: to the supply voltage
Control accuracy: 0.1V
Power consumption: less than 1.5W
Range of use: various storage batteries/lithium batteries
Net weight: 28g

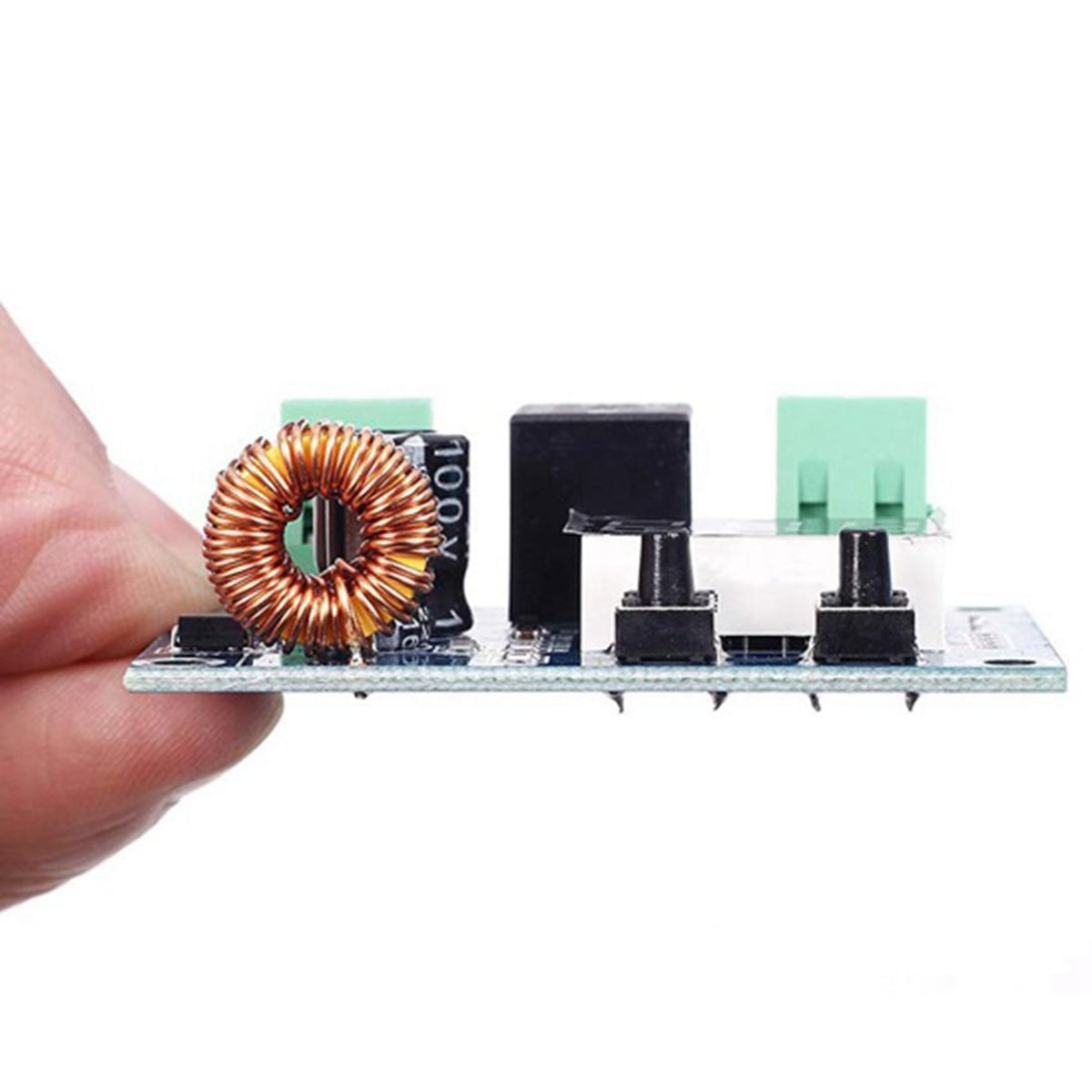

Product size: 57 x 42 x 19mm of application

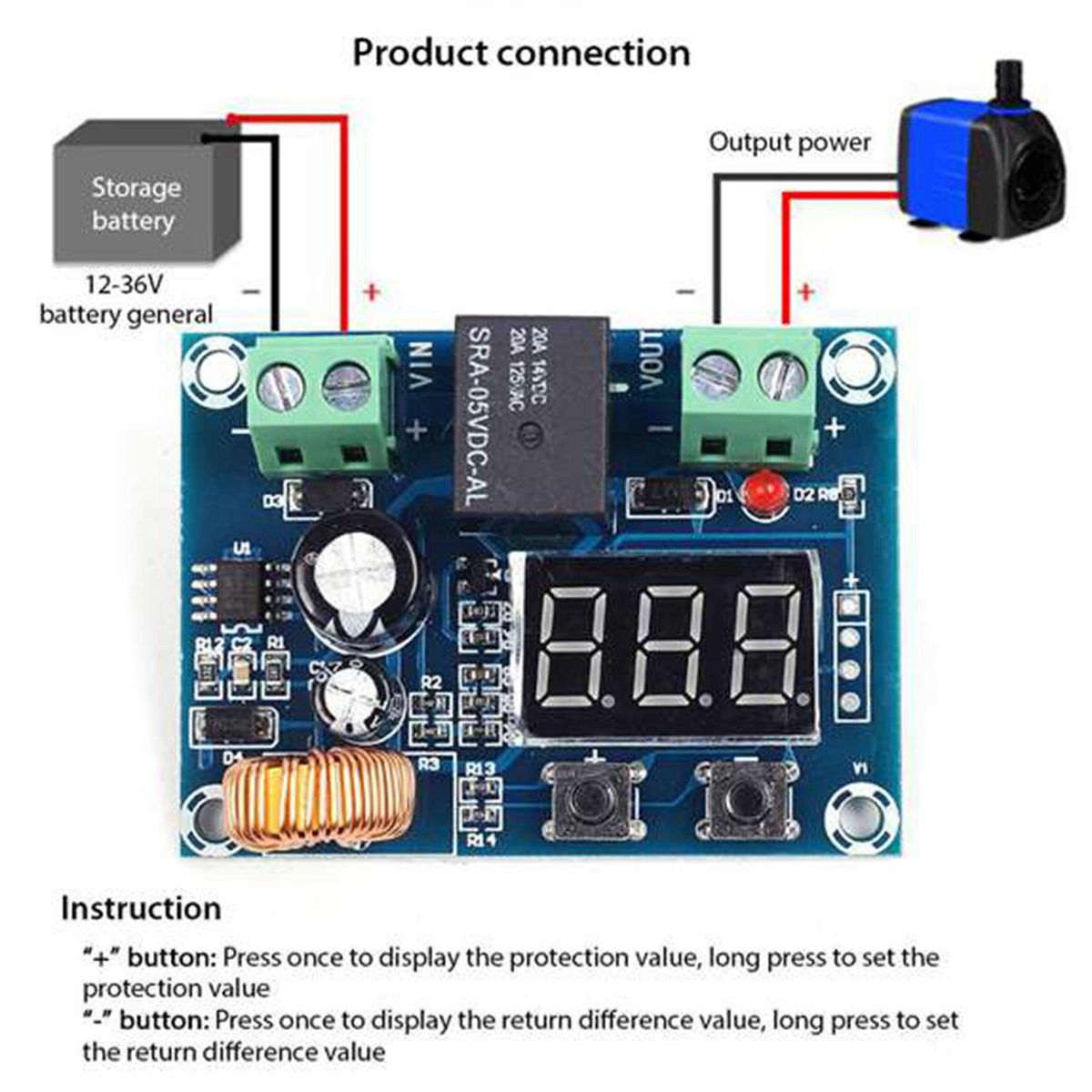

Applicable to all electric two-wheeled tricycle batteries within the applicable voltage range; Discharge protection of car batteries and new energy electric vehicle batteries; Over-discharge protection of batteries; Solar, wind and other power supply .
Colour: as shown
Material: plastic Package Contents:
1 x XH-M609 protection module Only the above package content, other are not included.
Note: Light reflection and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
low voltage cutoff
low voltage disconnect
voltage protector
low voltage cutoff
XH-M609
The details are as described above
What's In the Box
1 x XH-M609 DC voltage protection module
