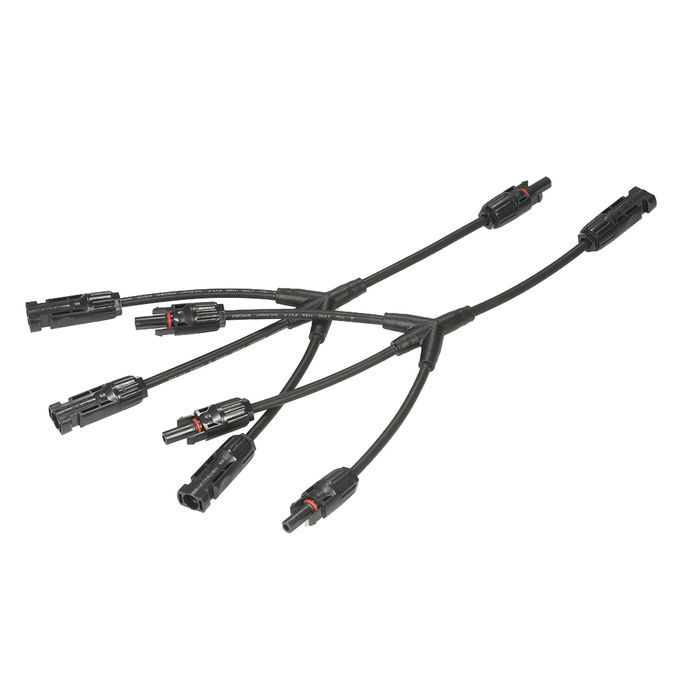

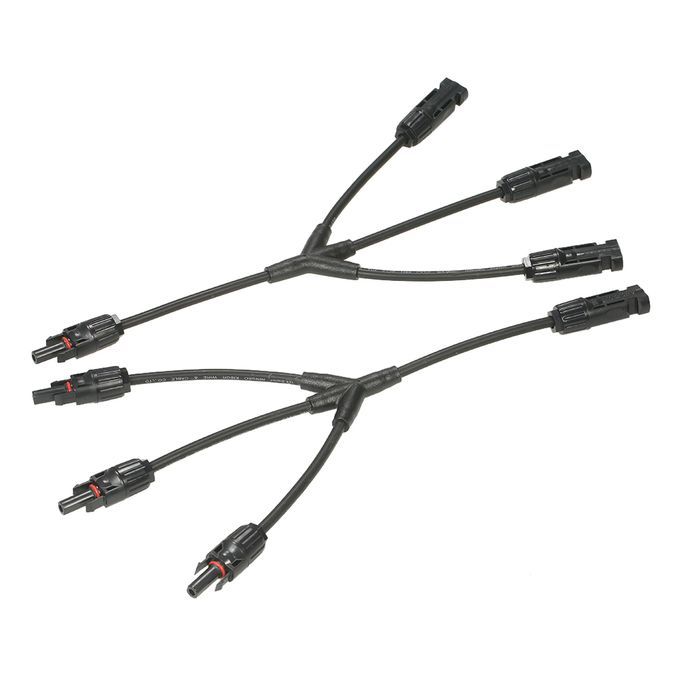

These Y-Branch MC4 compatible connectors are designed to connect solar panels between solar panels and extension, which is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications.

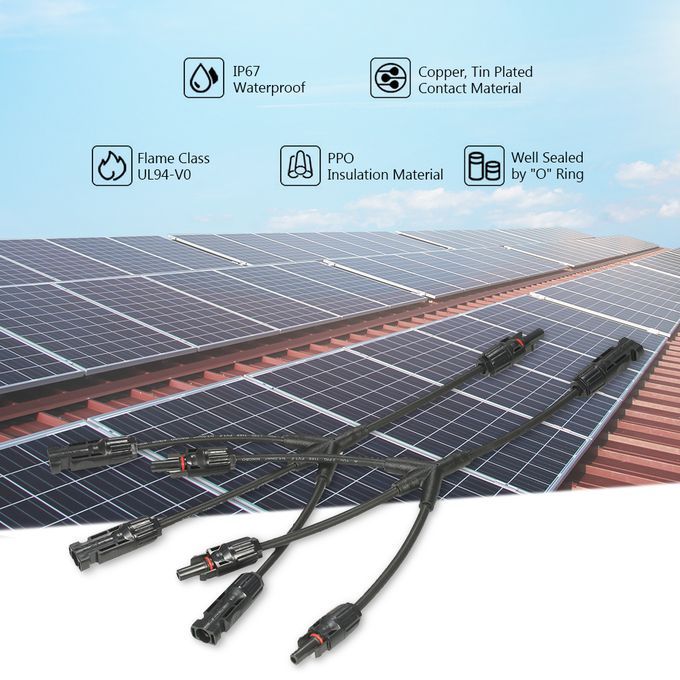

Features:Y-Branch MC4 solar panel cable connectors, suitable for PV system.
The O ring is perfect to seal out water and dust to prevent corrosion.
Compatible with PV cables with different insulation diameters.
With excellent aging resistance and UV endurance, it can be used in harsh environment.
Resistance of extra high & low temperature and fireproof.
Load capability with high current and high voltage.
Quick & simple assembly and simple removal of plugs without the aid of any extra instrument.
Great solution for parallel connection of multiple panels together in a solar field.

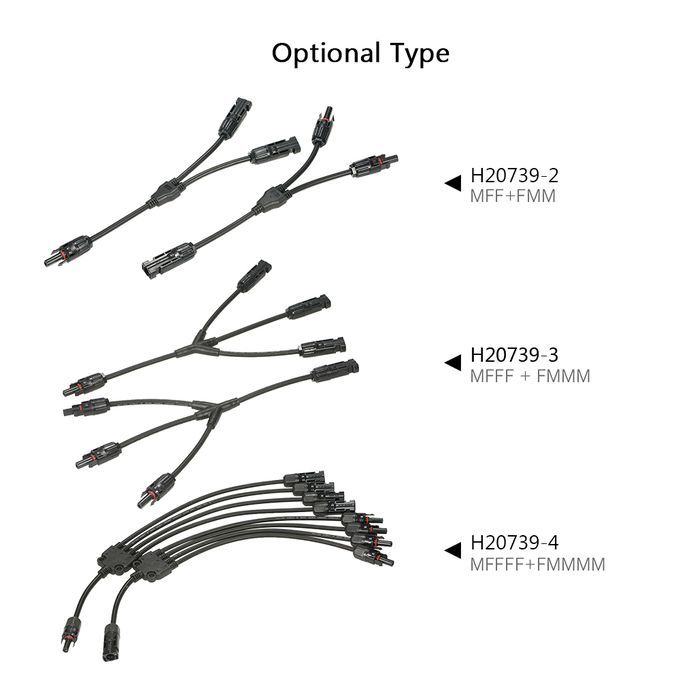

Specifications:Type: MFF+FMM / MFFF+FMMM / MFFFF+FMMMM(
Optional)
Insulation Material: PPO
Rated Current: 30A
Rated Voltage: 1000V DC
Test Voltage: 6KV(50Hz, lmin)
Typical Contact Resistance: 5mΩ
Contact Material: Copper, Tin Plated
Degree of Protection: IP67
Safety Degree: Ⅱ
Flame Class: UL94-V0
Material RTl: 110°C
Ambient Temperature Range: -40°C ~ +85°C
Wire Size: 2.5mm²/4mm²/6mm²
Package Weight: 124g-338g / 4.4oz-11.95oz
Package List:1 * Pair of Y Branch MC4 Connectors
a a a a a
Key Features
Y-Branch MC4 solar panel cable connectors, suitable for PV system.
The O ring is perfect to seal out water and dust to prevent corrosion.
Compatible with PV cables with different insulation diameters.
With excellent aging resistance and UV endurance, it can be used in harsh environment.
Resistance of extra high & low temperature and fireproof.
Load capability with high current and high voltage.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 Pair Y Branch MC4 Connector Solar Panel Adaptor Cable Conn
