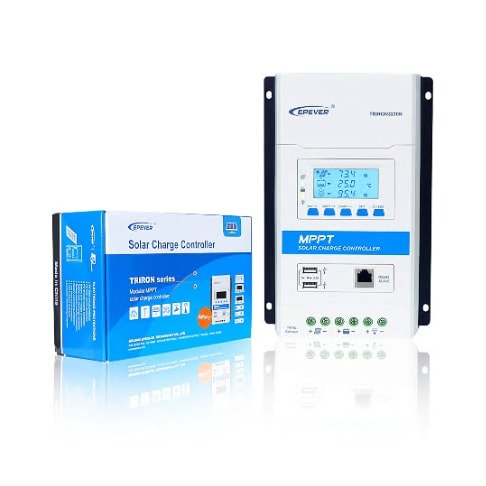

Triron 40a Mppt Charge Controller
EPEVER TRIRON SERIES MODULAR MPPT SOLAR CHARGE CONTROLLER 40A 100V MAX PV INPUT 12V/24V BATTERY CHARGER
The TRIRON series MPPT Solar Controllers are modular-designed products based on nine MPPT solar charge controller models.
The main unit (Power Module) is a mppt charge controller which can be integrated with different display and interface modules to meet a variety of functional requirements.
Among them, the master and slave interface module can synchronize and view the controller and inverter operating data on the LCD.
Optimizing the MPPT control algorithm further to ensure minimum power point loss rate and loss time, and quickly track the maximum power point to obtain the maximum solar energy of PV array in any environment. Meanwhile, TRIRON mppt charge controller adds automatic limit function of charging power and current, so that the controller would not be damaged even connecting oversized PV modules (the actual working value would not be higher than rated value).
The controller adopts the three-stage charging mode, and has perfect electronic protection function, which can effectively extend the battery life, improve the system performance, and ensure the system safety, stability and long-term operation. TRIRION mppt controller can be widely used in RV, telecommunication base station, household system, field monitoring.
Technial Data
Model: Triron 4210N UCS/DS2
Nominal System Voltage: 12V/24V Battery System
Rated Charge Current: 40A
Rated Discharge Current: 40A
Battery Voltage Range: 8-32V
Max PV Input Power: 520W (12v battery), 1040W (24v battery)
Battery Type Supported: Sealed, Gel, Flooded, LiFePO4, Li-NiCoMn, User.
