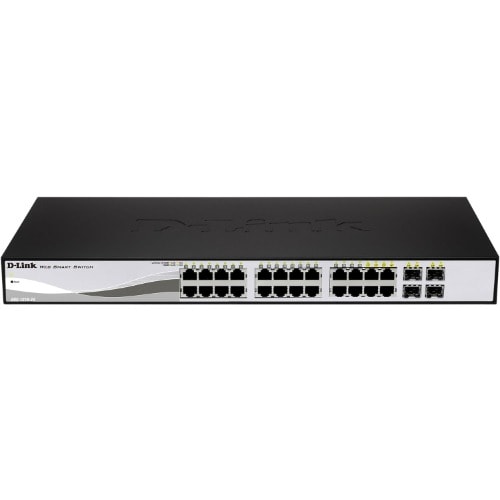

Dgs-1210-28p Web Smart 24-port Gigabit Poe Switch
D-Link DGS-1210-28P Web Smart 24-Port GIGABIT POE Switch
Weight
1.00 kg
Colour
Black
USB
-
24 x 10/100/1000BASE-T PoE ports
4 x Gigabit RJ45/SFP Combo ports
Advanced L2 switching and security features
L2+ Static Routing
Optional & ldquo;standard mode & rdquo; or & ldquo;surveillance mode & rdquo; management user interface
193 W PoE budget
Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP and DGS-1210-52MP. Using the switch & rsquo;s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.
They also support time-based PoE, which allows administrators to set a time window that determines when each port & rsquo;s PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.
Automatic Configuration
The DGS-1210 Series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network.
Extensive Management and Layer 2 Features
The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.
The Series also supports advanced features such as static routing, which allows for communication between different user groups in different VLAN segments in a network. The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.
Comprehensive Security Features to Protect Your Network
D-Link's innovative Safeguard Engine protects switches against traffic flooding and virus attacks. 802.11X port-based authentication allows the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network.
The new DGS-1210-28P and DGS-1210-52 are the latest generation of D-Link Web Smart Switches featuring D-Link Green 3.0 technology. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensures your network remains protected after the upgrade from IPv4 to IPv6. By offering multiple management options, the DGS-1210-28P and DGS-1210-52 allow quick deployment, infrastructure expansion, and seamless upgrades. Targeting small and medium sized businesses, these Web Smart Switch provide functionality, security, and manageability for a fraction of the standard cost of ownership.
The DGS-1210-28P is a PoE Web Smart Switch that provides 24 10/100/1000 Base-T PoE ports with 4 Gigabit SFP ports. In addition to IEEE 802.3af compliance, ports 1-4 provide up to 30 watts of power output following IEEE 802.3at. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs.
The DGS-1210-52 provides 48 10/100/1000 Base-T ports with 4 Gigabit SFP ports.
Energy SavingThe DGS-1210-28P and DGS-1210-52 are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, these switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the DGS-1210-28P PoE switch so that unnecessary power consumption can be saved during off hours. The switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.
Easy ManagementThe D-Link Web Smart Switch series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC & rsquo;s operating system. Furthermore, the web UI contains ten language options to make operations more straightforward. In the intial installation, the Smart Console Utility will automatically discover all D-Link Smart switches in the network, allowing administrators to assign IP addresses and subnet masks quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. Important management commands, such as download firmware or configuration file, can be completed using batchoperations for multiple switches.
Auto Surveillance VLAN and Voice VLANThe D-link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of realtime video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic is at a high level. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication.
Extensive Layer 2 FeaturesEquipped with a complete lineup of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.
Secure your NetworkD-Link & rsquo;s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.
GeneralPort Standards & Functions & bull; IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) & bull; IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) & bull; IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) & bull; Auto-negotiation & bull; IEEE 802.3x Flow Control & bull; IEEE 802.3af compliance & bull; IEEE 802.3at compliance
Number of Ports & bull; 24 10/100/1000 Mbps PoE compatible & bull; 4 Gigabit SFP
Network Cables & bull; UTP Cat.5, Cat.5e (100m max) & bull; EIA/TIA-568 100-ohm STP (100m max)
Full/Half Duplex & bull; Full/half duplex for 10/100Mbps speeds & bull; Full duplex for Gigabit speed
Media Interface Exchange & bull; Auto MDI/MDI-X adjustment for all twisted-pair ports
Performance
Switching Capacity & bull; 56 Gbps
Transmission Method & bull; Store-and-forward
MAC Address Table & bull; 16,000 entries per device
MAC Address Update & bull; Up to 256 static MAC entries & bull; Enable/disable auto-learning of MAC addresses
Maximum 64 bytes packet forwarding rate & bull; 41.7 Mpps
Packet Buffer Memory & bull; 1 MB per device
PoE
PoE Standard & bull; IEEE 802.3af and IEEE 802.3at
PoE Capable Ports & bull; Ports 1 to 4: up to 30W & bull; Ports 5 to 24: up to 15.4W
PoE Power Budget & bull; Max. 185 W
Physical and Environmental
AC Input & bull; 100 to 240 VAC 50/60Hz internal universal power supply
Maximum Power Consumption & bull; 238.4 W (PoE on), 27.4 W (PoE off)
Standby Power Consumption & bull; 16W/110V, 14W/240V
Fan Quantity & bull; Three smart fans
Acoustics & bull; 52.2 dB(A)
Heat Dissipation & bull; 813.42 BTU/hr.
Operating Temperature & bull; 41 & deg; to 122 & deg;F (-5 & deg; to 50 & deg;C)
Storage Temperature & bull; -4 & deg; to 158 & deg;F (-20 & deg; to 70 & deg;C)
Operating Humidity & bull; 0% to 95% non-condensing
Storage Humidity & bull; 0% to 95% non-condensing
Dimensions & bull; 17.32 x 9.84 x 1.73 inches; (440 x 250 x 44 mm) & bull; 19-inch standard rack mounting width, 1U height
Weight & bull; 8.15 lbs (3.7kg)
Diagnostic LEDs & bull; Power (per device) & bull; Link/Activity/Speed (per 10/100/1000Mbps port) & bull; Link/Activity (per SFP port) & bull; Fan (per device) & bull; PoE Max (per Device) (DGS-1210-28P only) & bull; Button to switch LED display mode between PoE and Link/Activity (DGS-1210-28P only)
MTBF & bull; 224,530 hours
Certifications & bull; FCC Class A & bull; CE Class A & bull; ICES-003 & bull; VCCI Class A & bull; C-Tick & bull; BSMI
Safety & bull; cUL & bull; CE LVD
