Lx503 Mk2/b Active Speaker System
Audac LX503 MK2/B ACTIVE SPEAKER SYSTEM
The LX503 is a 3-way stereo loudspeaker system consisting of an active and passive unit to be linked with each other. It offers an easy and flexible solution for a wide variation of applications, producing a clear and powerful sound. The integrated amplifier is capable of delivering a power of 2 x 40 Watt and has a line level input allowing the speaker system to be directly connected to audio sources such as CD-players, DVD players, laptops, MP3 players or many other line level audio sources. The line input is performed in three different ways, making it convenient to connect any kind of audio source without complexes. Unbalanced audio sources can be connected to either the RCA or 3.5mm jack connectors, while balanced audio sources can be connected to the Euro-Terminal block connectors. A volume potentiometer allows the user to adjust the level of loudness while the two-band tone control allows equalization of treble and bass. The mode can be selected between mono or stereo by means of a switch. The magnetically shielded loudspeakers ensure a complete immunity against interference and radiation caused by external devices, reducing the hum and noise to an absolute minimum. The passive loudspeaker should be connected to the active loudspeaker by means of a two-pin Euro-Terminal block connector and the main power should be fed to the IEC socket at the back of the active loudspeaker. Both speakers come with a sturdy steel mounting bracket, allowing proper mounting and inclining. Available in black (/B) and white (/W).
SYSTEM SPECIFICATIONS
RMS Power
2 x 40 W
Sensitivity (1W/1m)
88 dB
Frequency
Response ( & plusmn; 3 dB)
80 Hz & ndash; 20 kHz
Inputs
Connector
RCA / Cinch (Unbalanced)
3.5 mm Jack (Unbalanced)
3-pin Euro Terminal block (Balanced)
Outputs
Connector
2-pin Euro Terminal block (Speaker)
Power
Connector
IEC Power connector
Drivers
HF
3/4 & rdquo;
MF
1 & rdquo;
LF
5 1/4 & rdquo;
PRODUCT FEATURES
Dimensions
178 x 240 x 193 mm (W x H x D)
Weight
5.600 kg
Operating temperature
-20 & deg;C ~ 45 & deg;C
Construction
ABS
Bracket
Coated steel
Colours
Black (LX503MK2/B)
White (LX503MK2/W)
Pre116 6 Channel Stereo Preamplifier
Audac PRE116 6 CHANNEL STEREO PREAMPLIFIER.
The PRE116 is a 6 channel stereo preamplifier containing a variety of input possibilities for microphone and line level audio signals, offering a possibility for a wide range of small to medium sized audio installations in various kinds of applications. It features two balanced mono inputs with phantom power and three band tone control allowing connection of microphones or line level signal sources. The switchable talkover function suppresses background music if a priority signal is present, making it suitable for paging or voice file announcements. The four stereo line level inputs are implemented as a balanced one fitted with XLR connectors and three unbalanced ones fitted with RCA connectors. Hereby, connection possibilities for a wide variety of line level sources is guaranteed. Additionally, an integrated Bluetooth receiver (mixed with Ch 3) and 3.5 mm jack connection on its front panel (mixed with Ch 4) are offering convenient wired or wireless connection possibilties for portable and handheld devices including laptops, smartphones and tablets. A priority mute contact suppresses all (nonpriority) music sources in case of contact closure, allowing to link autonomous alarm systems. Input volume control is done using the corresponding rotary dials on the front panel, while the output section features a 6-segment LED VU bar, a master volume control and 2-band tone control. Connections and input or output configurations such as gain adjustment and mono/stereo switching can be done through the provided controls on the back of the device.
SYSTEM SPECIFICATIONS
Inputs
Bluetooth receiver (mixed with Ch 3)
Front 3.5mm Jack (mixed with Ch )
Priority mute contact
Signal / Noise
& gt; 90 dB
THD+N (@ 1 kHz)
& lt; 0.05%
Crosstalk (@ 1 kHz)
& gt; 70 dB
Frequency
Response ( & plusmn; 3 dB)
20 Hz & ndash; 20 kHz
Power
Supply
100 ~ 240 V AC / 50 ~ 60 Hz
Consumption
12 W
Inputs
Balanced Microphone
Type
2 x Balanced Microphone
Balanced Stereo
Type
2 x Stereo Balanced Line
Unbalanced Stereo
Type
3 x Stereo Unbalanced Line
Outputs
Balanced Stereo
Type
1 x Balanced Stereo outputs
Inputs
Microphone
Sensitivity (1W/1m)
-6 dB ~ -50 dB
Line
Sensitivity (1W/1m)
-20 dB ~ +4 dB
Balanced Microphone
Phantom Power
15 V DC
Outputs
EQ
Treble
15 dB (2.5~20 kHz)
Bass
15 dB (100 Hz)
Inputs
Balanced Microphone
EQ
High
15 dB (12.5 kHz)
Mid
15 dB (2.5 kHz)
Low
15 dB (80 Hz)
PRODUCT FEATURES
Dimensions
482 x 44 x 335 mm (W x H x D)
Weight
4,10 kg
Unit height
1 HE
Imeo1 Professional 2.1 Soundbar (w)
Audac IMEO1 PROFESSIONAL 2.1 SOUNDBAR (W)
The IMEO1 Soundbar features a slim and elegant design and includes all required functions for expansion of any audiovisual system with an impressive sound, while having a minimal hassle for installation. It & rsquo;s perfectly suited for installations such as classrooms, presentation rooms or meeting rooms where it can be used and installed in combination with screens, smartboards or projectors.
The acoustics feature two 1.75 & rdquo; high frequency drivers with an RMS rating of 15 Watt and a low frequency section composed of two 2.5 & rdquo; low frequency drivers with an RMS rating of 30 Watt, resulting in an overall 60 Watt RMS rating. The Class-D amplifier with integrated WaveSelect DSP processing and transmission line configuration for the low-frequency drivers offers a crystal clear sound reproduction with stunning low-frequency response. Selectable DSP presets offer optimization for applications such as presentations, music playback or video & rsquo;s.
Various input possibilities such as an unbalanced line input, HDMI (ARC) input or SPDIF (optical and coaxial) allow compatibility with a variation of input sources, while Bluetooth allows wireless connections with portable devices.
In installations with multiple IMEO1 & rsquo;s installed throughout the building, it can be desirable to assign custom Bluetooth ID & rsquo;s to distinguish them from each other. Typical applications are hotels, conference rooms, schools, & hellip; The hotel mode function in the firmware offers a solution for these applications. An additional function is also implemented to define a specific wake-up source, allowing the IMEO1 to always turn-on with the same input source selected, no matter which input source was selected before power-down.
An included IR remote control allows input selection, volume control and EQ preset selection while the unique and clever wall mounting bracket allows convenient mounting to walls on any kind of surface or location with an optimal guiding and coverage for the cables.
The auto standby function ensures that the IMEO is automatically put in energy-saving mode after 15 minutes without input. This way, no unnecessary energy is lost, while the IMEO remains ready to play at any moment.

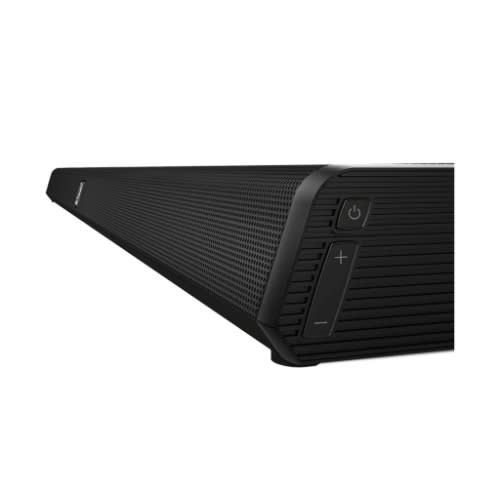

Imeo1 Professional 2.1 Soundbar (b)
Audac IMEO1 PROFESSIONAL 2.1 SOUNDBAR (B).
The IMEO1 Soundbar features a slim and elegant design and includes all required functions for expansion of any audiovisual system with an impressive sound, while having a minimal hassle for installation. It & rsquo;s perfectly suited for installations such as classrooms, presentation rooms or meeting rooms where it can be used and installed in combination with screens, smartboards or projectors.
The acoustics feature two 1.75 & rdquo; high frequency drivers with an RMS rating of 15 Watt and a low frequency section composed of two 2.5 & rdquo; low frequency drivers with an RMS rating of 30 Watt, resulting in an overall 60 Watt RMS rating. The Class-D amplifier with integrated WaveSelect DSP processing and transmission line configuration for the low-frequency drivers offers a crystal clear sound reproduction with stunning low-frequency response. Selectable DSP presets offer optimization for applications such as presentations, music playback or video & rsquo;s.
Various input possibilities such as an unbalanced line input, HDMI (ARC) input or SPDIF (optical and coaxial) allow compatibility with a variation of input sources, while Bluetooth allows wireless connections with portable devices.
In installations with multiple IMEO1 & rsquo;s installed throughout the building, it can be desirable to assign custom Bluetooth ID & rsquo;s to distinguish them from each other. Typical applications are hotels, conference rooms, schools, & hellip; The hotel mode function in the firmware offers a solution for these applications. An additional function is also implemented to define a specific wake-up source, allowing the IMEO1 to always turn-on with the same input source selected, no matter which input source was selected before power-down.
An included IR remote control allows input selection, volume control and EQ preset selection while the unique and clever wall mounting bracket allows convenient mounting to walls on any kind of surface or location with an optimal guiding and coverage for the cables.
The auto standby function ensures that the IMEO is automatically put in energy-saving mode after 15 minutes without input. This way, no unnecessary energy is lost, while the IMEO remains ready to play at any moment.
