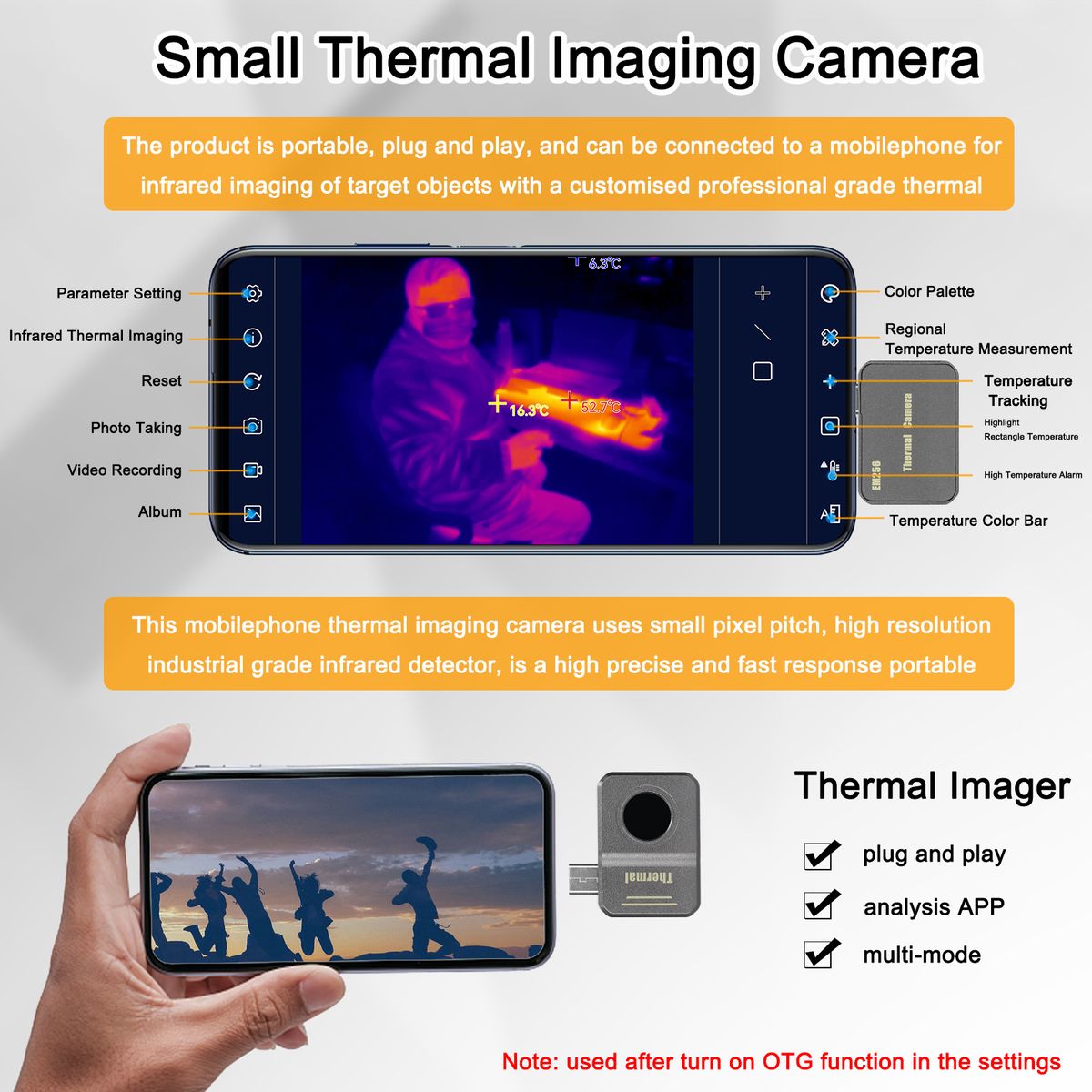

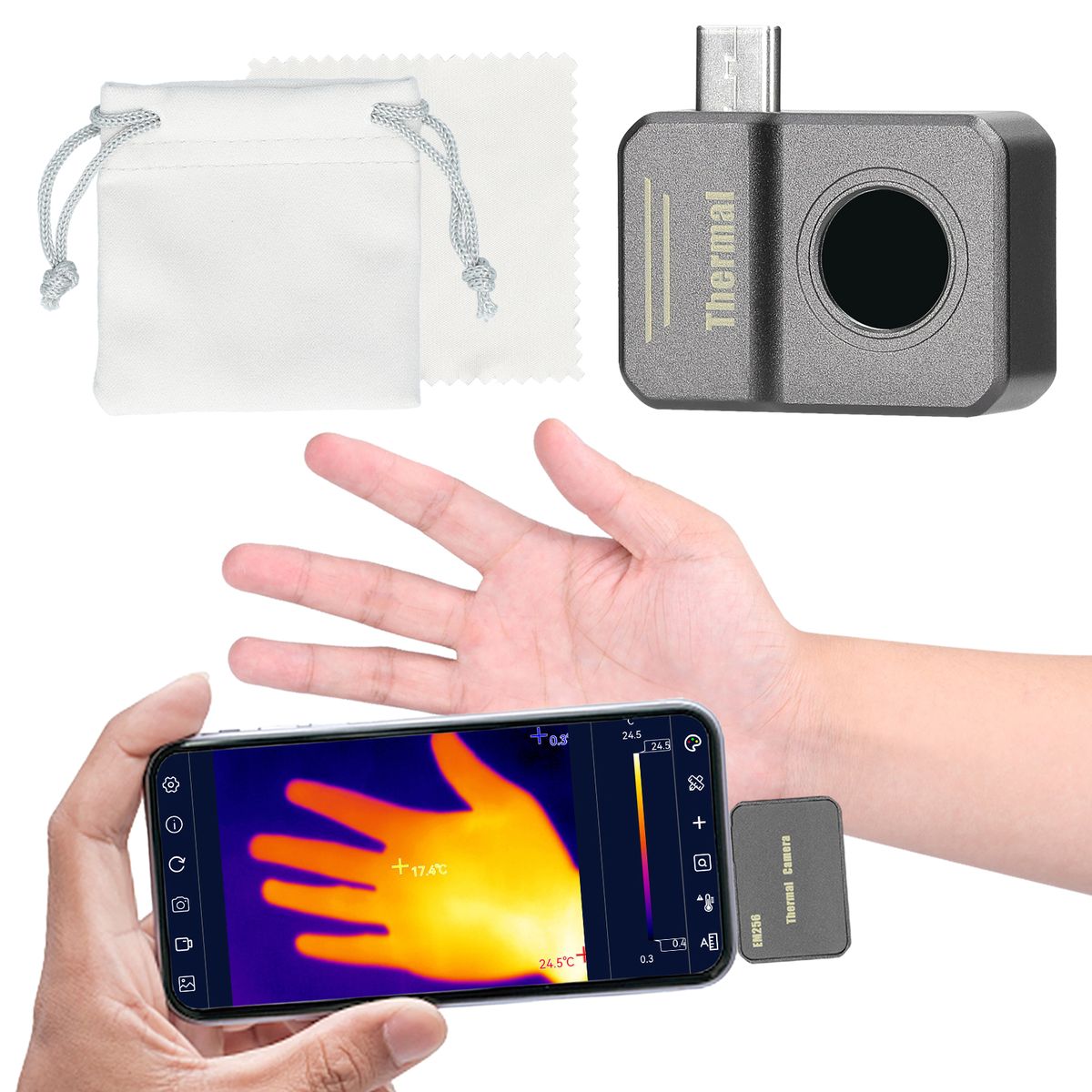

This mobilephone thermal imaging camera uses small pixel pitch, high resolution industrial grade infrared detector, is a high precise and response portable infrared thermal imaging analyzer. The product is portable, plug and play, and can be connected to a mobilephone for infrared imaging of target objects with a customised professional grade thermal analysis APP, and can be used whenever and wherever for multi-mode professional thermal analysis. Note: used after turn on OTG function in the settings.
Features:Setting: Provide App interface and parameter setting of infrared thermal imaging camera.
Reset: Reset all kinds of information in the screen and restore it to the state at startup.
Photo Taking: Take photos and store them in an album.
Video Recording: Make a video recording and store it in an album.
Album: Store photos and videos.
Infrared Thermal Imaging: Display infrared thermal imaging.
Temperature Color Bar: Display the maximum temperature and minimum temperature in the current screen with different color block bars.

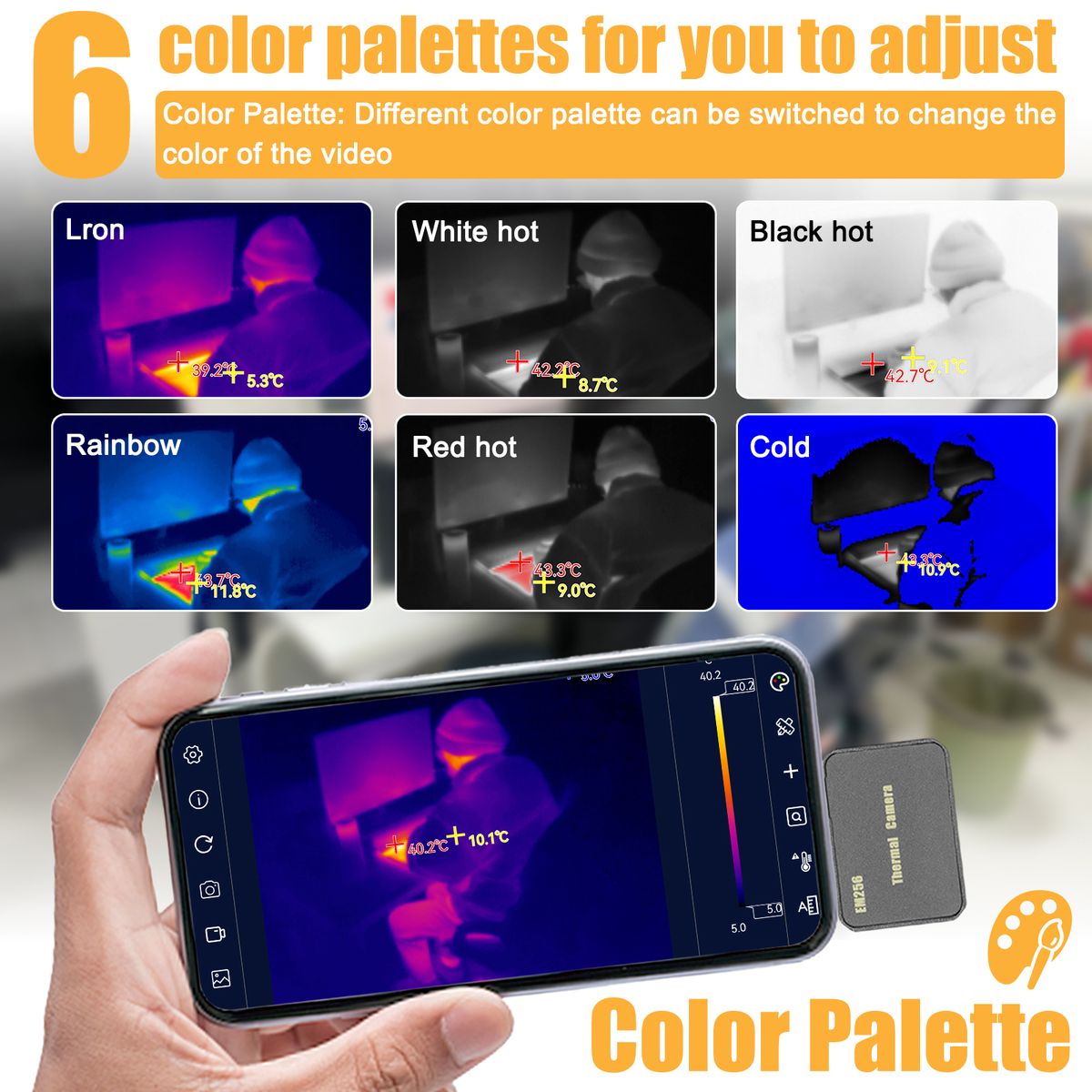

Color Palette: Different color palette can be switched to change the color of the video, with totally 6 color palettes for you to adjust.

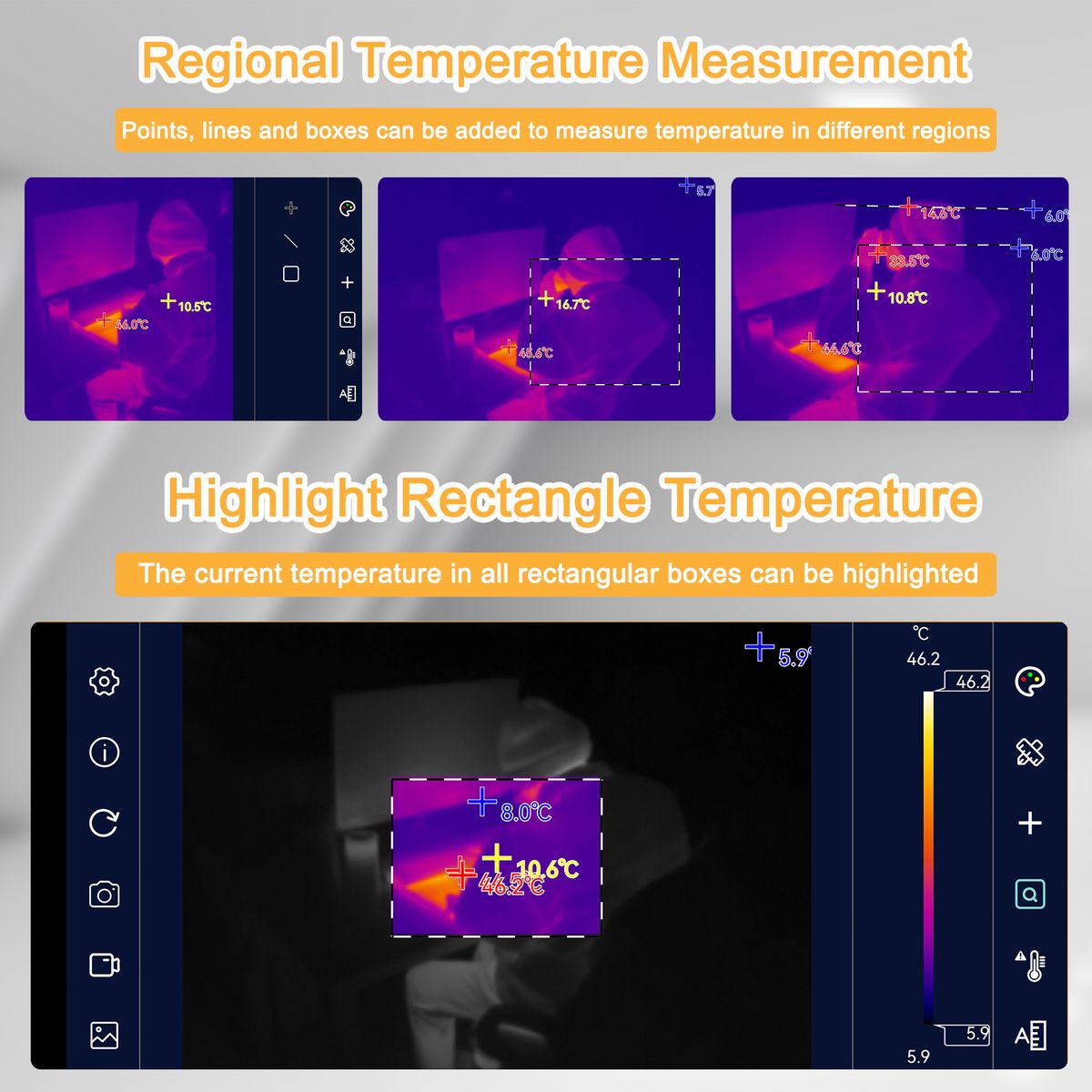

Regional Temperature Measurement: Points, lines and boxes can be added to measure temperature in different regions.

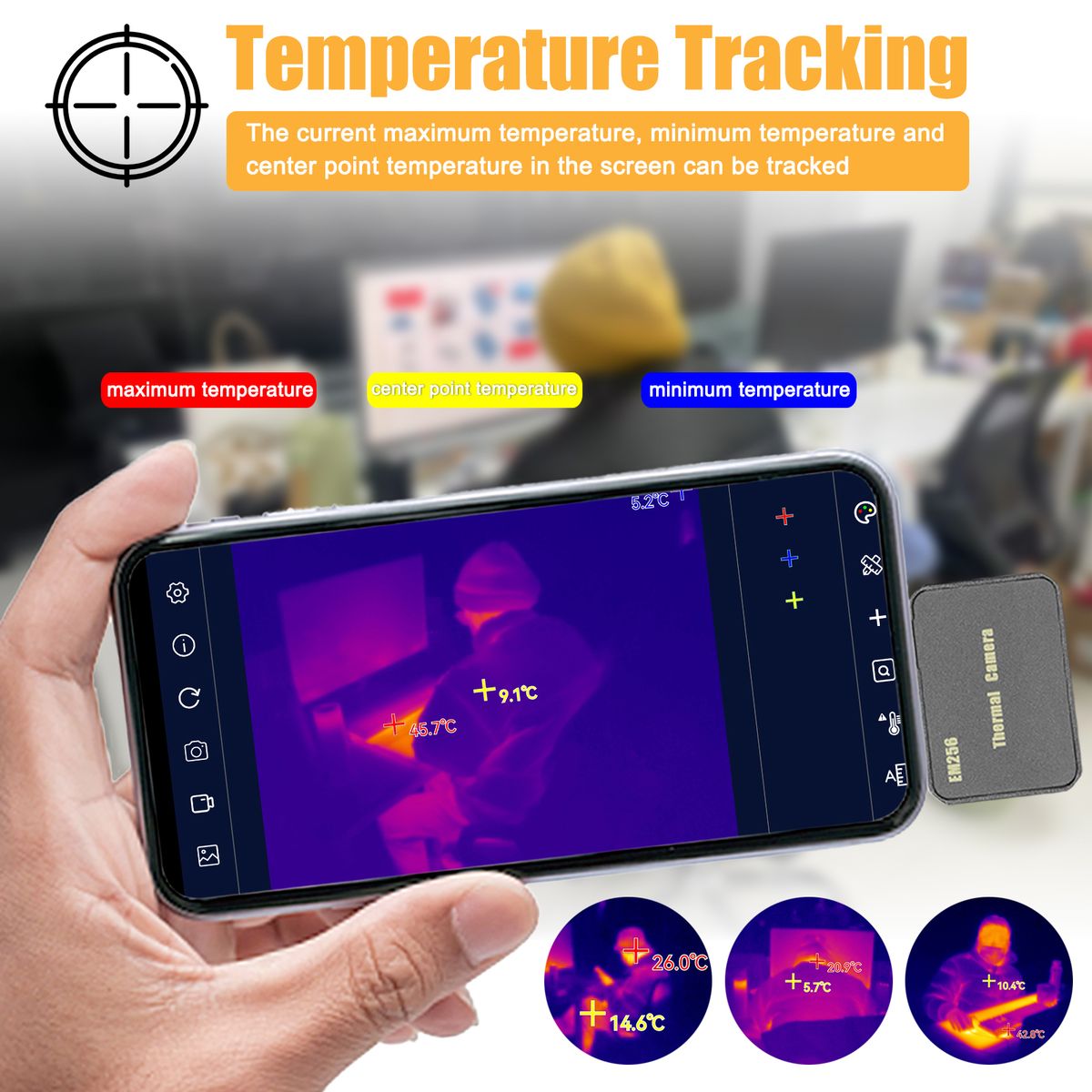

Temperature Tracking: The current maximum temperature, minimum temperature and center point temperature in the screen can be tracked.
Highlight Rectangle Temperature: The current temperature in all rectangular boxes can be highlighted. If the current screen does not have a rectangle, one will be added automatically.

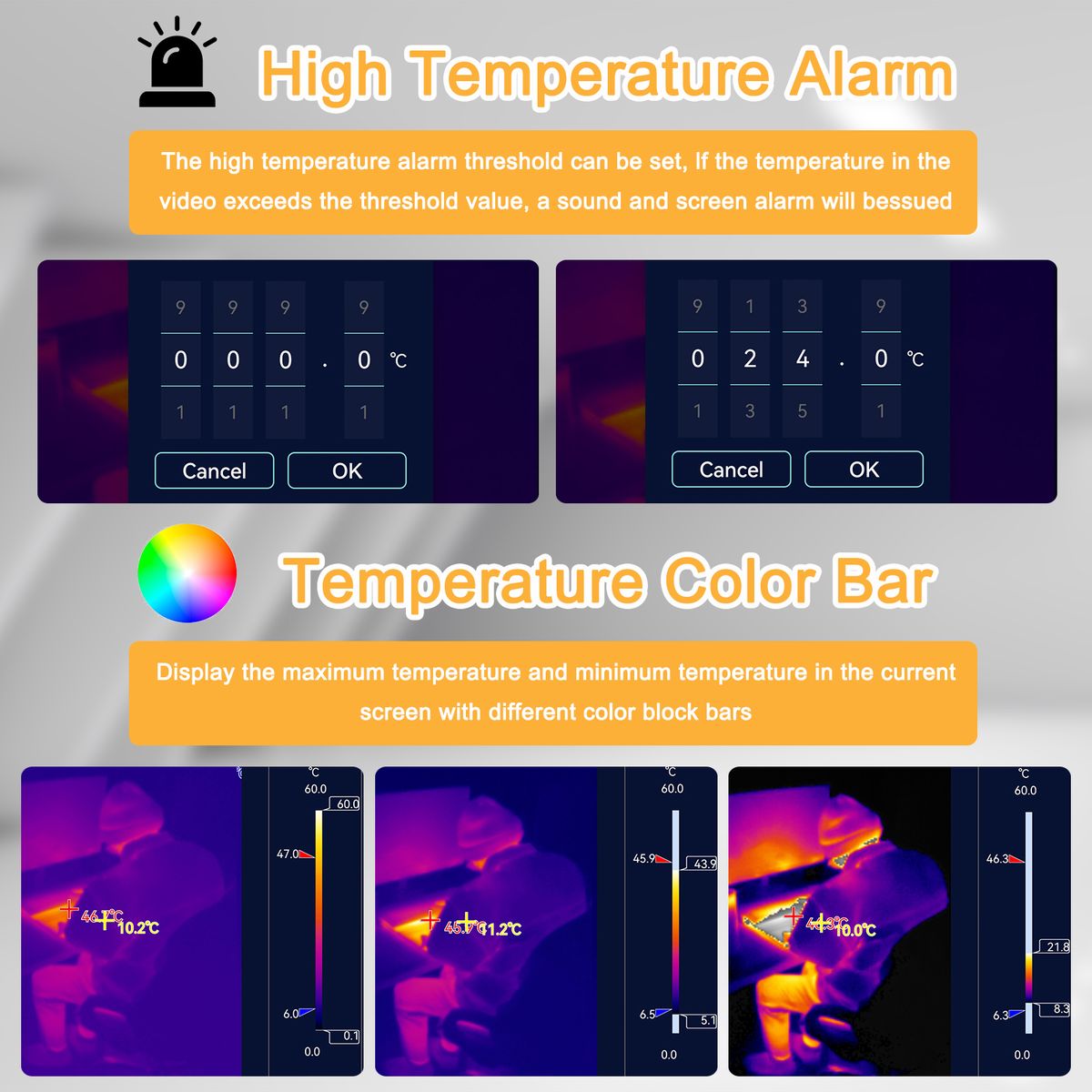

High Temperature Alarm: The high temperature alarm threshold can be set, lf the temperature in the video exceeds the threshold value, a sound and screen alarm will bessued.
Highlight High-temperature Regions: The maximum-temperature region in the screencan be displayed.

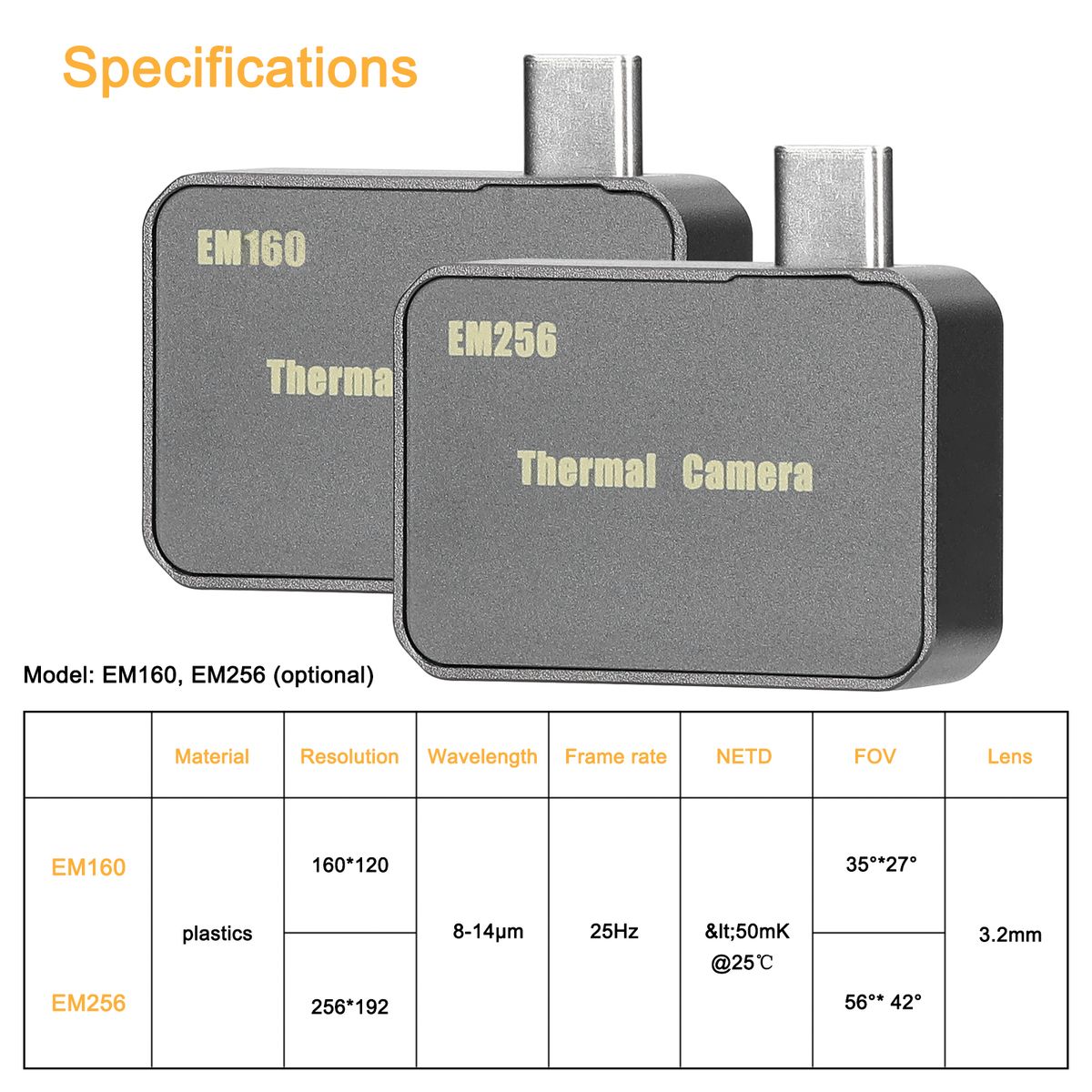

Specifications:Name: Thermal Imager
Material: plastics

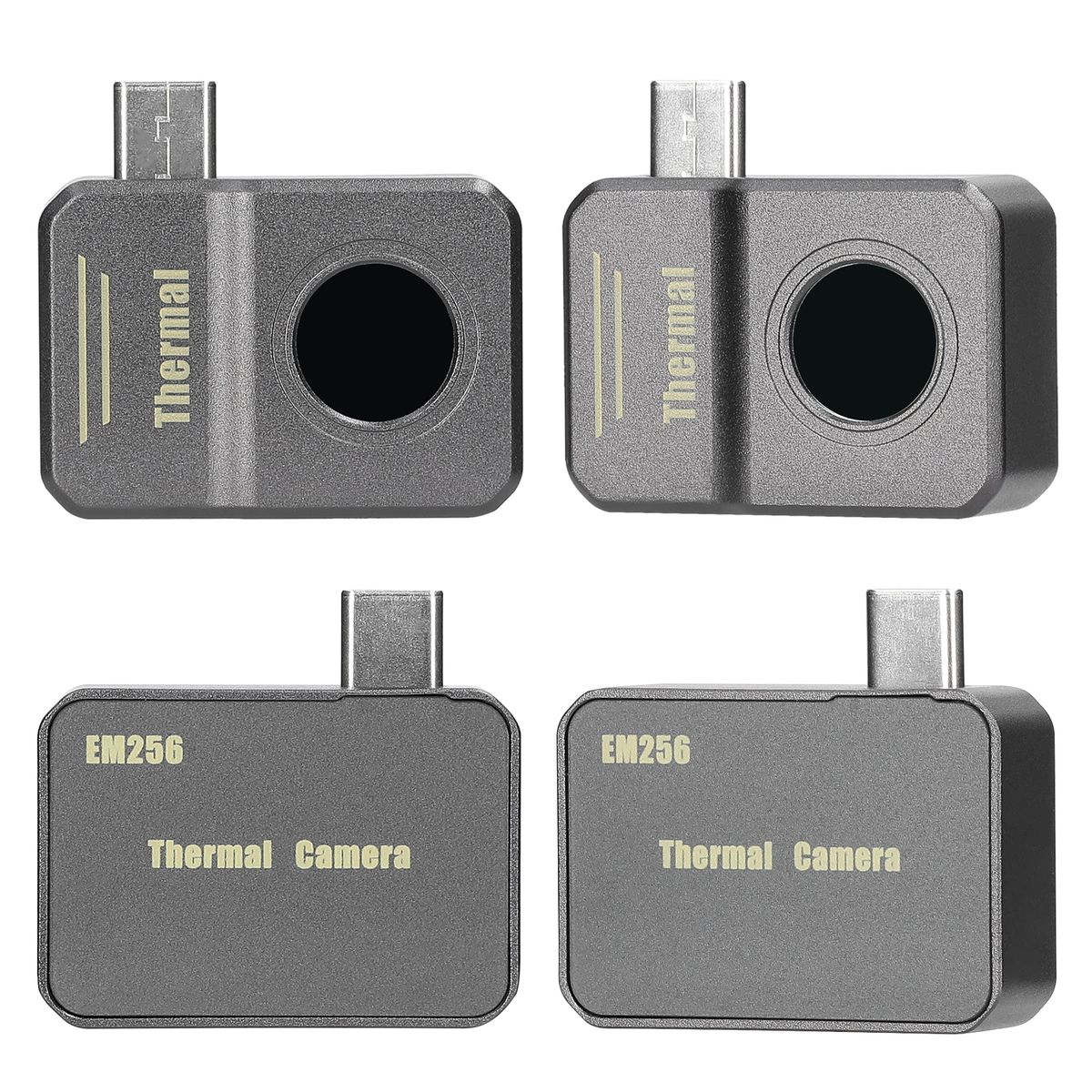

Model: EM160, EM256
(optional)Resolution: 160*120 (EM160), 256*192 (EM256)
Wavelength: 8-14μm
Frame rate: 25Hz
NETD: less than 50mK @25℃
FOV: 35°*27°; 56°*42°
Lens: 3.2mm
Temperature measurement ranges: -15℃ to 600℃ Temperature measurement accuracy: ±2℃ or +2% of reading
Temperature measurement: Highest, lowest, central point an area temperature measurement are supported
Color palette: 6
Language: English and Chinese
Working temperature: -10℃ to 75℃
Storage temperature: -45℃ to 85℃ IP rating: IP54
Item size: 34 * 26.5 * 15mm / 1.34 * 1.04 * 0.59in
Item weight: 19g / 0.67ounce
Package size: 95 * 95 * 50mm / 3.95 * 3.94 * 1.97in
Package weight: 149g / 5.26ounce
Packing List:1 * Thermal Imager
1 * Lens Cleaner
1 * Storage Bag
Key Features
Temperature Color Bar: Display the maximum temperature and minimum temperature in the current screen with different color block bars.
Color Palette: Different color palette can be switched to change the color of the video, with totally 6 color palettes for you to adjust.
Regional Temperature Measurement: Points, lines and boxes can be added to measure temperature in different regions.
Temperature Tracking: The current maximum temperature, minimum temperature and center point temperature in the screen can be tracked.
Highlight Rectangle Temperature: The current temperature in all rectangular boxes can be highlighted. If the current screen does not have a rectangle, one will be added automatically.
High Temperature Alarm: The high temperature alarm threshold can be set, lf the temperature in the video exceeds the threshold value, a sound and screen alarm will bessued.
Highlight High-temperature Regions: The maximum-temperature region in the screencan be displayed.
What's In the Box
1 x Thermal Imager,1 x Lens Cleaner,1 x Storage Bag

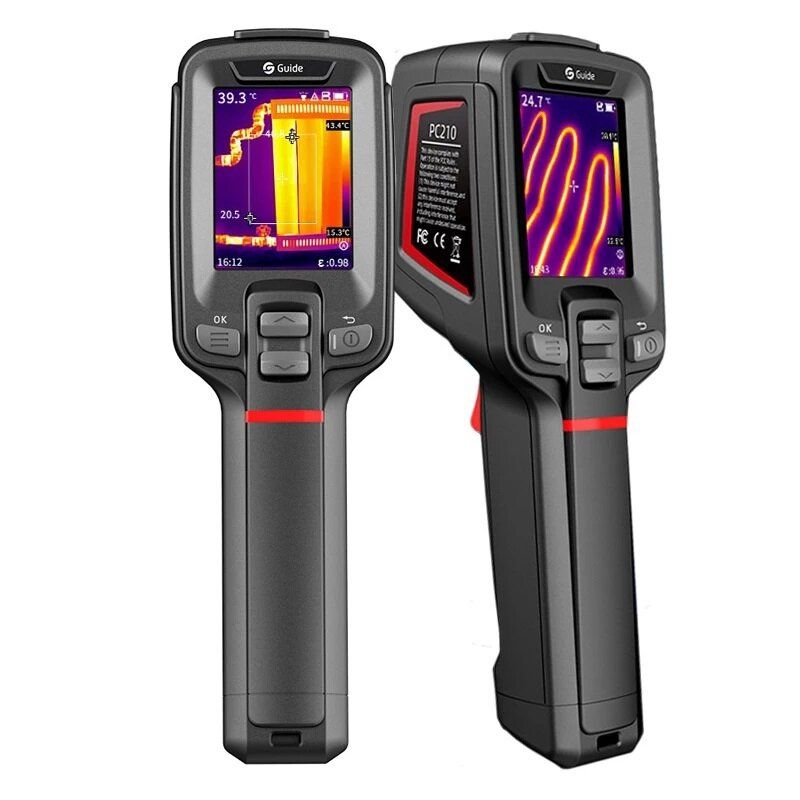

![](https://cartnear.s3.us-east-2.amazonaws.com/ng/4d2d5e9ad3b6373d751cabc472a753bd.jpg "Guide PC210 256x192 2.4\\" LCD Screen Industrial Thermal")
